96-Port Fiber Patch Panel - Wall Mount

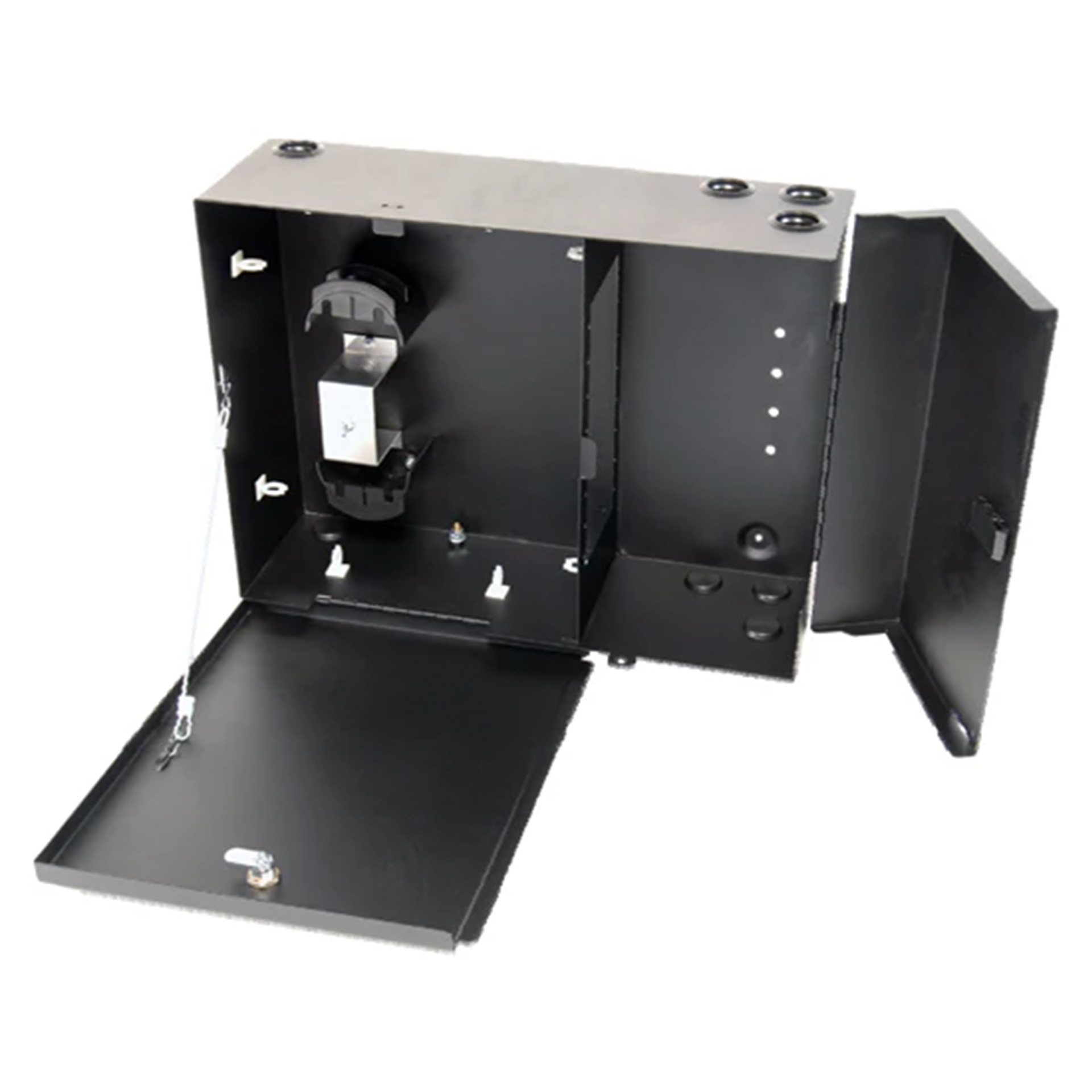

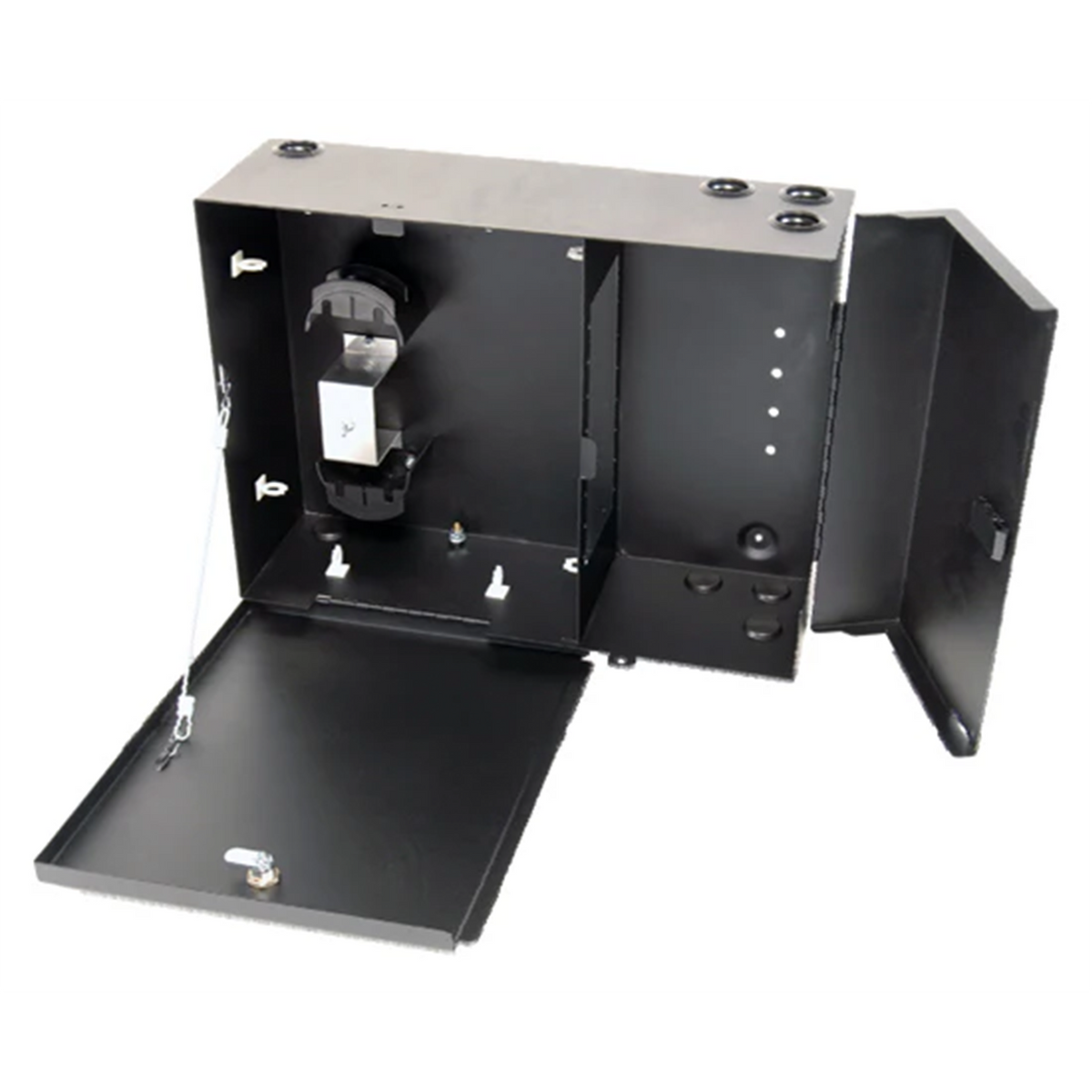

Ultra-high-density wall-mounted fiber patch panel engineered for maximum capacity installations requiring combined patching, splicing, security, and innovative workspace functionality. This lockable steel enclosure features 8 adapter panel positions (96-port capacity) plus 4 splice trays (96-splice capacity), with a revolutionary drop-down removable network door that doubles as a work shelf for field splicing and maintenance. The dual outer door design with lockable network compartment provides enhanced security while the workspace integration enables faster, more efficient installations and service in data centers, carrier facilities, and large enterprise environments.
Key Features
- 96-Port Maximum Capacity - 8 adapter panels support up to 96 fiber connections
- 96-Splice Capacity - 4 splice trays accommodate 96 fusion splices (24 fibers each)
- Drop-Down Work Shelf Door - Revolutionary removable network door doubles as splicing workspace
- Lockable Dual Doors - Two outer doors with lockable network compartment for security
- 8 Adapter Panel Positions - Maximum flexibility for various connector types
- 4 Splice Tray Storage - Generous splice capacity for large-scale installations
- Integrated Workspace - Built-in work surface eliminates need for external tables
- Blank Configuration - Field-install components based on requirements (sold separately)
- Heavy-Duty Steel Construction - 16-gauge powder-coated steel for durability
- Space-Efficient Design - Maximum capacity in compact 16"H x 20"W x 6.5"D footprint
- Professional Black Finish - Clean appearance for any installation environment
Ideal Applications
Perfect for maximum-capacity fiber distribution requiring workspace integration:
- Data Centers - High-density rack-adjacent distribution
- Telecommunications Central Offices - Maximum wall-mount capacity
- Large Enterprise Buildings - Main distribution frames (MDF)
- Campus Networks - Central high-capacity fiber hubs
- Carrier Hotels - Dense interconnection points
- Multi-Tenant Buildings - Maximum building distribution capacity
- Government Facilities - Secure high-density fiber management
- Healthcare Campuses - Large hospital network distribution
- Educational Institutions - University central distribution
- Industrial Complexes - Maximum manufacturing facility capacity
Physical Specifications
- Dimensions: 16" (H) x 20" (W) x 6.5" (D)
- Metric Dimensions: 406mm (H) x 508mm (W) x 165mm (D)
- Weight: 25 lbs (11.3 kg)
- Material: 16-Gauge Powder-Coated Steel
- Color: Black
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 96 fiber ports (MAXIMUM wall-mount capacity)
- Adapter Panel Positions: 8 panels (12 ports per panel typical)
- Splice Tray Capacity: 4 trays (24-fiber capacity each)
- Total Splice Capacity: 96 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, MPO, or mixed configurations
Door Configuration
- Door Type: Dual outer doors with lockable compartment
- Network Door: Drop-down removable door with work shelf function
- Distribution Door: Standard access door
- Lock Provision: Lockable network compartment (lock sold separately)
- Work Shelf: Network door converts to field workspace
- Material: 16-gauge steel doors
Interior Organization
- Adapter Panel Zone: 8 positions for maximum density termination
- Splice Tray Zone: 4 trays for organized splice storage
- Cable Routing: Integrated guides for professional fiber management
- Workspace Integration: Drop-down door provides work surface
