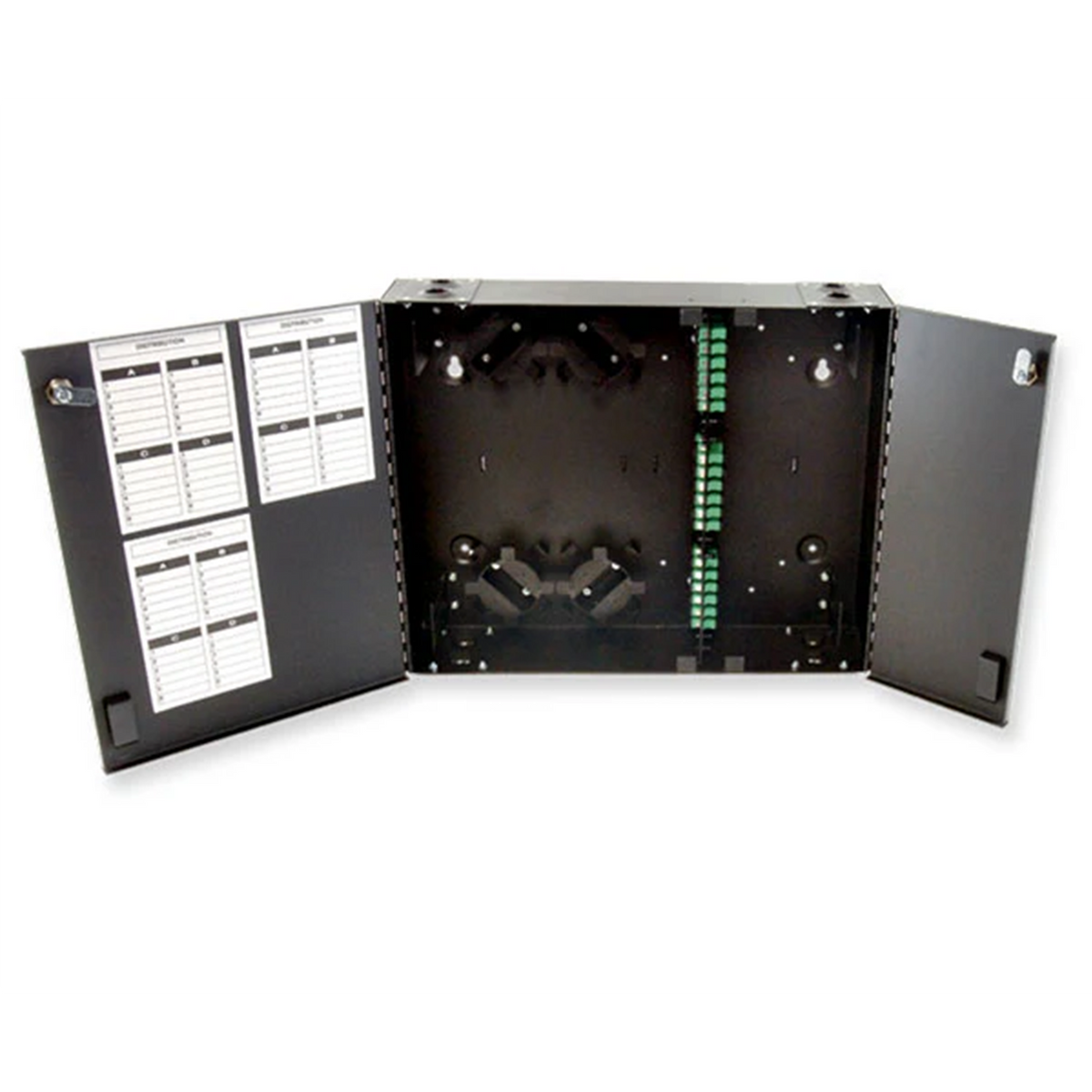

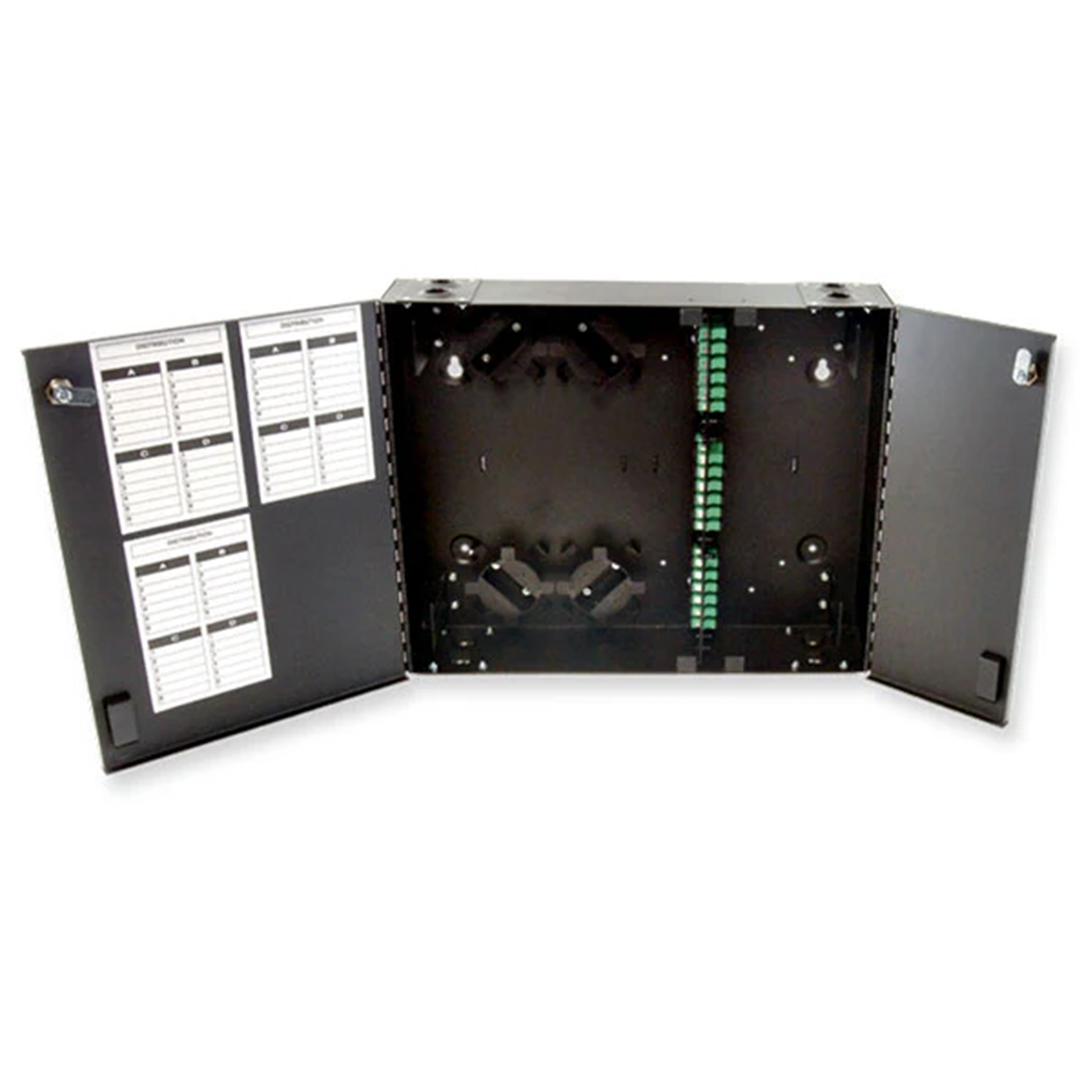

72-Port Fiber Patch Panel - Wall Mount, Dual Door
High-density wall-mounted fiber patch panel engineered for enterprise and carrier applications requiring maximum capacity, organized access, and separation security in a single professional enclosure. This dual-door steel housing features 9 adapter panel positions (72-port capacity) plus 3 splice trays (72-splice capacity), providing complete patching and splicing capability for large-scale installations. The unique dual lockable door design separates network and distribution sides, enabling organized access control and maintenance while protecting critical fiber connections in data centers, telecommunications facilities, and large enterprise buildings.
Key Features
- 72-Port High-Density Capacity - 9 adapter panels support up to 72 fiber connections
- 72-Splice Capacity - 3 splice trays accommodate 72 fusion splices (24 fibers each)
- Dual Lockable Doors - Separate network and distribution sides for organized access control
- Side Separation Security - Independent door access prevents unnecessary exposure
- 9 Adapter Panel Positions - Maximum flexibility for various connector types
- 3 Splice Tray Storage - Generous splice capacity for large installations
- Blank Configuration - Field-install components based on specific requirements (sold separately)
- Heavy-Duty Steel Construction - 16-gauge powder-coated steel for durability
- Professional Organization - Logical separation of network and distribution zones
- Compact Wall Mount - High-density capacity without floor space consumption
- Professional Black Finish - Clean appearance for any installation environment
Ideal Applications
Perfect for high-capacity fiber distribution requiring organized access:
- Data Centers - Row distribution or building entry points
- Telecommunications Central Offices - High-density termination
- Large Enterprise Buildings - Main distribution frames (MDF)
- Campus Networks - Central fiber distribution hubs
- Carrier Hotels - Interconnection and cross-connect points
- Multi-Tenant Buildings - High-density building distribution
- Government Facilities - Large-scale secure fiber management
- Healthcare Campuses - Hospital network distribution
- Educational Institutions - University building interconnects
- Industrial Complexes - Manufacturing facility fiber backbone
Physical Specifications
- Dimensions: 21.2" (H) x 17" (W) x 5" (D)
- Metric Dimensions: 538mm (H) x 432mm (W) x 127mm (D)
- Weight: 24 lbs (10.9 kg)
- Material: 16-Gauge Powder-Coated Steel
- Color: Black
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 72 fiber ports
- Adapter Panel Positions: 9 panels (8 ports per panel typical)
- Splice Tray Capacity: 3 trays (24-fiber capacity each)
- Total Splice Capacity: 72 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, MPO, or mixed configurations
Door Configuration
- Door Type: Dual outer lockable doors
- Access Separation: Network side / Distribution side independent access
- Lock Provision: Each door lockable independently (locks sold separately)
- Organization: Logical separation for maintenance and security
- Material: 16-gauge steel doors
Interior Organization
- Adapter Panel Zone: 9 positions for high-density termination
- Splice Tray Zone: 3 trays for organized splice storage
- Cable Routing: Integrated guides for professional fiber management
- Separation: Clear division between network and distribution
What's Included
- 1x High-density fiber patch panel enclosure (steel, black powder-coat)
- Dual outer lockable doors
- Interior mounting positions for 9 adapter panels
- Interior storage for 3 splice trays
- Mounting hardware
