NM Cable Stripper for 14/2 & 12/2 - High Carbon Steel, Built-in Wire Cutter (WSC-1412)

SKU: WSC-1412 UPC: 811490018792
Regular price $23.95
Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Ships direct from the manufacturer — please allow up to 10 business days, though it often ships sooner, then goes out via the shipping service you select at checkout. This item does not ship from our warehouse, so delivery times may vary.

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

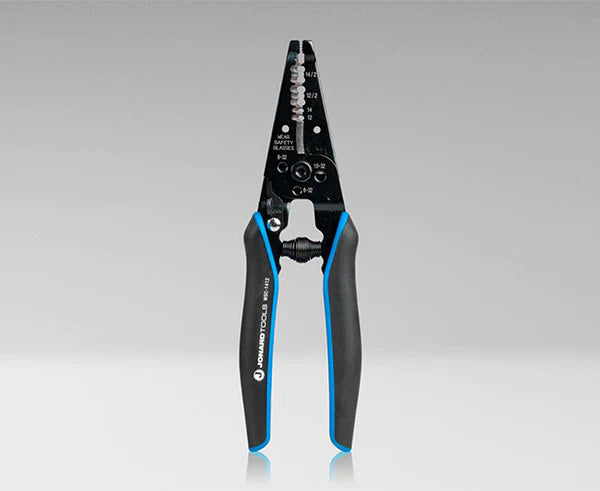

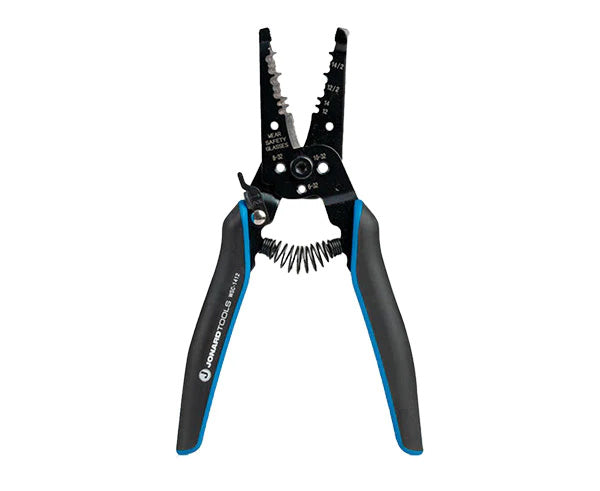

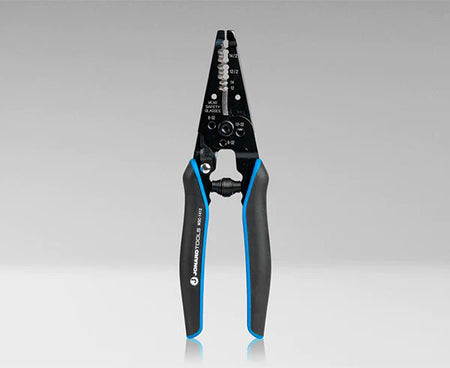

Roughing in a house means the same four motions at every box: strip the NM jacket, strip the conductors, cut to length, loop the ends for the device screws, and the Jonard Tools WSC-1412 does all four in one tool. It's a cable stripper sized for 12/2 and 14/2 NM cable, with stripping slots that take the outer jacket off, stripping holes for the insulation on the 12 and 14 AWG solid conductors inside, a built-in wire cutter, and looping holes that bend a conductor into a hook for a terminal. Screw shears for 6-32, 8-32, and 10-32 screws handle the device and cover-plate screws that are always a quarter inch too long, and the serrated nose grips and pulls. The tool is SK5 high carbon steel with TPR grips, a coil spring that opens it after every cut, and a lock that holds it closed in the pouch, at 7.25 in and a bit over a quarter pound.

Features

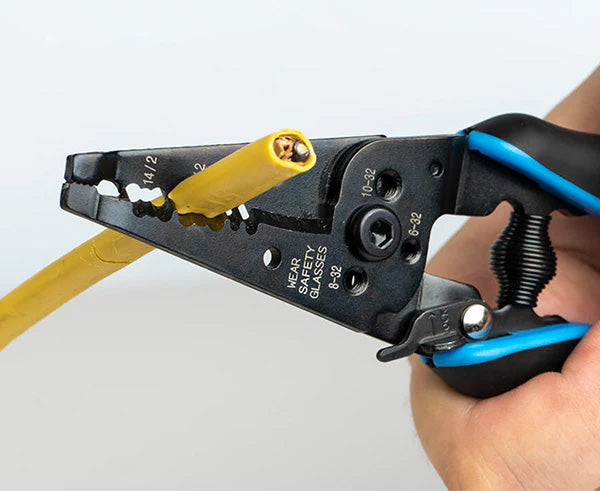

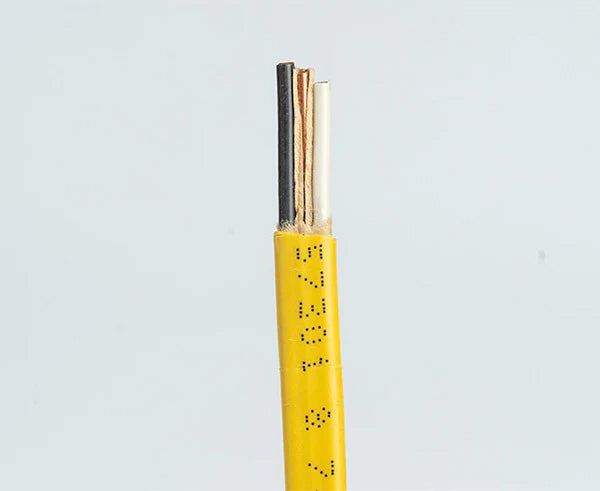

  • NM jacket stripping slots. Remove the outer jacket from 12/2 and 14/2 NM cable without nicking the conductors inside.

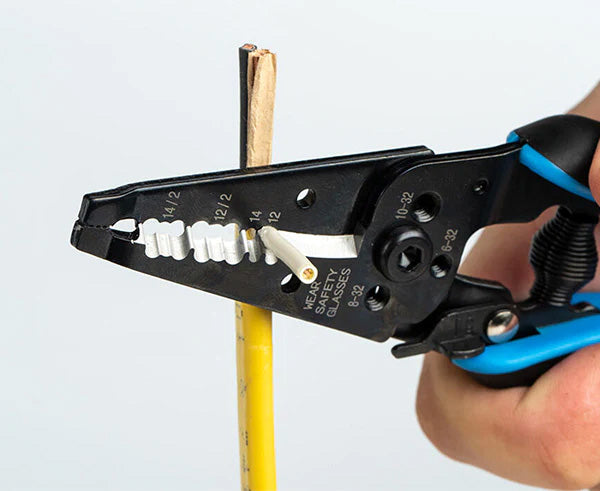

  • 12 and 14 AWG stripping holes. Strip the insulation from the solid conductors in the same tool.
  • Built-in wire cutter. Cut the conductors to length without reaching for a second tool.

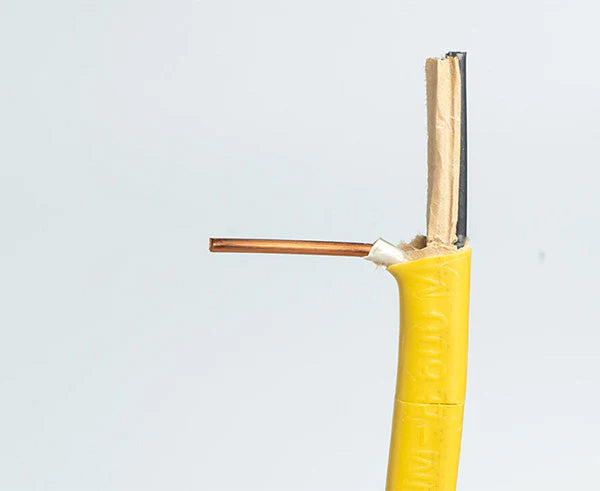

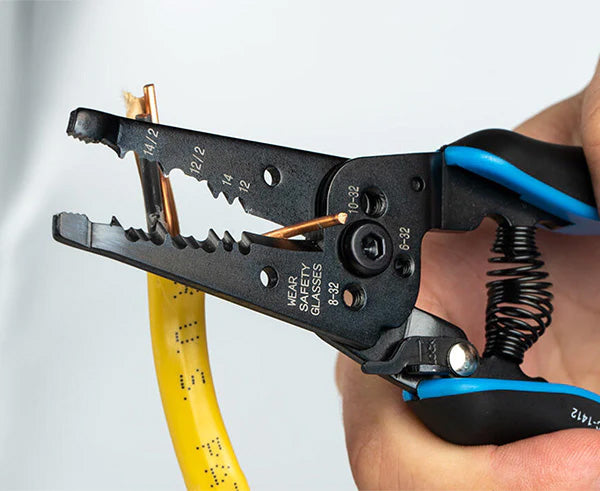

  • Looping and bending holes. Form a hook on the stripped conductor for a screw terminal.
  • Screw shears. Cut 6-32, 8-32, and 10-32 screws to length with a clean thread.
  • Serrated nose. Grips the jacket or a conductor for pulling and bending.
  • SK5 high carbon steel, TPR grips. Hard steel for the blades, with grips that take the sting out of a day of rough-in.
  • Coil spring and tool lock. The spring opens the tool after each cut; the lock keeps it closed when it's not in use.

Where It Fits

It suits residential electricians running 12/2 and 14/2 NM-B on rough-in, where every box needs a jacket strip, two conductor strips, a cut, and a loop, apprentices and service electricians who want the whole box in one tool on the belt, remodelers and homeowners adding a circuit or swapping receptacles and switches, where the screw shears turn a too-long device screw into the right one, anyone replacing a separate NM ripper, stripper, and cutter with one tool, and a pouch that has room for a 7.25 in stripper but not for three tools that do what it does. For other wire sizes, the WS-5 adjustable stripper covers 10 to 30 AWG, and the ST-series pocket strippers handle the fine stuff.

Good to Know

The jacket slots are sized for 12/2 and 14/2 NM, which means the flat two-conductor-with-ground cable; 12/3 and 14/3 are a different, rounder profile, and 10/2 and larger won't fit the slots. To strip the jacket, lay the cable in the slot for its size, close, and pull the tool off the end; the slot scores the jacket so the sheath peels back without the blade reaching the conductor insulation, and if you see a mark on a conductor, you're using the wrong slot or pressing too hard. Strip the conductors in the hole marked for their gauge, 12 or 14, and pull straight; a conductor stripped in the hole one size small comes out with a ring mark that's a future hot spot under a terminal screw. Loop solid conductor in the looping hole and set it on the terminal so the hook closes clockwise, the direction the screw tightens. To shear a screw, thread it into the matching threaded hole from the correct side, cut, and back it out, which cleans the thread as it comes; cutting a screw with the wire cutter instead leaves a burr that won't start in the device. The cutter is for 12 and 14 AWG copper, not for cable with the jacket on and not for screws or steel. The coil spring opens the tool, so lock it before it goes in the pouch. Work on dead circuits only; the TPR grips are for comfort and aren't rated as insulation.

Specifications

Spec Detail
Model WSC-1412
Manufacturer Jonard Tools
Type NM cable stripper and wire cutter
Cut Type Cut and strip
Cable Size 12/2 and 14/2 NM cable
Wire Gauge 12 and 14 AWG
Cable Type Solid conductors
Screw Shears 6-32, 8-32, 10-32
Looping Holes Yes
Nose Serrated
Blade Material SK5 high carbon steel
Handle Grip Material Thermoplastic rubber (TPR)
Action Coil spring, with tool lock
Handle Length 4.125 in (104.8 mm)
Dimensions 7.25 × 2.18 × 0.72 in (18.42 × 5.54 × 1.83 cm)
Weight 0.28 lb (128 g)
Shipping Ships direct from the manufacturer, allow up to 10 business days

Documentation

Document Link
Data Sheet WSC-1412 data sheet (PDF)
