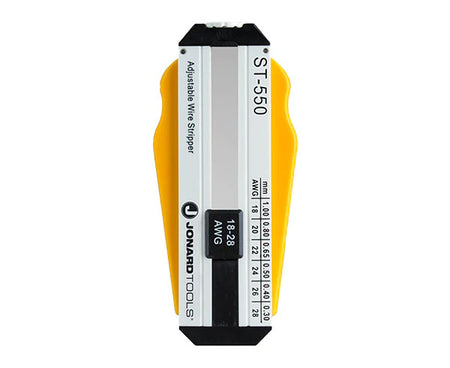

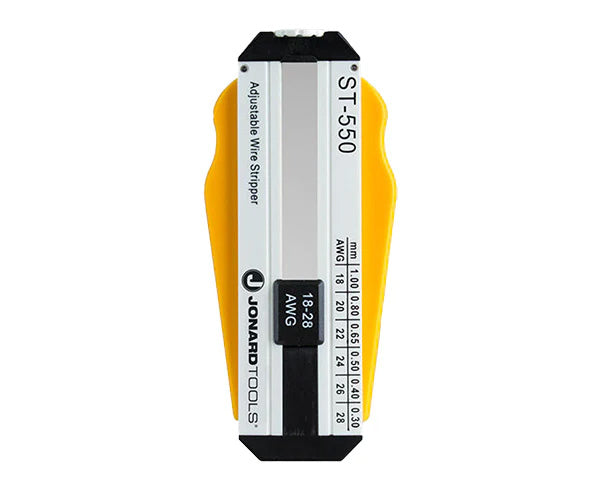

Small wire has small margins: a 28 AWG conductor is a third of a millimeter across, and a stripper that closes a hair too far cuts it instead of the insulation. The Jonard Tools ST-550 is a pocket-size adjustable wire stripper for 18 to 28 AWG (1.0 to 0.30 mm) solid and stranded wire, with a built-in adjustment dial that changes the strip gauge in a turn and an adjustable stop that sets the strip length anywhere from 0.039 to 2.0 in (1.0 to 50.8 mm), so every strip on a run of leads comes out the same length without measuring. The hardened steel blade cuts cleanly at the gauge the dial is set to, the whole tool is 3.85 in long and weighs an ounce, and it can be heated to 100 °C in water for sterilization, which puts it in labs and medical device work as readily as in a control panel.

Features

  • 18 to 28 AWG, solid or stranded. Covers hookup, control, and sensor wire from 1.0 mm down to 0.30 mm conductors.

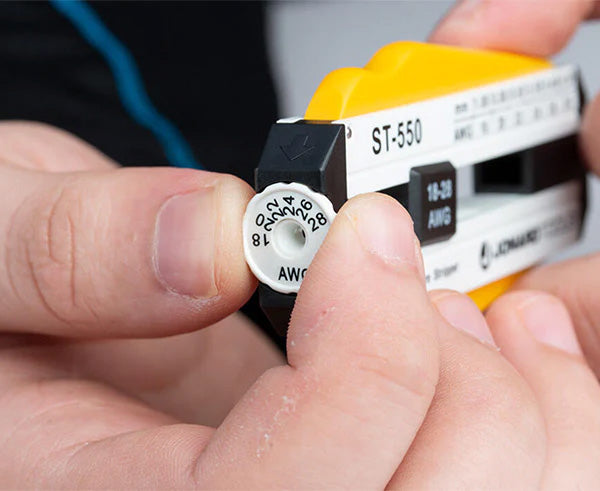

  • Adjustment dial. Changes the strip gauge quickly, with no screw to loosen and reset.
  • Adjustable strip-length stop. Set a length from 0.039 to 2.0 in (1.0 to 50.8 mm) and every strip repeats it.
  • Hardened steel blade. Cuts the insulation with precision and holds its edge.
  • Pocket size. 3.85 in long and about an ounce, light enough to forget it's in a shirt pocket.
  • Sterilizable. Can be heated to 100 °C (212 °F) in water for sterilization.

Where It Fits

It suits control and instrumentation technicians landing 18 to 24 AWG wire on terminal strips and PLC I/O, where a stop set to the terminal's strip length means every conductor seats to the same depth, bench and prototype work on 22 to 28 AWG hookup wire and wire-wrap leads, alarm and access control installers stripping 22 AWG security cable conductors at keypads and panels, electronics assembly and repair where a run of identical leads is faster with a stop than with a ruler, lab and medical device work that needs a tool that can be sterilized in boiling water, and anyone whose heavier stripper bottoms out at 22 or 24 AWG. For 10 to 30 AWG in a plier-style tool with a wire cutter and looping hole, the WS-5 is the larger sibling.

Good to Know

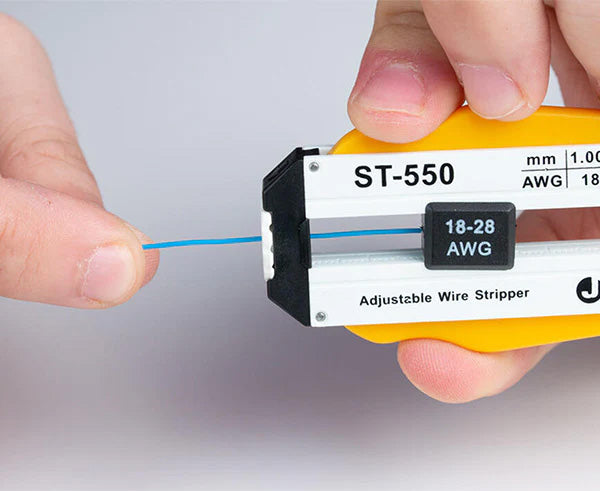

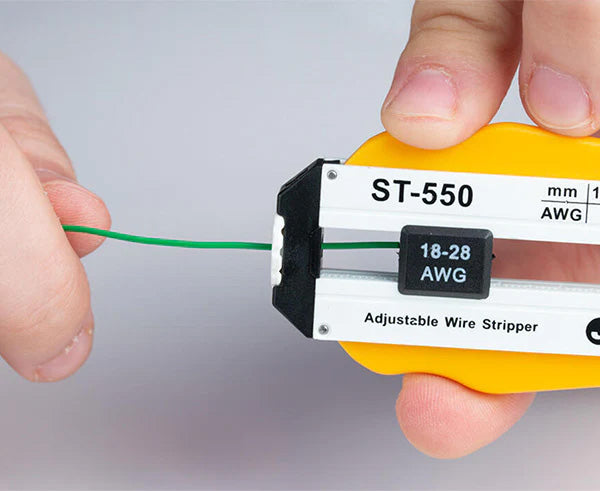

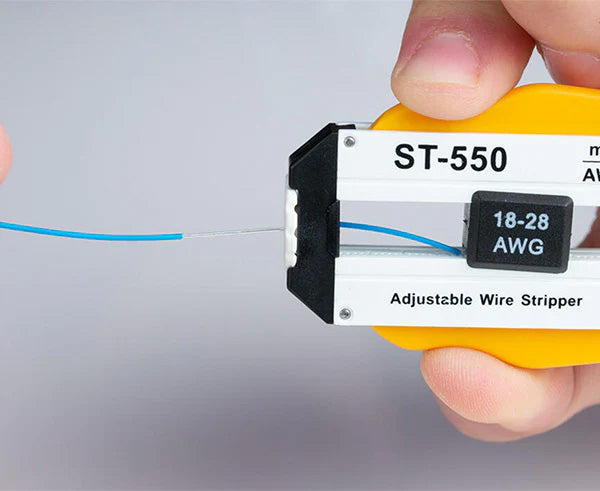

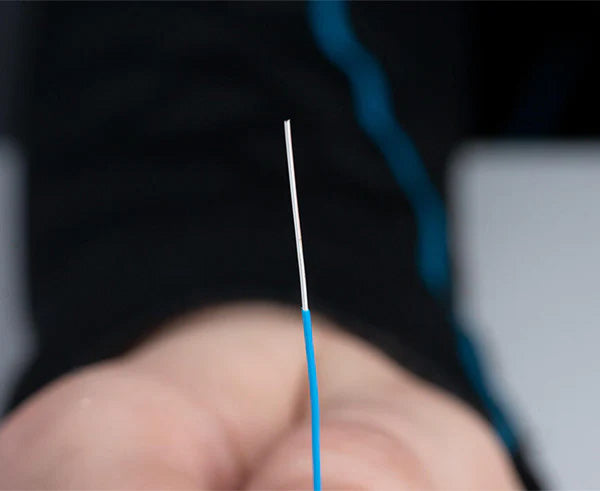

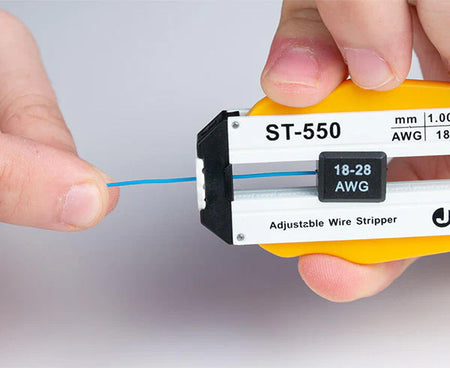

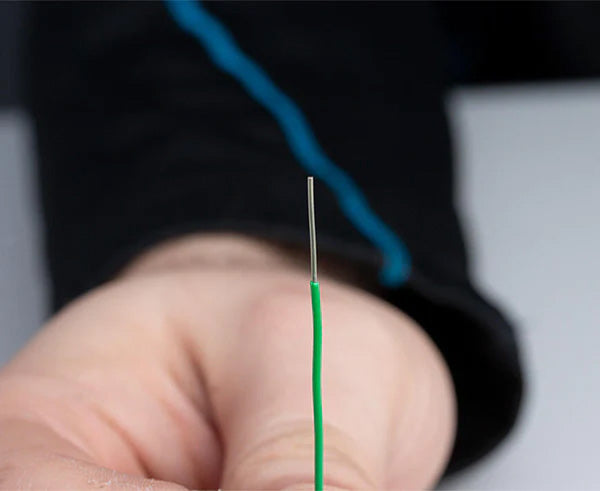

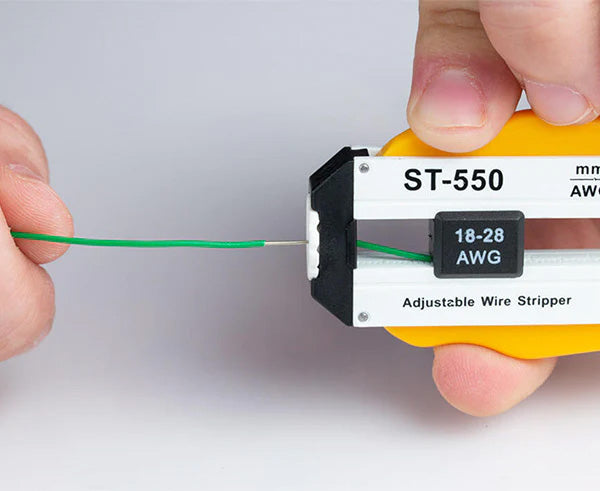

Set the dial to the wire gauge before the first strip and test on a scrap. If the insulation tears or stretches rather than slicing, the gauge is set a size too small; if a conductor shows a ring mark or a strand is cut, it's a size too large, and on stranded wire of the same gauge err toward the looser setting, since a nicked strand at the strip is the one that breaks at the terminal later. Then set the stop to the strip length the terminal or the splice calls for; the range runs from a bare 1 mm to 2 in, and once it's set, butt the wire against the stop every time so the length repeats. Insert the wire, close, and pull the slug off straight; twisting the tool is what scratches a fine conductor. This is a stripper, not a cutter, so trim the wire to length with flush cutters first. The upper end of the range is 18 AWG; thicker wire won't strip cleanly, and for 10 to 16 AWG the WS-5 covers it. To sterilize, heat in water to 100 °C and let the tool dry fully before it goes back in a pocket or a drawer, so the hardened blade doesn't sit wet. Check for voltage before you strip anything that may carry it; the tool isn't insulated.

Specifications

Spec Detail
Model ST-550
Manufacturer Jonard Tools
Type Adjustable wire stripper, pocket size
Cut Type Strip
Wire Gauge 18 to 28 AWG (1.0 to 0.30 mm)
Cable Type Solid and stranded conductors
Gauge Adjustment Built-in dial
Strip Length 0.039 to 2.0 in (1.0 to 50.8 mm), adjustable stop
Maximum Strip Length 2.0 in (50.8 mm)
Blade Material Hardened steel
Sterilization Can be heated to 100 °C (212 °F) in water
Dimensions 3.85 × 1.75 × 0.51 in (9.78 × 4.45 × 1.28 cm)
Weight 0.05 lb (21 g)
Shipping Ships direct from the manufacturer, allow up to 10 business days

Documentation

Document Link
Data Sheet ST-550 data sheet (PDF)
