96-Port High-Density Fiber Panel - Wall Mount, Maximum Capacity
Regular price
$157.99
Couldn't load pickup availability

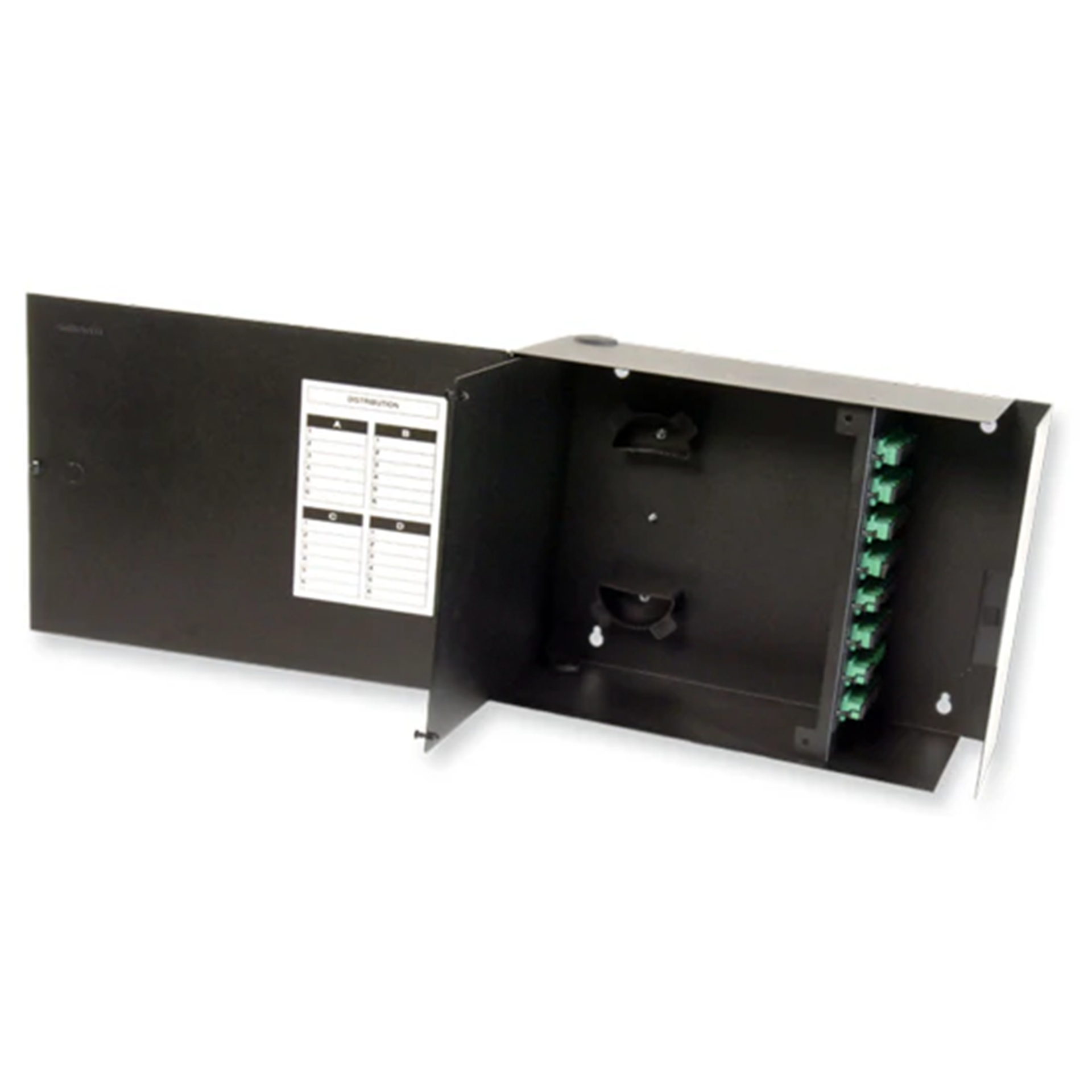

96-Port Fiber Patch Panel - Wall Mount, High-Density, Single Door
Construction-grade high-density wall-mounted fiber patch panel engineered for maximum capacity installations requiring simplified access with internal security. This professional single-door design features an inner network compartment security door, 8 adapter panel positions (96-port capacity), and 8 splice trays (96-splice capacity), providing complete high-density fiber management in a streamlined access configuration. With top and bottom cable entry, optional keyed lock capability, and custom logo option, this durable steel enclosure delivers enterprise-grade fiber distribution for telecommunications facilities, data centers, and large buildings requiring ultimate wall-mount capacity with efficient access.
Key Features
- 96-Port Maximum Capacity - 8 adapter panels support up to 96 fiber connections
- 96-Splice Capacity - 8 splice trays accommodate 96 fusion splices (12 fibers each)
- Single Primary Door - Streamlined access to entire enclosure with one door
- Inner Security Door - Internal door separates network and distribution compartments
- Construction-Grade Quality - Heavy-duty 18-gauge steel with powder-coat finish
- Custom Logo Option - Can be customized with company logo for OEM applications
- Top & Bottom Cable Entry - Dual entry points with 1" conduit installation capability
- Optional Keyed Lock - Lock capability for secure access control
- Telcordia Compliant - Meets Telcordia specifications for bend radius
- 8 Adapter Panel Positions - Maximum flexibility for various connector types
- 8 Splice Tray Storage - Generous capacity for large-scale installations
- Blank Configuration - Field-install components based on requirements (sold separately)
- Lightweight Construction - Easy installation despite high capacity
- Professional Matte Black Finish - Durable scratch-resistant appearance
Ideal Applications
Perfect for maximum-capacity fiber distribution with simplified access:
- Data Centers - High-density rack-adjacent or central distribution
- Telecommunications Central Offices - Maximum wall-mount capacity
- Large Enterprise Buildings - Main distribution frames (MDF)
- Campus Networks - Central high-capacity fiber hubs
- Carrier Hotels - Dense interconnection and cross-connect points
- Multi-Tenant Buildings - Maximum building distribution capacity
- Government Facilities - Secure high-density fiber management
- Healthcare Campuses - Large hospital network distribution
- Educational Institutions - University central distribution
- Industrial Complexes - Maximum manufacturing facility capacity
Physical Specifications
- Dimensions: 12" (H) x 17" (W) x 6" (D)
- Metric Dimensions: 305mm (H) x 432mm (W) x 152mm (D)
- Weight: 16 lbs (7.3 kg) - lightweight for capacity
- Material: 18-Gauge Powder-Coated Steel
- Finish: Matte Black scratch-resistant polyester powder coat
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 96 fiber ports
- Adapter Panel Positions: 8 panels (12 ports per panel typical)
- Splice Tray Capacity: 8 trays (12-fiber capacity each)
- Total Splice Capacity: 96 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, MPO, or mixed configurations
Door Configuration
- Primary Door: Single outer door for main enclosure access
- Inner Security Door: Internal door separates network and distribution compartments
- Access Type: Single-door access for maximum opening and visibility
- Lock Provision: Optional keyed lock capability (lock sold separately)
- Material: 18-gauge steel construction
Cable Entry
- Entry Locations: Top and bottom cable entry points
- Conduit Capability: 1" conduit installation at both entry points
- Flexibility: Choose top, bottom, or both entry points
- Professional Routing: Clean cable approach from multiple directions
Interior Organization
- Network Compartment: Adapter panels (protected by inner security door)
- Distribution Compartment: Splice trays and pigtail routing
- Open Pathway: Open patch cord/jumper pathway for maximum flexibility
- Cable Routing: Integrated guides for professional fiber management
- Telcordia Compliant: Meets bend radius specifications
Environmental Rating
- Application: All indoor areas
- Construction Grade: Professional commercial/carrier quality
- Durability: Heavy-duty steel with scratch-resistant finish
What's Included
- 1x Ultra-high-density fiber patch panel enclosure (steel, matte black)
- Single primary outer door
- Inner network compartment security door
- Interior mounting positions for 8 adapter panels
- Interior storage for 8 splice trays
- Mounting hardware
