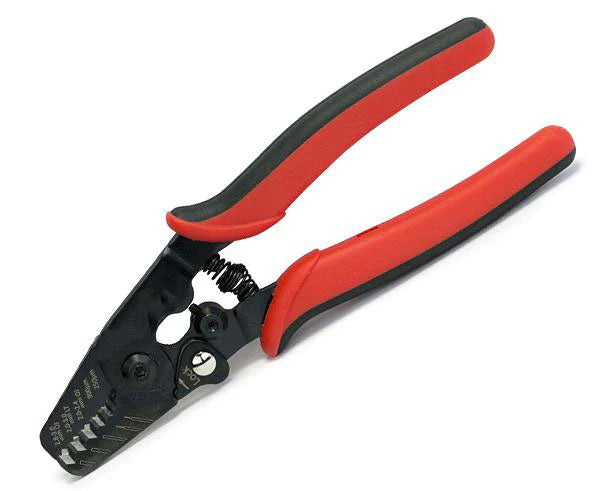

5-in-1 Fiber Stripper Tool - Jacket, Buffer, and Coating Remover
Couldn't load pickup availability
Drop shipped from the manufacturer. Usually ships in 1 to 2 business days. This item is non-cancelable and non-refundable.
Preparing a fiber for a connector or a splice means working through its layers one at a time: the jacket, the aramid strength members, the buffer tube or tight buffer, and finally the 250 µm coating over the glass. This stripper has a cavity for each. Five factory-calibrated holes, with no adjustment to make, strip 2.8 to 3.0 mm jacket, 2.0 to 2.4 mm jacket, 2.0 to 3.0 mm loose tube, 900 µm tight buffer, and 250 µm coating, on single-mode and multimode fiber, so switching from a 3 mm cordage to a 2 mm pigtail to a bare buffered fiber is a matter of moving to the next hole. A fully serrated bottom blade cuts the Kevlar aramid yarn that a plain blade only pushes around, so there's no separate scissors to carry. Cushioned non-slip handles keep the tool steady for the fine pulls on the small cavities, and it's light and compact enough for a splicing kit or a pouch.
Features
- Five preset cavities. 2.8 to 3.0 mm outer jacket, 2.0 to 2.4 mm outer jacket, 2.0 to 3.0 mm loose tube, 900 µm tight buffer, and 250 µm coating, each factory calibrated for depth.
- No adjustment. Move between fiber types and sizes without reconfiguring anything; the precision cavities are sized to strip without damaging the fiber.
- Serrated Kevlar cutter. A fully serrated bottom blade cuts aramid strength members cleanly, built into the tool.
- Single-mode and multimode. The cavities are sized to the coating, buffer, and jacket, which are the same on both fiber types.
- Cushioned non-slip handles. Soft grip for positive control on precision strips and less hand fatigue over a day of terminations.
- Compact and portable. Light enough for a pouch or a kit, durable enough for daily field use.
Where It Fits
It suits fiber installers terminating 2 mm and 3 mm cordage with field-installable or splice-on connectors, FTTH crews prepping drop pigtails and 900 µm buffered fiber at the splice enclosure, data center and enterprise teams building and repairing patch cables and breakout assemblies, splicing technicians who need jacket, buffer, and coating stripped and the Kevlar trimmed before the cleaver comes out, outside plant and telecom crews who want one stripper and one Kevlar cutter in a single tool, and a field toolkit where five dedicated strippers would take the space of a whole tray. For a dedicated three-hole stripper for 1.6 to 3.0 mm cordage, see the Jonard JIC-375; for buffer and coating only, the JIC-275.
Good to Know
Work from the outside in and in the right hole: jacket first in the cavity for its diameter, then cut the Kevlar back with the serrated blade, then the loose tube or the 900 µm buffer in its cavity, and last the 250 µm coating down to the 125 µm glass. The 250 µm cavity will crush a 900 µm buffer and the 900 µm cavity will slide over a 250 µm coating, so the hole has to match the layer in hand. Measure the jacket before choosing between the two jacket cavities; 2.0 to 2.4 mm and 2.8 to 3.0 mm are not interchangeable, and a 2.5 to 2.7 mm cable sits between them and should be tested on a scrap first. Strip the coating in short pulls of an inch or so with the tool square to the fiber, since twisting or angling is what scratches the glass, and strip only what the connector or the splice calls for. Wipe the bare fiber with an alcohol wipe after stripping and before cleaving, and don't touch the glass once it's clean. Shreds of coating left on the fiber mean the cavity needs cleaning, which a wipe and a little alcohol fixes; a fiber that keeps breaking in the 250 µm hole means the pull is off-axis. Cut Kevlar with the serrated blade, not the stripping cavities, which it will dull. Stripped jacket, buffer, coating, and any broken fiber go in a scraps container, not the floor or a pocket, and the cut ends of the glass are sharp enough to go through skin.
Specifications
| Spec | Detail |
|---|---|
| Series | TLC-027 |
| Type | 5-in-1 fiber optic stripper with Kevlar cutter |
| Cavity 1 | Outer jacket, 2.8 to 3.0 mm |
| Cavity 2 | Outer jacket, 2.0 to 2.4 mm |
| Cavity 3 | Loose tube, 2.0 to 3.0 mm |
| Cavity 4 | Tight buffer, 900 µm |
| Cavity 5 | Coated fiber, 250 µm |
| Calibration | Factory preset, no adjustment |
| Fiber Type | Single-mode and multimode |
| Cutting Blade | Fully serrated bottom blade, for Kevlar aramid strength members |
| Handles | Cushioned, non-slip, ergonomic |
| Shipping | Drop shipped from the manufacturer, usually ships in 1 to 2 business days; non-cancelable, non-refundable |
