48-Port Fiber Patch Panel - Wall Mount, Dual-Layer Door

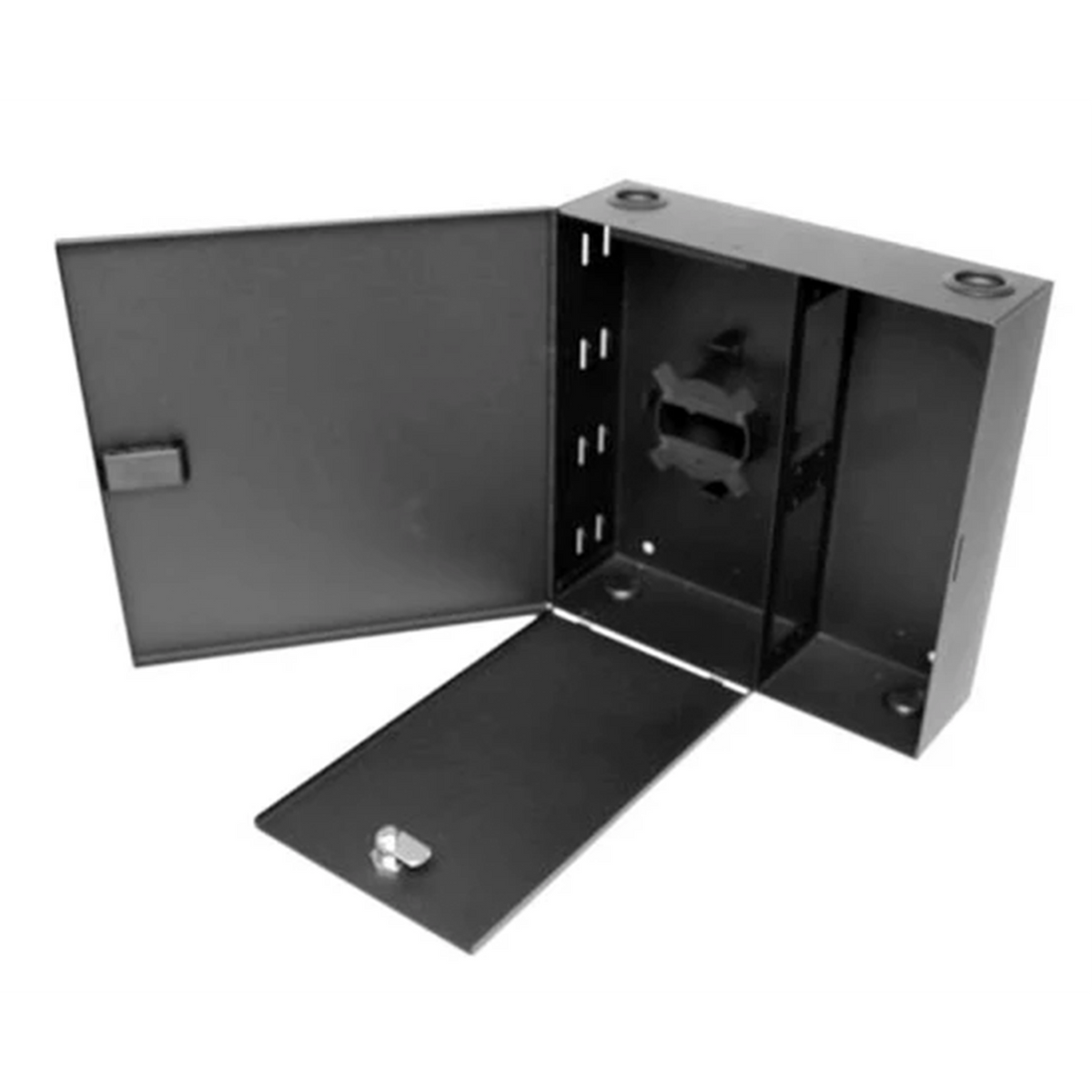

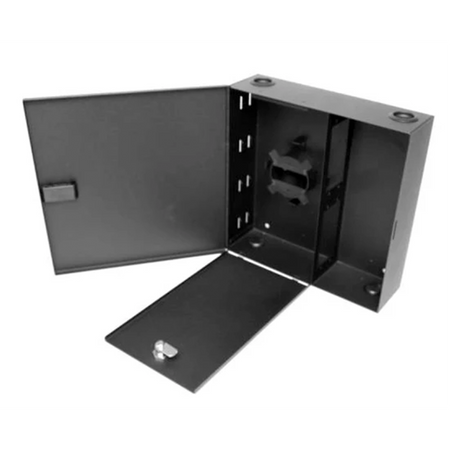

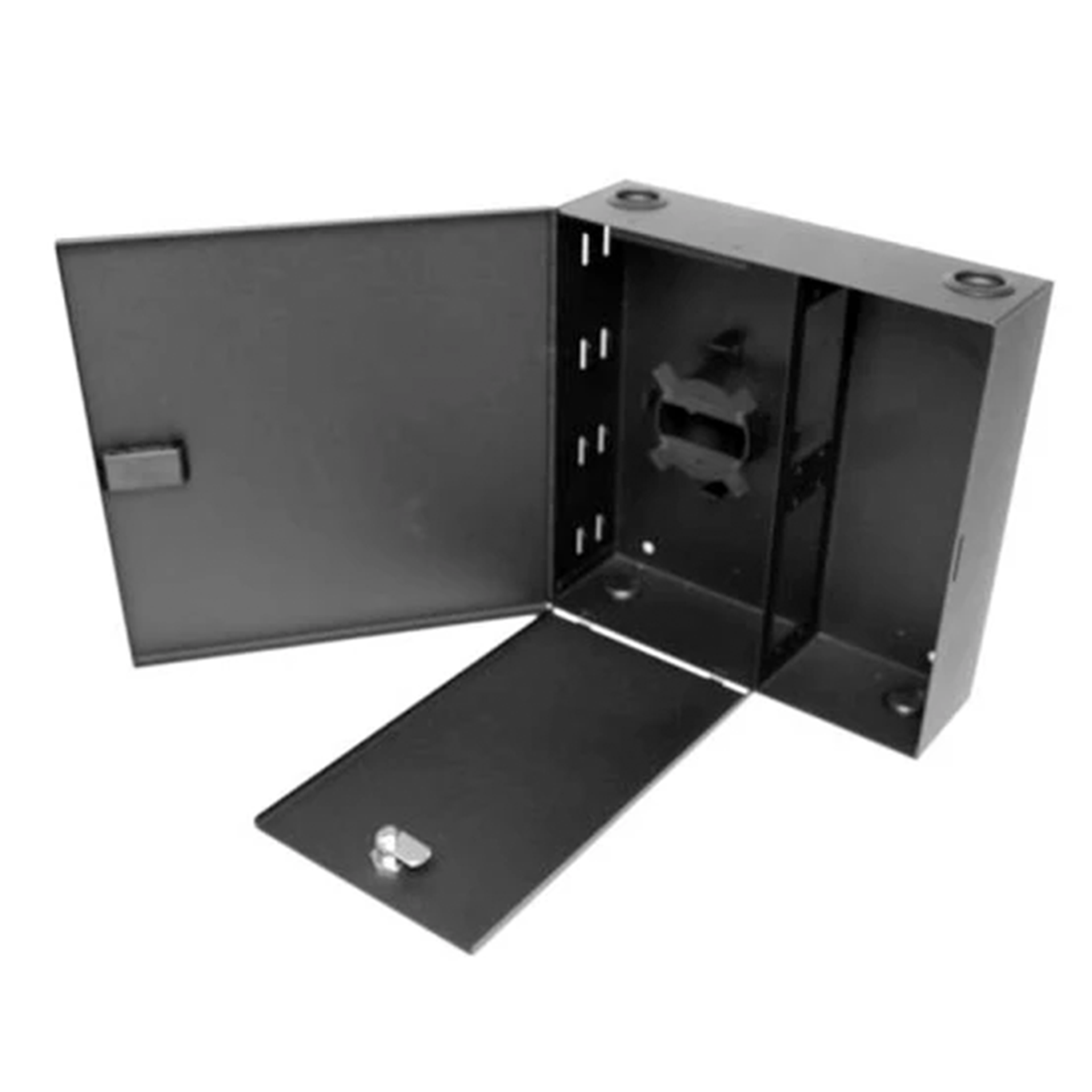

High-capacity secure wall-mounted fiber patch panel engineered for installations requiring combined patching, splicing, and layered access control in a compact enclosure. This innovative dual-layer door design features an outer door plus an internal lockable network compartment that separates and secures network and distribution sides independently. With 4 adapter panel positions (48-port capacity) plus 4 splice trays (48-splice capacity), this professional-grade enclosure delivers organized high-density fiber management with enhanced security for telecommunications rooms, equipment closets, and facilities requiring separated access to network versus distribution connections.
Key Features
- 48-Port High-Density Capacity - 4 adapter panels support up to 48 fiber connections
- 48-Splice Capacity - 4 splice trays accommodate 48 fusion splices (12 fibers each)
- Dual-Layer Door Security - Outer door plus internal lockable network compartment
- Network/Distribution Separation - Internal lockable compartment protects network side
- Independent Access Control - Lock network compartment to restrict critical connection access
- Compact Design - Space-efficient 12"H x 12"W x 3.5"D footprint
- 4 Adapter Panel Positions - Maximum flexibility for various connector types
- 4 Splice Tray Storage - Generous splice capacity for larger installations
- Blank Configuration - Field-install components based on requirements (sold separately)
- Professional Construction - 18-gauge powder-coated steel for durability
- Professional Black Finish - Clean appearance for any installation environment
- Ultra-Shallow Depth - 3.5" depth fits tight spaces
Ideal Applications
Perfect for high-capacity fiber distribution requiring layered security and separated access:
- Multi-Tenant Buildings - Separate network and distribution access by role
- Telecommunications Rooms - Controlled access to network connections
- Equipment Closets - High-density fiber termination with security
- Data Centers - Rack-adjacent distribution with access control
- Enterprise Buildings - Floor or building distribution with network protection
- Healthcare Facilities - HIPAA-compliant secure high-density fiber termination
- Educational Institutions - Building distribution with role-based access
- Corporate Offices - Main distribution with network protection
- Government Facilities - Secure fiber management with access separation
- Carrier Facilities - High-density termination with layered security
Physical Specifications
- Dimensions: 12" (H) x 12" (W) x 3.5" (D)
- Metric Dimensions: 305mm (H) x 305mm (W) x 89mm (D)
- Weight: 10 lbs (4.5 kg)
- Material: 18-Gauge Powder-Coated Steel
- Color: Black
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 48 fiber ports
- Adapter Panel Positions: 4 panels (12 ports per panel typical)
- Splice Tray Capacity: 4 trays (12-fiber capacity each)
- Total Splice Capacity: 48 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, or mixed configurations
Door Configuration
- Outer Door: Single door for main enclosure access
- Inner Compartment: Internal lockable network compartment (lock sold separately)
- Access Separation: Network side / Distribution side independent control
- Lock Provision: Internal compartment lockable for network side security
- Material: 18-gauge steel construction
Interior Organization
- Network Side: Adapter panels (typically front-facing, inside lockable compartment)
- Distribution Side: Splice trays and pigtail routing (accessible without unlocking)
- Separation: Internal lockable compartment protects network zone
- Cable Routing: Integrated guides for professional fiber management
What's Included
- 1x High-capacity fiber patch panel enclosure (steel, black powder-coat)
- Single outer door for main access
- Internal lockable network compartment for network/distribution separation
- Interior mounting positions for 4 adapter panels
- Interior storage for 4 splice trays
- Mounting hardware
