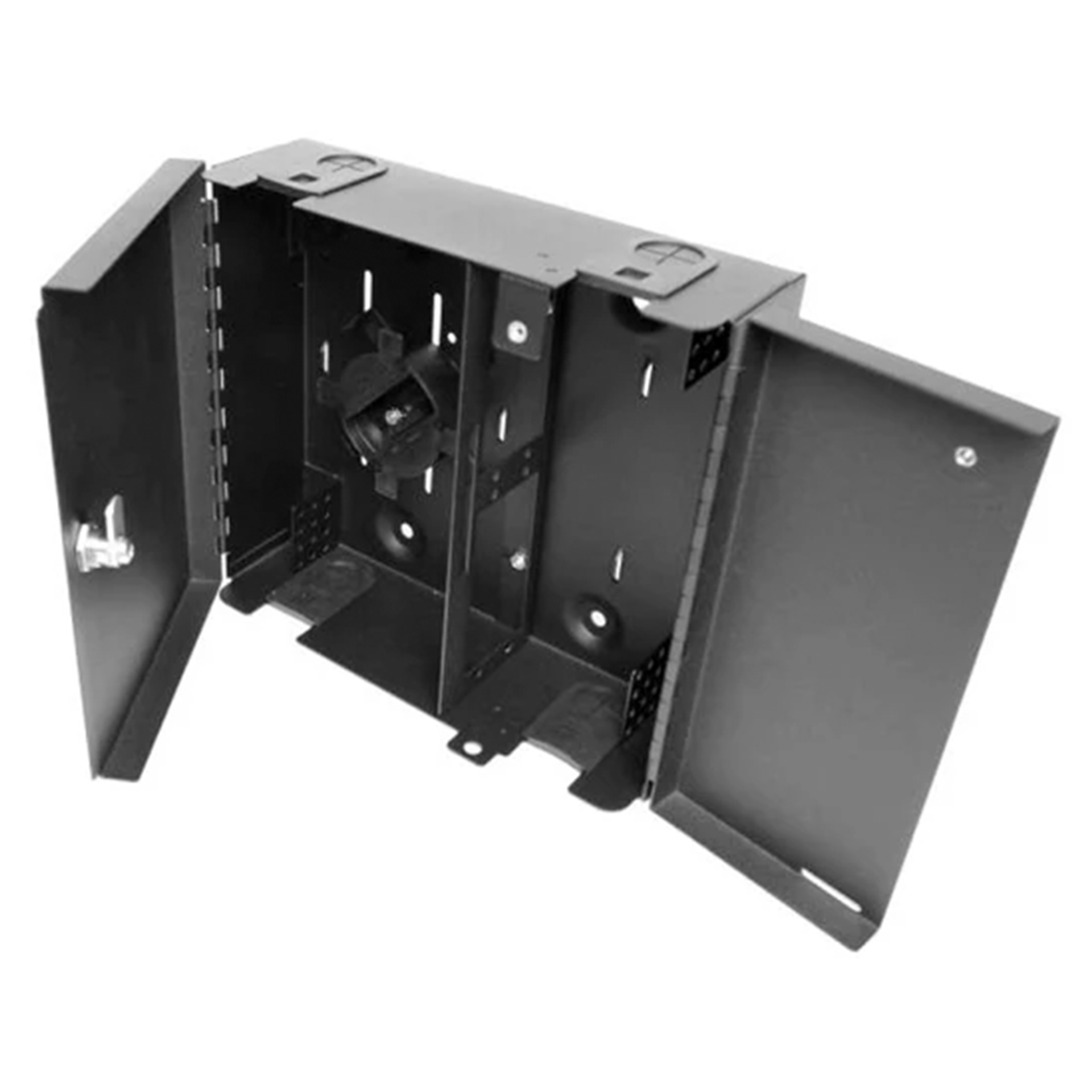

48-Port Fiber Patch Panel - Wall Mount, Dual Door, High-Density
Compact high-density wall-mounted fiber patch panel engineered for space-limited installations requiring combined patching, splicing, and network/distribution separation security. This professional dual outer door design features independent lockable doors for network and distribution sides, 4 adapter panel positions (48-port capacity), and 4 splice trays (48-splice capacity), providing complete fiber management with separated access control in an ultra-compact footprint. With reversible installation capability, top and bottom cable entries, included grounding lug and fiber management kit, this durable steel enclosure delivers organized high-density fiber distribution for telecommunications rooms, equipment closets, and space-constrained installations.
Key Features
- 48-Port High-Density Capacity - 4 adapter panels support up to 48 fiber connections
- 48-Splice Capacity - 4 splice trays accommodate 48 fusion splices (12 fibers each)
- Dual Outer Doors - Independent lockable doors for network and distribution side separation
- Network/Distribution Separation - Separate doors maintain security for each side
- Reversible Installation - Can be installed upside down for jumper exit flexibility
- Ultra-Compact Design - Space-efficient 10.8"H x 12"W x 4"D footprint
- Top & Bottom Cable Entry - Non-captive cable entries at both locations
- Fiber Management Kit Included - Complete cable management system included
- Grounding Lug Included - Proper grounding provision included
- 4 Adapter Panel Positions - Flexibility for various connector types
- 4 Splice Tray Storage - Adequate capacity for high-density installations
- Locking Doors - Secure access control for both sides
- Blank Configuration - Field-install components based on requirements (sold separately)
- Heavy-Duty Construction - 16-gauge powder-coated steel for durability
- Professional Black Finish - Clean appearance for any installation
Ideal Applications
Perfect for high-density fiber distribution in space-limited environments:
- Small Telecommunications Rooms - Compact high-density solution
- Equipment Closets - Space-constrained high-capacity termination
- Multi-Tenant Buildings - Separate network/distribution access by role
- Data Centers - Rack-adjacent high-density distribution
- Branch Offices - Complete fiber solution in limited space
- Healthcare Facilities - Secure high-density fiber in tight spaces
- Educational Institutions - Department distribution with space efficiency
- Retail Locations - Back-office high-density in limited space
- Industrial Facilities - Zone distribution with compact footprint
- Renovations - Maximum capacity without extensive wall space
Physical Specifications
- Dimensions: 10.8" (H) x 12" (W) x 4" (D)
- Metric Dimensions: 274mm (H) x 305mm (W) x 102mm (D)
- Weight: 11 lbs (5.0 kg)
- Material: 16-Gauge Powder-Coated Steel
- Color: Black
- Mounting: Wall mount with mounting hardware (reversible)
Capacity Specifications
- Total Port Capacity: Up to 48 fiber ports
- Adapter Panel Positions: 4 panels (12 ports per panel typical)
- Splice Tray Capacity: 4 trays (12-fiber capacity each)
- Total Splice Capacity: 48 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, or mixed configurations
Door Configuration
- Door Type: Dual outer lockable doors
- Access Separation: Network side / Distribution side independent access
- Lock Type: Locking doors for security (locks sold separately)
- Material: 16-gauge steel doors
- Independence: Each side accessible without opening other
Cable Entry
- Entry Locations: Top and bottom non-captive cable entries
- Configuration: Field-configurable entry points
- Flexibility: Choose entry locations based on cable routing
What's Included
✓ High-density fiber patch panel enclosure (steel, black powder-coat) ✓ Dual outer lockable doors ✓ Interior mounting positions for 4 adapter panels ✓ Interior storage for 4 splice trays ✓ Fiber management kit ✓ Grounding lug ✓ Mounting hardware
