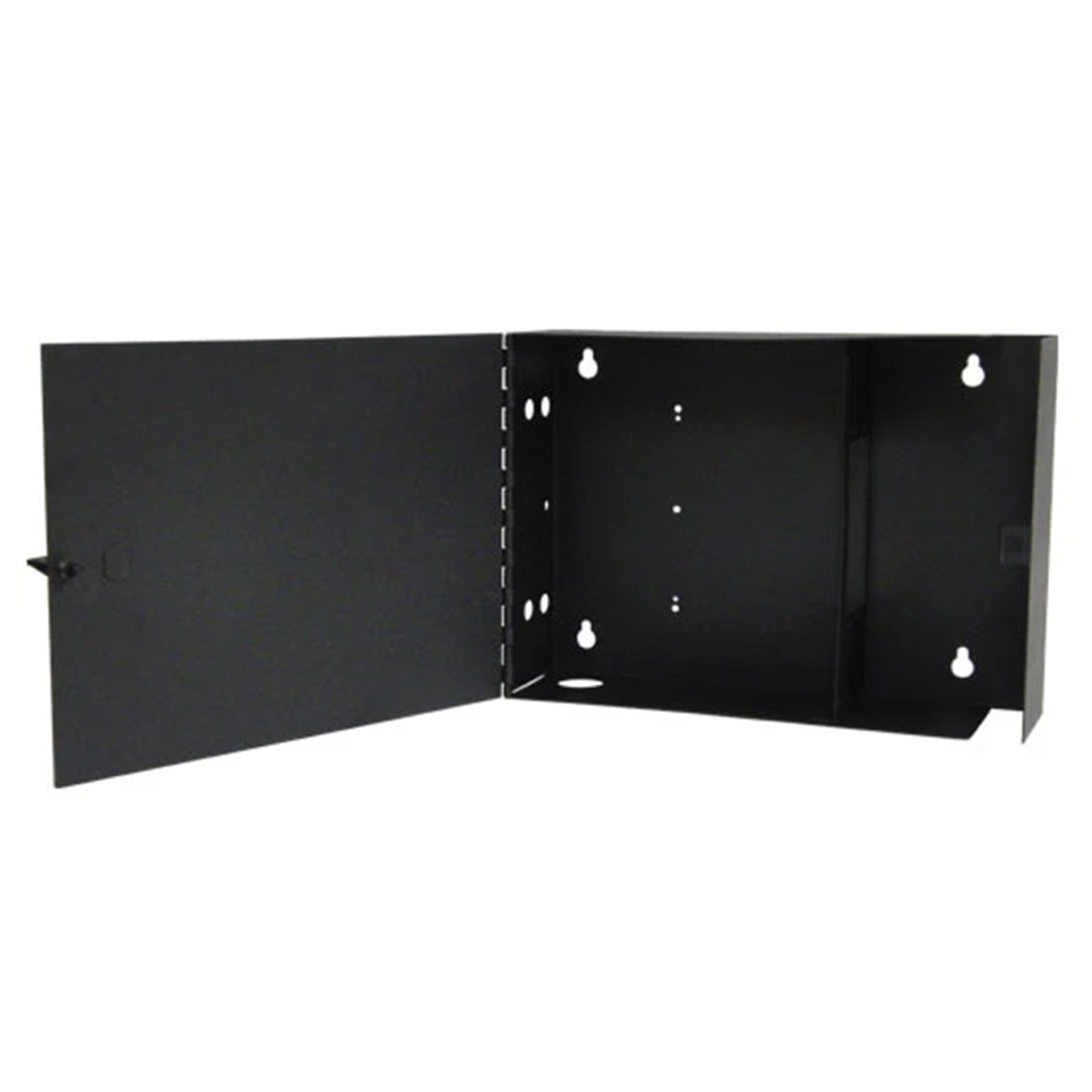

24-Port Fiber Patch Panel - Wall Mount, Single Door
Construction-grade compact wall-mounted fiber patch panel engineered for mid-size installations requiring streamlined access with internal compartment separation. This professional single-door design features internal network/distribution compartment separation, 2 adapter panel positions (24-port capacity), and 2 splice trays (24-splice capacity), providing complete fiber management in an ultra-compact streamlined access configuration. With top and bottom cable entry, optional keyed lock capability, custom logo option, and Telcordia-compliant design, this lightweight durable steel enclosure delivers professional fiber distribution for telecommunications rooms, equipment closets, and installations requiring maximum capacity in minimal space with efficient single-door access.
Key Features
- 24-Port Capacity - 2 adapter panels support up to 24 fiber connections
- 24-Splice Capacity - 2 splice trays accommodate 24 fusion splices (12 fibers each)
- Single Primary Door - Streamlined access to entire enclosure with one door
- Internal Compartment Separation - Network and distribution compartments separated internally
- Construction-Grade Quality - Durable 18-gauge steel with powder-coat finish
- Ultra-Compact Design - Space-efficient 9.25"H x 13"W x 3.5"D footprint
- Custom Logo Option - Can be customized with company logo for OEM applications
- Top & Bottom Cable Entry - Dual entry points with 1" conduit installation capability
- Optional Keyed Lock - Lock capability for secure access control
- Telcordia Compliant - Meets Telcordia specifications for bend radius
- Lightweight Construction - Only 8 lbs for easy installation
- 2 Adapter Panel Positions - Flexibility for various connector types
- 2 Splice Tray Storage - Adequate capacity for mid-size installations
- Blank Configuration - Field-install components based on requirements (sold separately)
- Open Pathway Design - Open patch cord/jumper pathway for maximum flexibility
- Professional Matte Black Finish - Durable scratch-resistant appearance
Ideal Applications
Perfect for mid-size fiber distribution with streamlined compact access:
- Small Telecommunications Rooms - Compact mid-capacity solution
- Equipment Closets - Space-efficient mid-size termination
- Branch Offices - Complete fiber solution in minimal space
- Department Distribution - Floor or zone fiber termination
- Small Data Centers - Compact rack-adjacent distribution
- Retail Locations - Back-office fiber in limited space
- Educational Institutions - Department or classroom distribution
- Healthcare Facilities - Department fiber in tight spaces
- Renovations - Maximum capacity without extensive wall space
- Multi-Tenant Small Buildings - Compact building distribution
Physical Specifications
- Dimensions: 9.25" (H) x 13" (W) x 3.5" (D)
- Metric Dimensions: 235mm (H) x 330mm (W) x 89mm (D)
- Weight: 8 lbs (3.6 kg) - lightweight for easy installation
- Material: 18-Gauge Powder-Coated Steel
- Finish: Matte Black scratch-resistant polyester powder coat
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 24 fiber ports
- Adapter Panel Positions: 2 panels (12 ports per panel typical)
- Splice Tray Capacity: 2 trays (12-fiber capacity each)
- Total Splice Capacity: 24 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, or mixed configurations
Door Configuration
- Primary Door: Single outer door for main enclosure access
- Access Type: Single-door access for maximum opening and visibility
- Lock Provision: Optional keyed lock capability (lock sold separately)
- Compartment Separation: Internal separation of network and distribution
- Material: 18-gauge steel construction
Cable Entry
- Entry Locations: Top and bottom cable entry points
- Conduit Capability: 1" conduit installation at both entry points
- Flexibility: Choose top, bottom, or both entry points
- Professional Routing: Clean cable approach from multiple directions
What's Included
- 1x Compact fiber patch panel enclosure (steel, matte black)
- Single primary outer door
- Interior mounting positions for 2 adapter panels
- Interior storage for 2 splice trays
- Mounting hardware
