24-Port Fiber Patch Panel - Dual-Layer Door Security

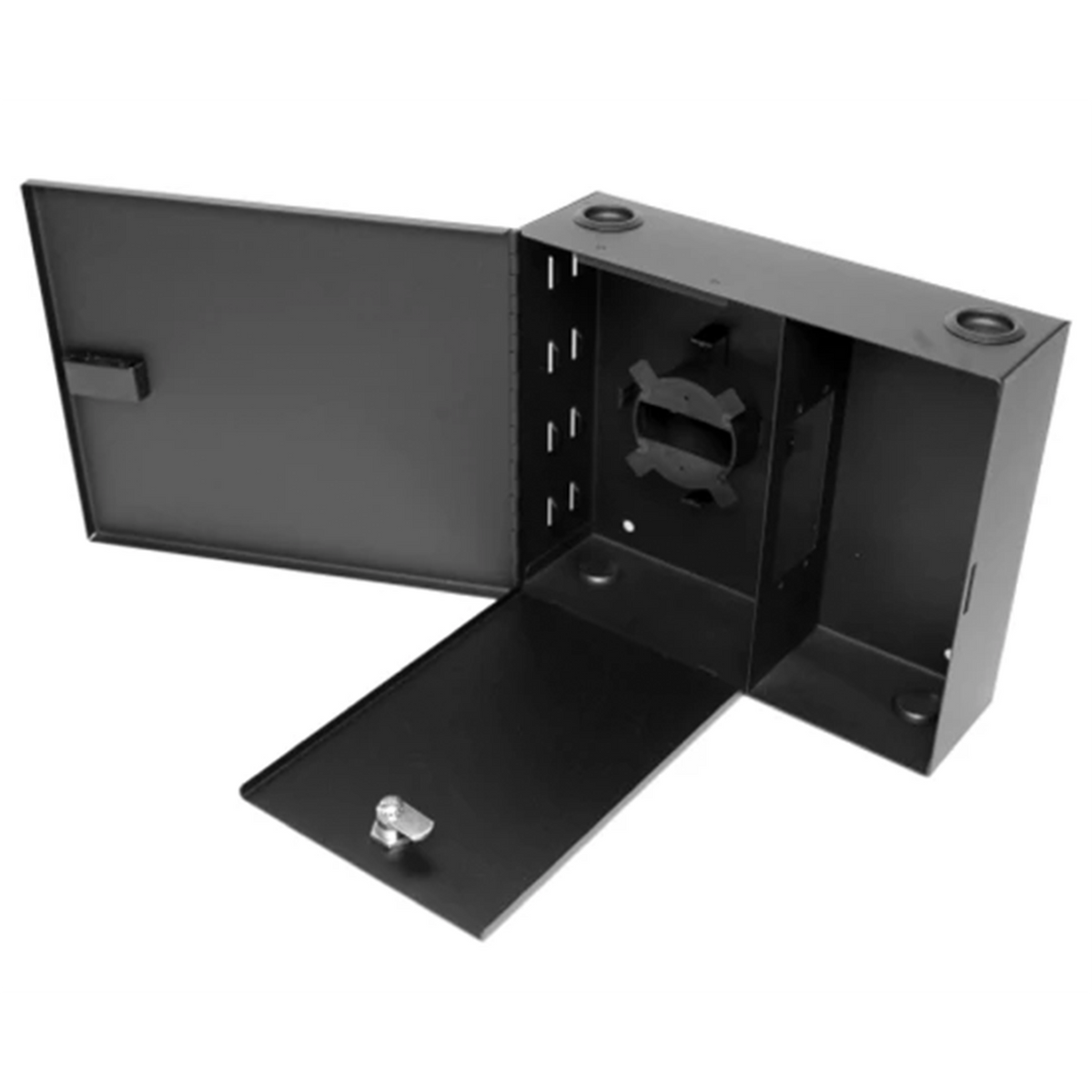

Compact secure wall-mounted fiber patch panel engineered for installations requiring combined patching, splicing, and layered access control in a single space-efficient enclosure. This innovative dual-layer door design features an outer door plus an internal lockable door that separates and secures network and distribution sides independently. With 2 adapter panel positions (24-port capacity) plus 2 splice trays (24-splice capacity), this professional-grade enclosure delivers organized fiber management with enhanced security for telecommunications rooms, equipment closets, and facilities requiring separated access to network versus distribution connections.
Key Features
- 24-Port Capacity - 2 adapter panels support up to 24 fiber connections
- 24-Splice Capacity - 2 splice trays accommodate 24 fusion splices (12 fibers each)
- Dual-Layer Door Security - Outer door plus internal lockable door for layered protection
- Network/Distribution Separation - Internal door separates network and distribution sides
- Independent Access Control - Lock internal door to restrict network side access
- Ultra-Compact Design - Space-efficient 10.2"H x 12"W x 3.5"D footprint
- 2 Adapter Panel Positions - Flexibility for various connector types
- 2 Splice Tray Storage - Adequate splice capacity for mid-size installations
- Blank Configuration - Field-install components based on requirements (sold separately)
- Professional Construction - 18-gauge powder-coated steel for durability
- Professional Black Finish - Clean appearance for any installation environment
- Corning Compatible - Comparable to Corning WCH-02P
Ideal Applications
Perfect for mid-size fiber distribution requiring layered security and separated access:
- Multi-Tenant Buildings - Separate network and distribution access by role
- Telecommunications Rooms - Controlled access to network connections
- Equipment Closets - Department or zone fiber termination with security
- Small to Mid-Size Data Centers - Rack-adjacent distribution with access control
- Branch Offices - Secure remote location fiber management
- Healthcare Facilities - HIPAA-compliant secure fiber termination
- Educational Institutions - Department distribution with role-based access
- Corporate Offices - Floor distribution with network protection
- Retail Locations - Store network termination with security layers
- Government Facilities - Secure fiber management with access separation
Physical Specifications
- Dimensions: 10.2" (H) x 12" (W) x 3.5" (D)
- Metric Dimensions: 259mm (H) x 305mm (W) x 89mm (D)
- Weight: 9 lbs (4.1 kg)
- Material: 18-Gauge Powder-Coated Steel
- Color: Black
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 24 fiber ports
- Adapter Panel Positions: 2 panels (12 ports per panel typical)
- Splice Tray Capacity: 2 trays (12-fiber capacity each)
- Total Splice Capacity: 24 fusion splices
- Configuration: Blank - field-install all components as needed
- Compatible Connectors: SC, LC, ST, FC, or mixed configurations
