Wall Mount Fiber Patch Panel - 12 Port, Lockable Door, Steel Construction
Couldn't load pickup availability
12-Port Fiber Patch Panel - Wall Mount, Lockable Security Enclosure

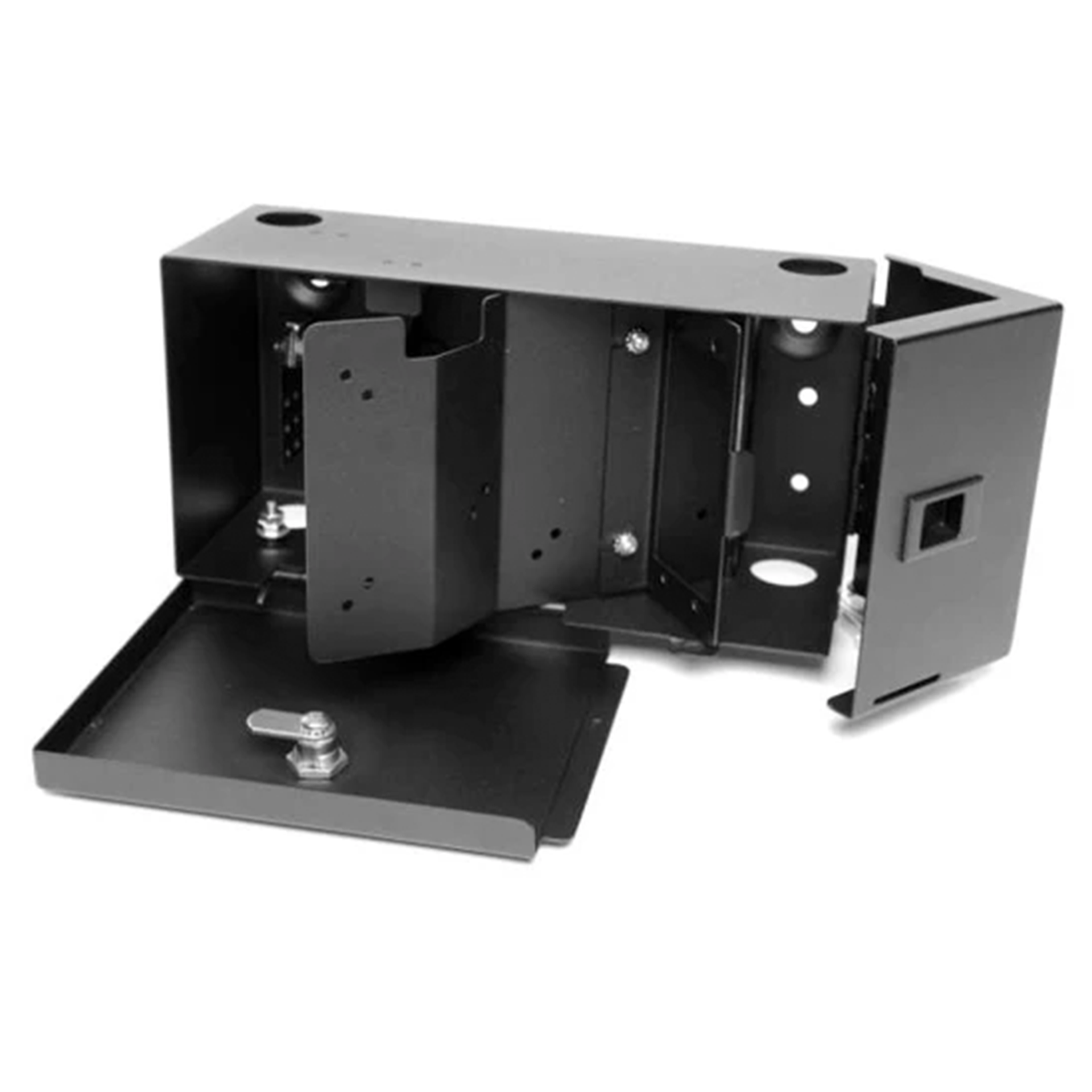

Ultra-compact secure wall-mounted fiber patch panel engineered for professional installations requiring combined patching, splicing, and access control in a single space-efficient enclosure. This lockable steel housing features dual outer doors for network compartment security, an inner swing-out panel for pigtail slack storage, and capacity for 2 adapter panels plus 1 splice tray. The unique dual-door lockable design provides enhanced security for sensitive telecommunications environments, making it ideal for secure facilities, multi-tenant buildings, and controlled-access locations where fiber connection protection is critical.
Key Features
- Lockable Dual-Door Design - Two outer doors with lockable network compartment for enhanced security
- 12-Port Capacity - Accommodates 2 adapter panels (up to 12 fiber connections)
- Integrated Splice Tray Storage - 1 splice tray capacity (12 fibers) for combined patching and splicing
- Inner Swing-Out Panel - Stores pigtail slack and reveals splice tray access
- Blank Configuration - Field-install adapters and splice tray based on requirements (sold separately)
- Heavy-Duty Steel Construction - 16-gauge powder-coated steel for durability and security
- Ultra-Compact Design - Space-efficient 12"H x 6"W x 4.5"D footprint
- Professional Black Finish - Clean appearance for any installation environment
- Dual Functionality - Combined patching and splicing in single compact unit
- Access Control - Lockable doors prevent unauthorized fiber access
Ideal Applications
Perfect for secure fiber termination in controlled-access environments:
- Secure Facilities - Government, military, or defense installations
- Multi-Tenant Buildings - Office complexes requiring access control
- Financial Institutions - Banks and financial services requiring security
- Healthcare Facilities - HIPAA-compliant secure telecommunications rooms
- Educational Institutions - Schools and universities with controlled access
- Data Centers - Secure fiber distribution points
- Corporate Offices - Executive floors or secure areas
- Retail Locations - Back-office or restricted area fiber terminations
- Hospitality - Hotel and resort secure network rooms
- Industrial Facilities - Manufacturing secure communications
Physical Specifications
- Dimensions: 12" (H) x 6" (W) x 4.5" (D)
- Metric Dimensions: 305mm (H) x 152mm (W) x 114mm (D)
- Weight: 9 lbs (4.1 kg)
- Material: 16-Gauge Powder-Coated Steel
- Color: Black
- Mounting: Wall mount with mounting hardware
Capacity Specifications
- Total Port Capacity: Up to 12 fiber ports
- Adapter Panel Slots: 2 panels (6 ports per panel typical)
- Splice Tray Capacity: 1 tray (12-fiber capacity)
- Configuration: Blank - field-install components as needed
- Compatible Connectors: SC, LC, ST, FC, or mixed (via adapter panels)
Security Features
- Door Configuration: Dual outer doors
- Lock Type: Lockable network compartment (lock hardware sold separately)
- Access Control: Key-controlled or combination lock compatible
- Construction: 16-gauge steel prevents forced entry
- Tamper-Evident: Dual doors provide visual security indication
Interior Organization
- Swing-Out Panel: Inner panel provides pigtail slack storage
- Splice Tray Access: Panel reveals splice tray storage area
- Organized Layout: Dedicated spaces for adapters, pigtails, and splices
- Cable Management: Integrated routing for professional installation
What's Included
- 1x Wall mount fiber patch panel enclosure (steel, black powder-coat)
- Inner swing-out panel for pigtail storage
- Dual outer lockable doors
- Mounting hardware
