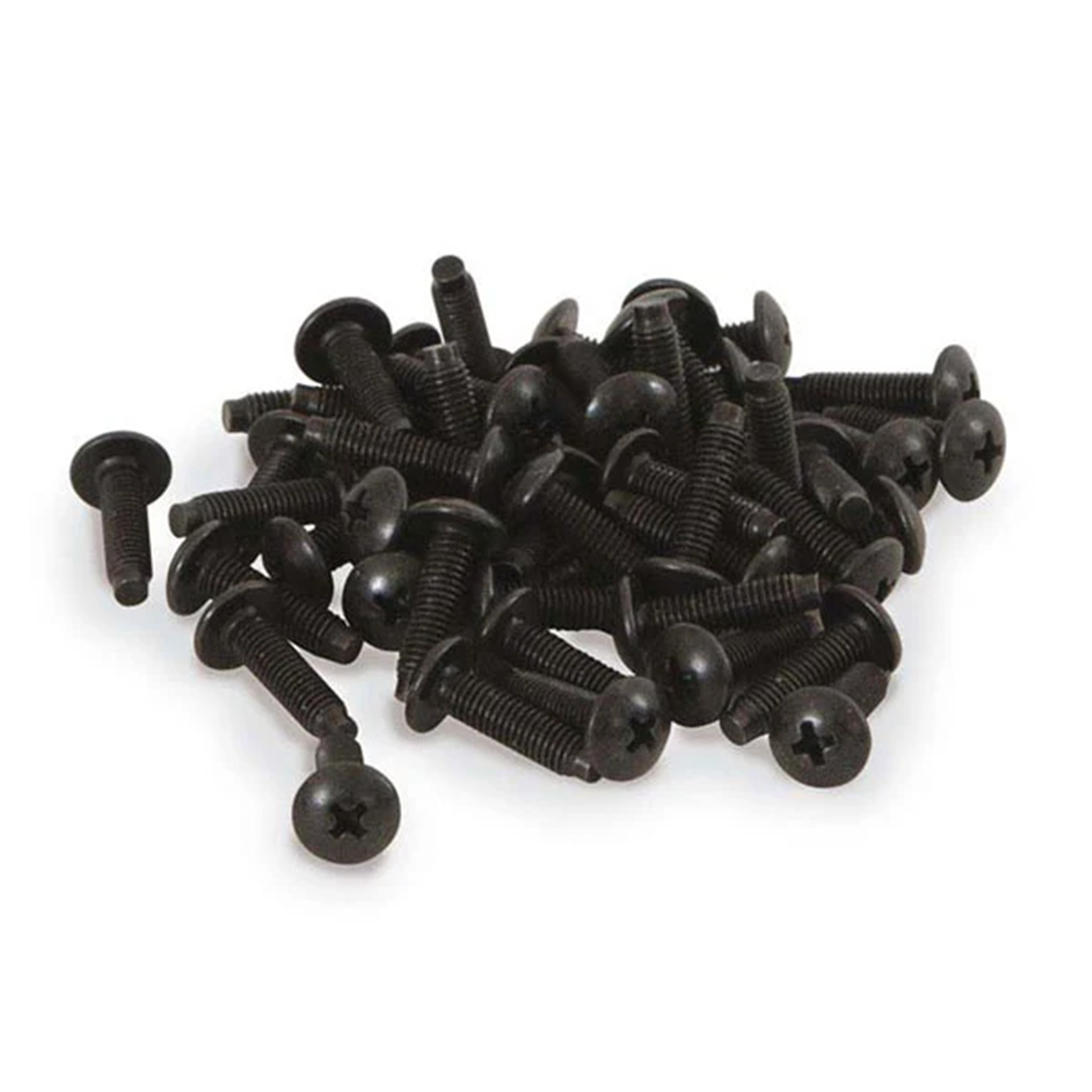

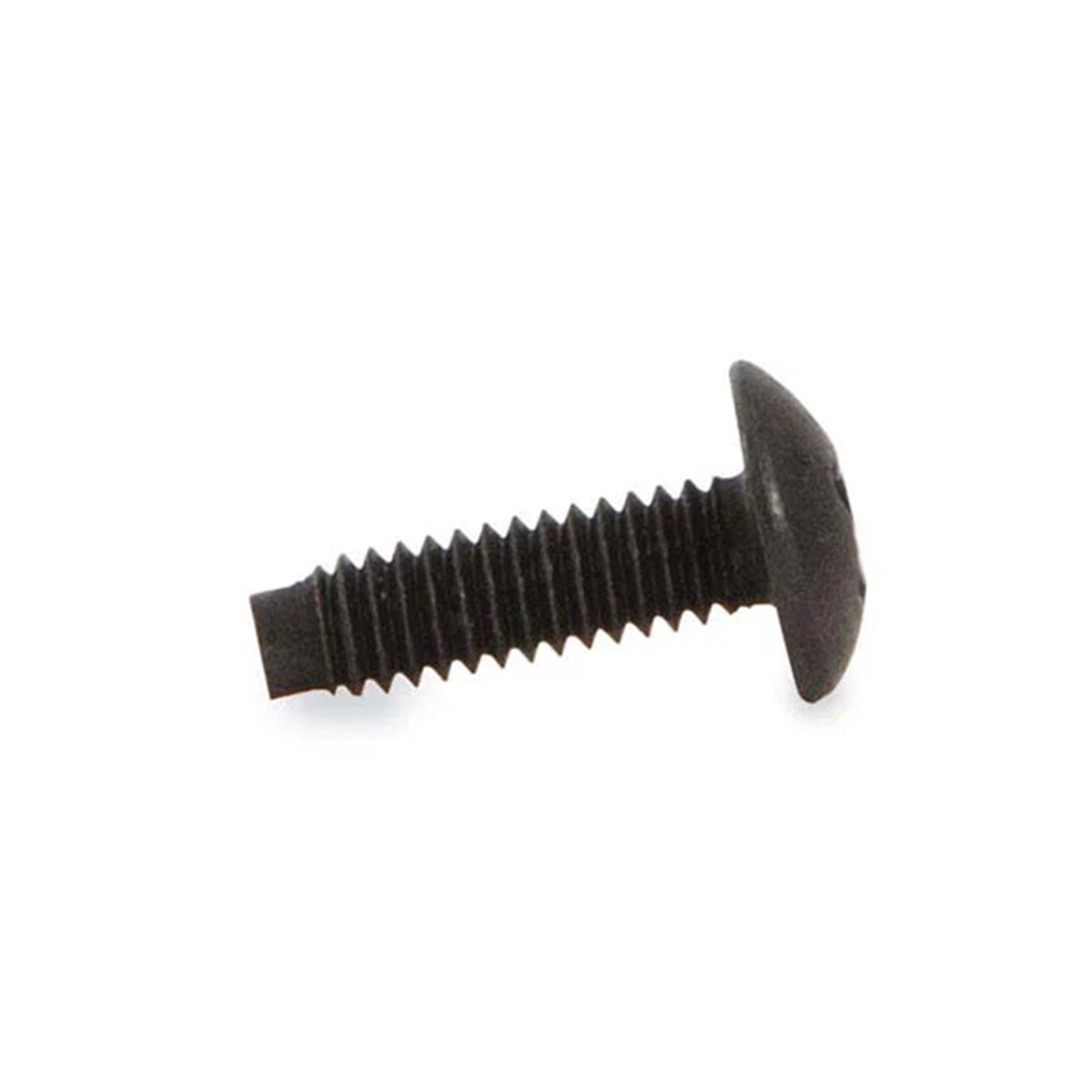

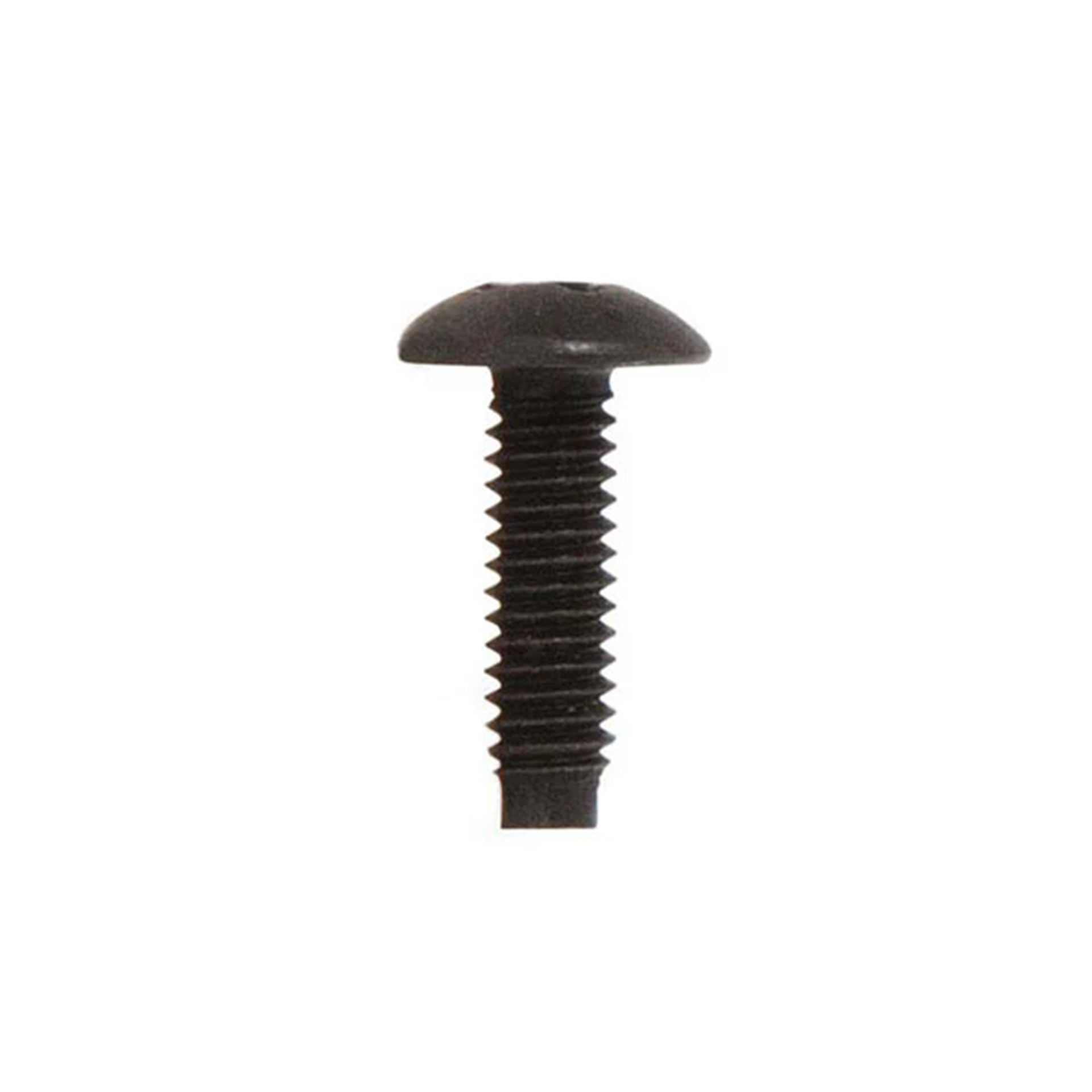

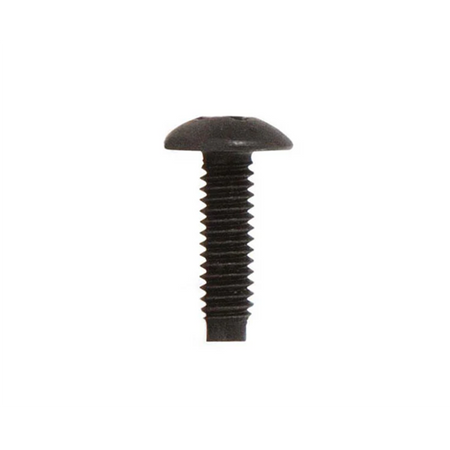

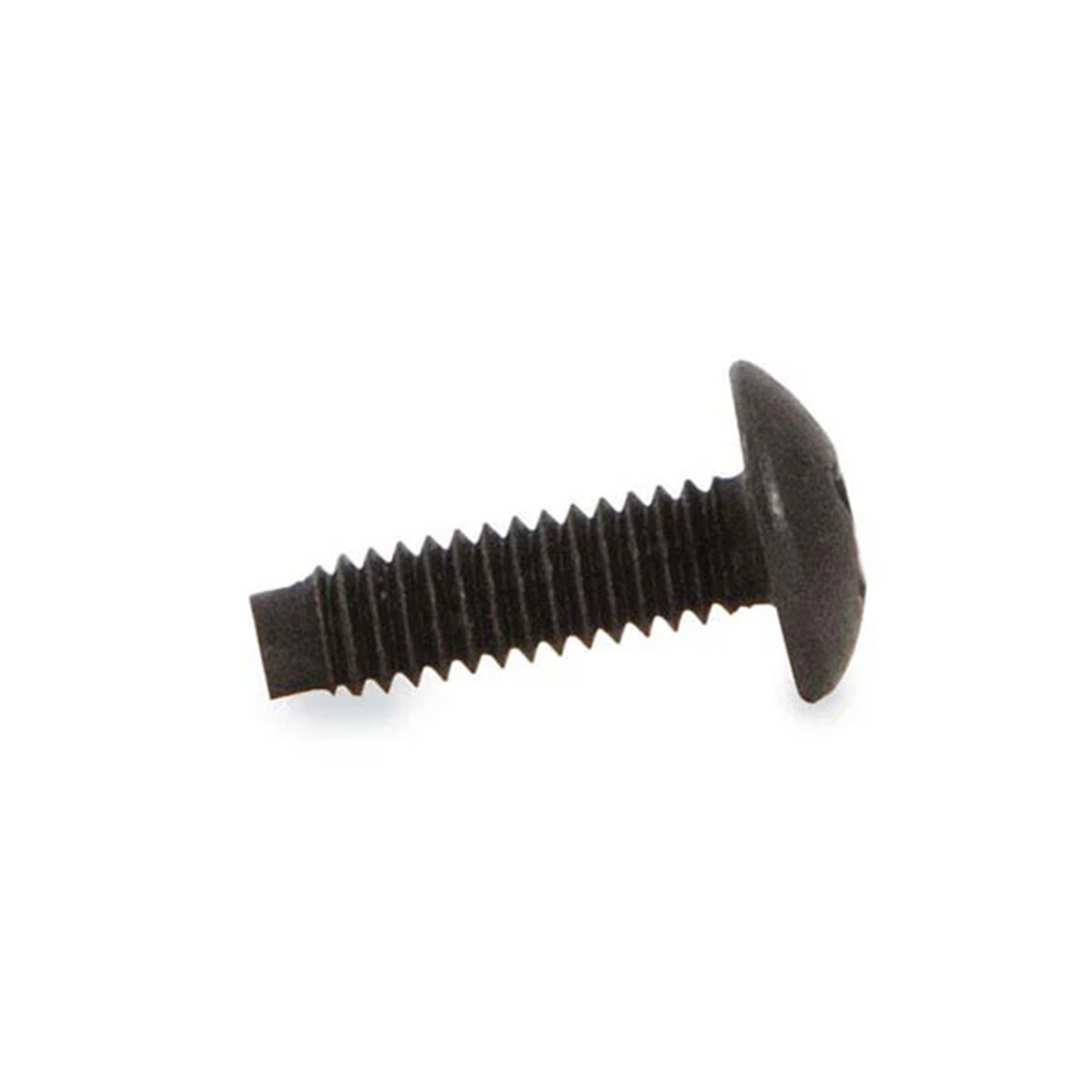

12-24 Server Rack Screws with Delrin Washers - Black Oxide, Phillips Truss Head (50-2500ct)

Kendall Howard 12-24 Rack Screws with Delrin Washers

The Kendall Howard 12-24 Rack Screws are not your everyday hardware store item. These superior, American-made, quality screws should be your only choice for installing rackmount devices such as shelves, cable managers, servers, and other network, A/V and electronic equipment.

Specifications

• Thread Size: 12-24
• Length: 0.75"
• Head Type: Phillips Truss Head
• Point Type: Dog/Pilot Point
• Material: Hardened Steel (Screw) / Delrin (Washer)
• Finish: Black Oxide with Wax Finish
• Washer Included: Protective Delrin Washer
• Weight: 1.00 lbs. (50 ct.) | 1.50 lbs. (100 ct.) | 26.00 lbs. (2500 ct.)
• Dimensions: 0.88" D × 0.51" W
• Made in USA
• RoHS Compliant
• BABA Act Compliant

Key Features

Dog/Pilot Point
Self-guiding tip centers the screw automatically on first contact, preventing thread damage and speeding up installation—especially valuable when mounting multiple devices.

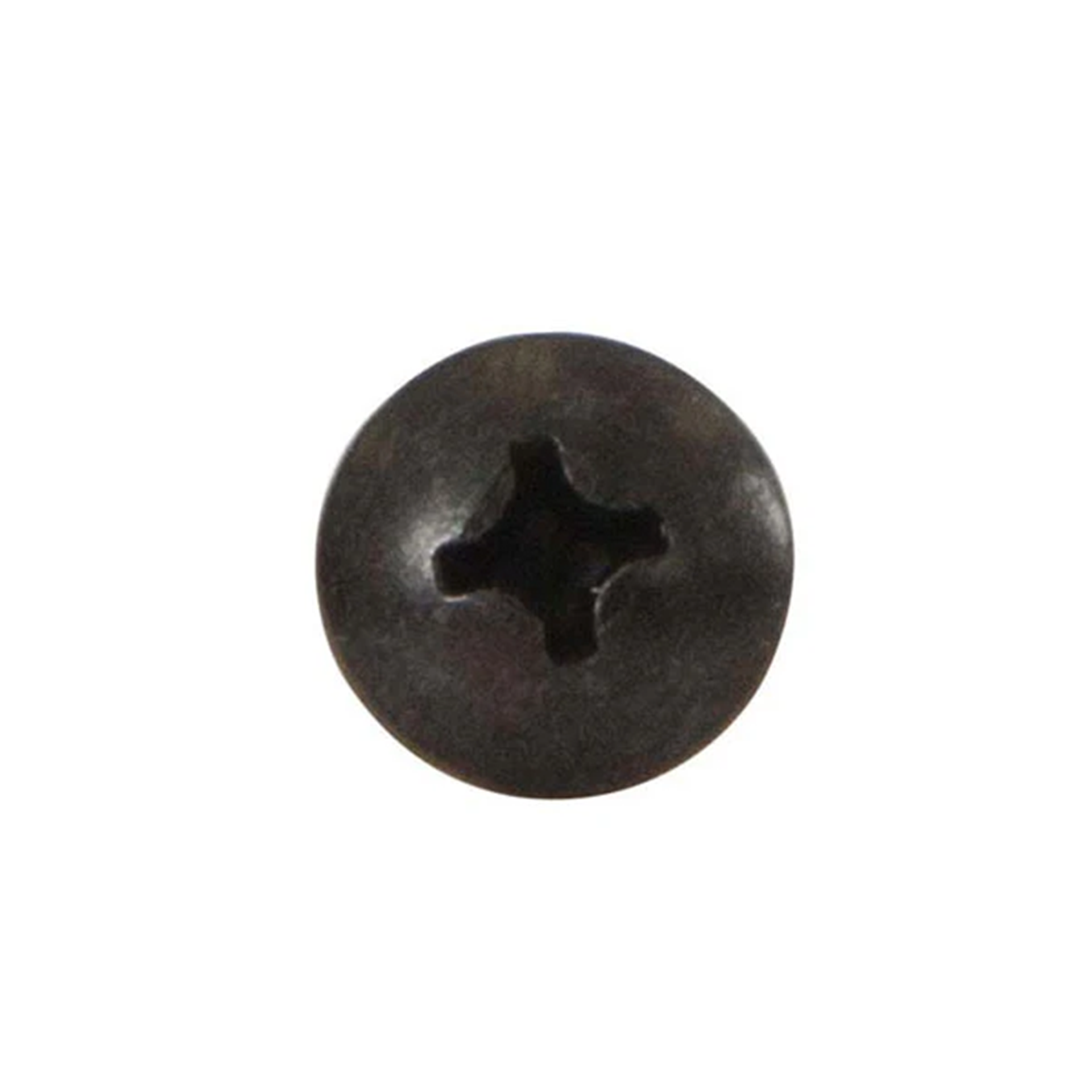

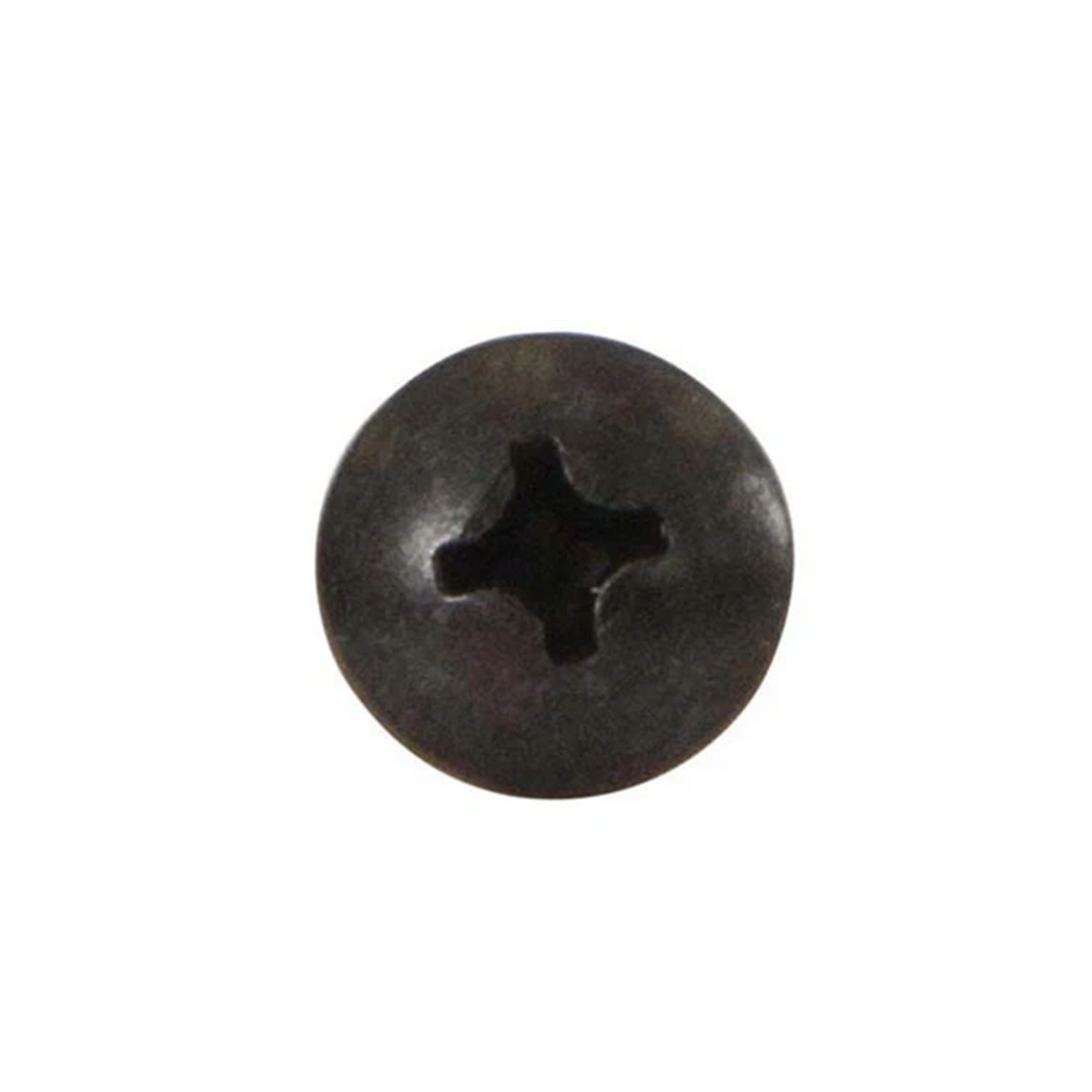

Phillips Truss Head
Install with any standard Phillips screwdriver or drill bit. No special tools required, making installation quick and convenient.

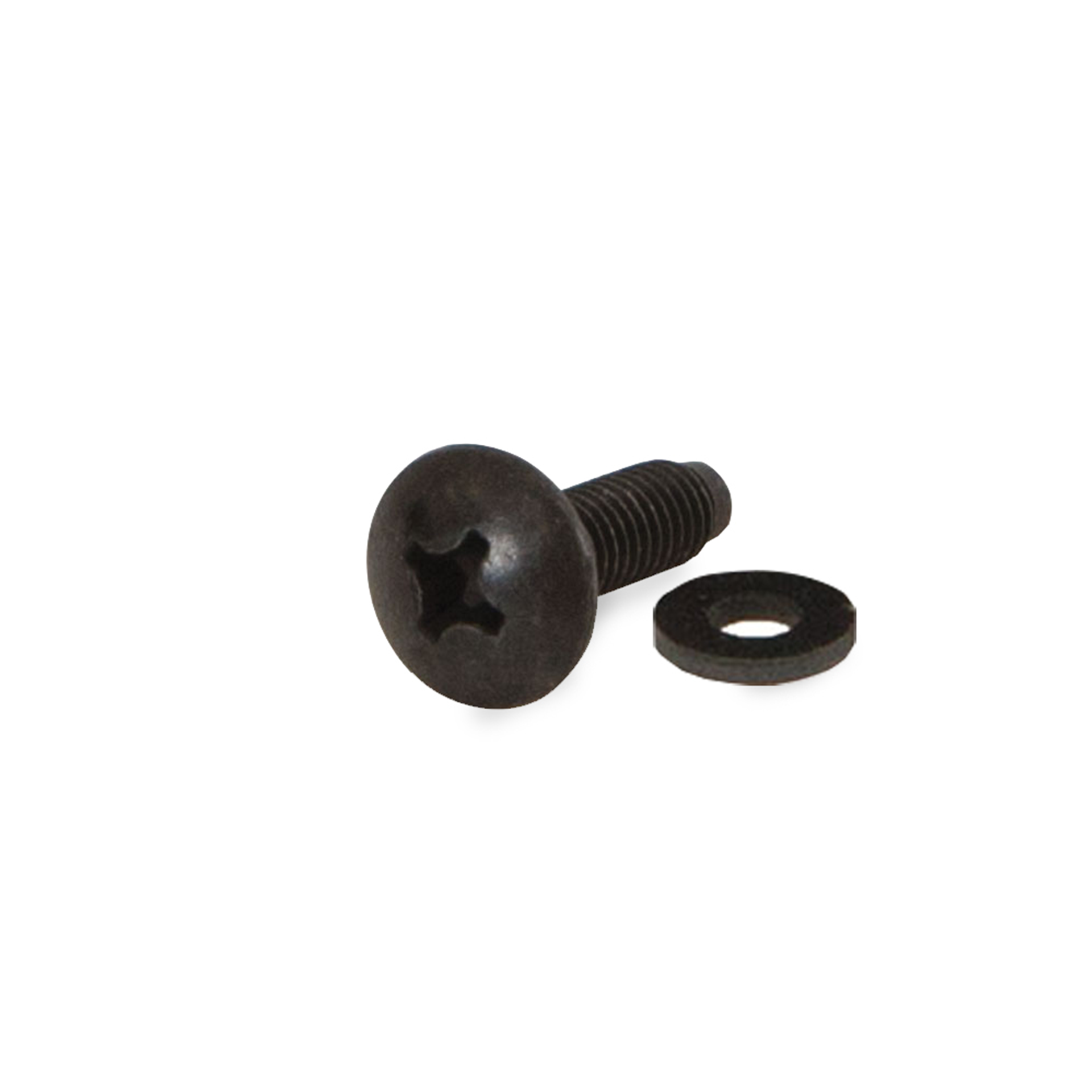

Protective Delrin Washer
Soft, non-marring washer spreads clamping force evenly across device surfaces, protecting against scratches, dents, and finish damage during installation.

Compatible Rail Systems
Fits all standard 12-24 threaded rack rails. For square-hole racks, simply add 12-24 cage nuts for complete compatibility across any rack type.

Usually ships the same day.
