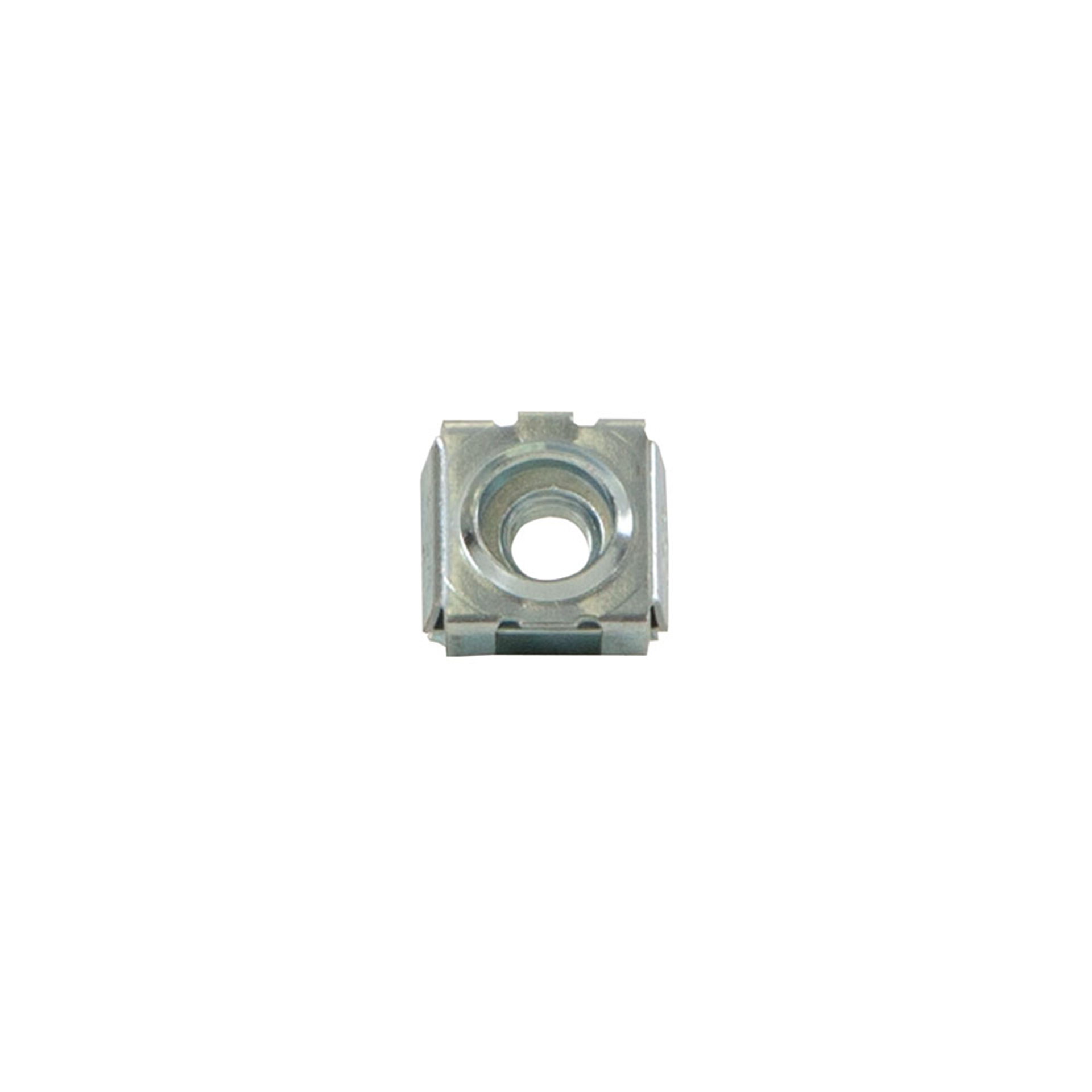

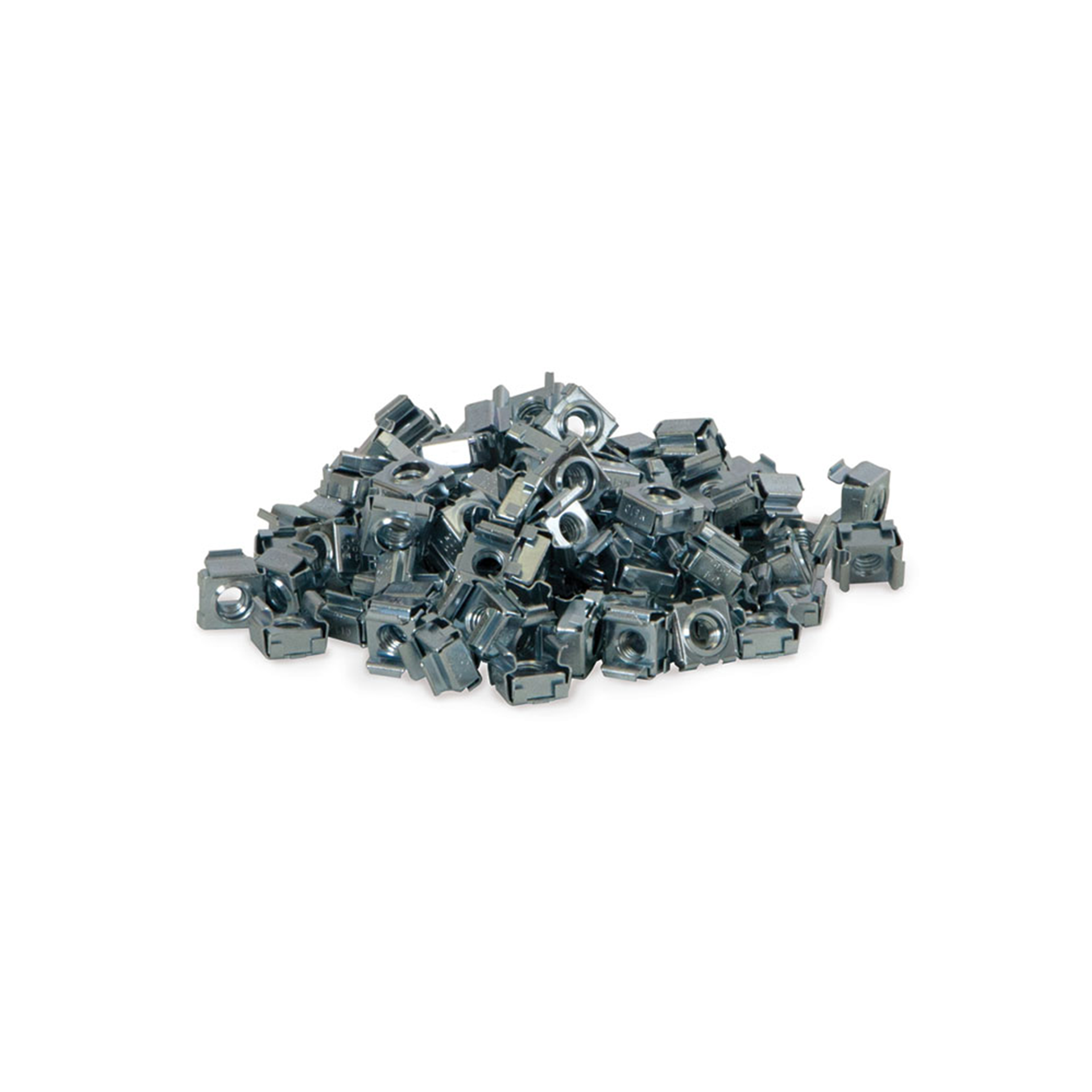

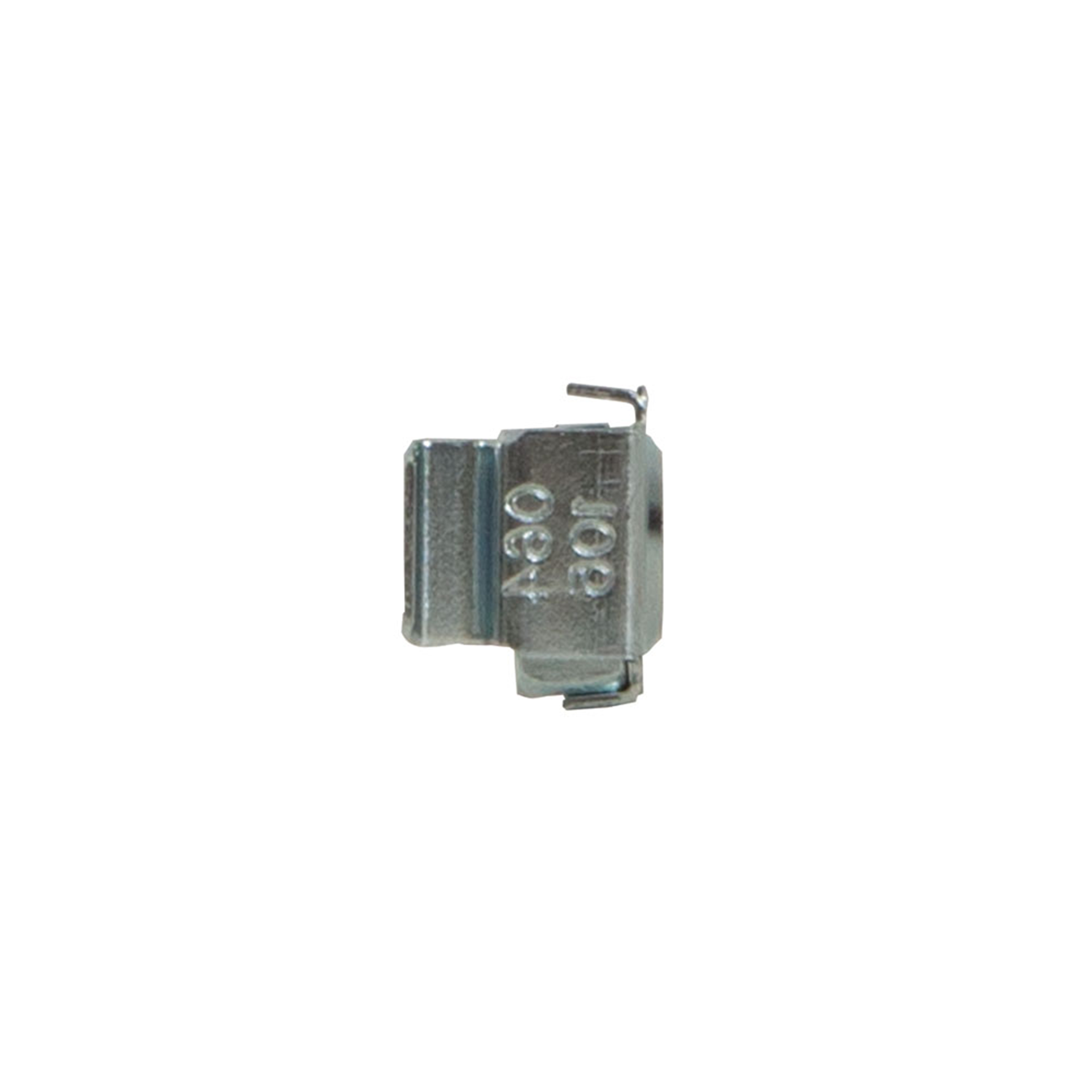

10-32 Server Rack Cage Nuts - Snap-In, Clear Zinc Plated Steel (50/100/2500 Pack)
Manufacturer direct — usually ships in 1–3 business days, then travels via the shipping service you select at checkout. We always ship as quickly as possible, but timeframes are not guaranteed and delivery times may vary.
Couldn't load pickup availability
The Kendall Howard 10-32 cage nuts create a threaded mounting hole for equipment to be mounted to universal rack rails commonly found in server enclosures, open-frame racks, and wall-mount cabinets. Universal mounting rails, also known as cage-nut-style rails, are the most common and preferred type of rail on the market today.
Specifications
- Thread Size: 10-32
- Design: Snap-In
- Material: Hardened Steel
- Finish: Clear Zinc
- Weight: 1.00 lbs. (50 ct.) | 1.50 lbs. (100 ct.) | 20.50 lbs. (2500 ct.)
- Dimensions: 0.36" D × 0.52" W × 0.50" H
- Made in USA
- RoHS Compliant
- BABA Act Compliant
Features

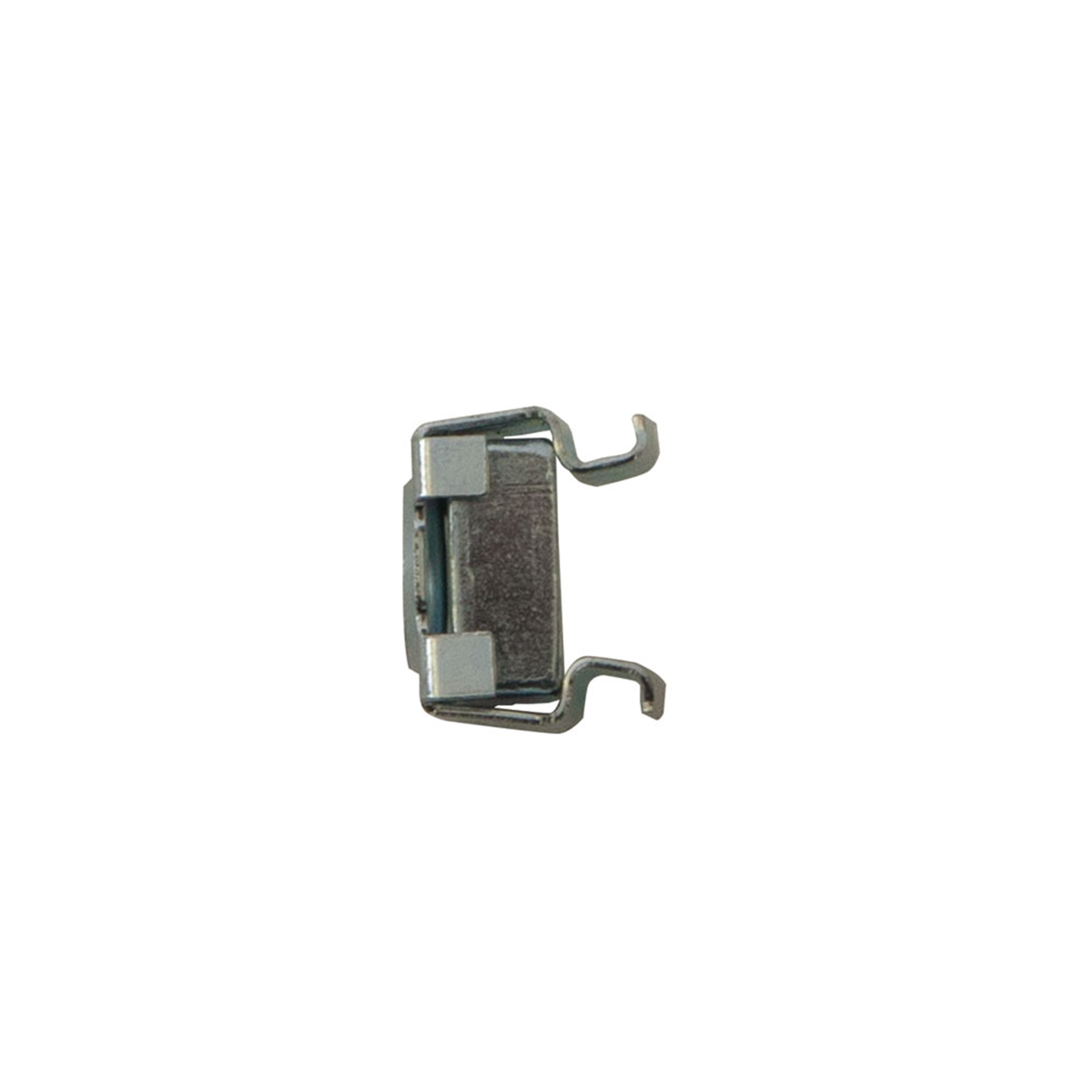

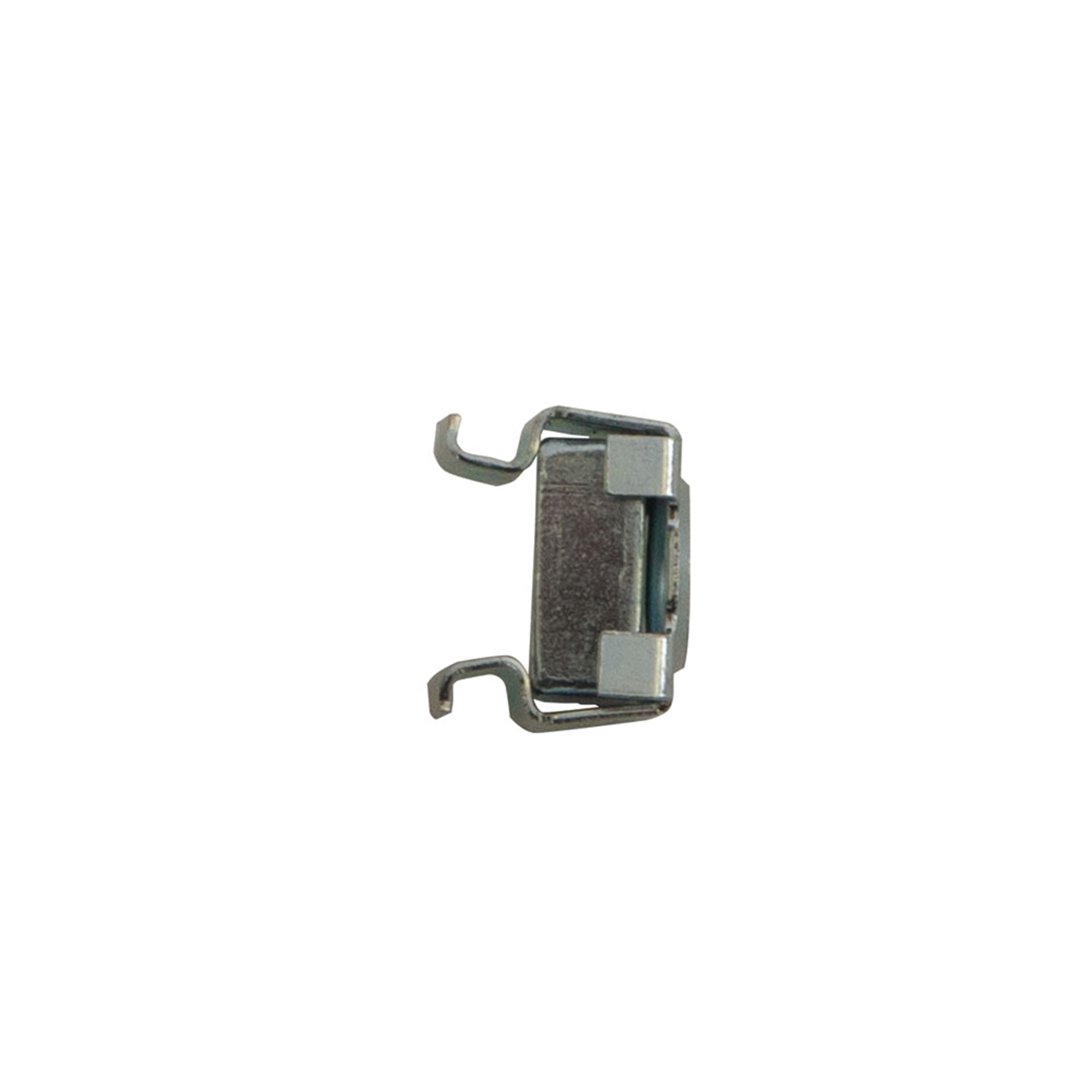

Snap-In Design: Spring-loaded wings compress for tool-free installation into square rack holes, then expand to lock securely in place. Superior to slide-on designs that can shift or fall out during equipment installation.
Easily Replaced: No more worrying about stripped threads. Damaged cage nuts pop out, and new ones snap in within seconds—no rail replacement, no downtime, no expensive service calls.s
