10-32 Server Rack Screws with Delrin Washers - Black Oxide, Phillips Truss Head (50-2500ct)
Manufacturer direct — usually ships in 1–3 business days, then travels via the shipping service you select at checkout. We always ship as quickly as possible, but timeframes are not guaranteed and delivery times may vary.
Couldn't load pickup availability

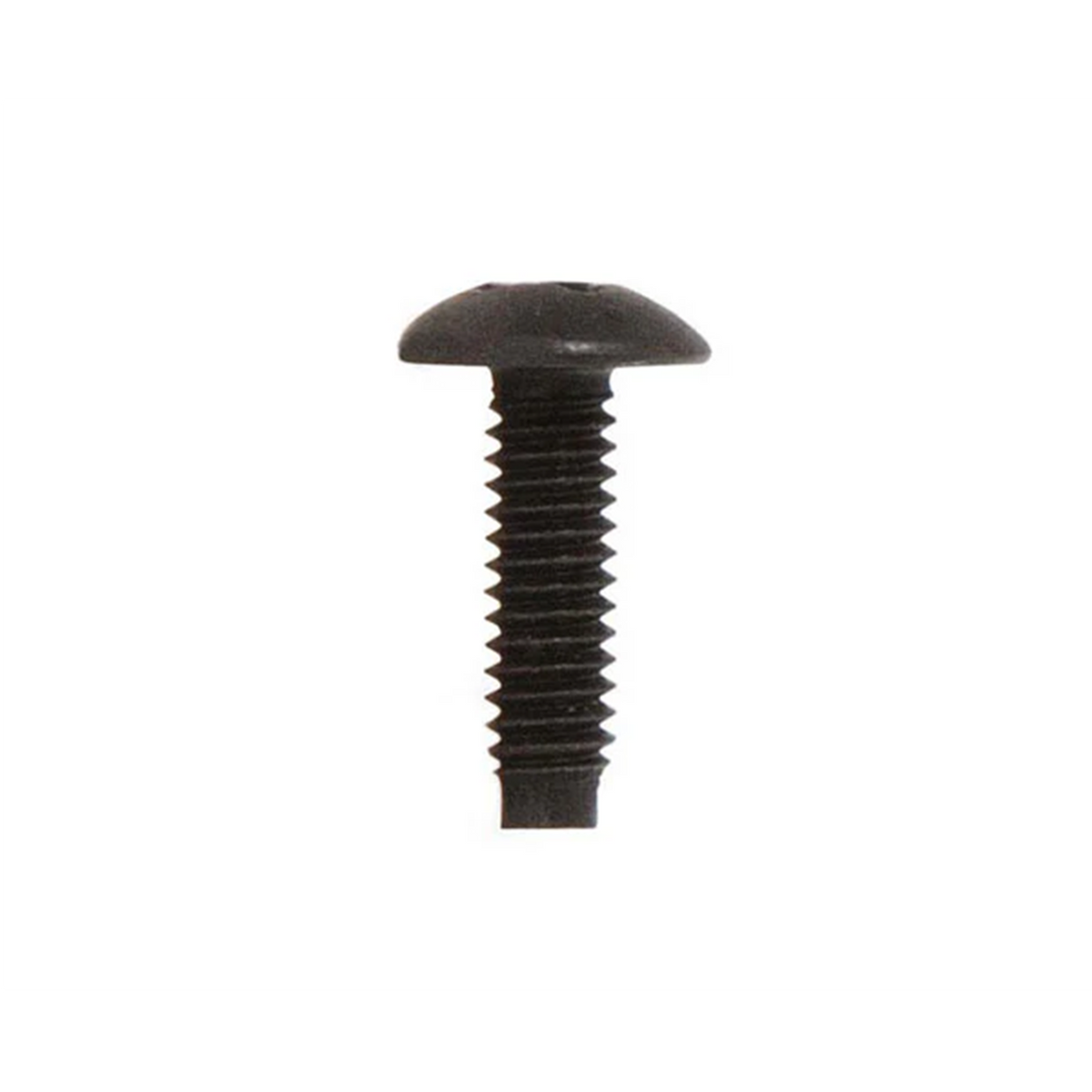

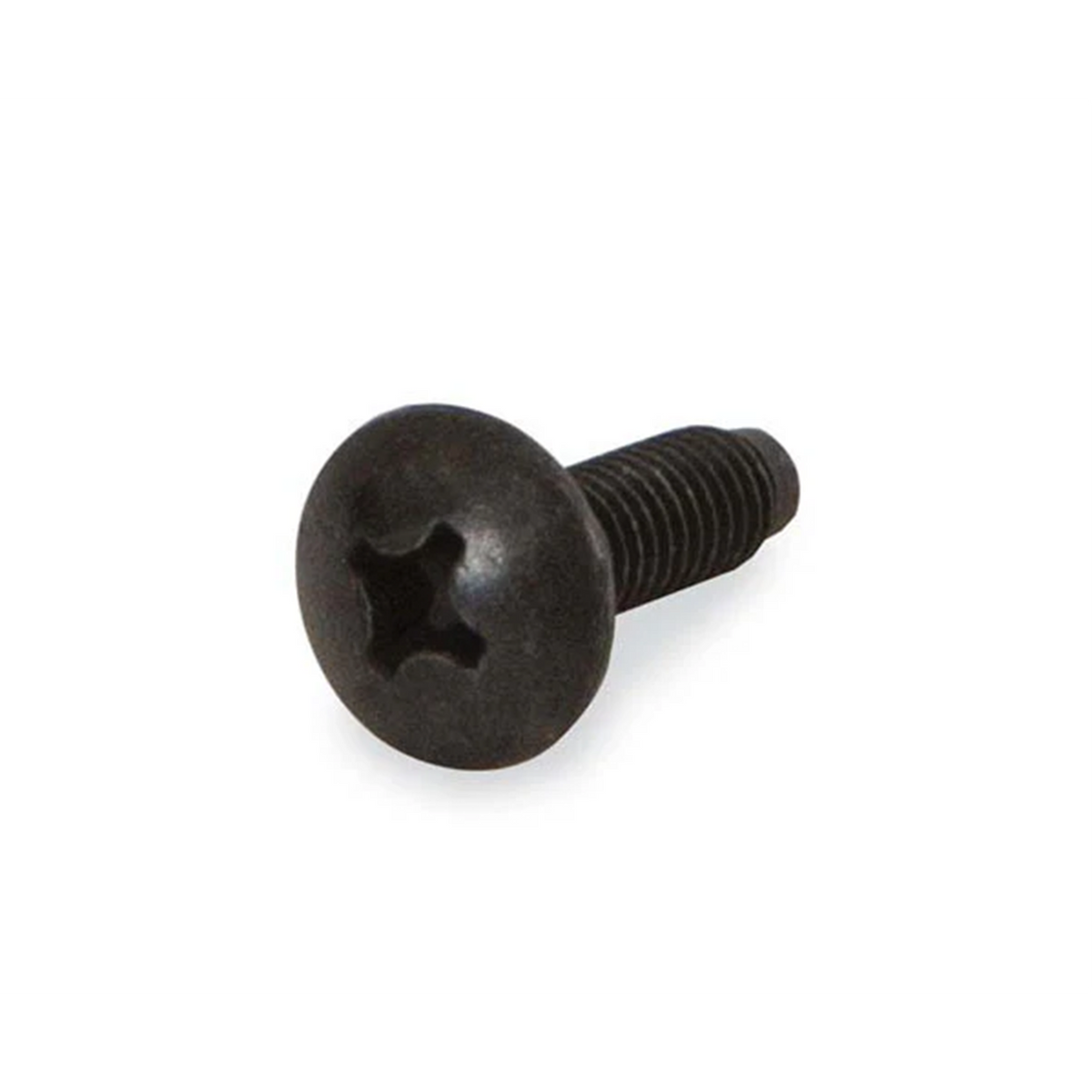

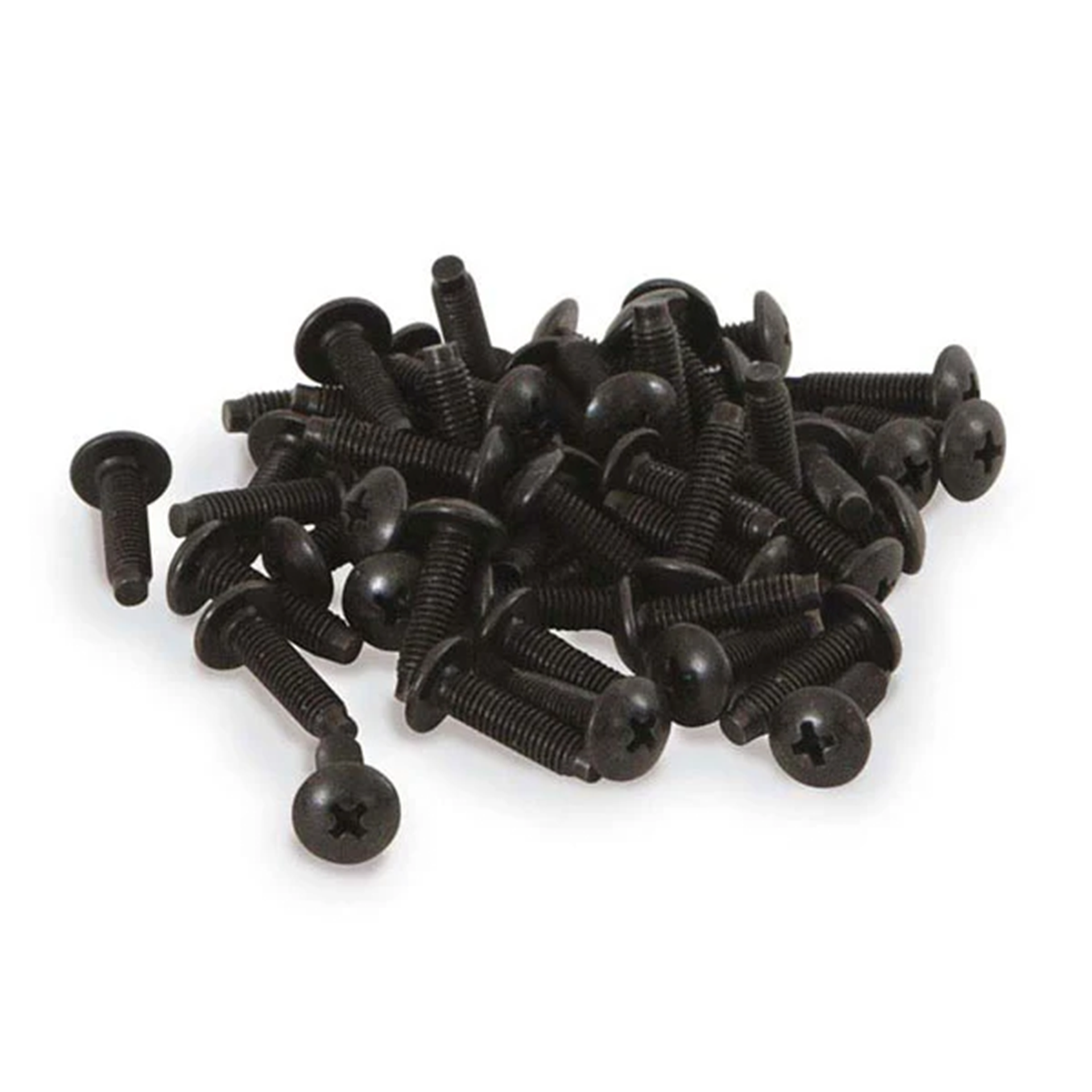

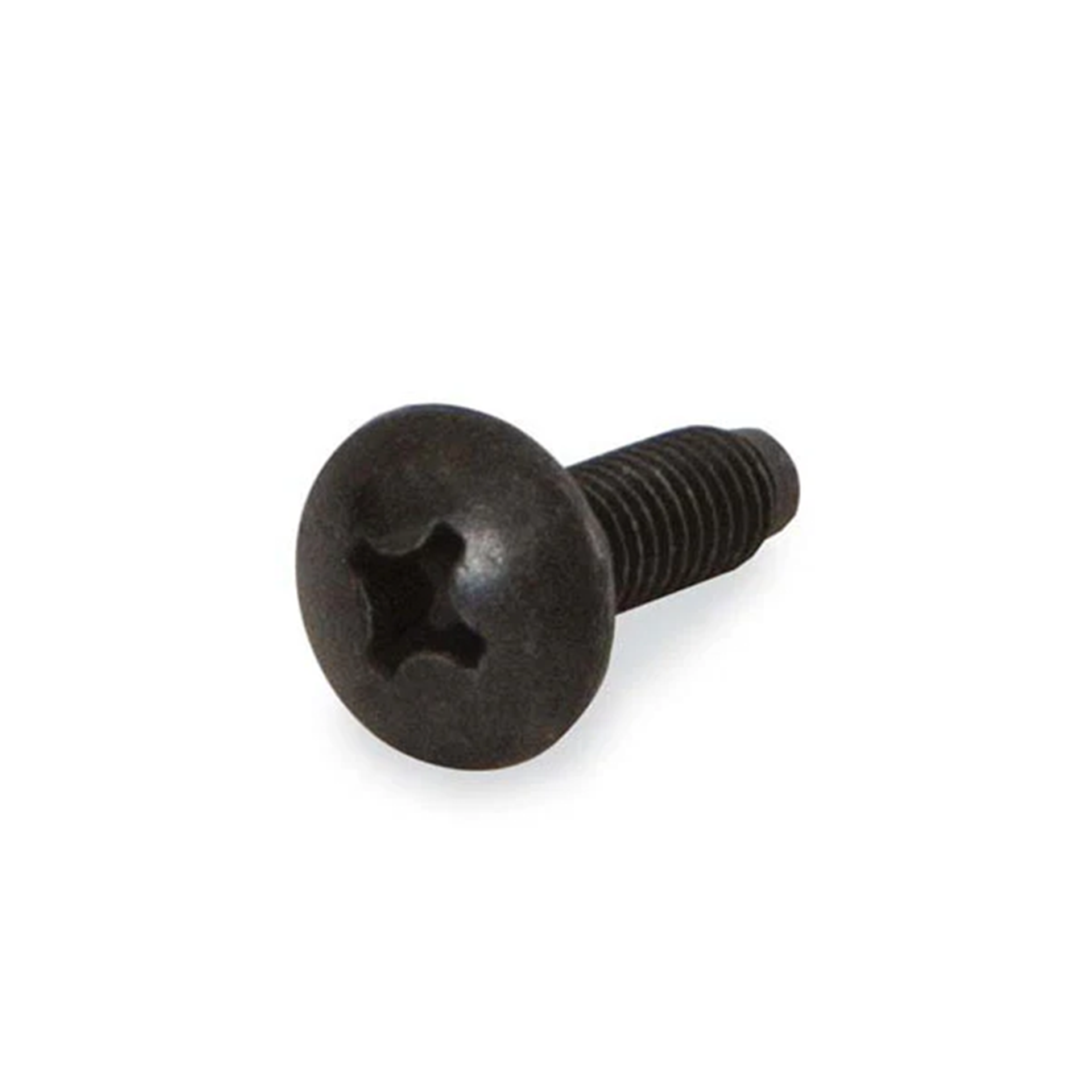

The Kendall Howard 10-32 Rack Screws are not your everyday hardware store item. These superior, American-made, quality screws should be your only choice for installing rackmount devices such as shelves, cable managers, servers, and other network, A/V, and electronic equipment.
Specifications
- Thread Size: 10-32
- Length: 0.75"

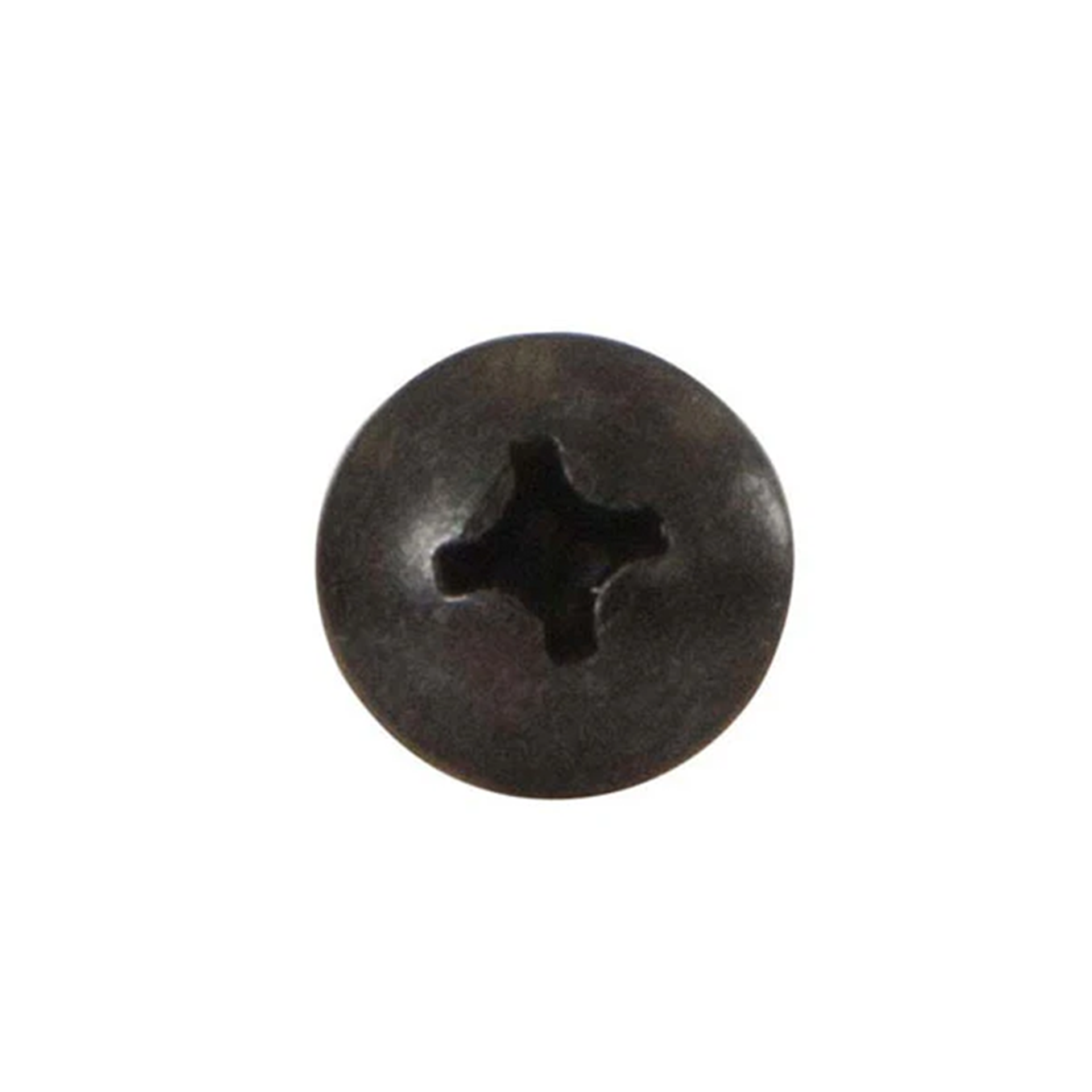

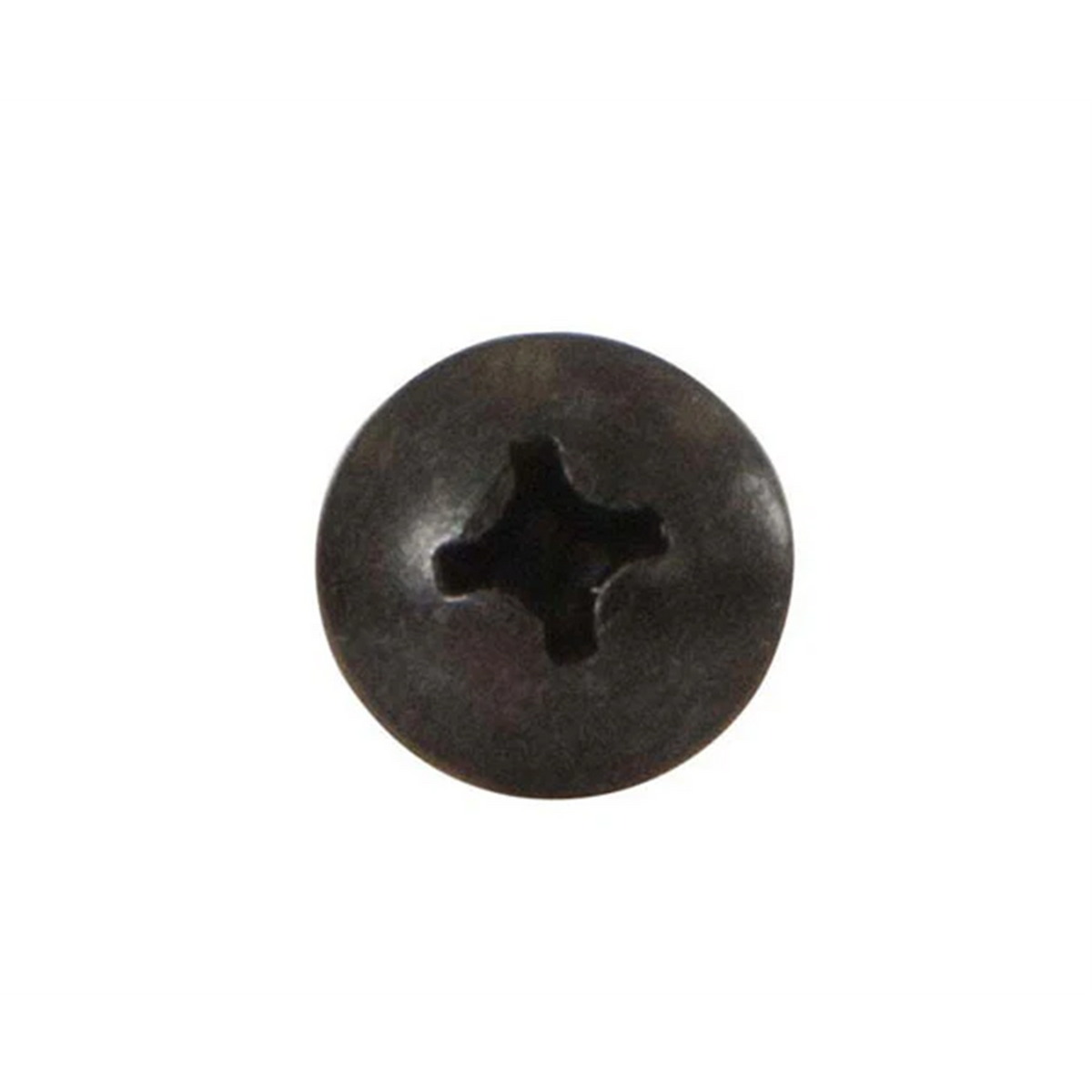

- Head Type: Phillips Truss Head
- Point Type: Dog/Pilot Point
- Material: Hardened Steel (Screw) / Delrin (Washer)
- Finish: Black Oxide with Wax Finish
- Washer Included: Protective Delrin Washer
- Weight: 1.00 lbs. (50 ct.) | 1.50 lbs. (100 ct.) | 20.00 lbs. (2500 ct.)
- Dimensions: 0.88" D × 0.44" W
- Made in USA
- RoHS Compliant
- BABA Act Compliant
Features
Dog/Pilot Point: Self-guiding tip centers the screw automatically on first contact, preventing thread damage and speeding up installation—especially valuable when mounting multiple devices.
Phillips Truss Head: Install with any standard Phillips screwdriver or drill bit. No special tools required, making installation quick and convenient.

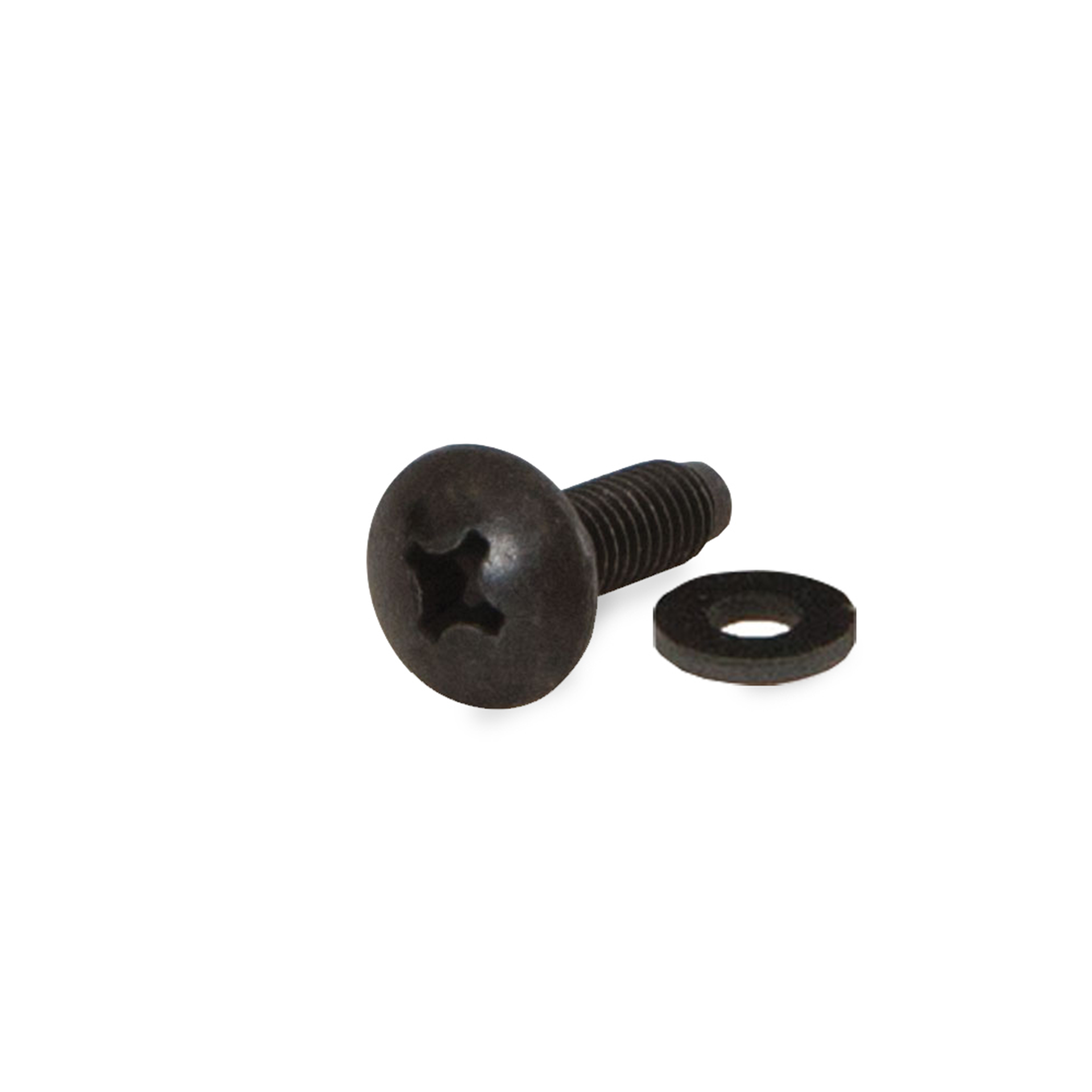

Protective Delrin Washer: Soft, non-marring washer evenly distributes clamping force across device surfaces, helping prevent scratches, dents, and finish damage during installation.
Compatible Rail Systems: Fits all standard 10-32 threaded rack rails. For square-hole racks, add 10-32 cage nuts for full compatibility with all rack types.
