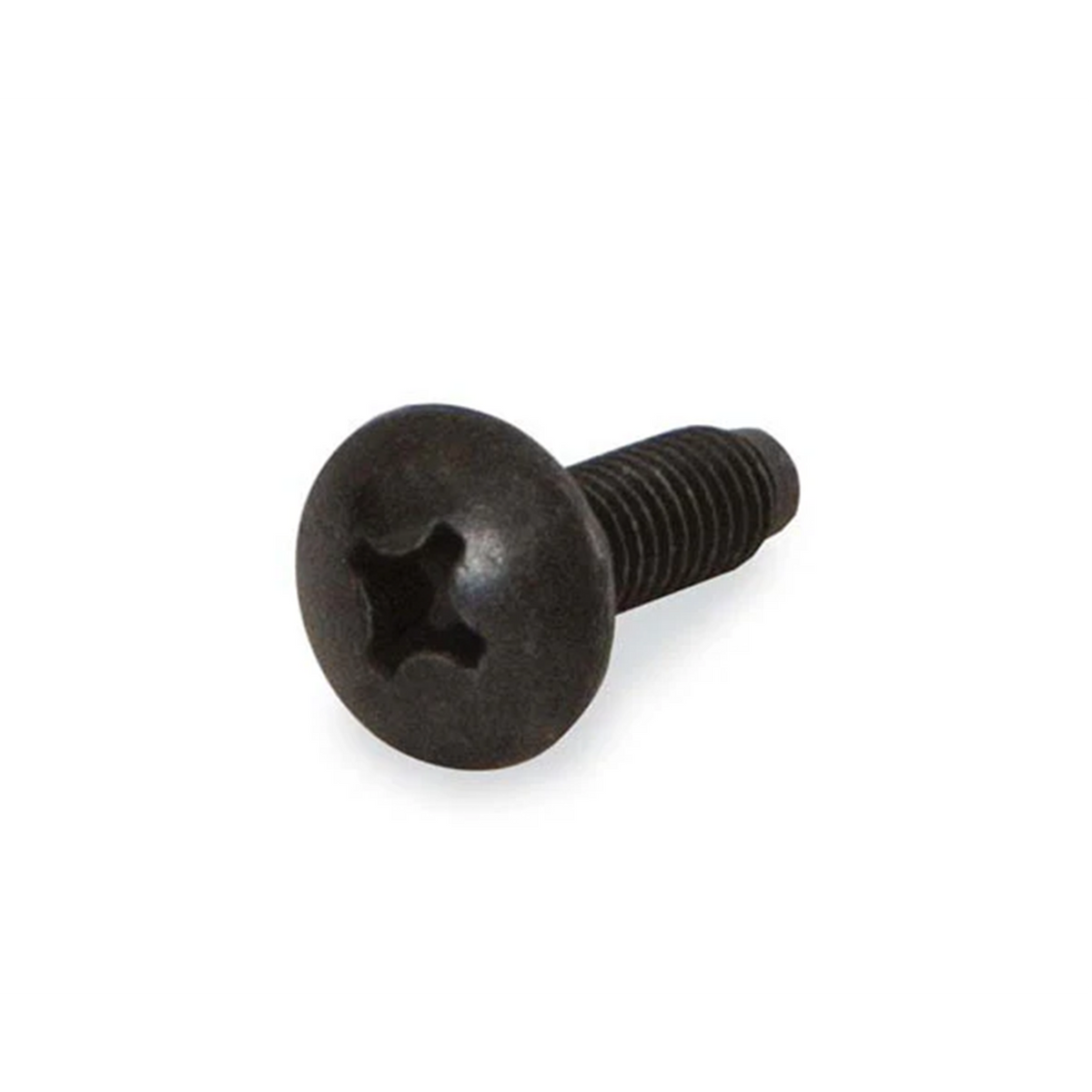

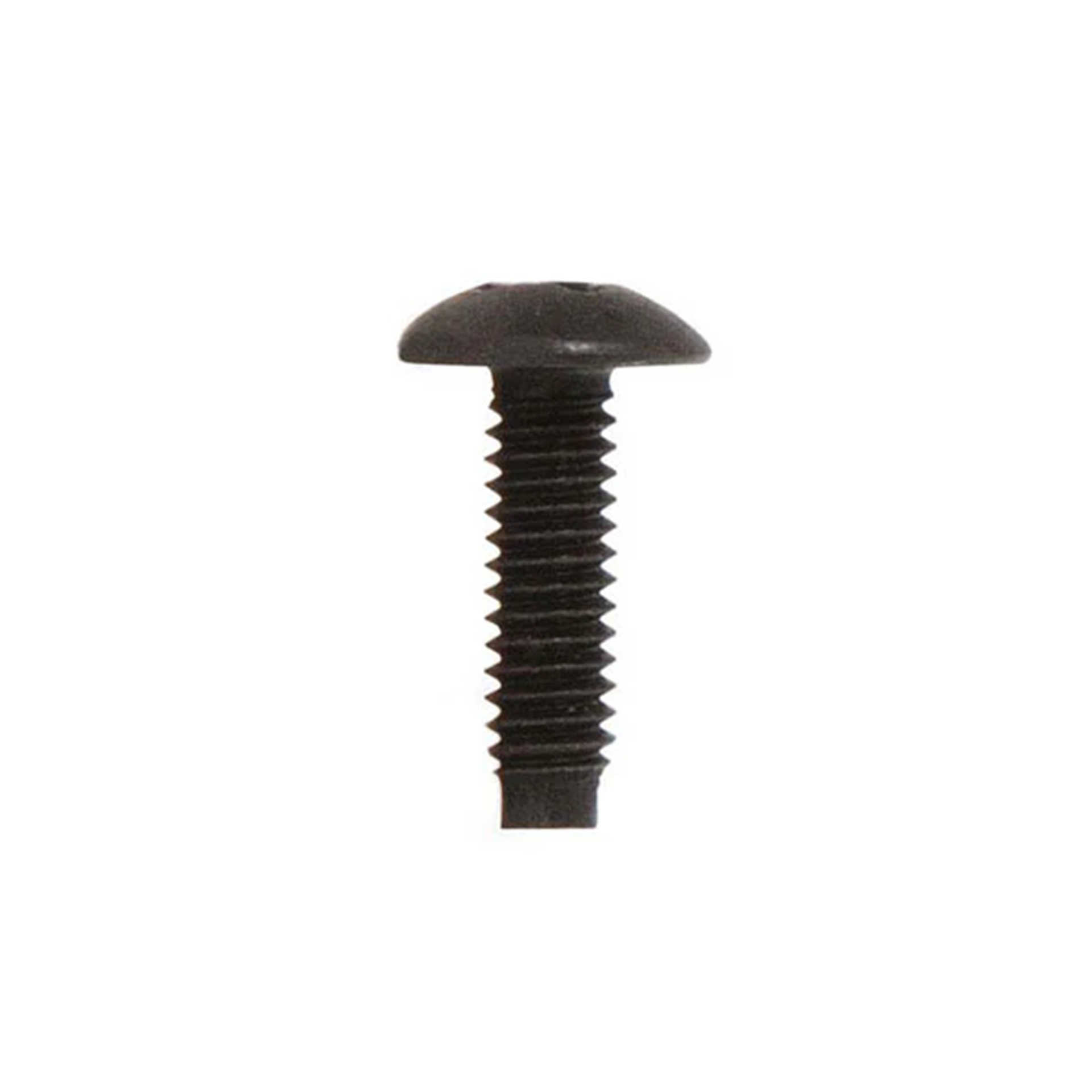

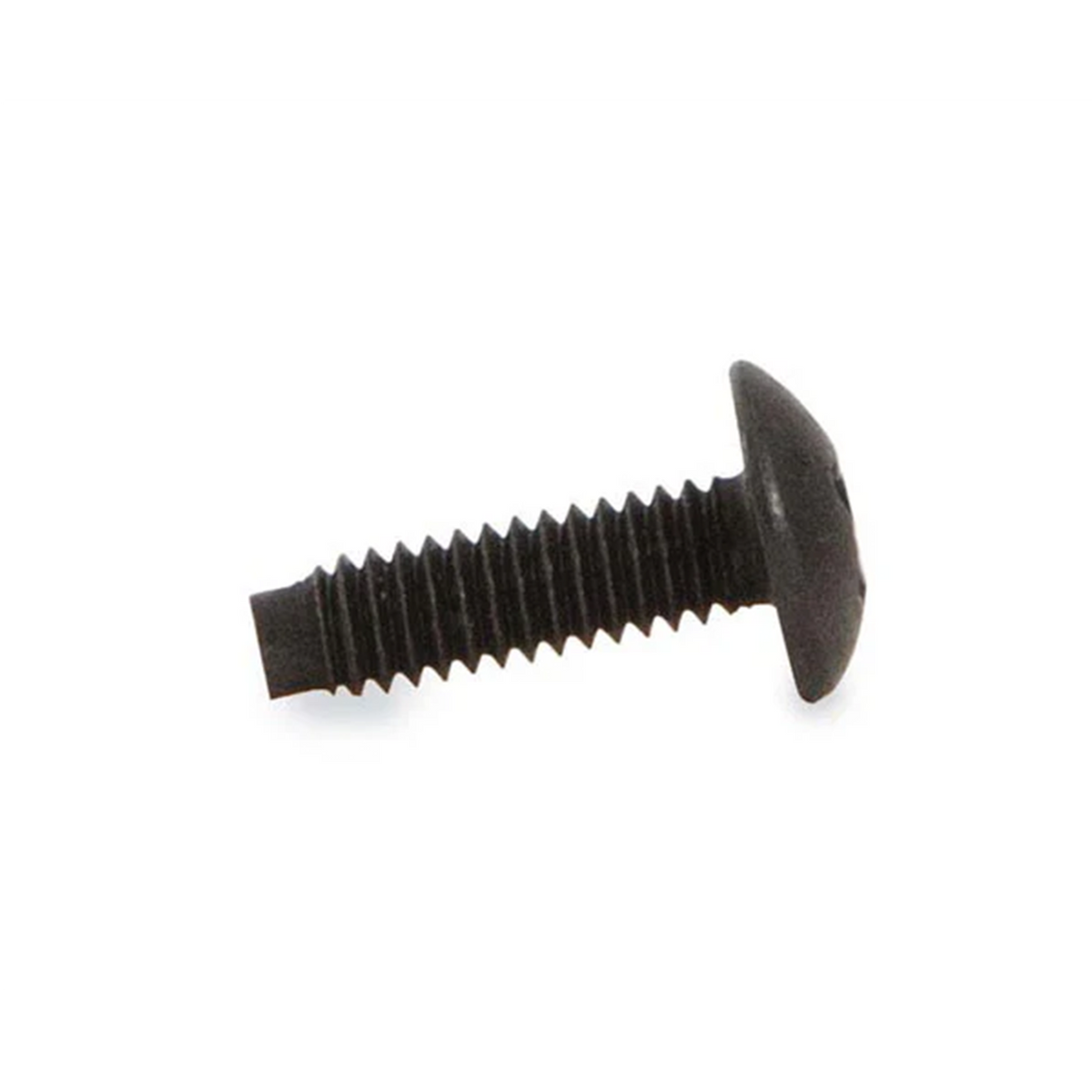

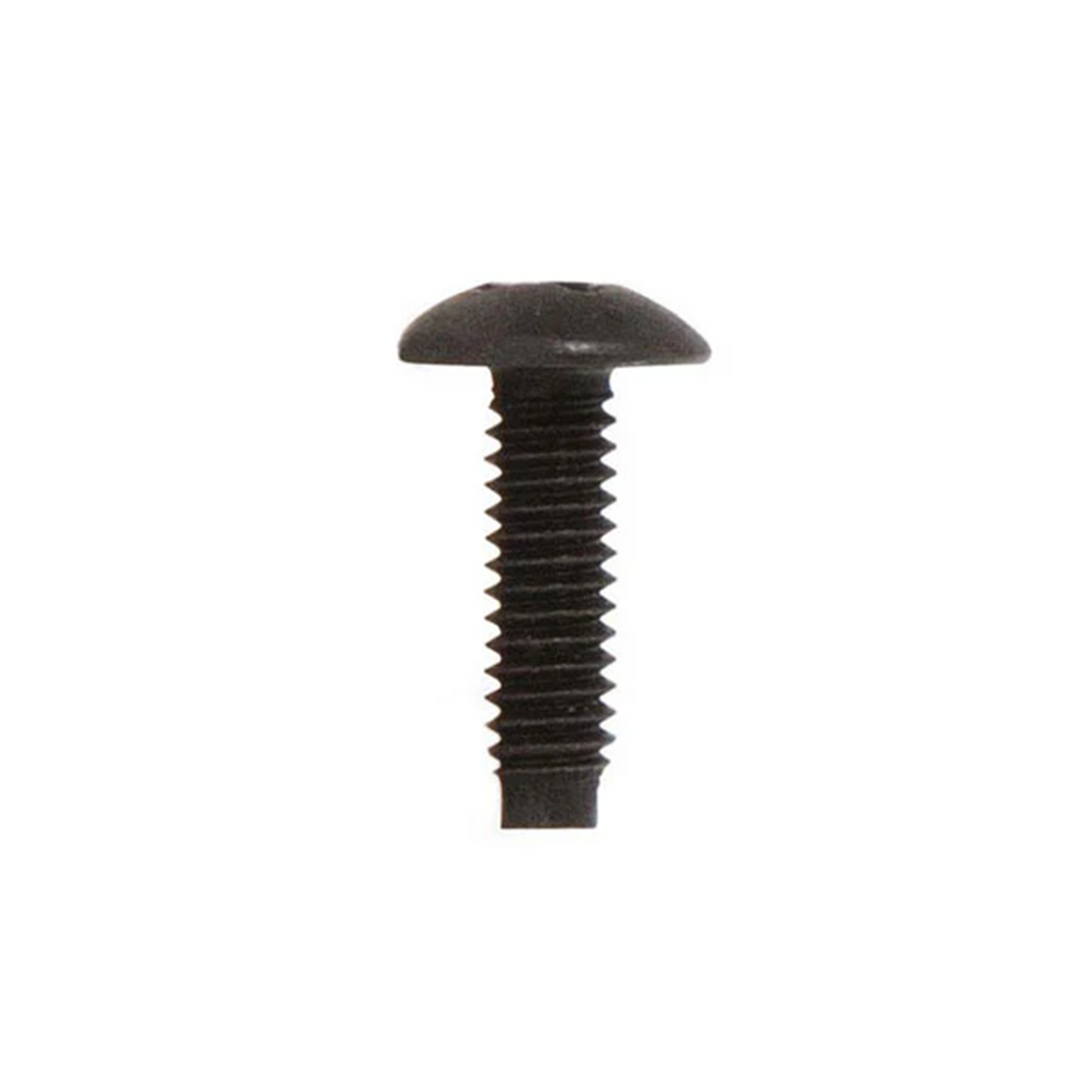

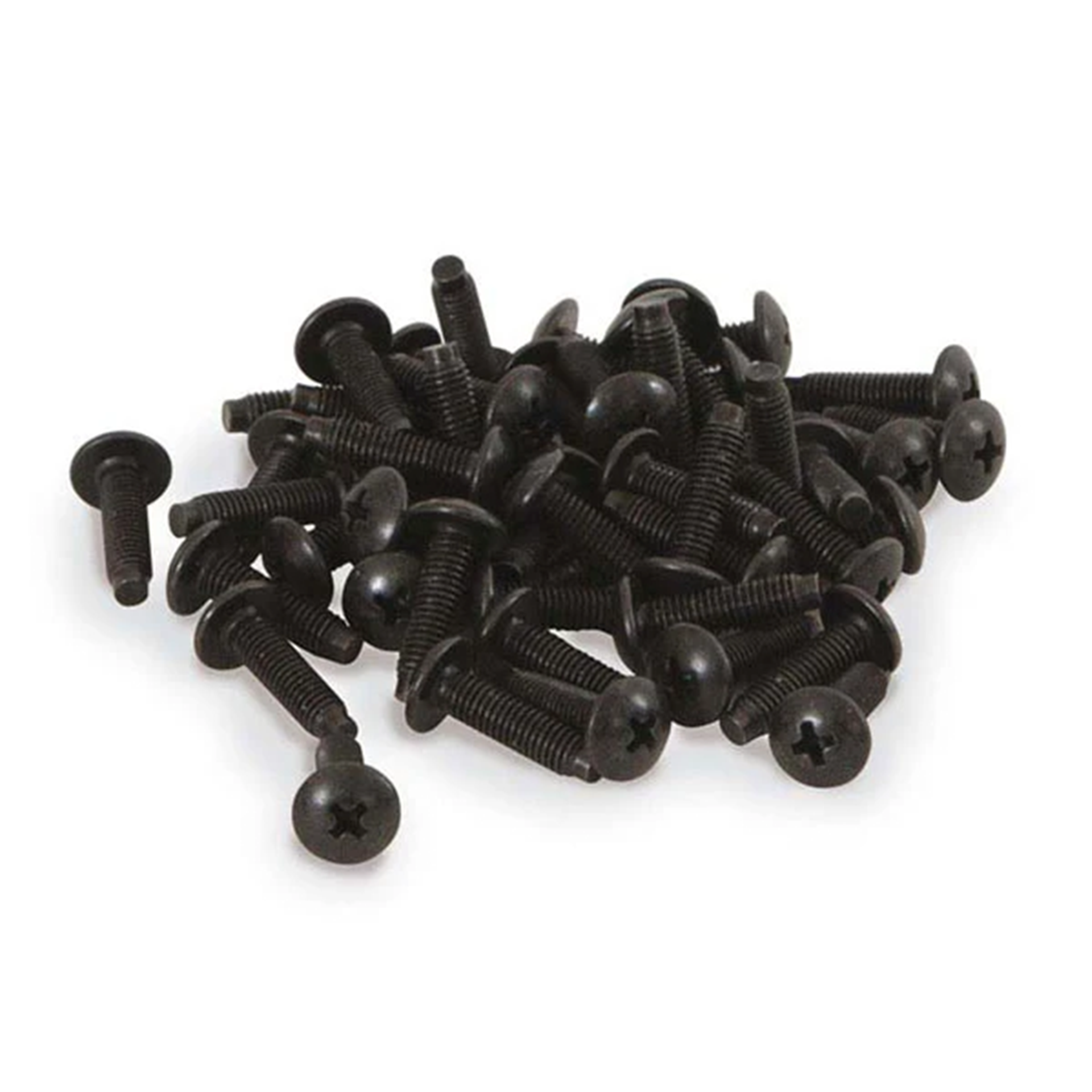

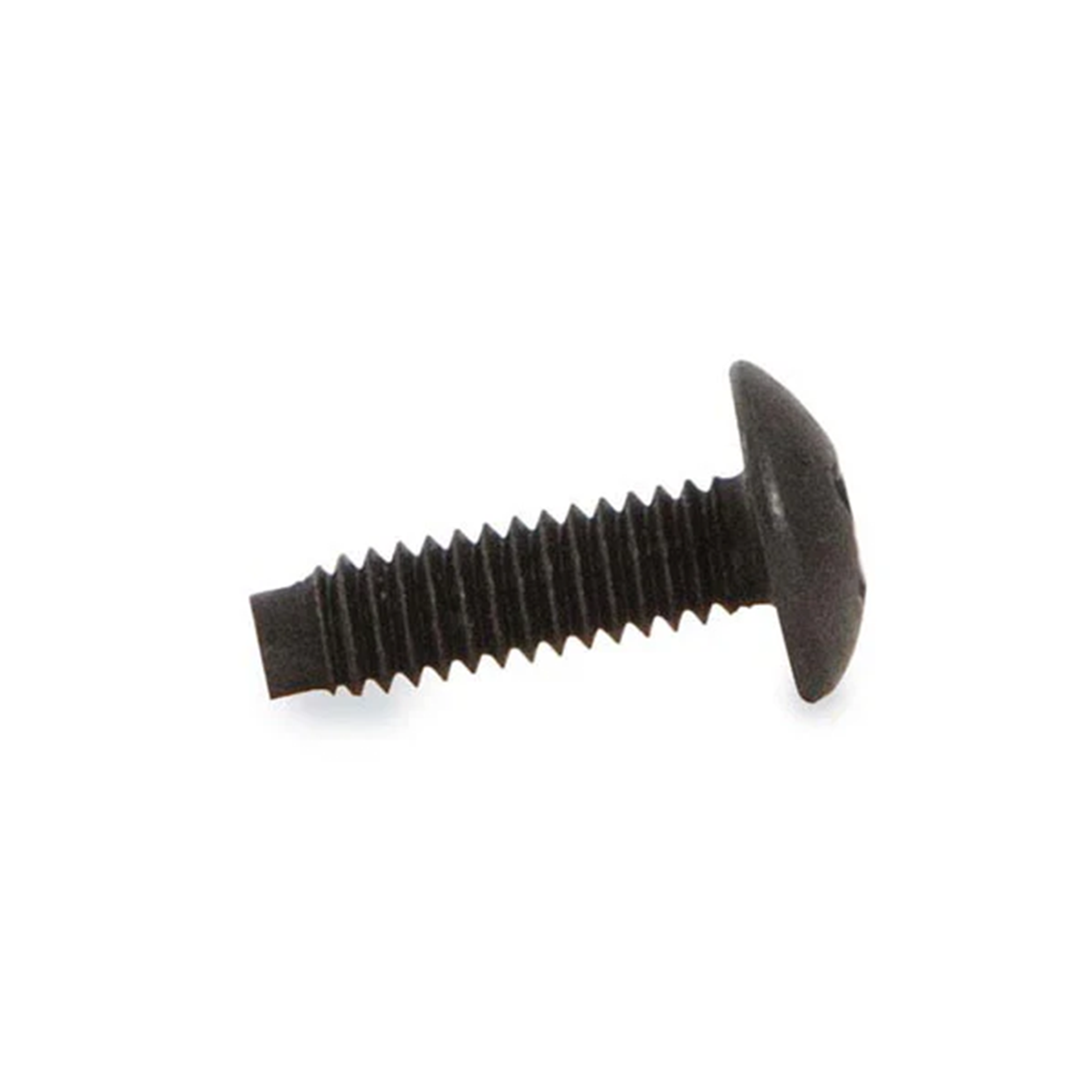

10-32 Rack Mount Screws - Hardened Steel, Black Oxide, Easy-Start Pilot Point (50-5000ct)
Manufacturer direct — usually ships in 1–3 business days, then travels via the shipping service you select at checkout. We always ship as quickly as possible, but timeframes are not guaranteed and delivery times may vary.
Couldn't load pickup availability
The Kendall Howard 10-32 Rack Screws are not your everyday hardware store item. These superior, American-made, quality screws should be your only choice for installing rackmount devices such as shelves, cable managers, servers, and other network, A/V, and electronic equipment.
Specifications
- Thread Size: 10-32
- Length: 0.75"

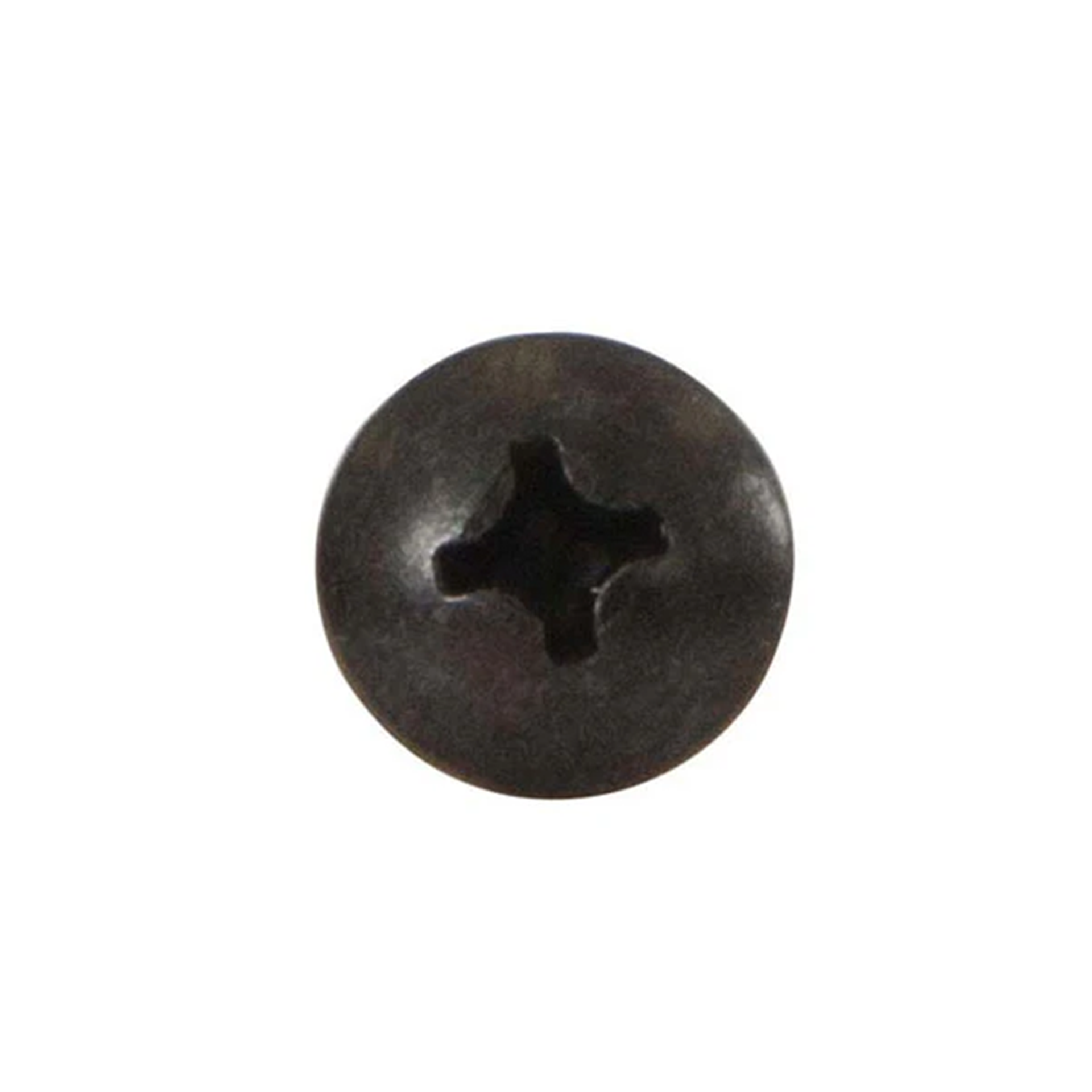

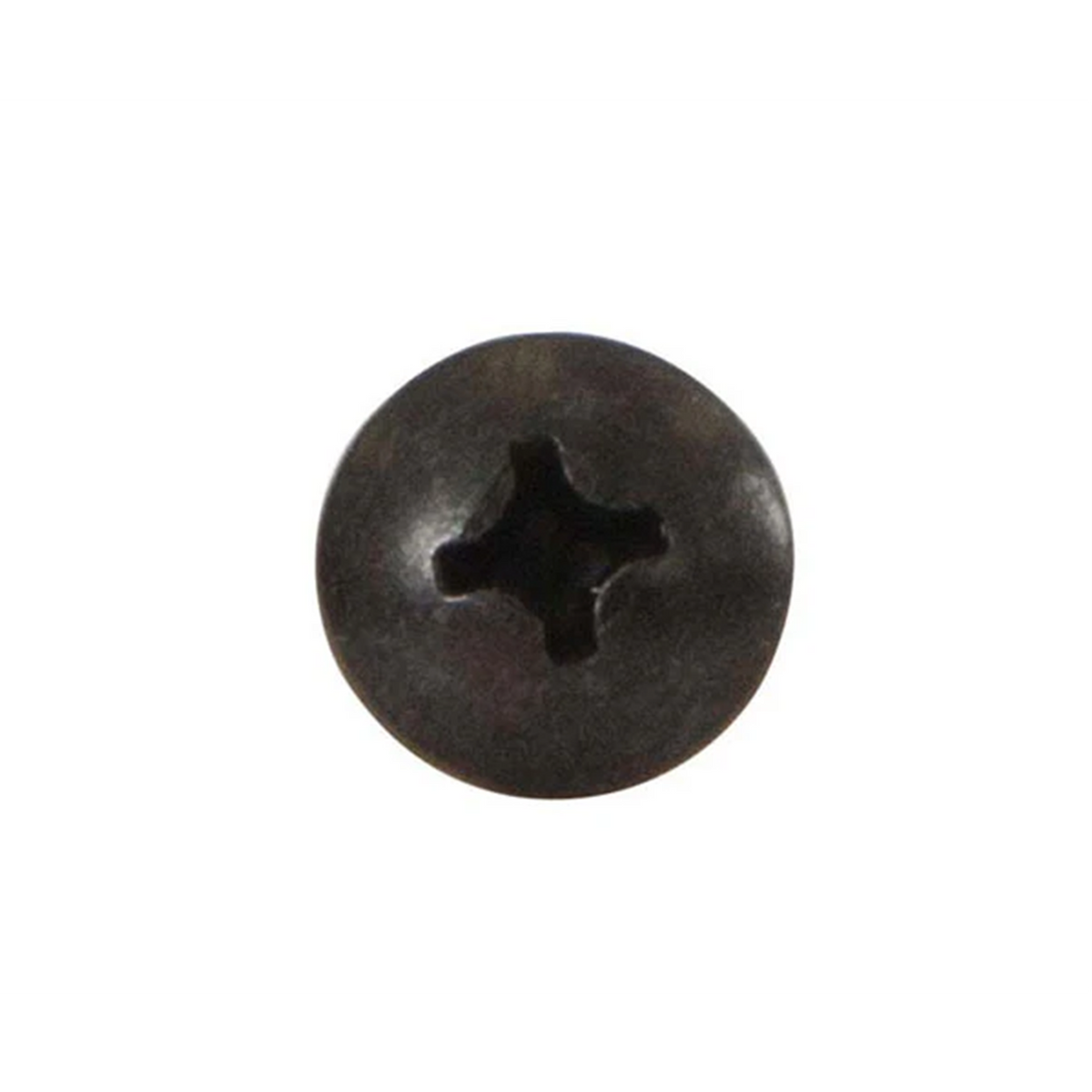

- Head Type: Phillips Truss Head
- Point Type: Dog/Pilot Point
- Material: Hardened Steel
- Finish: Black Oxide with Wax Finish
- Weight: 1.00 lbs. (50 ct.) | 1.50 lbs. (100 ct.) | 20.50 lbs. (2500 ct.) | 37.80 lbs. (5000 ct.)
- Dimensions: 0.87" D × 0.44" W × 0.44" H
- Made in USA
- RoHS Compliant
- BABA Act Compliant
Features
Dog/Pilot Point: Self-guiding tip centers the screw automatically, preventing thread damage and speeding up installation.
Phillips Truss Head: Install with any standard Phillips screwdriver or bit—universal compatibility means no special tools needed.
Compatible Rail Systems: Works with all 10-32 threaded rails and square-hole racks (when used with 10-32 cage nuts).
