Wire Stripper & Crimper - 8-26 AWG Multi-Function Tool with Adjustable Wire Stop (WSC-826)

SKU: WSC-826 UPC: 811490017771
Regular price $33.95
Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Ships direct from the manufacturer — please allow up to 10 business days, though it often ships sooner, then goes out via the shipping service you select at checkout. This item does not ship from our warehouse, so delivery times may vary.

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

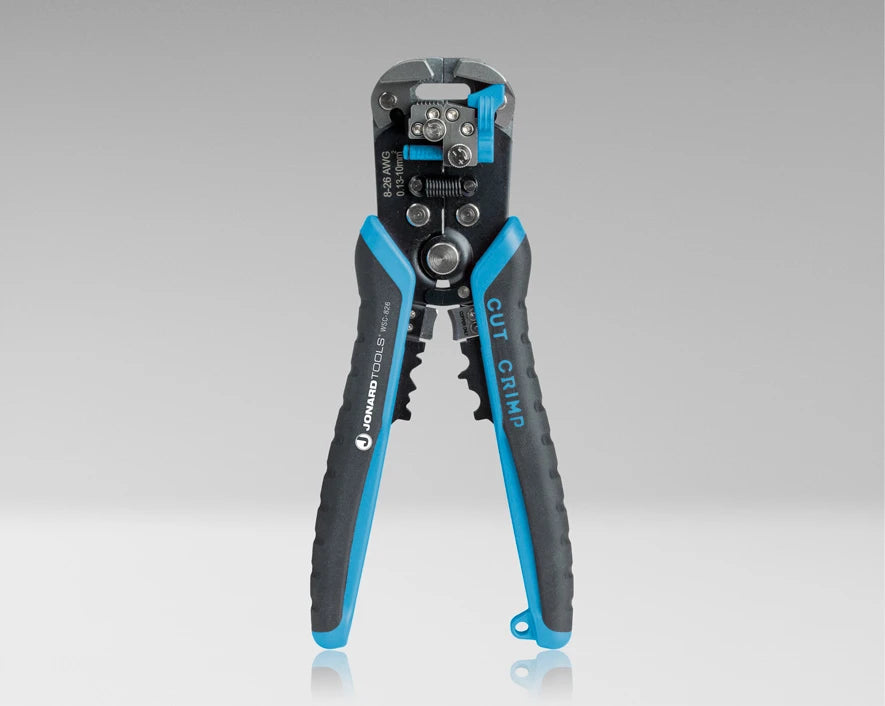

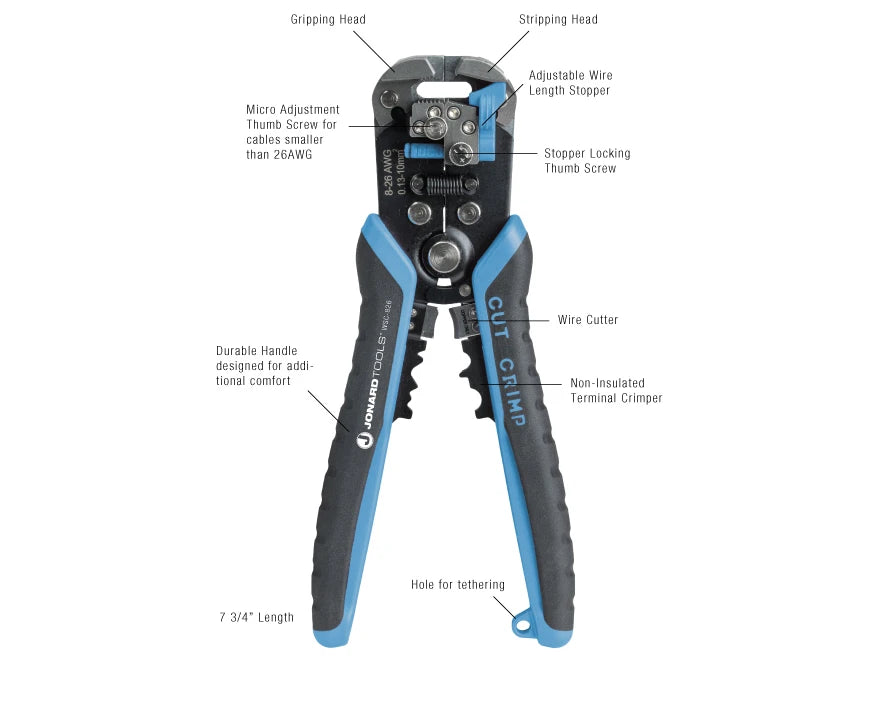

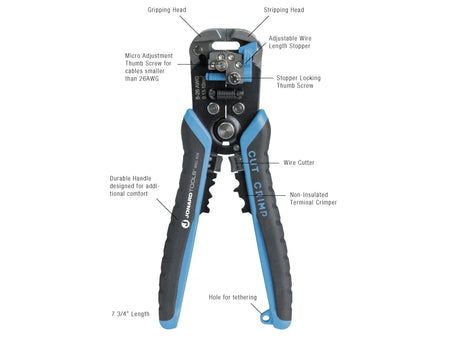

Most strippers make you pick a hole; the Jonard Tools WSC-826 grips the wire, finds its own depth, and pulls the insulation off in one squeeze. It's a self-adjusting wire stripper, cutter, and crimper that strips 8 to 26 AWG (3.26 to 0.40 mm) stranded and solid conductors with no adjustment between sizes, which is what makes it fast on a job that mixes 12 and 14 AWG NM cable conductors with 18 AWG control wire and 22 AWG leads. An adjustable wire stop sets the strip length up to 0.62 in (1.57 cm) so every strip on a run comes out the same, and a micro adjustment knob stretches the tool's range when it needs it, down to wire as fine as 30 AWG and up to 8 AWG. The handle carries a cutter, a crimper for non-insulated terminals from 22 to 10 AWG, and a separate crimper for 7 to 8 mm ignition wire. It's 8 in long and three-quarters of a pound.

Features

  • Self-adjusting, 8 to 26 AWG. Grips and strips stranded or solid wire from 3.26 to 0.40 mm without setting a gauge.
  • NM cable conductors. Sized for the 12 and 14 AWG conductors in Romex and other NM cable, as well as most stranded and solid wire.

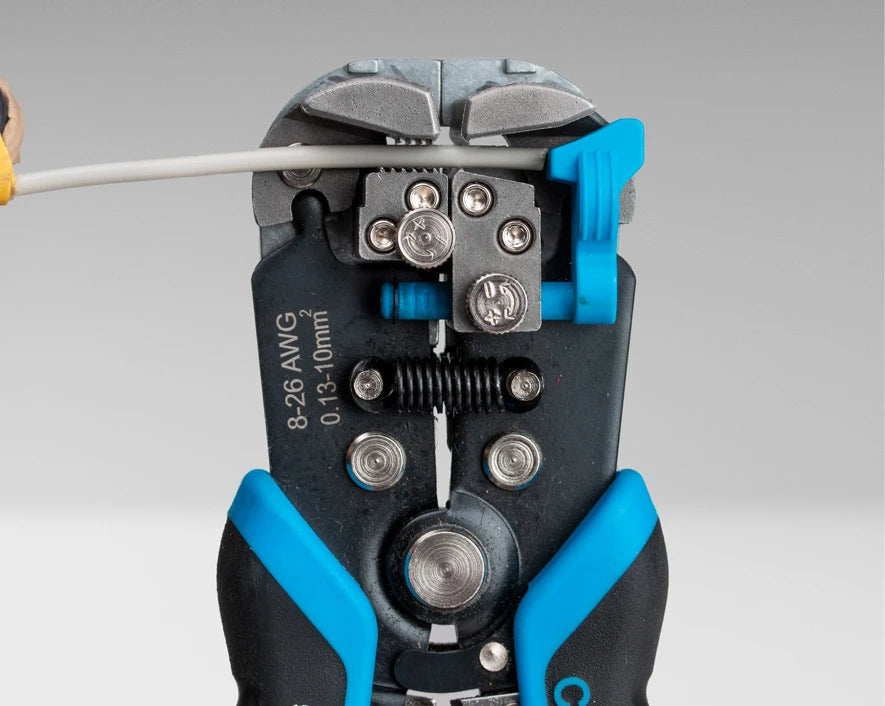

  • Adjustable wire stop. Sets a repeatable strip length up to 0.62 in (1.57 cm) for consistent results.
  • Micro adjustment knob. Extends the tool to wire as small as 30 AWG and as large as 8 AWG.

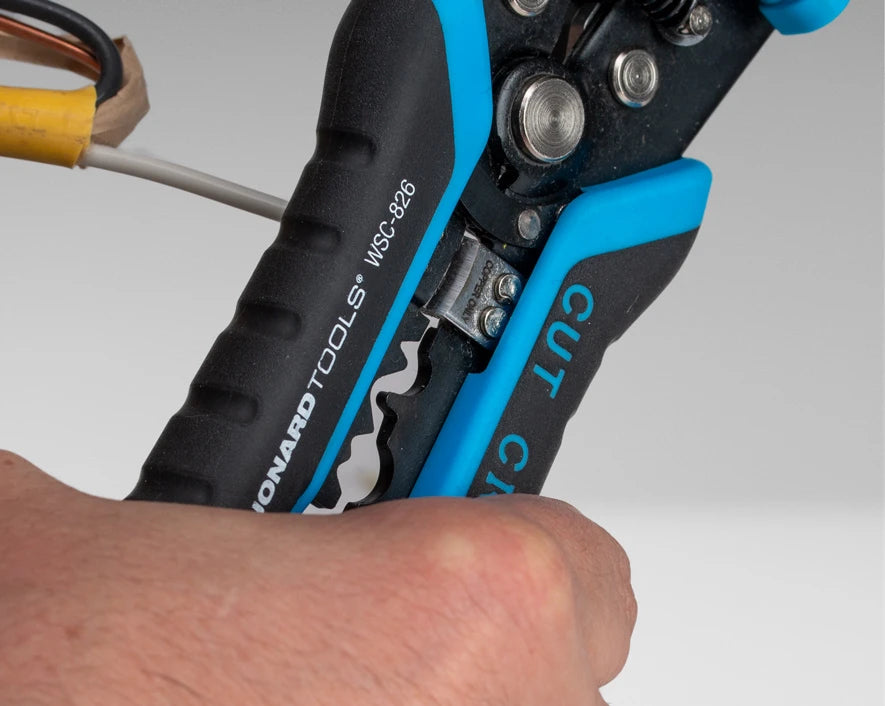

  • Cutter. Trims the wire to length in the same tool.

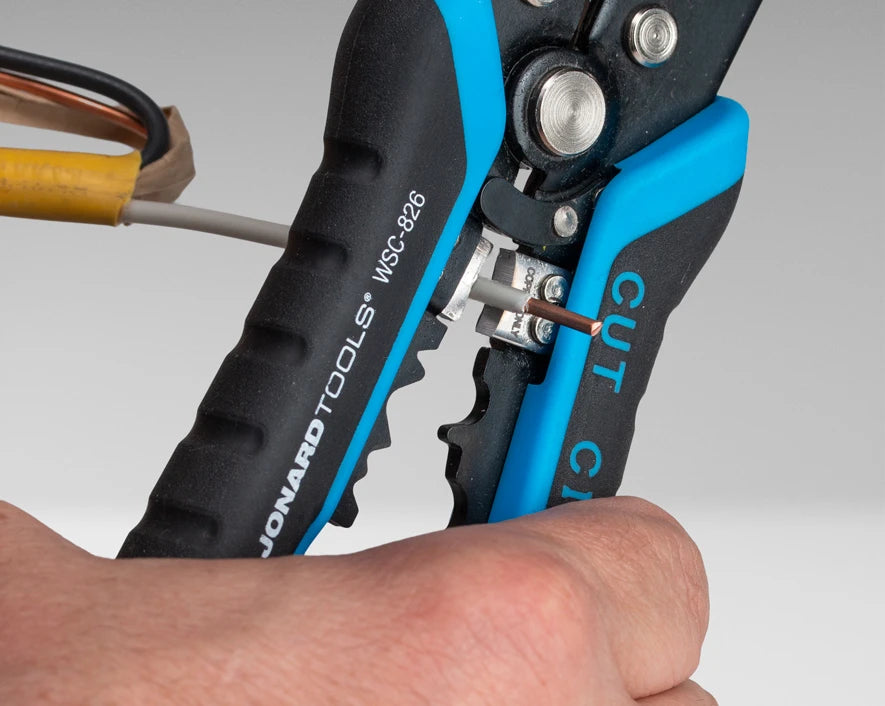

  • Terminal crimper, 22 to 10 AWG. Crimps non-insulated terminals.
  • Ignition wire crimper. A separate crimp nest for 7 to 8 mm ignition wire.

Where It Fits

It suits electricians and maintenance technicians stripping a mix of gauges all day who don't want to hunt for the right hole at every box, residential rough-in and device work on the 12 and 14 AWG conductors in NM cable, HVAC and controls technicians landing 16 to 22 AWG stranded in a panel, automotive and small-engine mechanics who strip, crimp a non-insulated terminal, and crimp a plug wire with the same tool, panel builders and harness shops where the wire stop turns a hundred identical strips into a hundred identical strips, and anyone who has nicked a conductor in a fixed-hole stripper and wants the tool to pick the depth instead. For a plier-style stripper with a knurled tip and gripping holes, see the WSC-1016; for stripping the NM jacket itself rather than the conductors, see the WSC-1412; and for fine wire in a pocket tool, the ST-500 and ST-550.

Good to Know

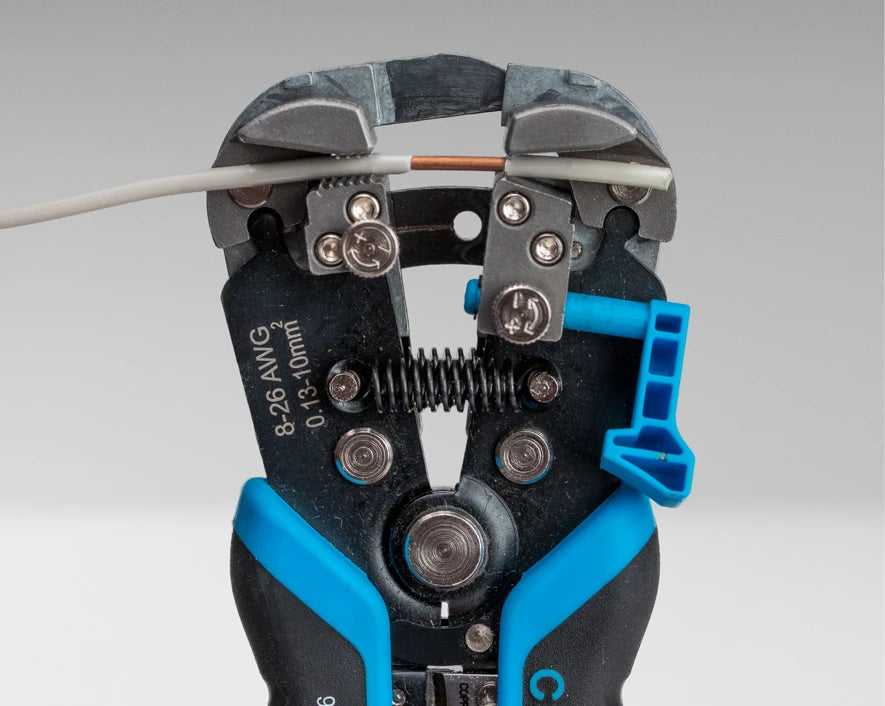

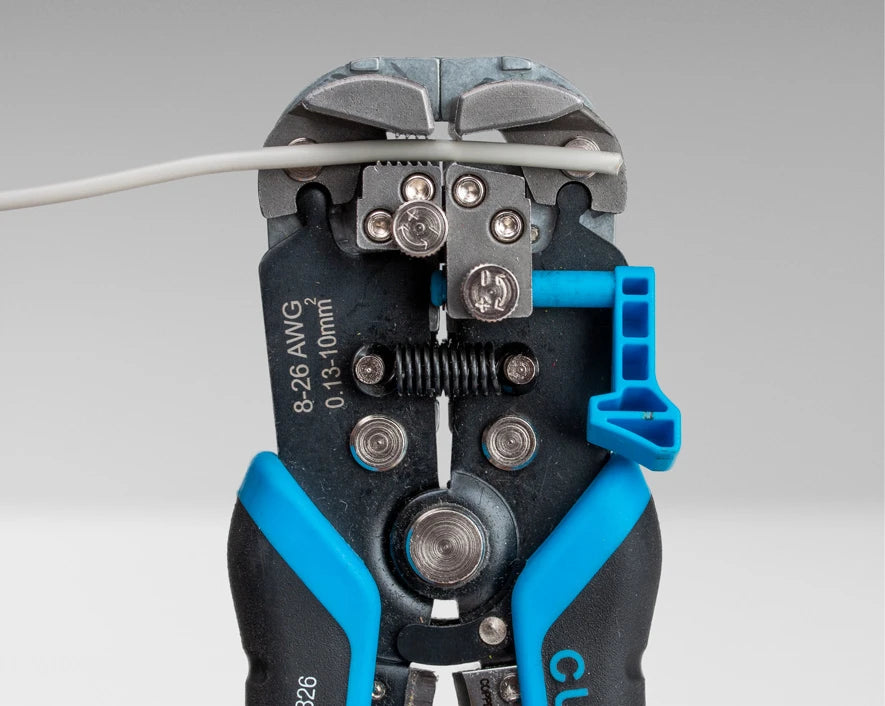

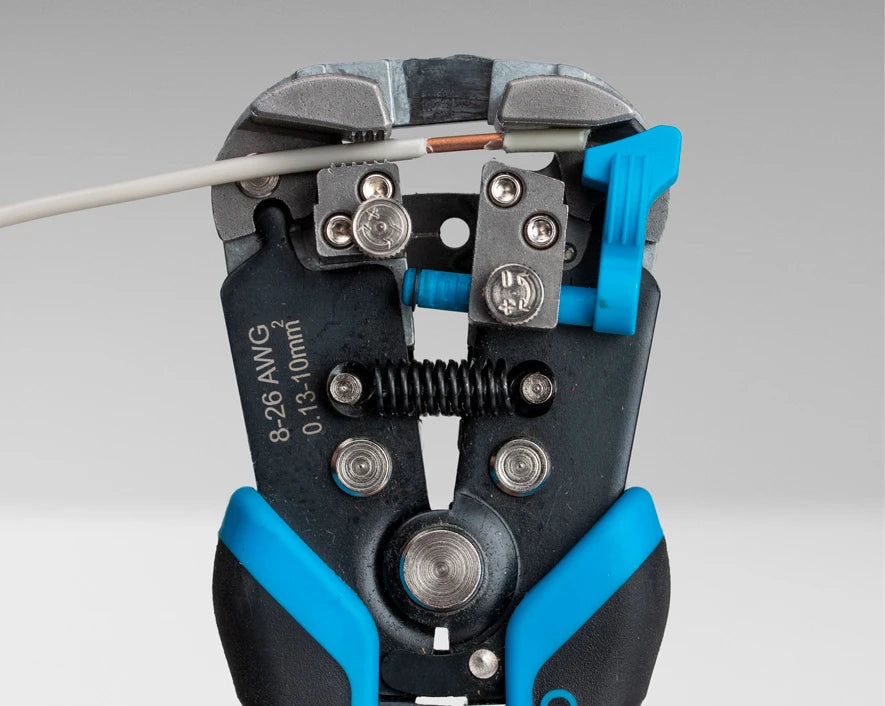

A self-adjusting stripper works by gripping the wire in one jaw and pulling the insulation with the other, so the wire needs to sit square in the jaws with enough length past the blade for the gripper to hold; a strip that slips means the wire was in at an angle or too short. Set the wire stop for the strip length the terminal calls for, then push the wire to the stop every time; the maximum is 0.62 in, which covers most terminals and screw connections, and a longer strip means two bites or a different tool. Leave the micro adjustment knob where it is for the 8 to 26 AWG range; it's for the ends of the range, where very fine wire needs a lighter grip or 8 AWG needs a deeper bite, and a knob turned the wrong way for a fine wire is what cuts it. Test on a scrap when changing gauge by more than a few sizes or switching between solid and stranded, and look at the strands on stranded wire; a strand or two lost at the strip is a strand or two missing in the terminal. The crimper is for non-insulated terminals only, which are crimped with a different die profile than insulated ones; an insulated terminal crimped in these dies will crack the sleeve or crimp loose. Match the terminal's wire range to the wire, crimp once, and pull-test the first one of each type. The ignition crimper is for 7 to 8 mm plug wire terminals, not for anything else that happens to fit. The cutter is for copper wire in the tool's range, not for cable with the jacket on or for screws. Work on dead circuits only.

Specifications

Spec Detail
Model WSC-826
Manufacturer Jonard Tools
Type Self-adjusting wire stripper, cutter, and crimper
Cut Type Cut and strip
Wire Gauge 8 to 26 AWG (3.26 to 0.40 mm), no adjustment
Extended Range 30 to 8 AWG with micro adjustment knob
Cable Type Stranded and solid conductors
Strip Length Up to 0.62 in (1.57 cm), adjustable wire stop
Maximum Strip Length 0.62 in (1.57 cm)
Terminal Crimper Non-insulated terminals, 22 to 10 AWG
Ignition Wire Crimper 7 to 8 mm
Cutter Built in
Handle Length 6.05 in (15.37 cm)
Dimensions 8.06 × 3.63 × 1.2 in (20.48 × 9.22 × 3.05 cm)
Weight 0.78 lb (354 g)
Shipping Ships direct from the manufacturer, allow up to 10 business days

Documentation

Document Link
Data Sheet WSC-826 data sheet (PDF)
