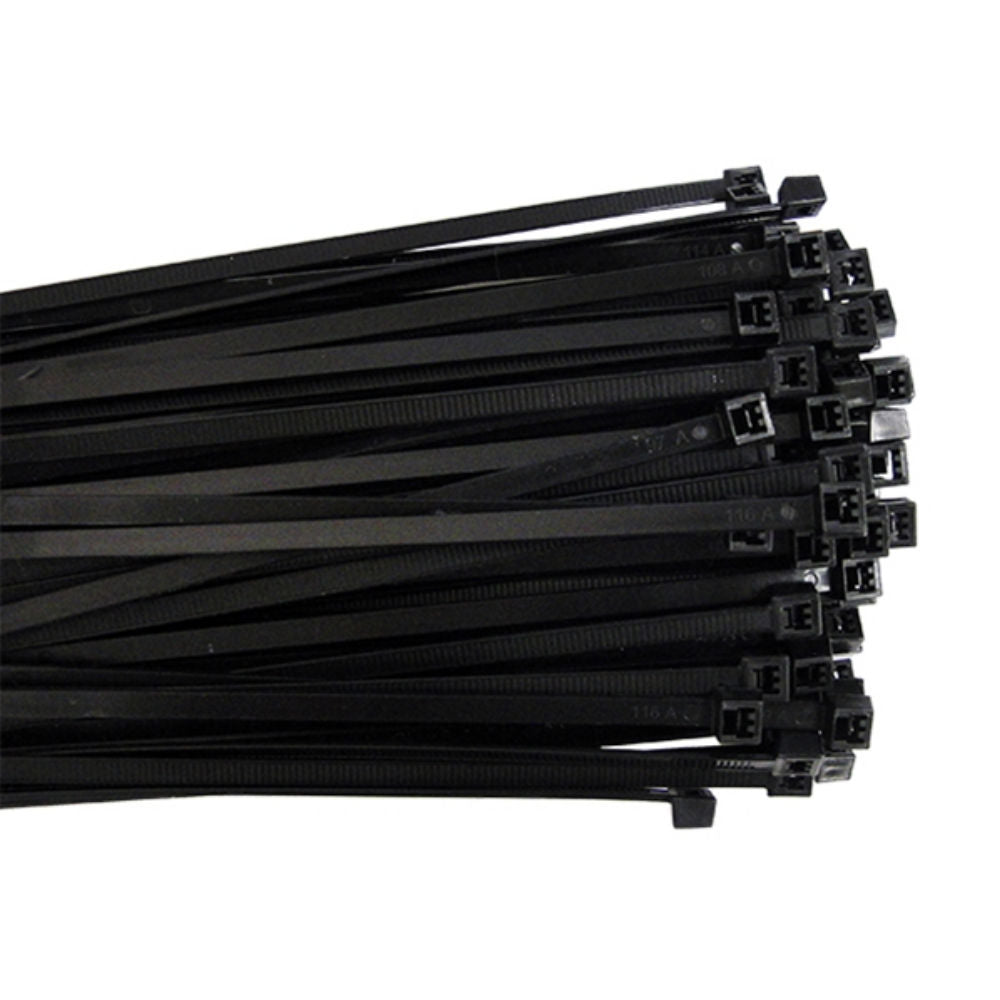

UV Black Nylon Cable Ties, 50 lb, MIL-SPEC MS3367, 7/11/14 in, Made in USA, Pack of 100 (NCTAE-1001)
Couldn't load pickup availability
This is a UV-stabilized black nylon cable tie, rated at 50 lb, made to the MS3367 military specification. It comes in three lengths, 7, 11, and 14 in, for bundles up to 1.875, 3.062, and 4.0 in across, 100 to a pack. The nylon is UV stabilized so the tie stays flexible and strong in direct sun, the one-piece molded body has a pawl-and-tooth lock, an angled tail that finds the head quickly, finger grips for pulling, and rounded edges that don't nick a cable jacket, and it's made from filter-grade nylon that sheds few particles. It's RU and CSA certified and made in the USA. For a tie with a screw hole in the head, the NCTAF-1001.
Features
- 50 lb tensile strength. One-piece molded nylon with a pawl-and-tooth lock.
- UV stabilized. Black nylon for long-term outdoor use in direct sunlight.
- MIL-SPEC MS3367. 7 in is MS3367-1, 11 in is MS3367-7, 14 in is MS3367-2.
- Three lengths. 7 in for bundles to 1.875 in, 11 in to 3.062 in, 14 in to 4.0 in.
- Easy to pull. Angled tail, finger grips, low insertion force.
- Rounded edges. Won't cut into cable insulation.
- Filter-grade nylon. Low particle shedding.
- RU and CSA certified. Made in the USA.
- Pack of 100.
Where It Fits
It suits outdoor cable runs along a parapet, a pole, or an exterior wall where plain nylon ties go brittle in a season, telecom and electrical crews bundling cable in trays, on ladder rack, and behind panels, HVAC and mechanical rooms where the ties live next to heat and sun through a skylight, government, military, and aerospace work where the spec calls out MS3367 by number, rooftop camera and antenna mounts where the tie holds the cable to the mast, anyone who wants one tie that's good indoors and out so the truck carries one bag, and a job that already has the bulk cable, the flush cutters, and the tie bases from the copper and fiber collections. For a tie that anchors to the structure with a screw, the NCTAF-1001.
Good to Know
Match the length to the bundle with room to spare: the 7 in tie closes on a bundle up to 1.875 in across, the 11 in up to 3.062 in, and the 14 in up to 4.0 in, and a tie worked at its limit has little tail left to grip and pull. Wrap, feed the angled tail through the head, pull snug with the finger grips, and cut the tail flush with a flush cutter so there's no spur to catch a hand or a jacket later. Snug means the bundle can't slide, not crushed; a Cat6 or fiber bundle over-tightened under a tie is where you find a failed pair or a broken fiber a year on, so tighten until the cables just stop moving and no further. Space the ties so the bundle doesn't sag between them, and put one close to every bend. These ties are permanent: once the pawl is on the teeth it doesn't release, so lay out the run before you tie it, and plan to cut and replace if a cable has to come out. UV stabilized means the tie won't chalk and crack in the sun the way plain nylon does, but black nylon in full sun still ages, so check outdoor ties on the same schedule as the cable they hold. A 50 lb tie is a general-purpose tie; for a heavy bundle on a vertical run or a tie that carries load rather than just gathers cable, step up to a heavier rating. The page gives no plenum rating, so for an air-handling space use the NCTAF-1001 or another plenum-rated tie.
Specifications
| Spec | Detail |
|---|---|
| Model | NCTAE-1001 (7 in; 11 and 14 in by variant) |
| Series | NCTAE |
| Type | Cable tie, one piece, non-releasable |
| MIL-SPEC | MS3367-1 (7 in), MS3367-7 (11 in), MS3367-2 (14 in) |
| Length | 7.56 in (192.07 mm); 11.25 in (285.75 mm); 14.25 in (361.95 mm) |
| Max Bundle Diameter | 1.875 in (47.6 mm); 3.062 in (77.8 mm); 4.00 in (101.6 mm) |
| Width | 0.180 in (4.57 mm) |
| Thickness | 0.052 in (1.32 mm) |
| Tensile Strength | 50 lb |
| Material | Nylon, UV stabilized, filter grade |
| Rating | Indoor and outdoor |
| Compliance | RU, CSA certified; MS3367 |
| Color | Black |
| Country of Origin | USA |
| Quantity | Pack of 100 |
