Terminator Tool For PPLT-75 & PPLT-LR (TT-PPLTT4)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

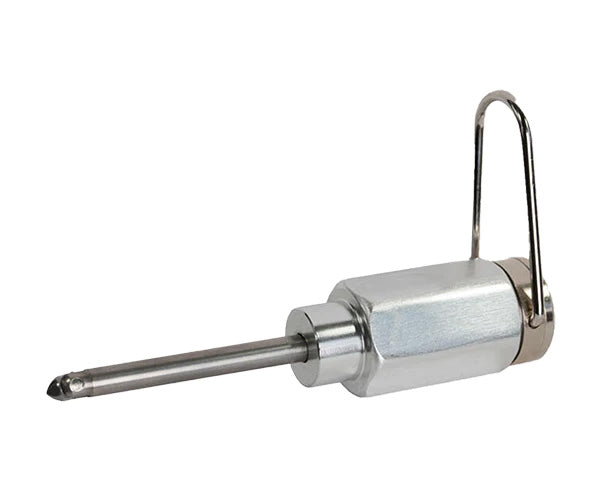

PPLT locking terminators are a swivel type, and the tool that opens them is a plunger sized to the terminator; a plunger that's close but not right either won't engage or wears the lock. The Jonard Tools TT-PPLTT4 is the terminator tool made for the PPLT series, the PPLT-75 and PPLT-LR in particular, with a 0.218 in plunger diameter sized to fit them. The body is aluminum for strength and durability, and a belt loop is included so the tool stays on the technician rather than in the truck. It's the tool a plant on PPLT terminators issues to keep theft of service down and to stop the breakage that comes from opening a PPLT with something else.

Features

• Made for PPLT locking terminators. PPLT-75 and PPLT-LR, and the PPLT series generally.
• 0.218 in plunger. Sized to accommodate PPLT locking terminators.
• Aluminum body. High strength and durability.
• Belt loop included. Keeps the tool on hand.

Where It Fits

It suits CATV and broadband technicians on a plant that uses PPLT-75 or PPLT-LR locking terminators at the tap, operators that spec PPLT terminators and issue the matching tool to every technician, audit and theft-of-service crews terminating unauthorized ports on a PPLT plant, contractors working that operator's plant who are issued access and need the tool to go with it, anyone who has tried to open a PPLT terminator with a spring-ear or cam tool and found out why they don't interchange, and a belt that has a loop for it. For spring-ear and prong terminators, the TT-4, TT-7, and TT-7PT are the matching tools; for Corning Gilbert cam-style terminators, the TTCG-6270-5 and TTCG-6270-9. This tool is for the PPLT swivel type only.

Good to Know

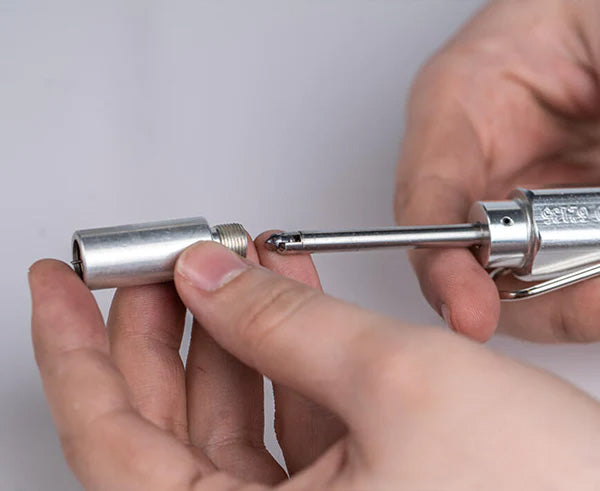

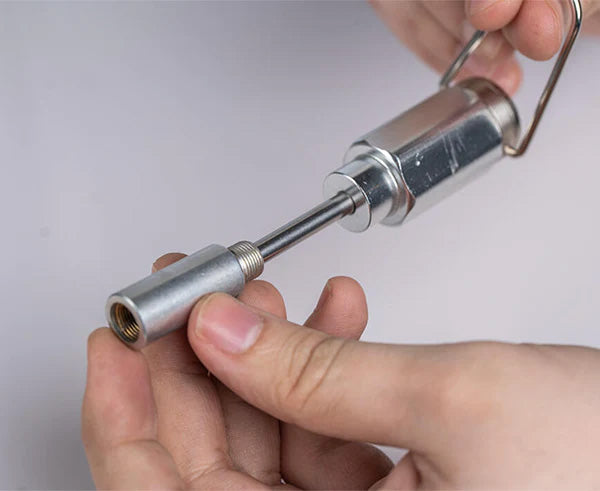

Locking terminators are access control for the operator's plant, and the tool is for technicians authorized to open and secure those ports; carry it on the strength of the work order. Match the terminator before you reach for the tool: the 0.218 in plunger is sized for the PPLT series, and a spring-ear, prong, or cam terminator won't engage it, so a terminator that won't open is the wrong type rather than a worn tool. Seat the plunger fully on the terminator before turning, and turn with steady pressure; a swivel terminator that won't move is seized or wrong, and forcing it rounds the plunger. Put the terminator back on every port you open and don't leave terminated, since an open tap port is both a leak and an invitation. Aluminum is light and won't rust, but it's softer than the terminator, so the plunger wears before the lock does; a tool that starts to slip on a known-good PPLT is due for replacement. Keep it on the belt loop; a terminator tool left on a tap or in a truck is how an unauthorized one ends up in circulation. Tap ports on a powered plant can be live; check before working at the tap.
