BR-1 Multi-Cable Stripper Tool - Universal Professional Stripper
Couldn't load pickup availability
Drop shipped from the manufacturer. Usually ships in 1 to 2 business days. This item is non-cancelable and non-refundable.

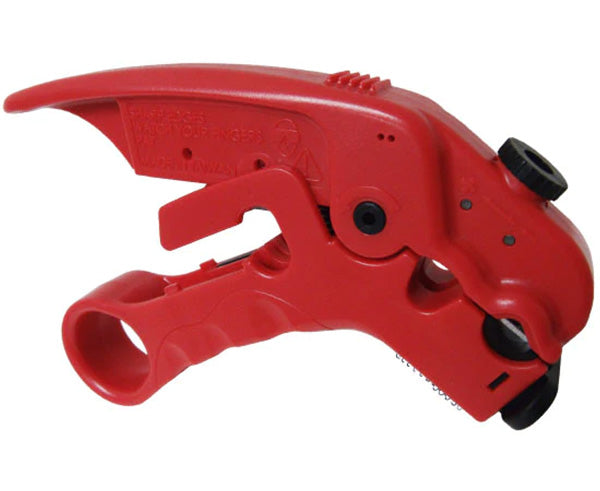

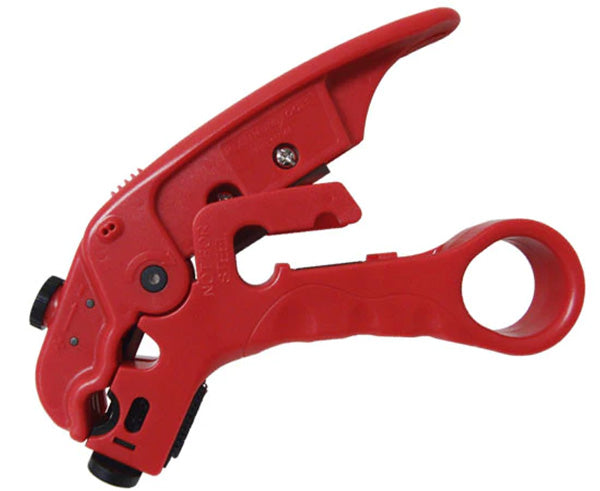

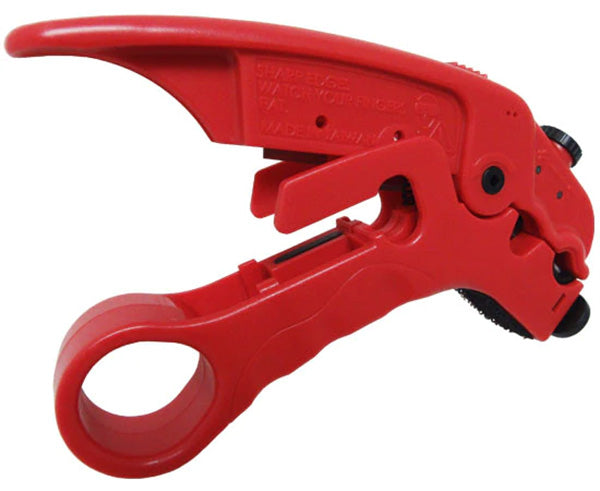

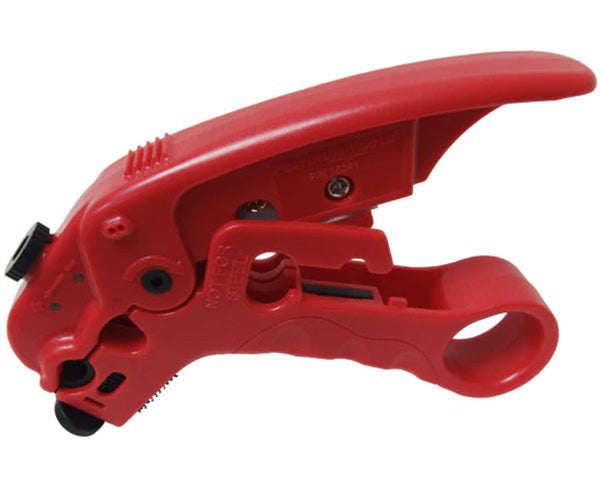

Coax and twisted pair are the two cables that show up on nearly every low-voltage job, and the BR-1 strips both. It's a compact multi-cable stripper with a preset coax section for RG59, RG6, RG6 quad, RG7, and RG11, and an adjustable section that dials in to the jacket thickness of Cat3, Cat5e, Cat6, and Cat6A twisted pair, shielded or unshielded, in PVC, plenum (CMP), or riser (CMR), and to round telephone and audio cable. Integrated cutters trim cable and non-steel conductors without a change of tool, and a braid comb with a Velcro strap folds the shield back and holds it while a shielded jack or an F connector goes on. At 3.7 oz and 5 × 3.25 × 1 in, it rides in a pocket, a belt, or a pouch in place of the two or three strippers it replaces.
Features
- Coax, preset. RG59, RG6, RG6 quad, RG7, and RG11, set for the standard coax sizes used in video, security camera, and satellite work.
- Twisted pair, adjustable. Dial-in adjustment for the jacket thickness of Cat3, Cat5e, Cat6, and Cat6A, on shielded (STP) and unshielded (UTP) cable with PVC, plenum (CMP), or riser (CMR) jackets.
- Telephone and audio. Strips round telephone and audio conductors in the same adjustable section.
- Integrated cutters. Trim cable and non-steel wire conductors without switching tools.
- Braid comb with Velcro strap. Folds back braid and foil on shielded cable and holds it during termination.
- Pocket size. 3.7 oz (105 g) and 5 × 3.25 × 1 in (127 × 82.6 × 25.4 mm).
Where It Fits
It suits cable TV, satellite, and security camera installers prepping RG6 and RG59 at every drop and Cat6 to the NVR, structured cabling crews in commercial buildings running data and video to the same rooms, telephone technicians on PBX, VoIP, and traditional lines who also pull coax, AV and home theater installers with coax, Ethernet, and audio cable behind one rack, security and access control technicians, residential and commercial low-voltage work in general, field service and repair where the next cable type is whatever's in the wall, and anyone who wants the coax and twisted-pair coverage of the TLC-029 without its fiber slots. For twisted pair only, the TLC-031 covers Cat5e through Cat8 and the TLC-030 is the no-setup stripper for plain indoor Cat5e and Cat6.
Good to Know
The coax section is preset and the twisted-pair section is adjustable, so the coax strip is a matter of choosing the right slot for the cable size, while the jacket stripper needs dialing in on a scrap of each new cable before the first real strip; back the setting off if the blade marks the pairs. RG6 quad has a thicker shield stack than standard RG6, so use the quad setting for quad and check that the braid and foil come out as the connector's instructions call for; compression connectors want a specific exposed center conductor and folded-back braid length, and that's set by the connector, not by the tool. Use the comb to fold the braid back over the jacket on coax and to manage the foil and braid on shielded twisted pair, and let the strap hold it while the connector goes on; a stray strand of braid touching the center conductor or a pair is a short you'll find at test time. The cutters are for cable and non-steel conductors, which is the page's own wording: no messenger wire, no steel-reinforced drop, no screws. Strip only as much jacket as the connector or jack needs. This tool has no fiber slots; the TLC-029 is the one with those. Work on dead circuits only, and on coax, confirm the drop isn't carrying power to an amplifier or a camera before you cut it.
Specifications
| Spec | Detail |
|---|---|
| Series | TLC-028 |
| Model | BR-1 |
| Type | Multi-cable stripper: coax, twisted pair, telephone, audio |
| Coax | RG59, RG6, RG6 quad, RG7, RG11; preset |
| Twisted Pair | Cat3, Cat5e, Cat6, Cat6A; dial-in adjustment for jacket thickness |
| Twisted Pair Jackets | Shielded (STP) and unshielded (UTP); PVC, plenum (CMP), riser (CMR) |
| Other Cable | Round telephone and audio conductors |
| Cutters | Integrated, for cable and non-steel wire conductors |
| Braid Management | Braid comb with Velcro strap |
| Dimensions | 5 × 3.25 × 1 in (127 × 82.6 × 25.4 mm) |
| Weight | 3.7 oz (105 g) |
| Shipping | Drop shipped from the manufacturer, usually ships in 1 to 2 business days; non-cancelable, non-refundable |
