UV Screw Mount Nylon Cable Ties, #10 Hole, 7/11/14 in, Plenum Rated, UL Listed, Made in USA, Pack of 100 (NCTAF-1001)

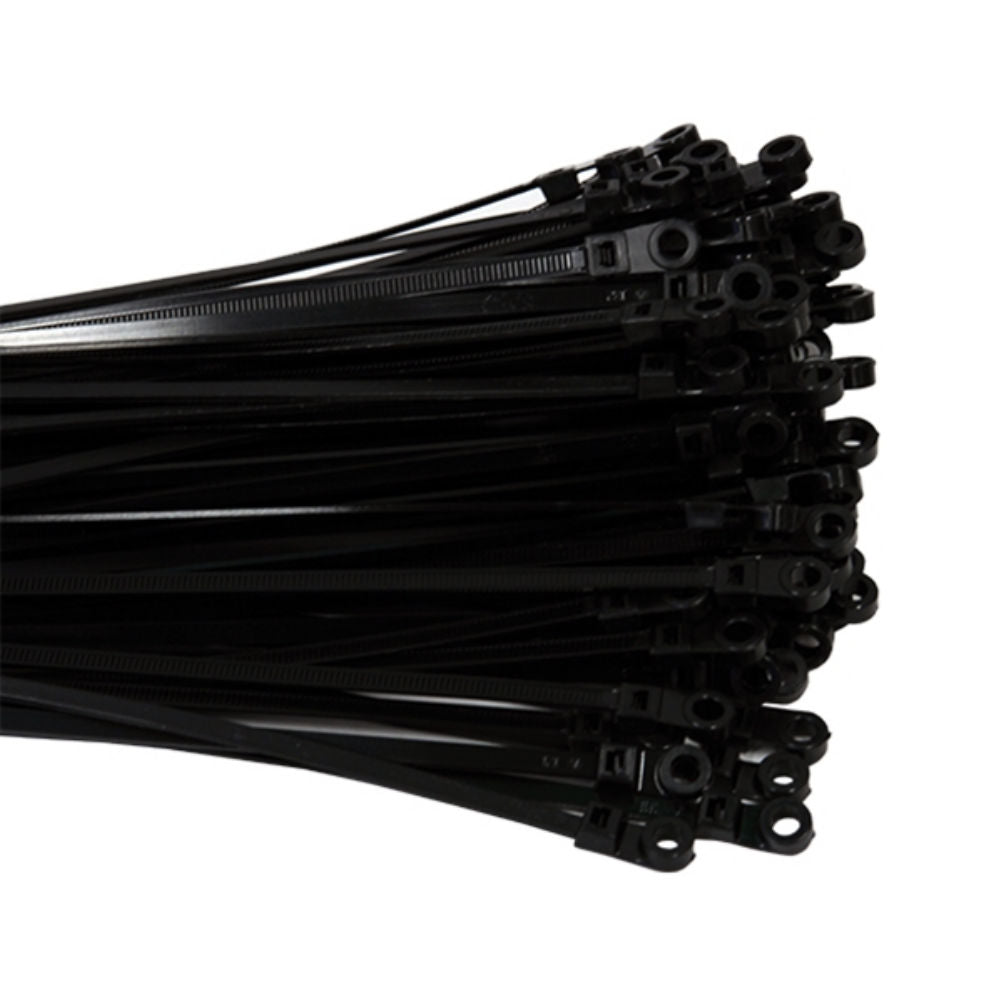

This is a screw mount cable tie: a one-piece nylon tie with a #10 screw hole molded into the head, so the bundle is tied and anchored to the wall, the stud, or the tray in one step with one screw, and no separate mounting base. It's UV stabilized for direct sun outdoors, plenum rated for air-handling spaces indoors, UL listed, CSA certified, RoHS compliant, and flame rated UL 94V-2. It's made in the USA, and it comes in 7, 11, and 14 in lengths, 100 to a pack. For ties without the mounting hole, and for the bases and clamps that go with them, see the rest of the nylon cable ties collection.

Features

• Integrated #10 screw hole. Tie the bundle and fasten it with one screw; no separate base.
• UV stabilized. For long-term use in direct sunlight.
• Plenum rated, indoor and outdoor. For HVAC and air-handling spaces as well as rooftops, poles, and exterior walls.
• One-piece nylon. Filter-grade nylon for low particle shedding; permanent, non-releasable.
• UL listed, CSA certified, RoHS compliant. UL 94V-2.
• Made in the USA.
• Three lengths. 7 in for small bundles and tight spaces, 11 in for medium bundles, 14 in for large bundles.
• Pack of 100.

Where It Fits

It suits outdoor cable runs along a parapet, a pole, or an exterior wall where the tie has to live in the sun, HVAC and plenum spaces where the cable has to be secured to the structure and the tie has to pass the plenum rule, telecom and data center crews anchoring bundles to tray rungs, ladder rack, and backboards without a screw-on base for every tie, industrial and commercial jobs where cable runs along framing and the tie doubles as the clamp, anyone who has watched a stick-on tie base fall off a warm wall with the bundle still attached, and a job that already has the bulk cable, the mounting screws, and the drill from the copper and fiber collections. For a tie that's only a tie, or for a tie base where the screw can't go through the tie, the rest of the nylon cable ties collection.

Good to Know

Fasten the head before you cinch the bundle: drive the #10 screw through the head's hole into a stud, an anchor, or a tapped hole in the tray, then wrap the tie around the cable, pull it snug, and cut the tail flush with a flush cutter so there's no sharp spur to catch a hand or a jacket later. Snug means the bundle can't slide, not crushed; a Cat6 or fiber bundle over-tightened under a tie is where you find a failed pair or a broken fiber a year on, so tighten until the cables just stop moving and no further, and use the longer ties on bigger bundles rather than straining a short one. Space the ties so the bundle doesn't sag between them, and put one close to every bend and every point where the run changes direction. These ties are permanent: once cinched they don't release, so lay out the run before you tie it, and plan to cut and replace if a cable has to come out. UV stabilized means the tie won't go brittle in the sun the way plain nylon does, but black nylon in full sun still ages, so check outdoor ties on the same schedule as the cable they hold. In a plenum, the tie has to be plenum rated and so does the cable; one without the other doesn't satisfy the inspector.

Specifications

Usually ships the same day.
