Fiber Patch Panel, 2U Slide-Out, 6 LGX, 144 Splice (RMFP-019)

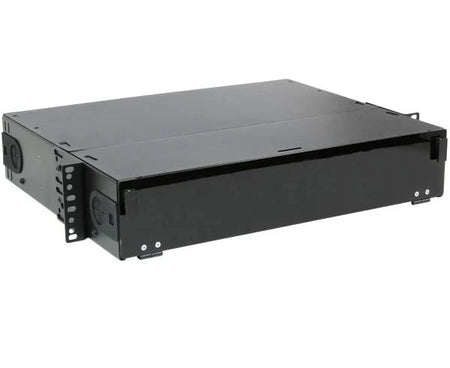

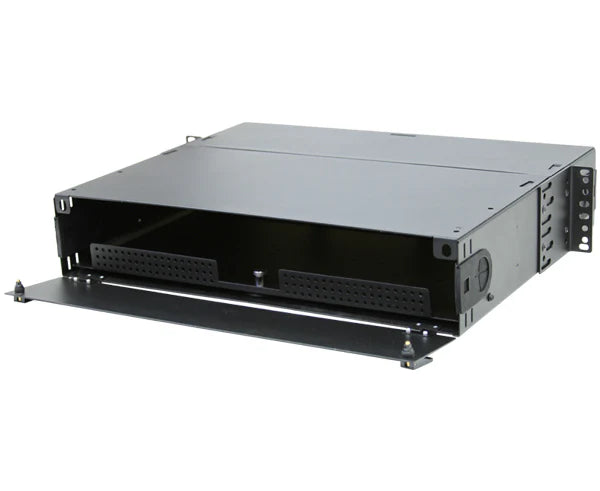

A fiber panel that has to come out of the rack to be worked on is a panel nobody wants to touch after the first day. This 2U rack-mount fiber patch panel slides out instead: the master panel pulls forward on its slides to a built-in stop, so the splice trays and the back of the adapter panels are in front of you with the panel still bolted to the rack, and the two-piece top lifts off and the front door swings open on latches for access without a screwdriver. It takes up to six LGX adapter panels across the front, so a single 2U holds up to 72 LC duplex or 144 LC fiber connections depending on the panels you load, and inside it carries up to four 36-fiber splice trays for 144 spliced fibers, which makes it a patch-and-splice panel for a fiber entrance or a distribution point rather than a patch panel alone. Two cable management spools and the hardware for a standard 19 in rack are included; adapter panels and splice trays are sold separately so the panel is built to the job. Black finish.

What's in the Box

• 2U slide-out rack-mount fiber patch panel. Steel enclosure with slide-out master panel, tray stop, removable two-piece top, and latched door.
• Two cable management spools. For routing and storing slack and buffer tube inside the panel.

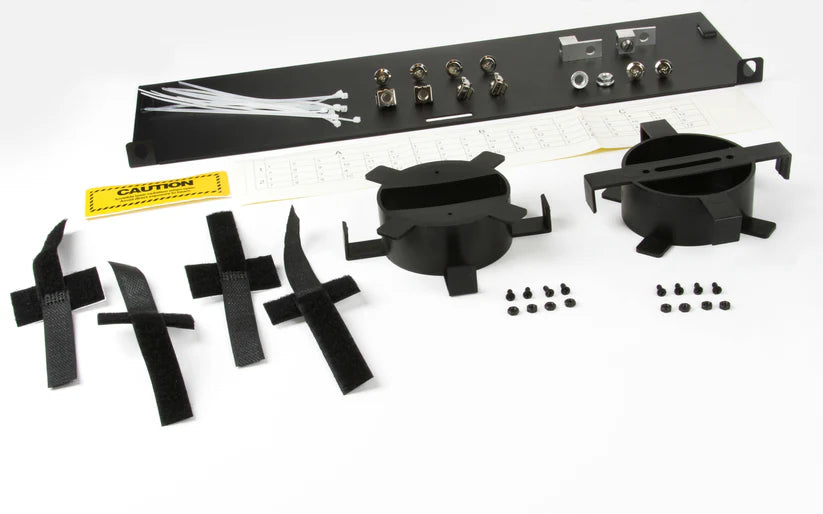

• Installation hardware and cable management accessories. One bag, for a standard 19 in rack.

Features

• Slide-out master panel with tray stop. Pulls forward for access to trays and adapter panels in the rack, and stops before it overextends.

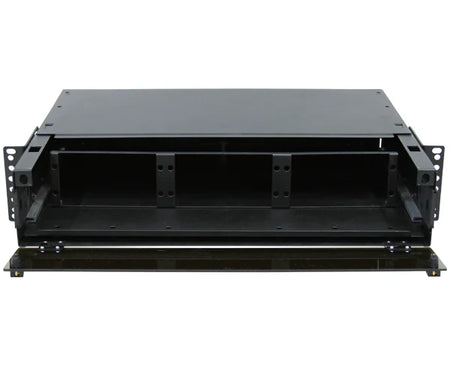

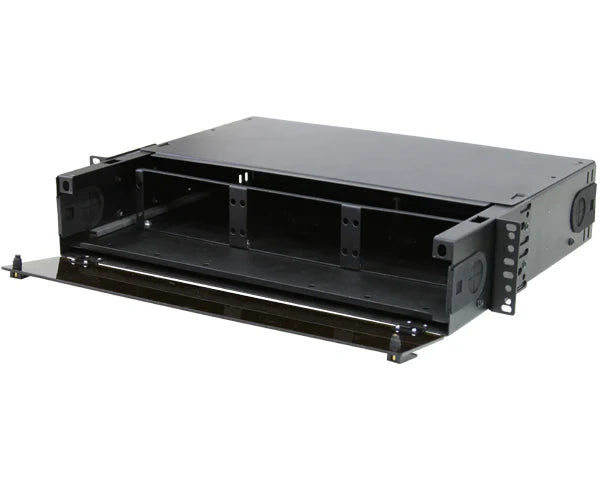

• Up to 6 LGX adapter panels. Loads with the LGX panels for the connector type and count the job needs.
• Up to 144 splices. Holds four 36-fiber splice trays, sold separately.
• Tool-free access. Removable two-piece top and swing door with latches.

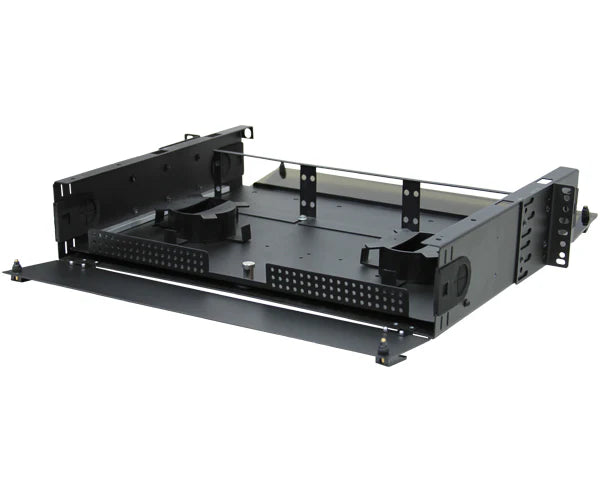

• Cable management spools included. Two spools for slack storage and bend radius control.
• Standard 19 in rack mount. Hardware included; 2U height.
• Black finish.

Where It Fits

It suits data center and telecom room techs landing a high-count fiber trunk and splicing it to pigtails in the same 2U, structured cabling installers building a fiber entrance facility or a riser distribution point where the OSP cable gets spliced and patched in one enclosure, campus and MDU builds that bring a 144-fiber feeder into a closet and break it out to LC, enterprise and lab environments that want the splice trays accessible without unracking the panel, anyone who has pulled a fixed fiber panel out of a live rack to reach a splice tray, and a rack that already has the LGX adapter panels, splice trays, pigtails, and fiber patch cords from the fiber collections to fill it. For patching without splicing, a 1U LGX panel is the smaller option; for more than 144 splices, a 4U panel.

Good to Know

The 144 figure is the splice capacity with four 36-fiber trays installed, and the trays are sold separately, as are the LGX adapter panels; the panel ships as an empty enclosure with spools and hardware, so order the trays and panels for the fiber count and connector type at the same time. Six LGX panels and four trays are both maximums, and a panel loaded to both is full of fiber, so route the slack on the spools and respect the bend radius of every buffer tube and pigtail, since a 2U panel that's packed is where macrobend loss shows up. Mount it on the rack rails with the included hardware and check that the slides run freely and the tray stop engages before you load fiber, because a panel that overextends with 144 fibers in it is an expensive mistake. Pull the panel out only as far as the stop, support the cable behind the rack so the entry doesn't take the weight when the panel moves, and strain-relieve the trunk at the rear entry so the splices never carry tension. The top comes off and the door latches open without tools, which also means they come off by accident in a crowded rack, so keep the latches closed when you're done. It's an indoor rack panel; an OSP entrance wants the cable grounded and the armor bonded before it reaches the panel. Keep connector caps on unused adapters, since an open LC port in a splice panel collects dust from every tray that's worked on above it.
