Pulley for Low Voltage Electrical, Network, & COAX Cables - 2 Pack (CP-475)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

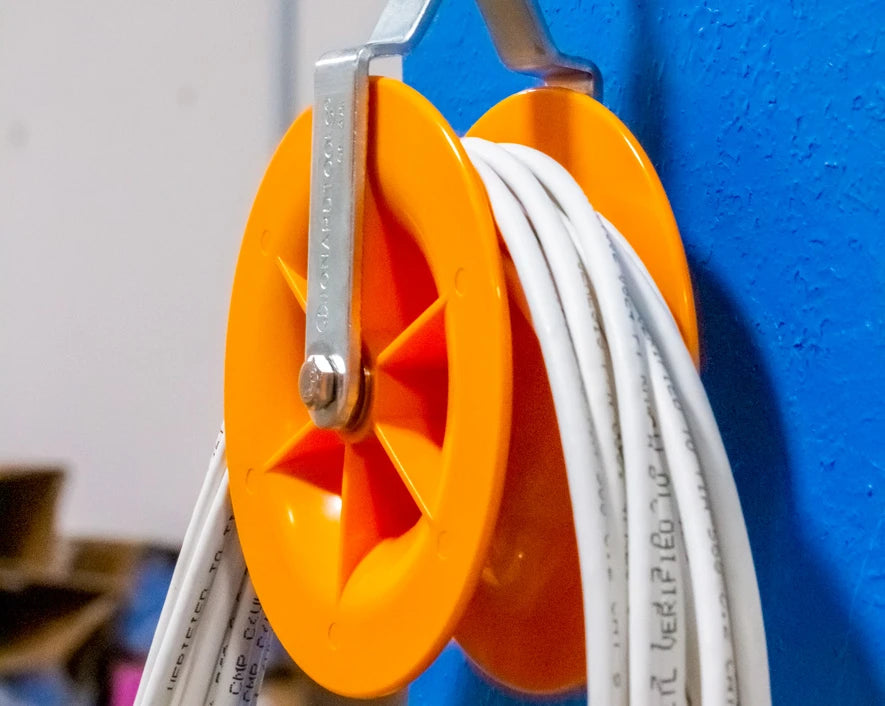

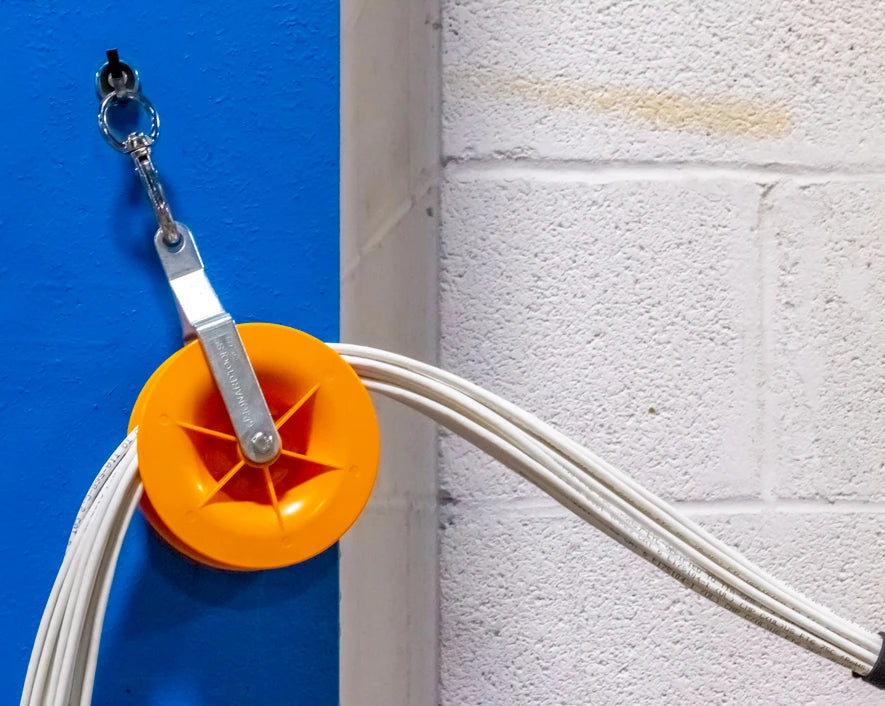

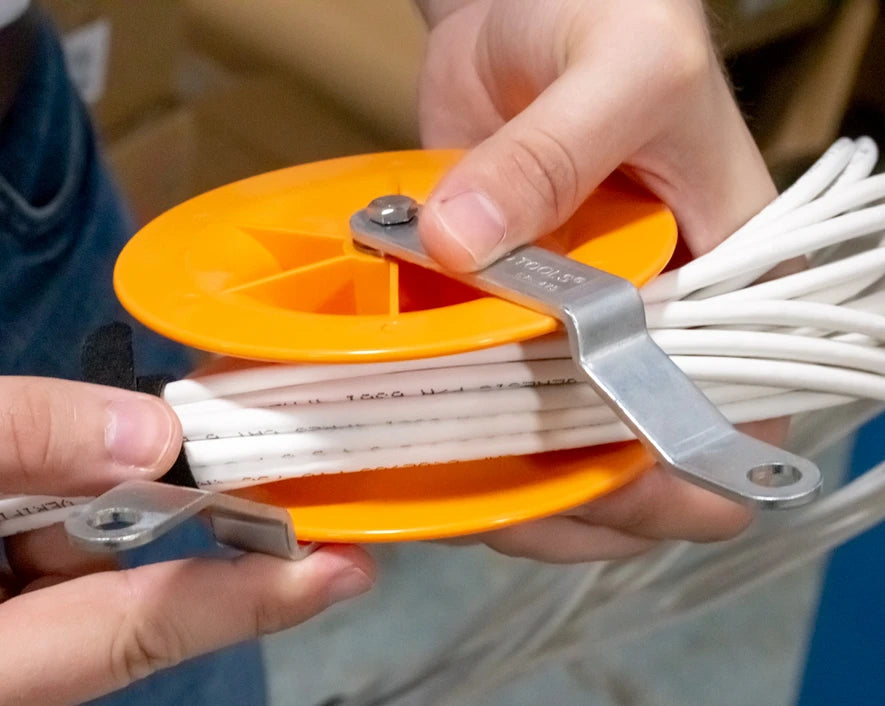

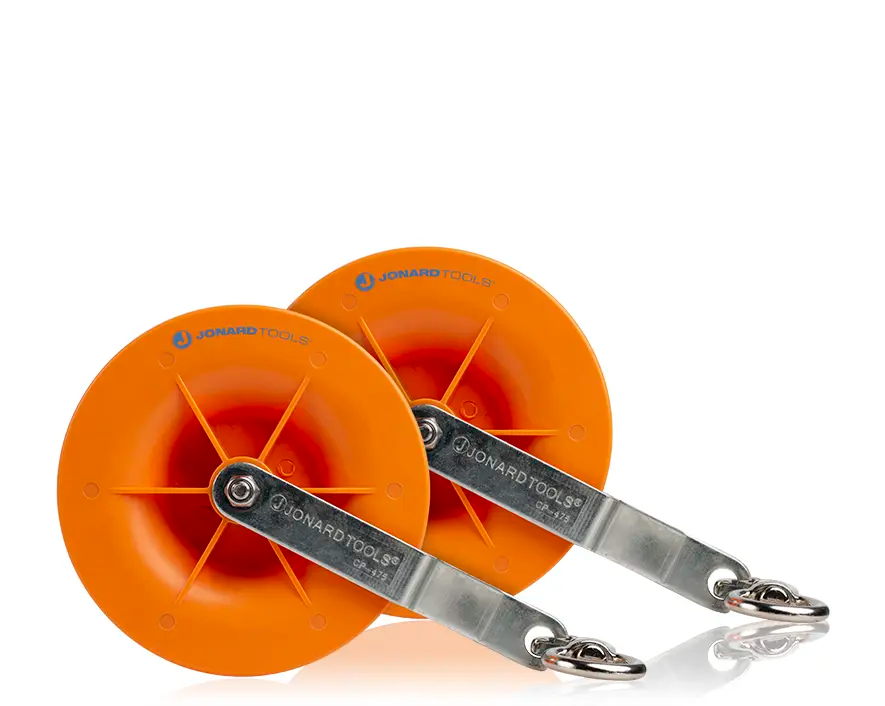

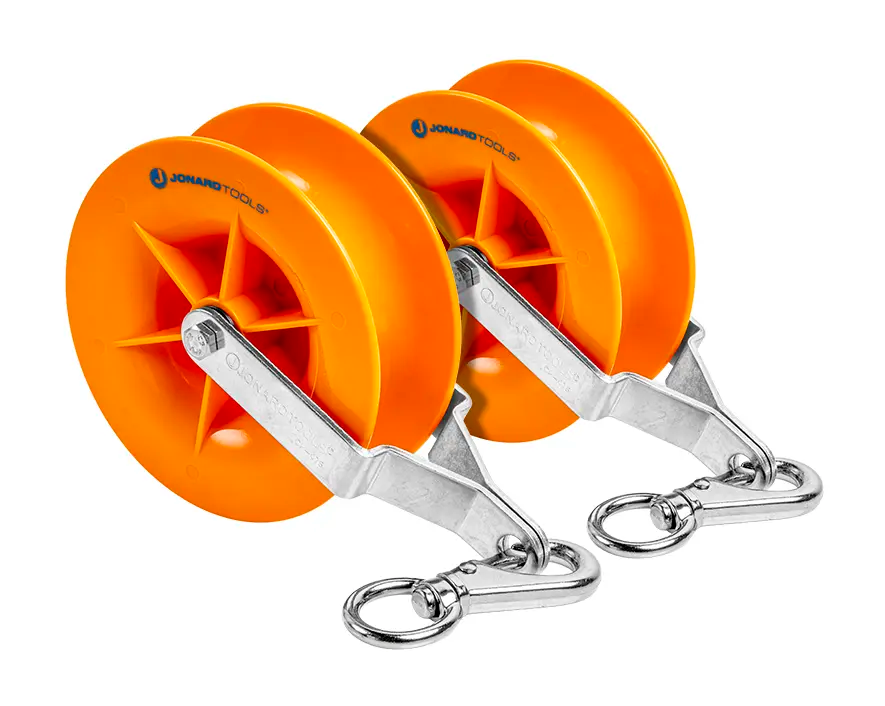

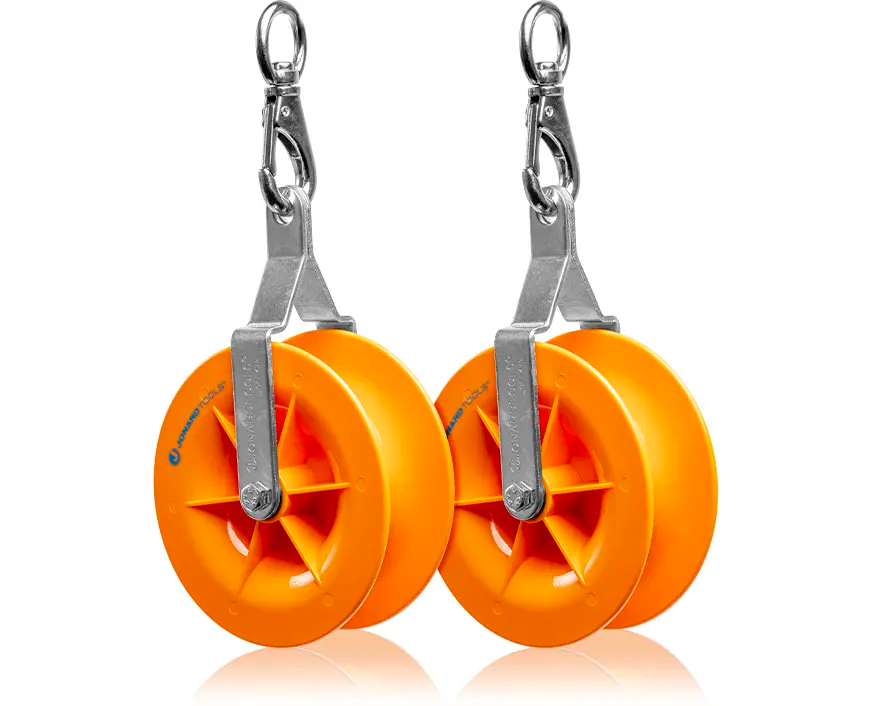

A cable pull that changes direction at a beam, a corner, or the top of a riser drags the bundle across whatever is there, and the harder the pull, the deeper the scuff and the more likely a kink. The Jonard Tools CP-475 is a pair of cable pulleys that put a wheel at that turn: hang one from a swivel snap hook, lay the bundle in the deep groove, and the anti-friction roller bearings let up to 20 Cat5/6 network cables, or a comparable bundle of coax, electrical, or other low-voltage cable, roll around the corner instead of sawing across it. The swivel keeps the pulley lined up with the direction of the pull on its own, which is what prevents the kinks, and the snap hook goes on and comes off in seconds, so the pulley is easy to remove once the cable is in. The body is high-strength ABS plastic on zinc-coated steel for a long working life, each pulley is rated to 120 lb, and two in the pack cover a pull with two turns. Lifetime warranty.

Features

• Up to 20 Cat5/6 network cables. Sized for a full bundle of network, coax, electrical, and other low-voltage cables.

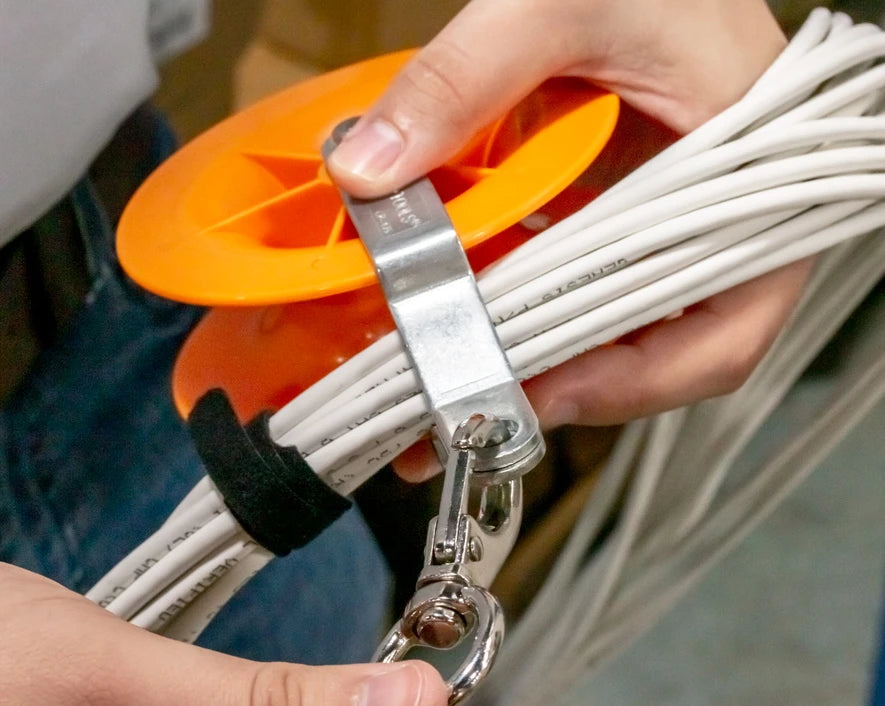

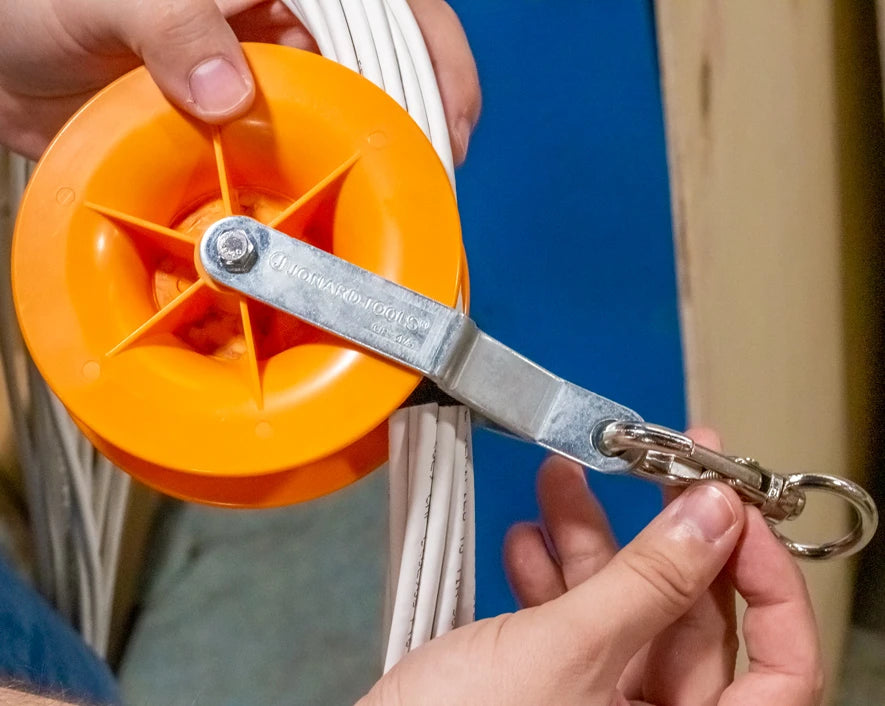

• Swivel snap hook. Installs easily and keeps the pulley aligned with the direction of pull to prevent kinks.

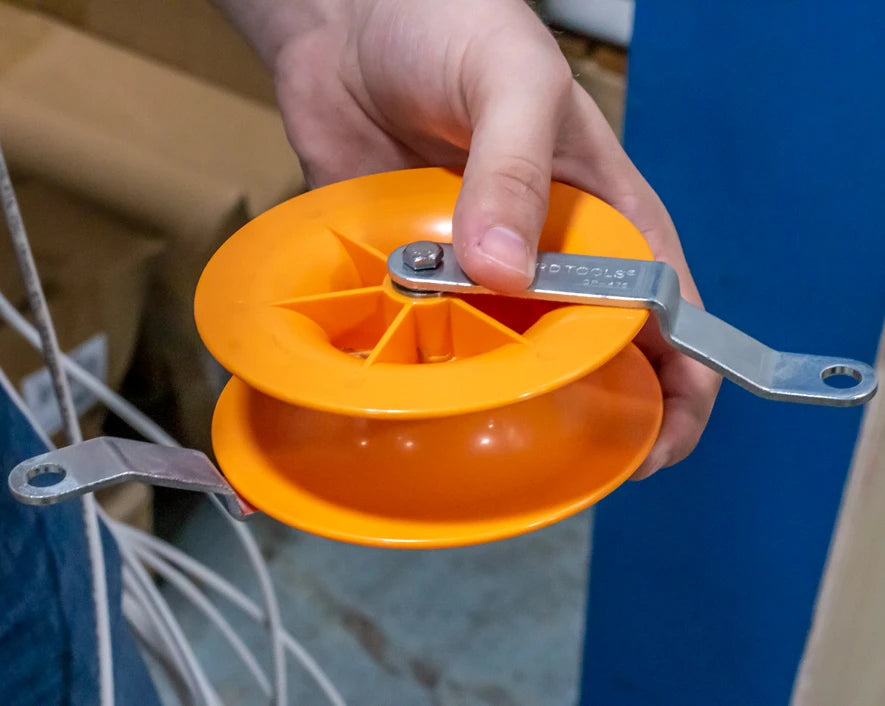

• Anti-friction roller bearings and deep grooves. Let the cable pull smoothly and easily and keep it in the wheel.

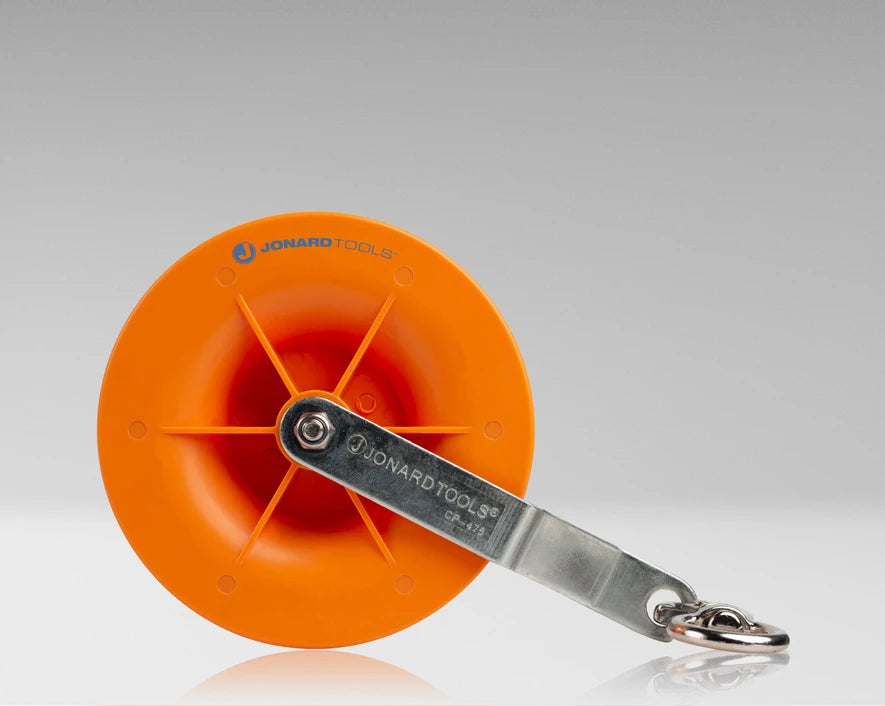

• ABS plastic and zinc-coated steel. High-strength construction for durability and longer life.

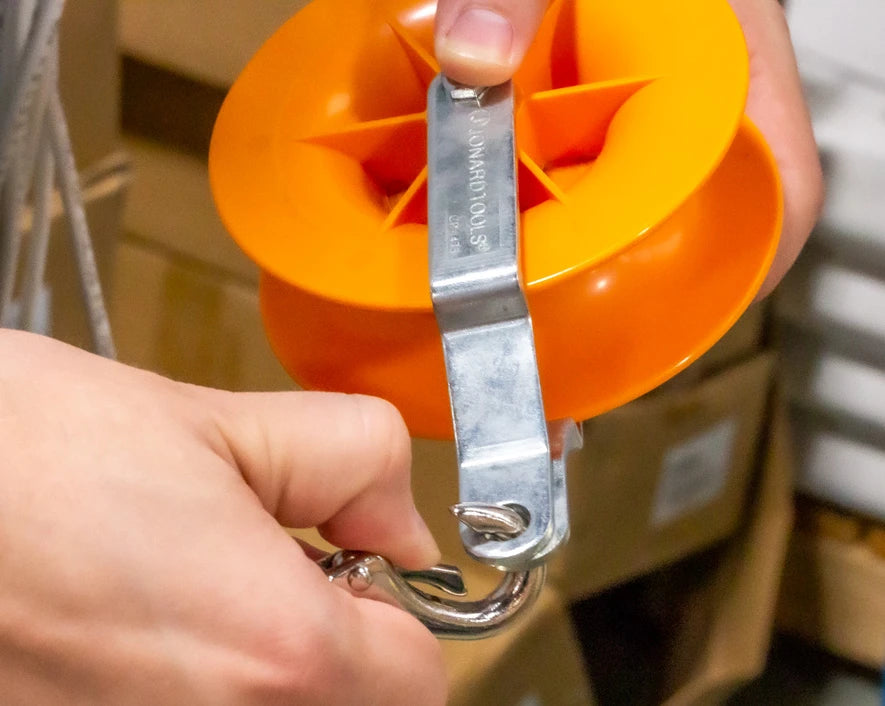

• Easy to remove. Unclips once the cable is installed.
• Two pulleys per pack. One for each turn in the pull.
• Lifetime warranty.

Where It Fits

It suits structured cabling crews pulling a bundle of Cat6 up a riser or across a ceiling and around a beam, electricians and low-voltage technicians running coax, control, and alarm cable where the pull turns a corner, data center and telecom techs bringing a bundle down from an overhead tray into a rack, AV and security installers who hang the pulley from a J-hook or a strut and pull from the floor, anyone who has watched a bundle plow a groove in a joist edge or come around a corner kinked, and a truck that carries the CC-5442 cable caddy to pay the bundle out, the FTS-240 or FTF-1125 fish tape to get the pull string through, and the CPF-215 Cable Funnel for the drop-ceiling grid. The CR-150/6 and CR-300/4 rollers do the same job on an aerial strand.

Good to Know

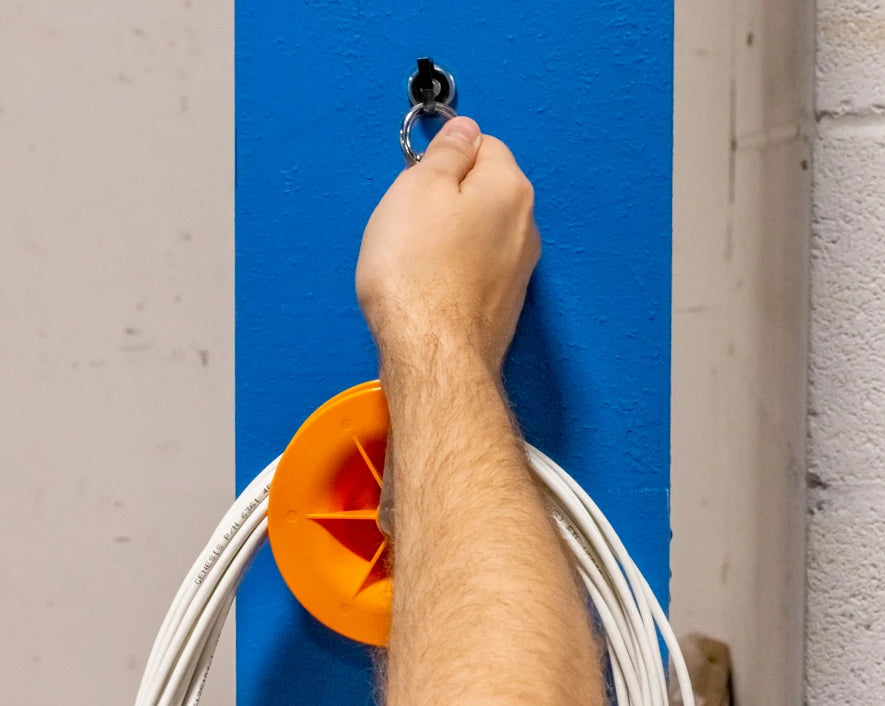

Hang the pulley from something that can take the load: 120 lb is the pulley's rating, and the pull multiplies the tension at a turn, so the J-hook, strut, or beam clamp it's clipped to has to be rated for it too. Hook it so the wheel sits in the plane of the pull and let the swivel do the aligning; a pulley forced to one side rides the cable on the groove's edge. Keep the bundle inside the groove and under the 20-cable count, pull steadily rather than in jerks, and watch the pulley on the first few feet of a heavy pull, since a hook that's walking along its anchor is about to come off it. Use both pulleys where the pull has two turns, and add a third anchor point rather than a sharper angle where it has more. It's a pulling aid, not rigging; keep hands clear of the wheel and the bundle under tension, and don't use it to lift anything. Wipe the bearings clean after a dusty ceiling and keep the zinc-coated steel dry, since grit in a roller bearing is the end of a smooth pull. Two 0.63 lb pulleys and their hooks fit in the bag.

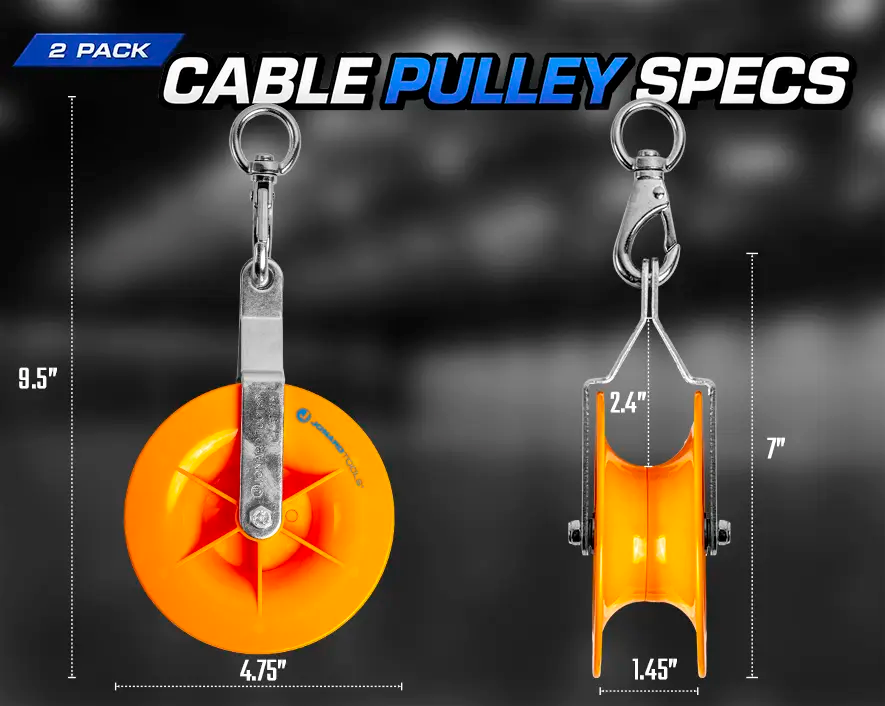

Specifications
