Low Torque Coax Termination Tool (TT-812)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

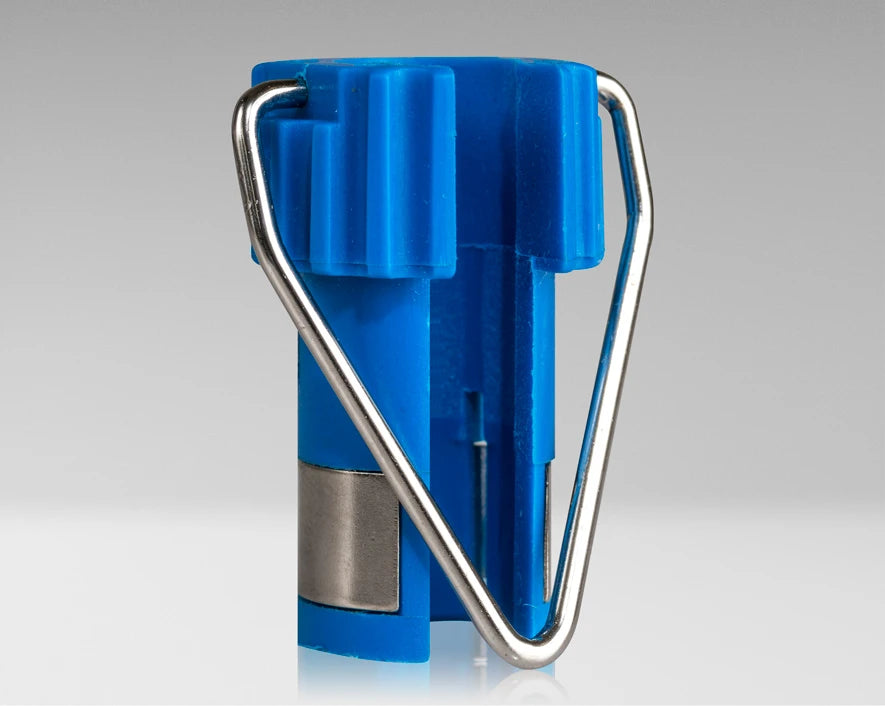

An F connector tightened by hand ends up at one to three inch-pounds, which is loose enough to work free, let signal leak, and bring a truck back out; a wrench on the back of a set-top box ends up stripping the port. The Jonard Tools TT-812 is a low-torque termination tool for the connectors on consumer equipment: a 7/16 in full-head socket, 1-3/8 in tall and 7/8 in across, that tightens an F connector to 8 to 12 in-lb and no further, whoever is holding it. It's molded from glass-filled nylon that work-hardens with use, so the torque it applies doesn't fall off over hundreds of connectors, and at two-tenths of an ounce it rides in a shirt pocket. It's for indoor work, at the modem, the set-top box, the TV, and the wall plate, where a 30 in-lb outdoor wrench is too much and fingers are too little.

Features

• 8 to 12 in-lb, every time. Tightens F connectors to the right torque for consumer electronics; fingers alone manage 1 to 3 in-lb.
• Consistent regardless of the installer. The tool sets the torque, not the hand.
• Prevents over-tightening. No stripped ports or cracked connectors on the equipment.
• Prevents loose connectors. Fewer service truck rolls, and less signal loss, ingress, and egress.
• Work-hardening glass-filled nylon. The applied torque does not decrease over time.
• Small and compact. 1-3/8 in tall and 7/8 in in diameter, for the tight spaces behind equipment; 7/16 in full head.

Where It Fits

It suits cable TV and broadband installers connecting the modem, gateway, and set-top boxes at every install, where the connector on the back of the box is the one the subscriber will call about, satellite technicians connecting receivers and multiswitches indoors, AV and home theater installers landing coax on tuners and distribution amps, MDU and hospitality techs who connect hundreds of TVs the same way, operators who hand one to every tech so the torque is the same across the fleet, and anyone who has stripped a port on a customer's equipment with a wrench. For the 30 in-lb outdoor connections at the ground block and the tap, the TWAF-71630 7/16 in torque wrench is the companion; this tool is for the equipment end.

Good to Know

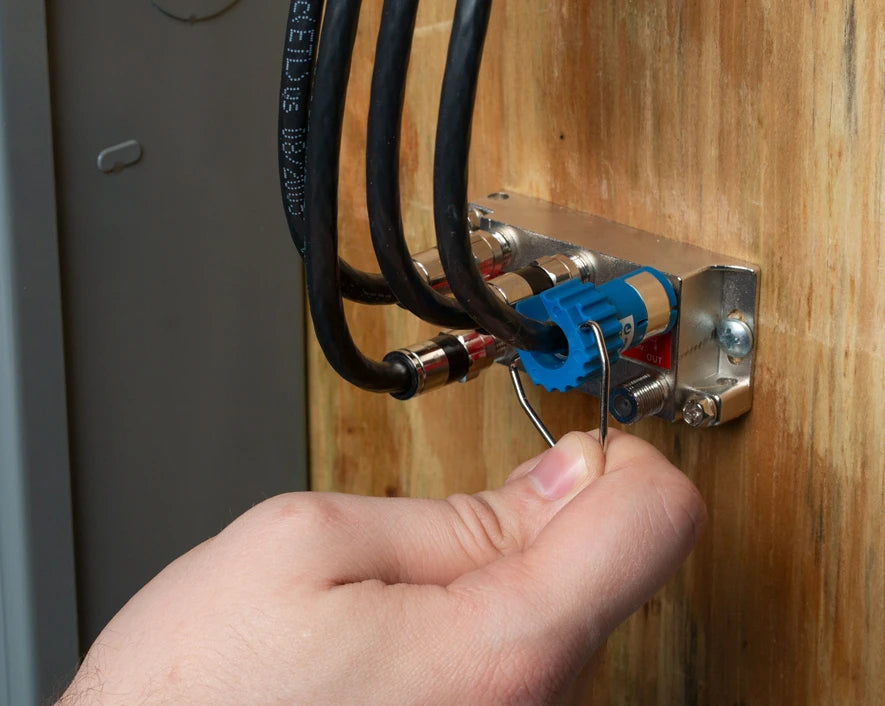

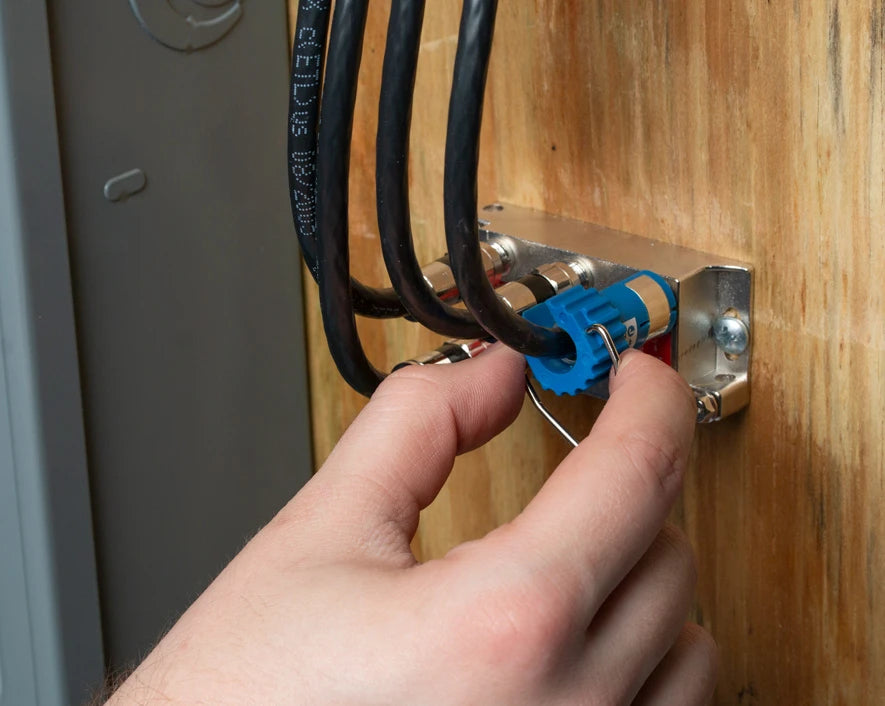

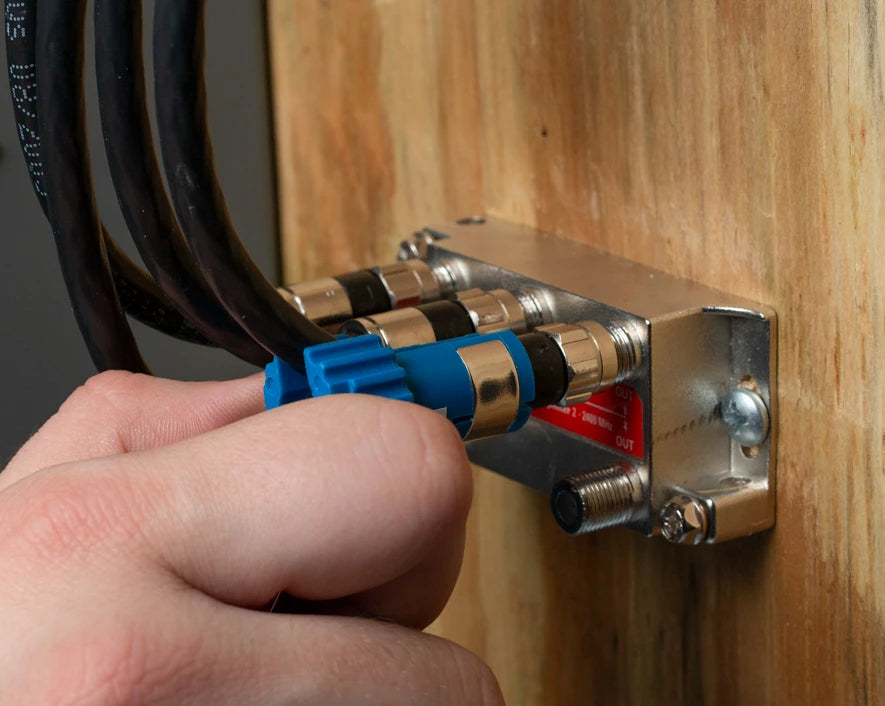

Thread the connector on by hand until it stops, then put the tool over it and turn until the tool slips; that slip is the torque limit, and turning past it does nothing but wear the tool. Don't use the tool to start a cross-threaded connector, and don't use it on the outdoor connections at the ground block, the splitter, or the tap, which want 30 in-lb and a torque wrench rated for it; 8 to 12 in-lb is right for the ports on consumer equipment and too little for a weatherproof outdoor fitting. The glass-filled nylon work-hardens, which means the tool gets no looser with use, but it isn't indestructible: a cracked or deformed socket won't hold its torque and should be replaced, which the price makes easy. The tool fits 7/16 in hex F connectors; a connector with a different hex, or a push-on, isn't a job for it. Keep the connector and the port clean before tightening, since a bit of grit under the nut is a loose connection no torque fixes. Confirm the drop isn't carrying power before working on it.
