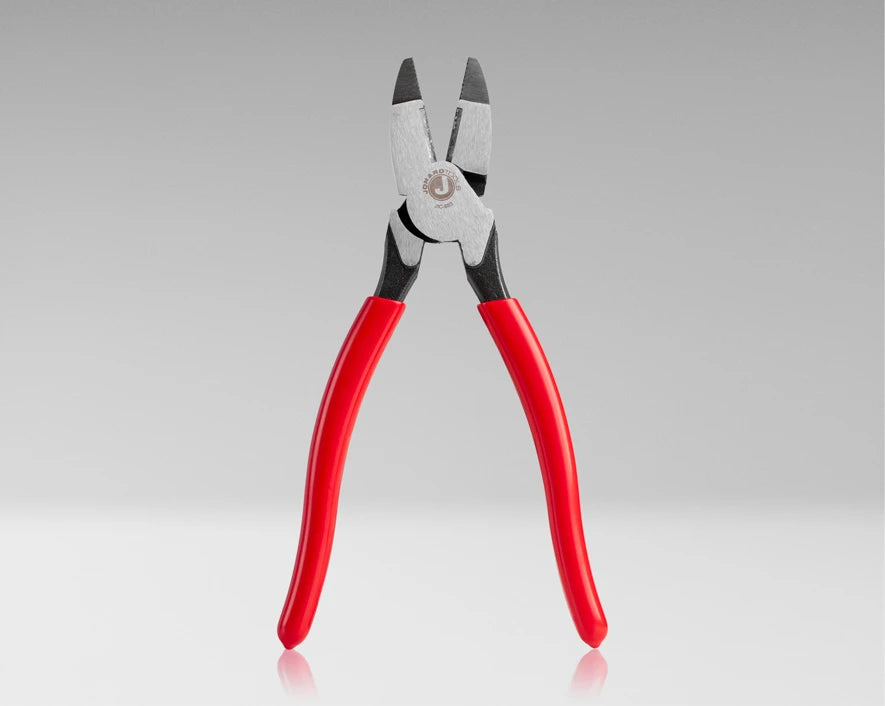

Lineman’s Side Cut Pliers 9-1/2" - High Leverage (JIC-683)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

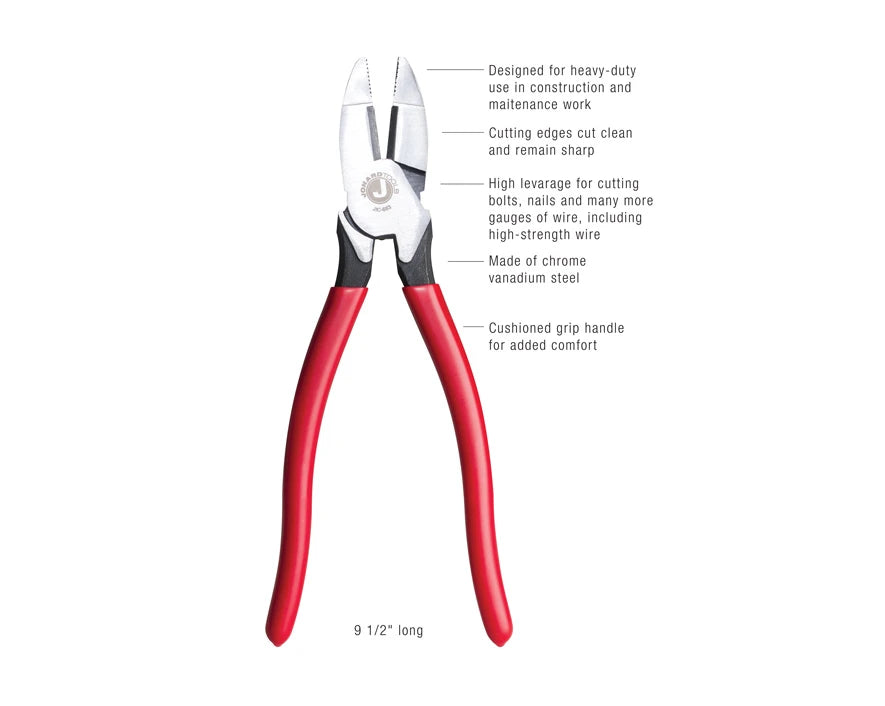

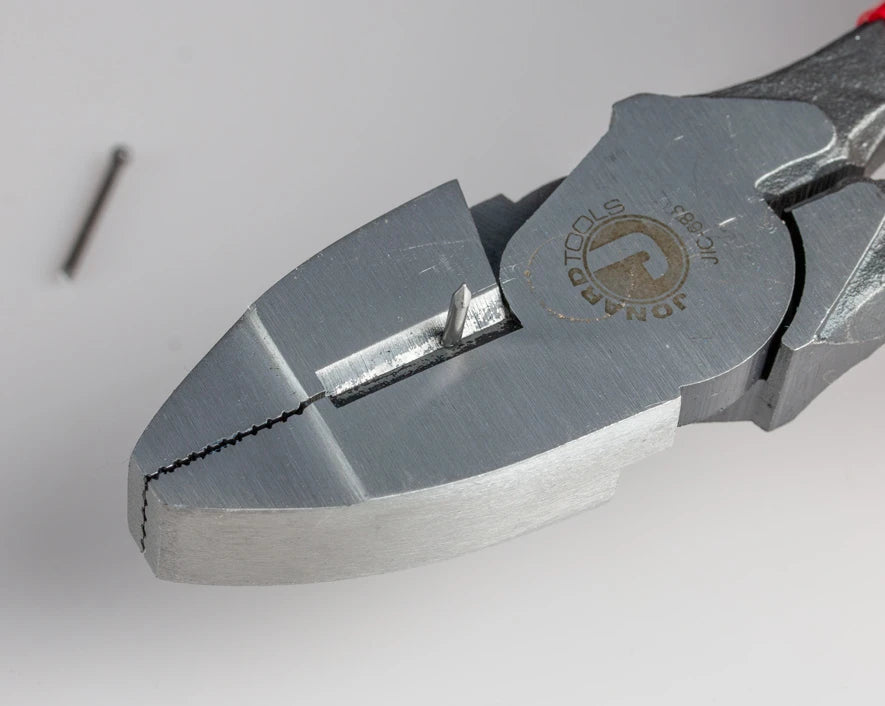

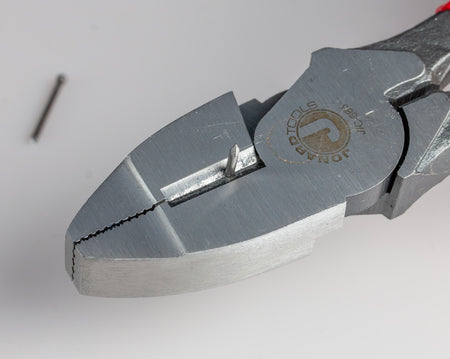

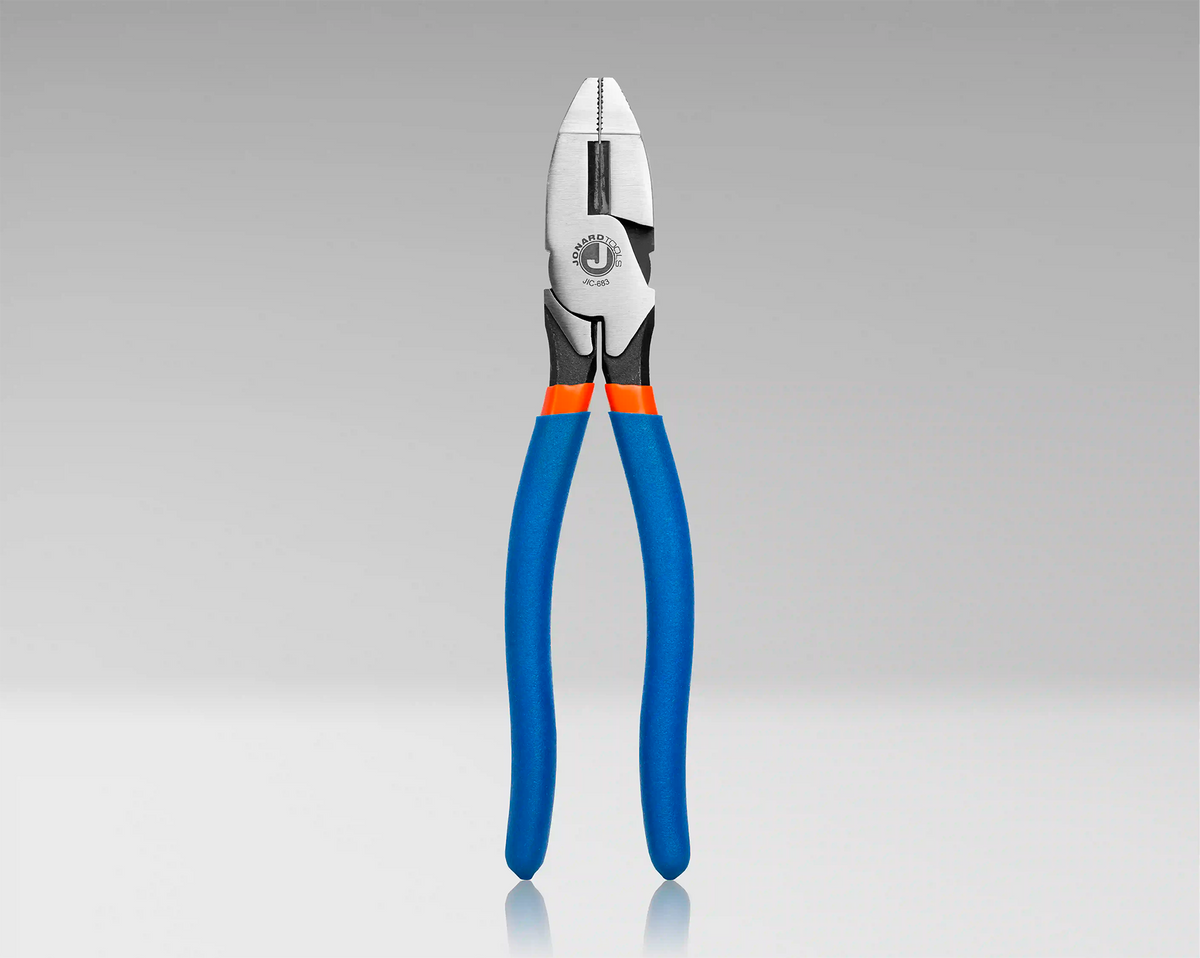

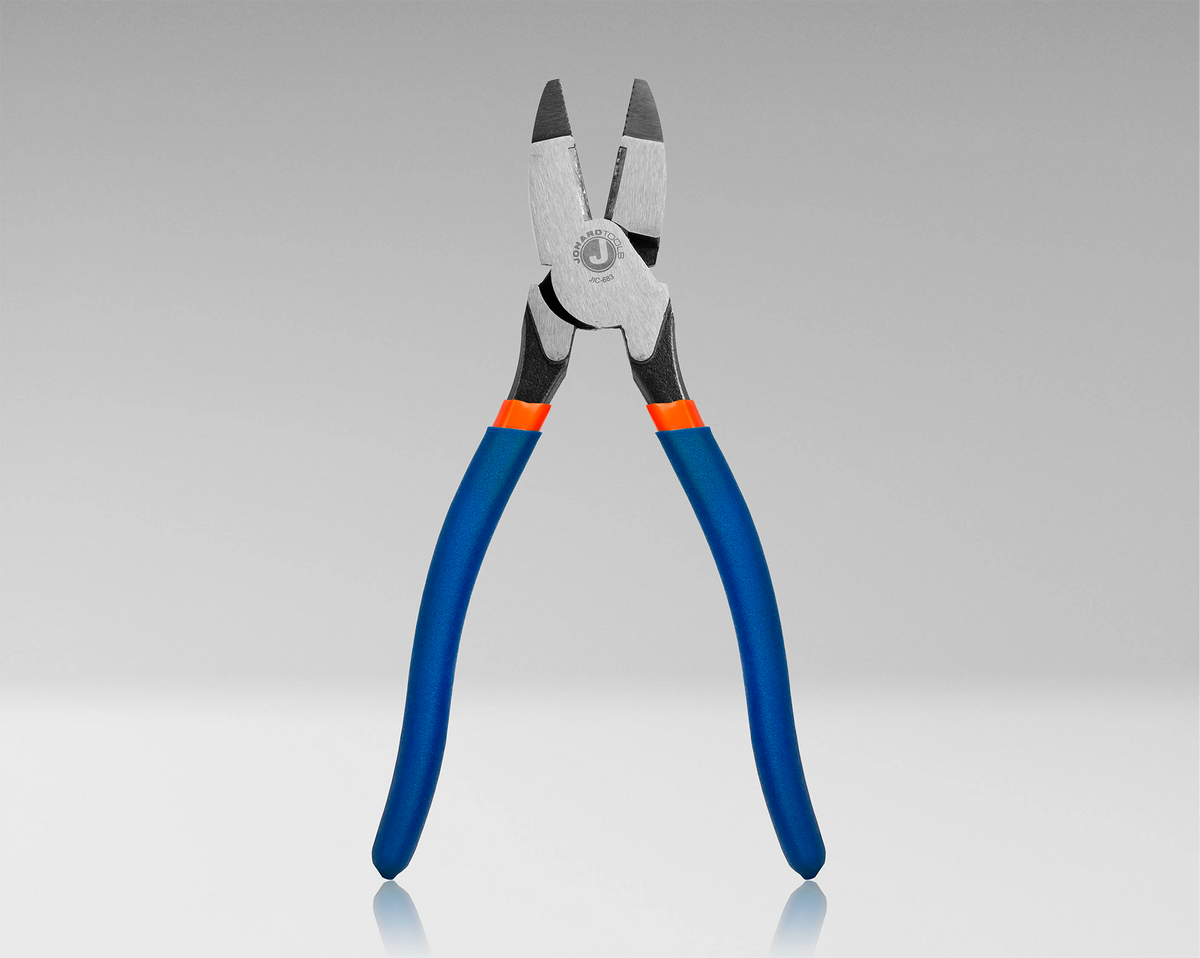

Lineman's pliers earn their keep on the cuts that would ruin an ordinary plier: a bolt, a nail, a run of ACSR, a length of high-strength wire. The Jonard Tools JIC-683 is a 9-1/2 in heavy-duty side cut plier built for that work, with a high-leverage design that puts the hand's force where the 13/16 in cutter meets the material, so the hard cuts go through without a second bite. Cross-hatched knurled jaws keep a tight grip on wire and parts for twisting and pulling, and the rivet keeps the jaws moving smoothly with no side-play, which is what keeps the cutting edges meeting cleanly after years of use. The jaws are heat-treated chrome vanadium steel with induction-hardened cutting edges, and the handles are dipped in plastic about 0.07 in thick to add comfort and take the sting out of a hard cut. For the same plier with a fish tape puller and crimper, see the JIC-685. Lifetime warranty.

Features

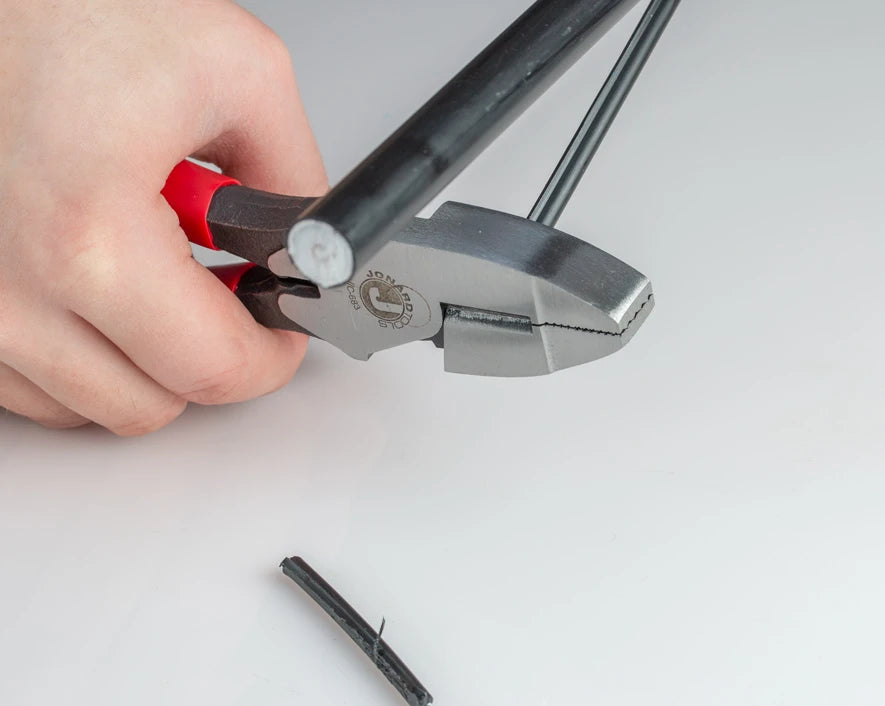

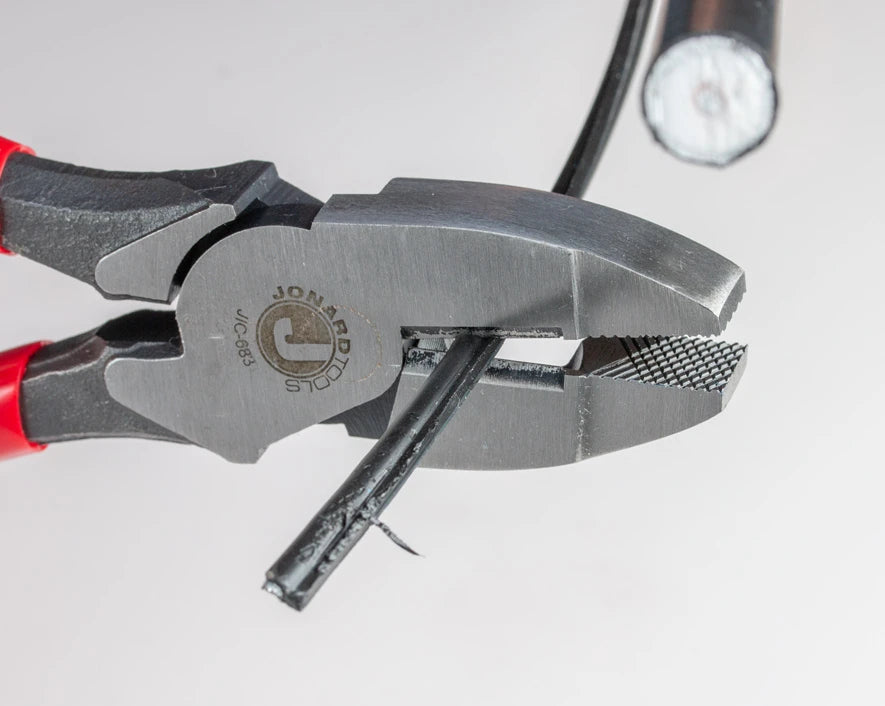

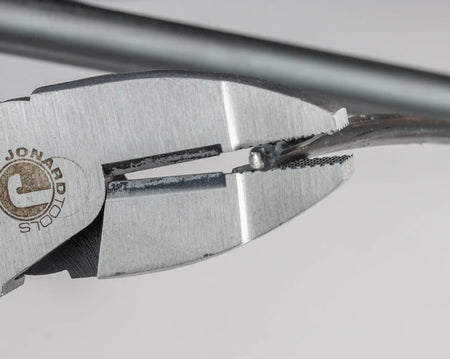

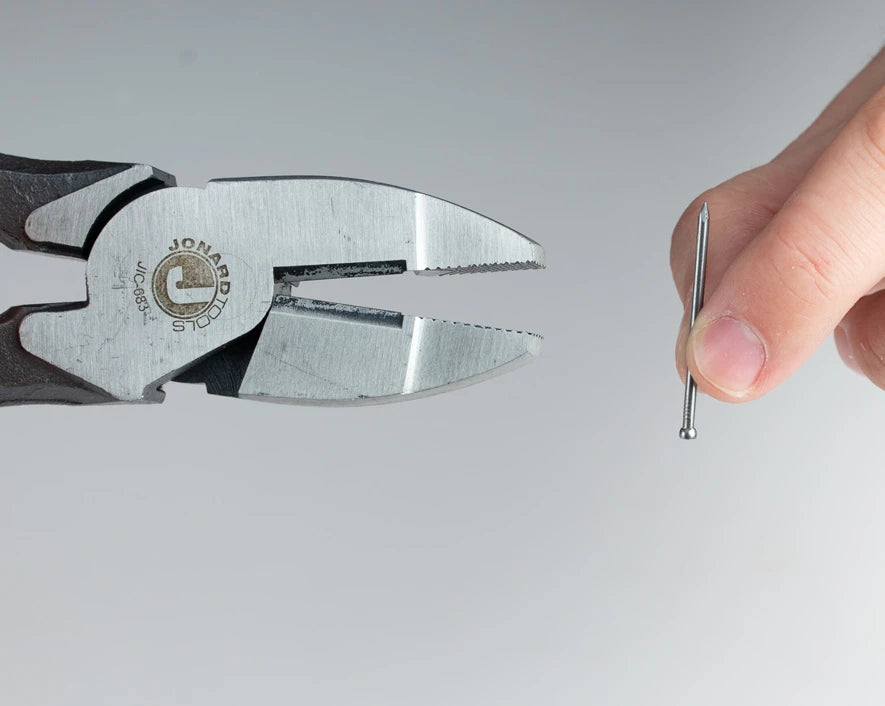

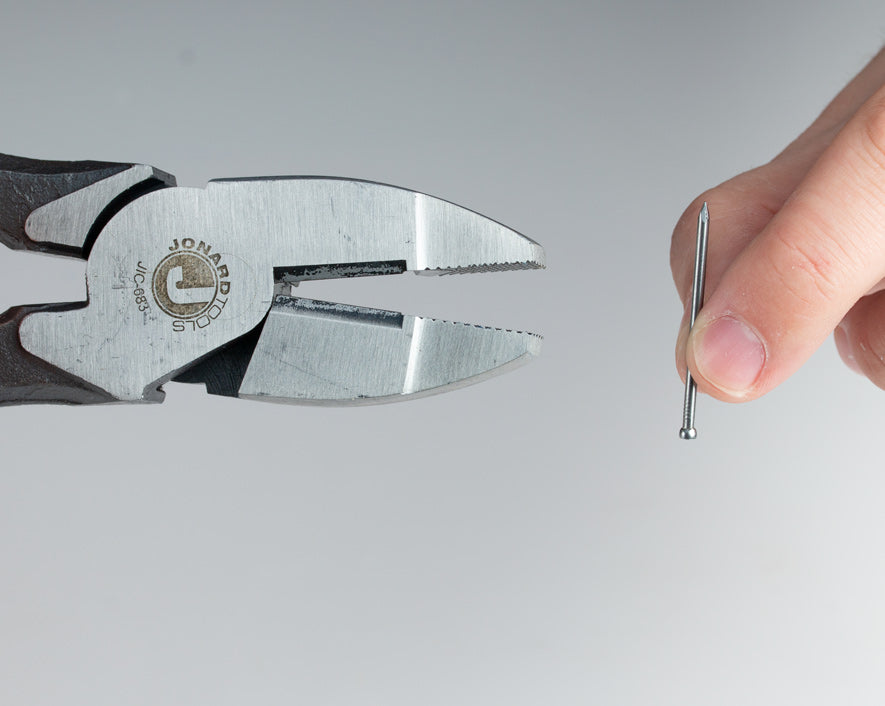

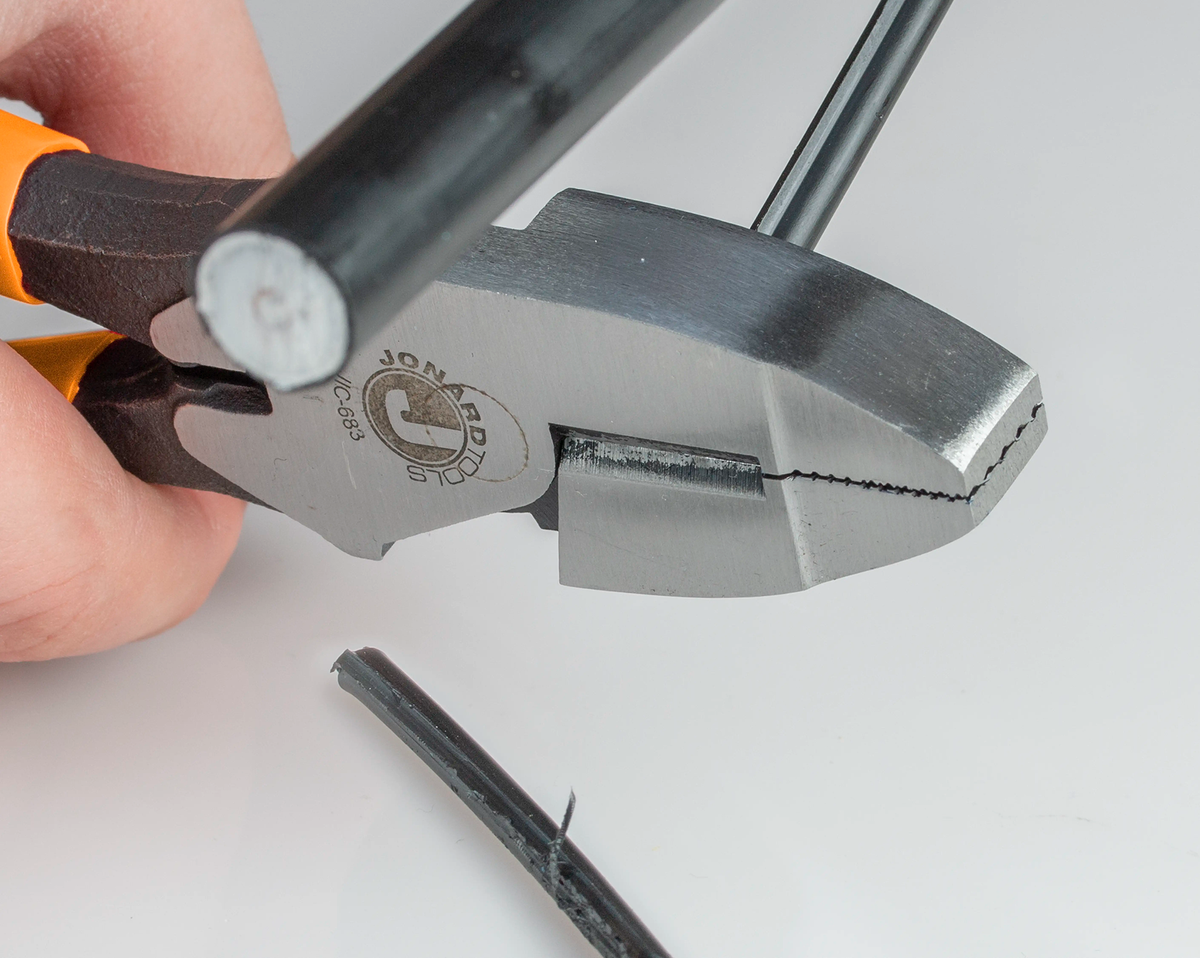

• High-leverage design. Cuts easily through bolts, nails, ACSR, and many gauges of high-strength wire.

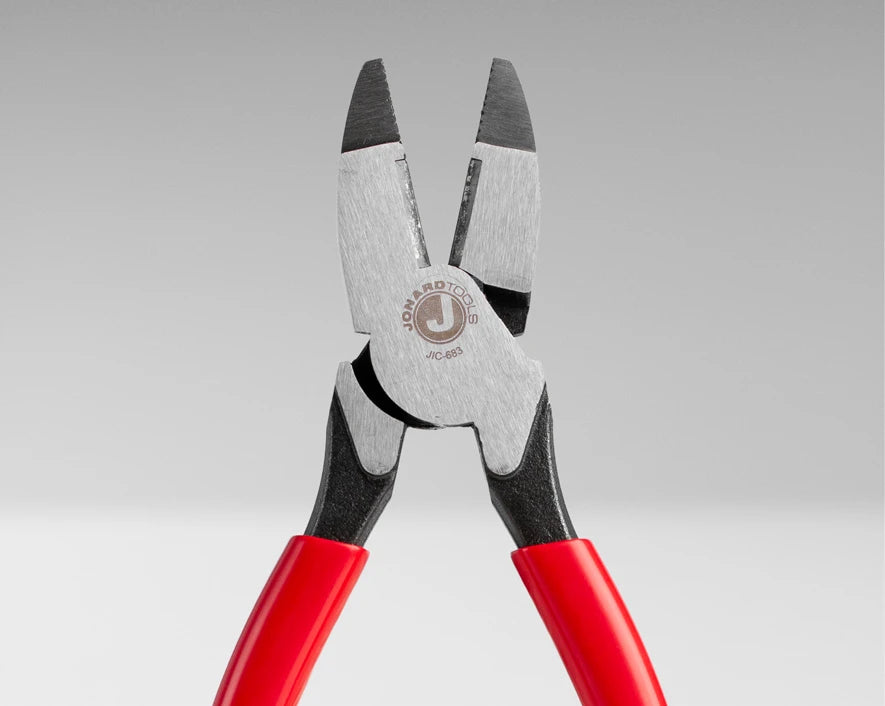

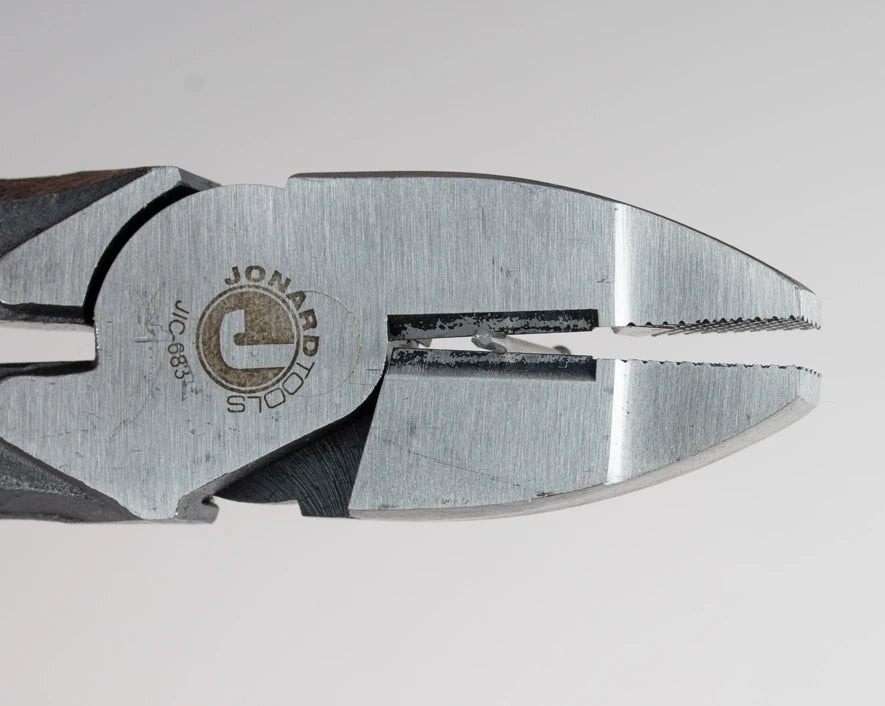

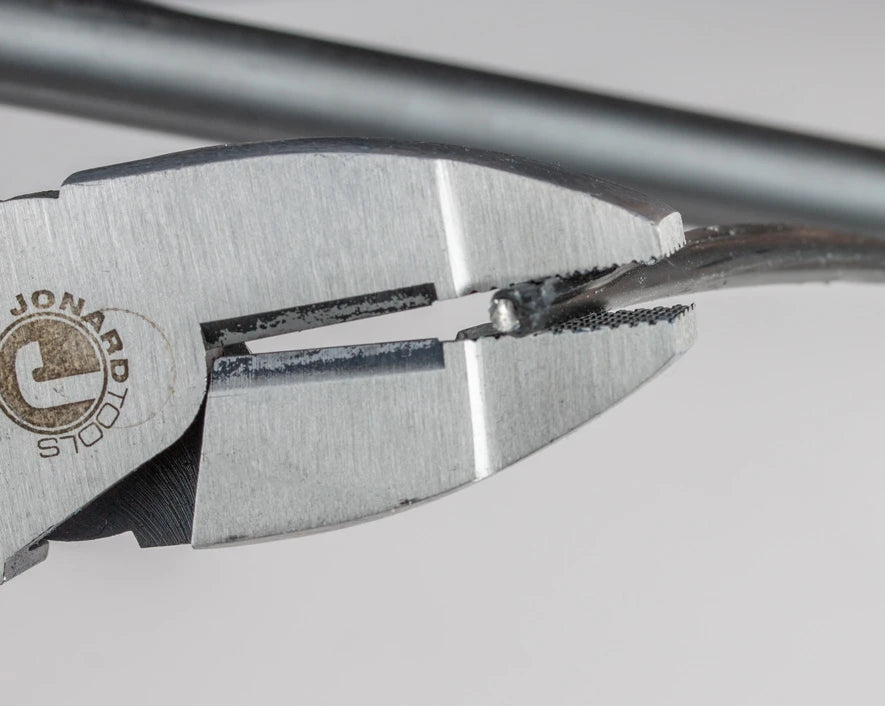

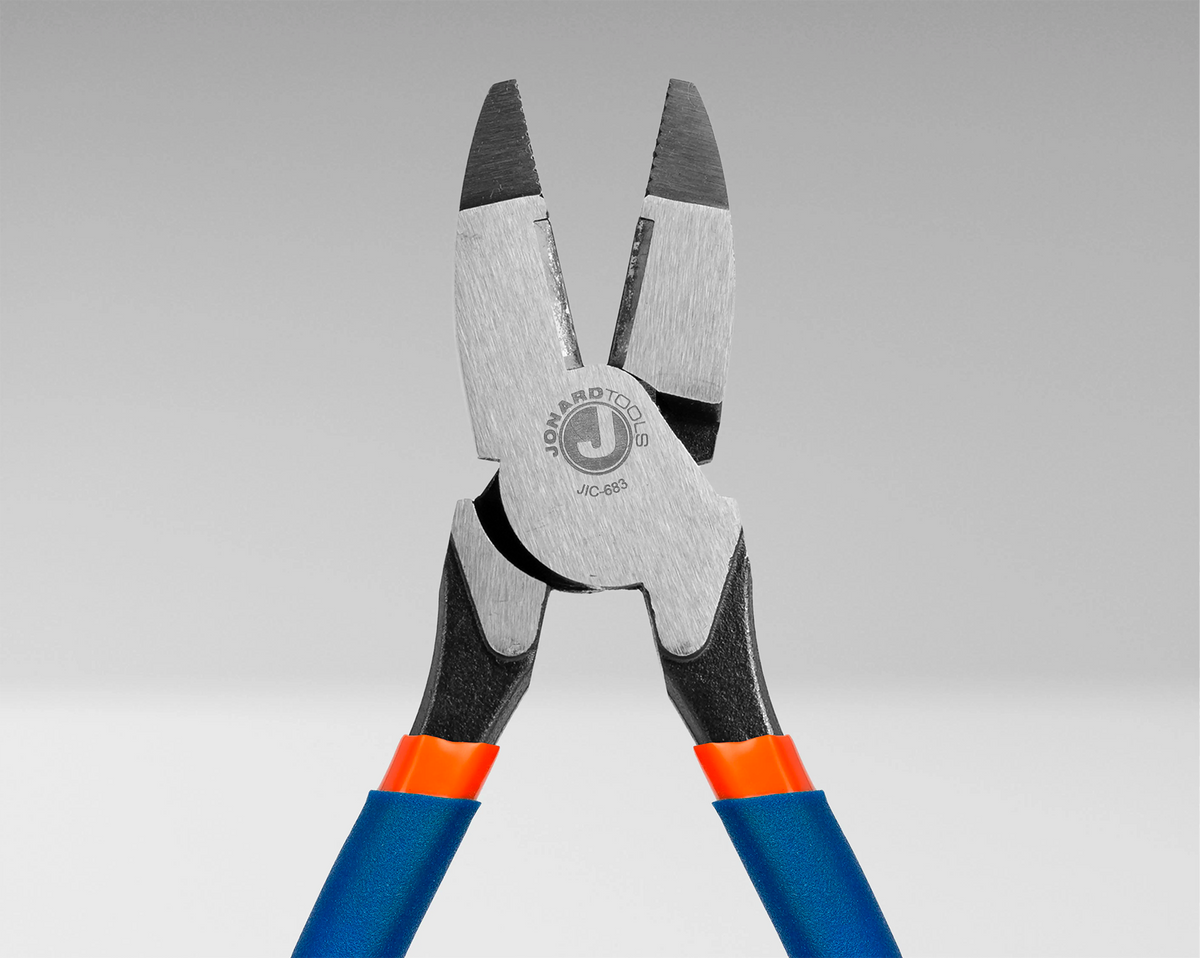

• Cross-hatched knurled jaws. A tight grip for pulling and twisting.
• Rivet design. Smooth movement with no side-play.
• Chrome vanadium steel, induction-hardened edges. Heat treated for strength and durability.
• Thick plastic-dipped handles. About 0.07 in of plastic for comfort and less vibration while cutting.
• Lifetime warranty.

Where It Fits

It suits electricians cutting and twisting conductors in a panel and pulling wire through a box, linemen and utility crews cutting ACSR, tie wire, and hardware on the pole, construction and maintenance crews who need one plier that cuts a nail as readily as a wire, low-voltage and structured cabling techs who occasionally meet a bolt, a strand, or a steel messenger that the cable cutters won't touch, anyone who has chipped a diagonal cutter on a nail, and a belt or a truck that carries the JIC-500 and JIC-625 for cable and needs the plier for everything else. For the version with a fish tape puller and a crimper built in, the JIC-685; for cutting cable without crushing it, the ratcheting RC-500 and RC-600; for wire rope, the WRC-14.

Good to Know

The cutter is rated for bolts, nails, ACSR, and high-strength wire, but hardened steel is still the exception rather than the rule: a hardened bolt, a spring, or piano wire can chip even an induction-hardened edge, so cut hard material square in the throat of the jaw, close to the pivot, where the leverage is highest and the edge is thickest, and never with the tips. Cut steel with the jaw angled so the clipped end flies away from you, and wear eye protection; a nail end leaves the jaw fast. The knurled jaws grip for twisting and pulling, which is what they're for, not for turning a nut, where they'll round it. The dipped handles are for comfort and vibration, not insulation, and this is not a rated insulated tool, so the circuit is dead before the pliers go in the box. Keep the rivet clean and give it a drop of oil now and then; chrome vanadium resists rust but doesn't ignore a wet truck bed. A cable cutter, not a plier, is the right tool for a copper or aluminum conductor you want to land in a lug without a crushed end.
