LC to LC Uniboot Fiber Patch Cable - 10G OM3 Duplex 50/125μm Switchable
Usually ships within 1–3 business days. We ship as soon as possible, though times are not guaranteed, and your order goes out via the shipping service you select at checkout. Please note: patch cords longer than 15 meters may require additional lead time.
Couldn't load pickup availability

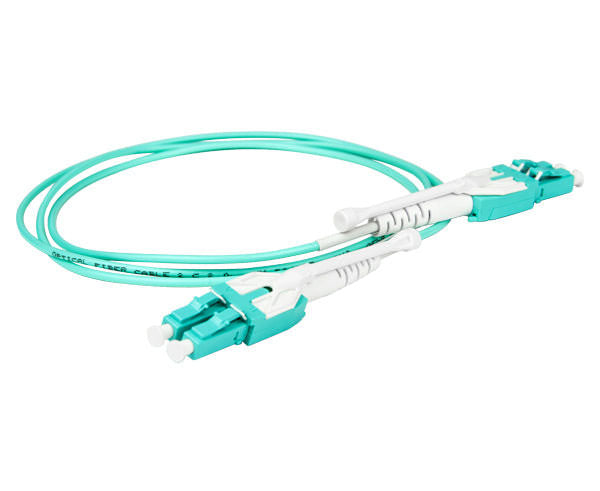

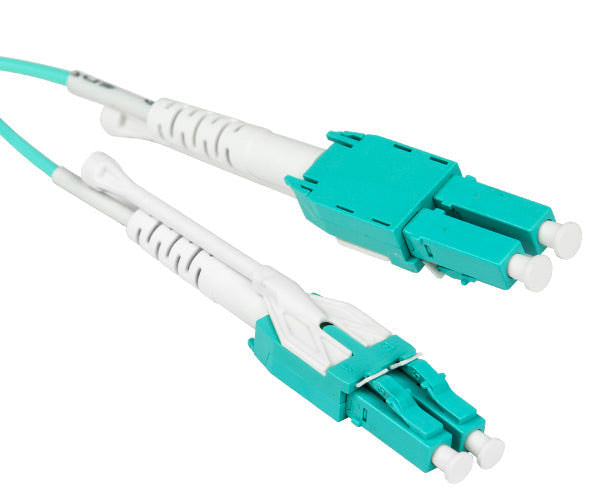

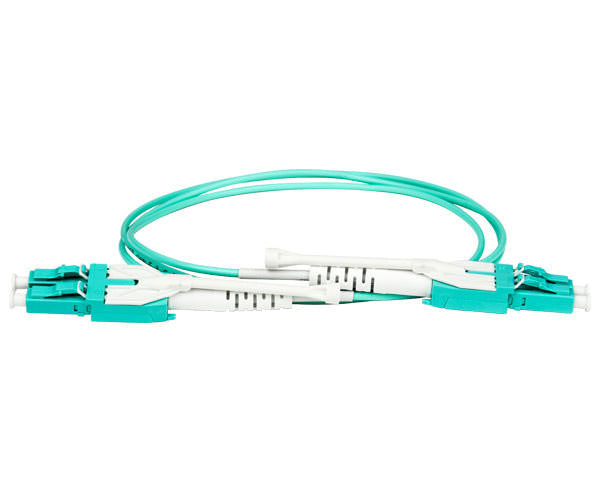

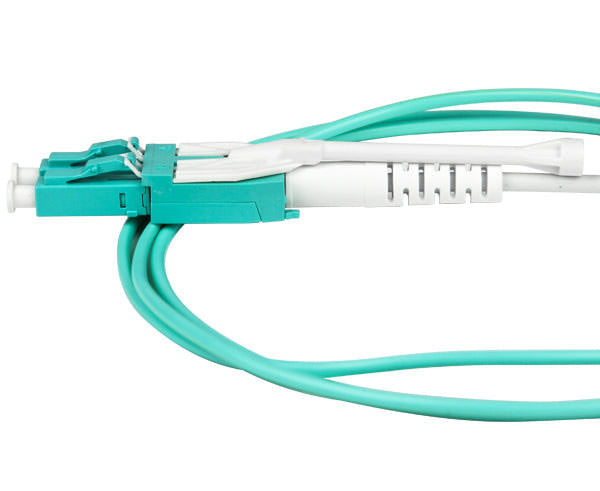

LC to LC Switchable Uniboot Patch Cable – OM3 50/125 µm, 10 Gb Duplex
Streamline your network with our LC to LC Switchable Uniboot OM3 Multimode Fiber Patch Cable, designed for high-speed 10 Gb connectivity and flexible polarity management. This laser-optimized OM3 jumper features two 50/125 µm fibers in a single 2 mm uniboot jacket, reducing cable clutter while allowing quick Tx/Rx polarity swaps without tools or re-termination, making it perfect for dense data centers and enterprise networks.
Key Features
- OM3 Multimode Fiber (50/125 µm) – Supports 10 Gb links up to 300 m and short-reach 40/100 Gb breakouts
- Uniboot Duplex Design – Halves rack clutter and enhances airflow with a single 2 mm jacket
- Field-Switchable Polarity – Easily change A/B orientation on-site without re-termination
- Pull/Push LC Tabs – Effortlessly eject connectors from crowded panels without touching the ferrule
- Compact LC Interfaces – Ideal for high-density SFP/SFP+ and XFP cages
- Factory-Tested Quality – Each cable is IL/RL-certified for reliable, worry-free deployment
Ideal Applications
- High-density data center switch panels
- SFP/SFP+ and XFP optic connections
- Enterprise networks requiring flexible polarity adjustments
- Short-to-medium-reach Ethernet and Fibre Channel links
Specifications
- Connector Type: LC PC to LC PC (Switchable Uniboot)
- Fiber Mode: OM3 Multimode 50/125 μm
- Duplex Configuration: Uniboot (Single Jacket)
- Insertion Loss (Typical): ≤ 0.20 dB
- Insertion Loss (Maximum): ≤ 0.30 dB
- Jacket Material: PVC
- Cable Diameter: 2.0 mm (uniboot)
- Polarity: A (Tx) to B (Rx) - Field Switchable
- Speed Rating: 10 Gb/s up to 300 m
- Certifications: Factory IL/RL Tested
Upgrade your network with this LC to LC OM3 switchable uniboot fiber optic patch cable. It offers high-speed performance, reduced cabling bulk, and easy polarity management for demanding multimode applications.
