Telecom Long Nose Pliers - Chrome Vanadium Steel with 22 AWG Stripper & Side Cutter (JIC-21257)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

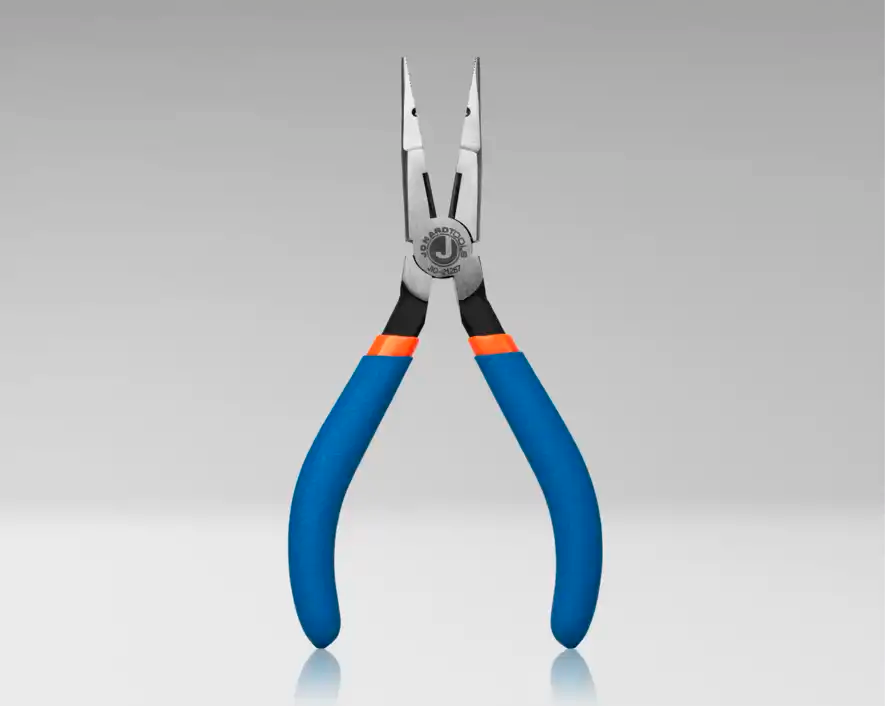

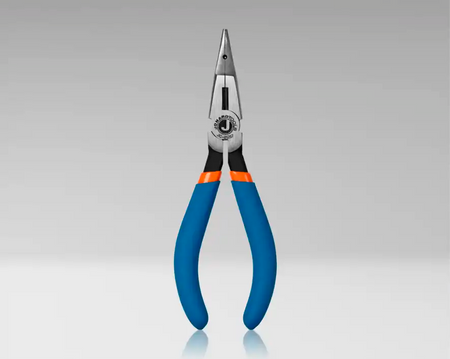

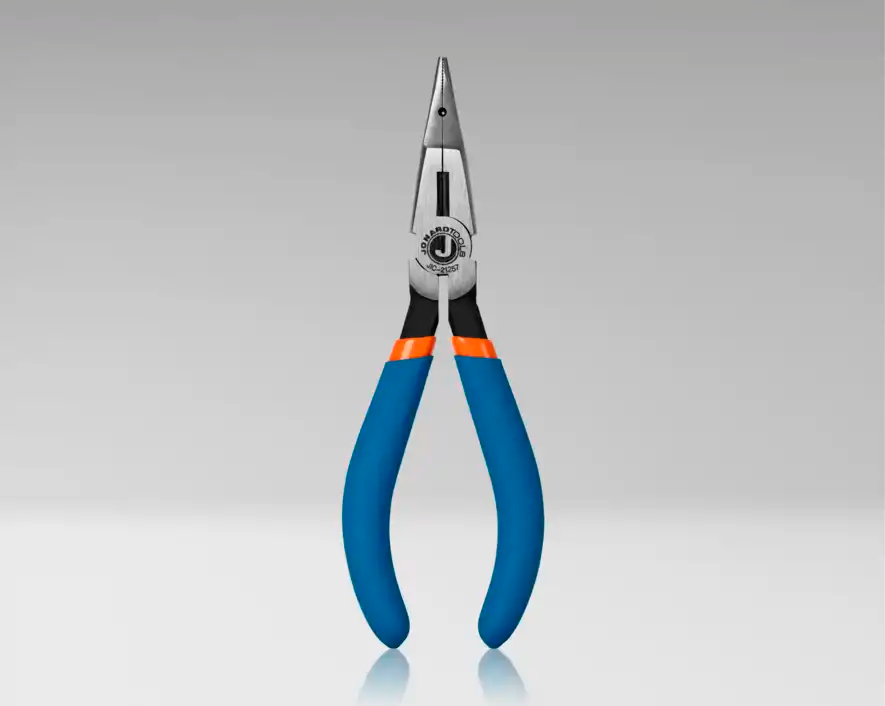

Central office terminals are crowded with fine wire, and the plier that works them has to be thin enough to get between the pins and still cut and strip. The Jonard Tools JIC-21257 Telecom Long Nose Pliers are a 6-7/8 in plier made for that frame work: a thin, knurled nose that grips and routes 22 AWG wire at the terminal without disturbing its neighbors, side cutting edges with a 1/2 in cutter to trim the conductor, and a 0.030 in stripping hole that strips 22 AWG wire without a second tool. The pliers are heat-treated chrome vanadium steel with induction-hardened cutting edges that stay sharp through a career of cross-connect wire, and the ergonomic handle has a dipped plastic grip for comfort and torque. For the same plier with 19 and 22 AWG stripping holes and a wider nose for forming terminal loops, see the JIC-203 switchboard pliers.

Features

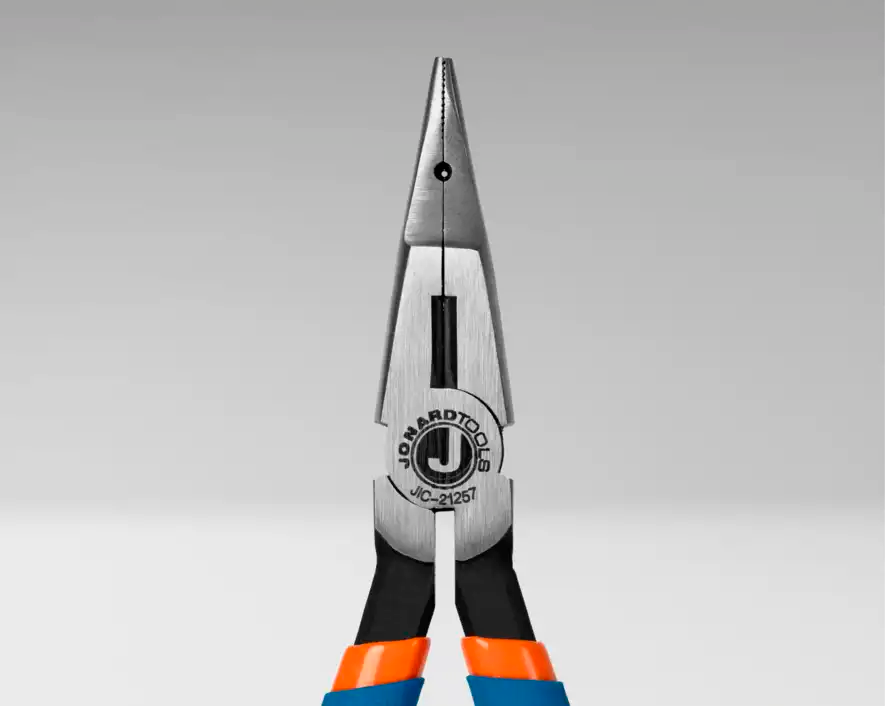

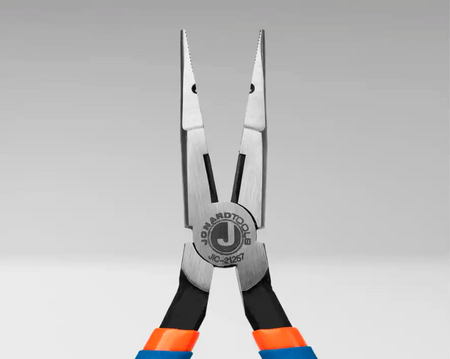

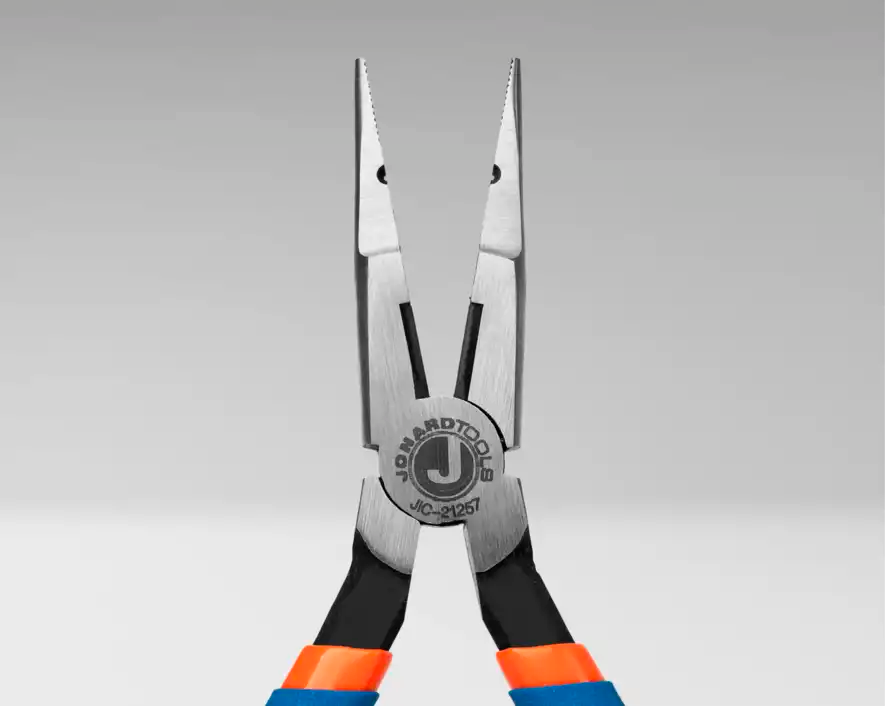

• Thin knurled nose. Reaches and grips wire at central office terminals without disturbing the pairs beside it.

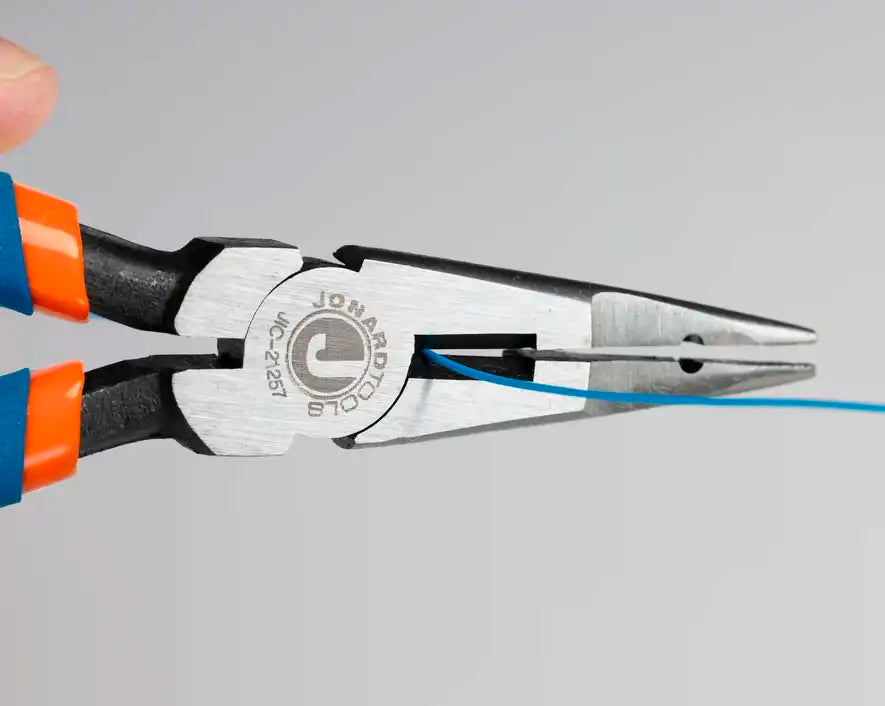

• Side cutting edges. A 1/2 in cutter trims the conductor to length.

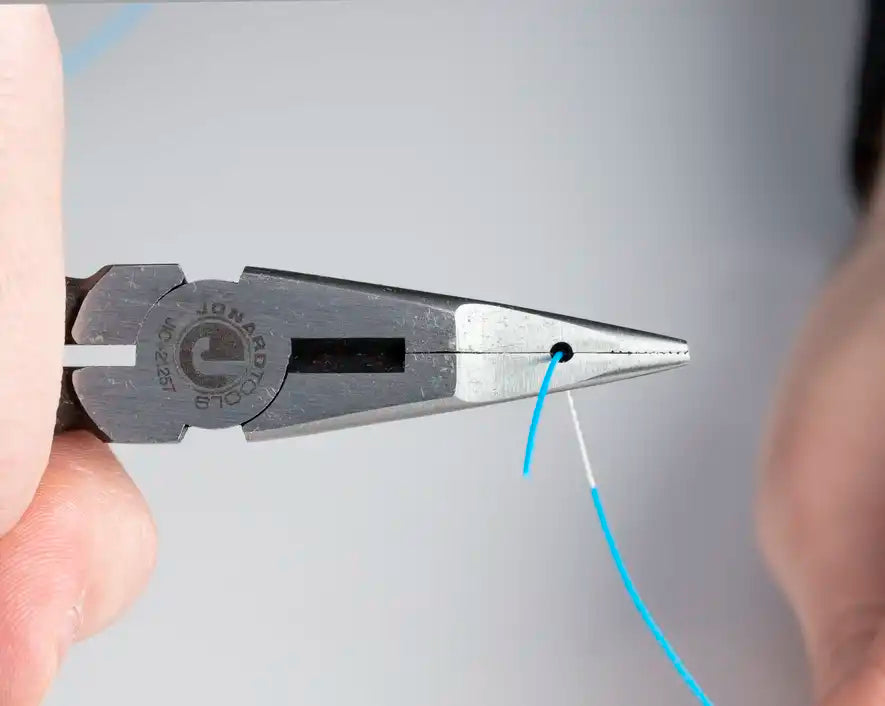

• 0.030 in stripping hole. Strips 22 AWG wire with the same tool.
• Chrome vanadium steel, induction-hardened edges. Heat treated for maximum strength and durability.
• Ergonomic dipped plastic grip. Greater comfort and torque.

Where It Fits

It suits central office technicians running and removing cross-connects on distribution frames, telecom installers working 22 AWG jumper wire at terminal blocks and wire-wrap pins, MDU and campus techs dressing and terminating pairs in a crowded telephone closet, network installers handling fine conductors where a standard long nose is too thick to get in, alarm and intercom techs stripping and routing station wire in a packed can, anyone who has pushed a neighboring pair off its pin with a fat plier, and a pouch that already has the punch-down tool and the JIC-891 or JIC-22148 crimper for the splices. For a wider nose and a second stripping hole for 19 AWG, the JIC-203; for the heavy cuts, the JIC-683 lineman's pliers; for flush trimming at a block, the JIC-2755.

Good to Know

The 0.030 in hole is sized for 22 AWG; close it on the insulation and pull the wire straight out rather than twisting the plier, since a nicked conductor is where a jumper breaks later. The thin nose is the point of the tool and also its limit: it reaches between pins because it's slender, so use it to grip and route wire, not to twist a stuck part or pry a connector, where a thin nose bends. Cut in the throat of the side cutter, close to the pivot, and keep the 1/2 in cutter for wire; it's not for screws or hardened material, and induction-hardened edges chip rather than dull when they're abused. Frame work is close work, so a dropped wire end goes somewhere you can't see it; trim over a hand or a tray. The dipped grip is for comfort and torque, not insulation, and this is not a rated insulated tool, so keep it off live pairs and out of anything carrying ringing current. Chrome vanadium resists rust but doesn't ignore it; wipe the tool dry and oil the joint now and then.
