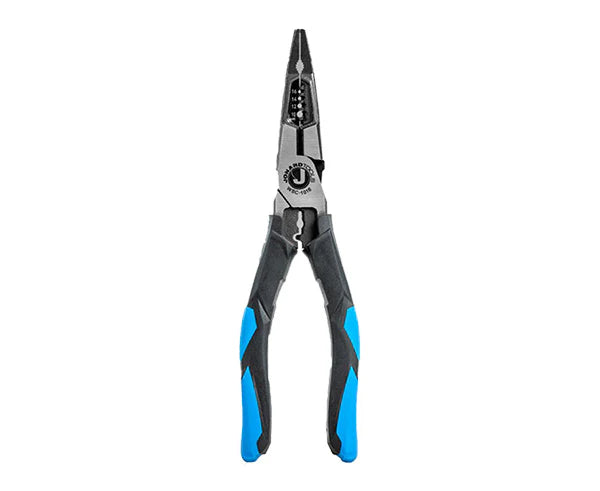

Heavy-Duty Wire Stripping Pliers 10-16 AWG - Built-in Crimper, Ergonomic Handles (WSC-1016)

SKU: WSC-1016 UPC: 810053351512
Regular price $28.95
Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Ships direct from the manufacturer — please allow up to 10 business days, though it often ships sooner, then goes out via the shipping service you select at checkout. This item does not ship from our warehouse, so delivery times may vary.

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

The wire that gets stripped most on a job is 10 to 16 AWG: branch circuits, thermostat and control runs, automotive and equipment leads. The Jonard Tools WSC-1016 is a heavy-duty plier built around that range, with stripping holes for 10 to 16 AWG solid conductor and 12 to 18 AWG stranded (2.6 to 1.3 mm), cutting knives for copper wire, a built-in terminal crimper, and a knurled plier tip that reaches into a box or a panel to grab, twist, or pull a wire. Grooved gripping holes in the jaws give leverage on nuts, bolts, and other small fasteners, so the tool that stripped the wire also snugs the terminal. It's chrome vanadium steel, 7.75 in long, with heavy-duty ergonomic handles for grip and leverage, at just under half a pound.

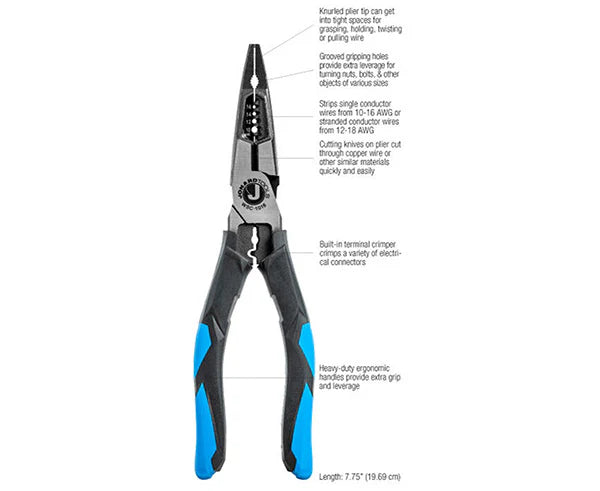

Features

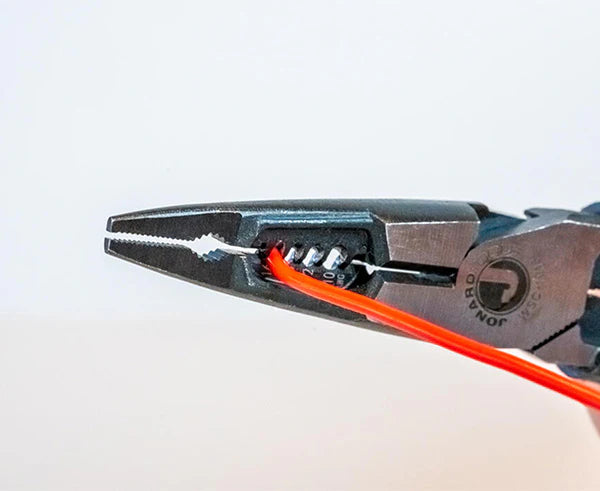

  • 10 to 16 AWG solid, 12 to 18 AWG stranded. Stripping holes for the wire sizes used most in branch circuits, controls, and equipment.
  • Knurled plier tip. Reaches into tight spaces to grasp, hold, twist, or pull wire.

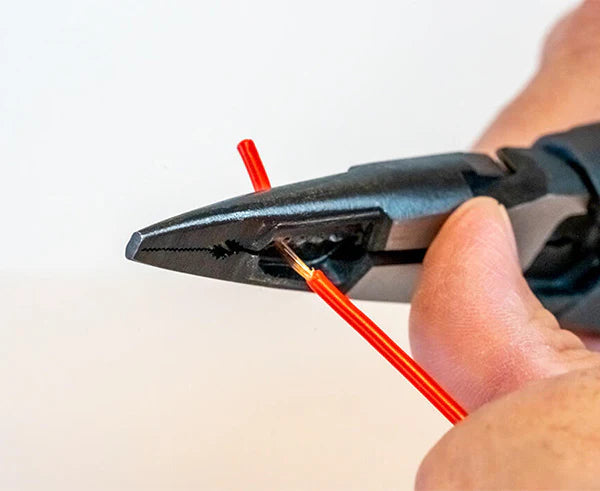

  • Cutting knives. Cut copper wire and similar materials cleanly.

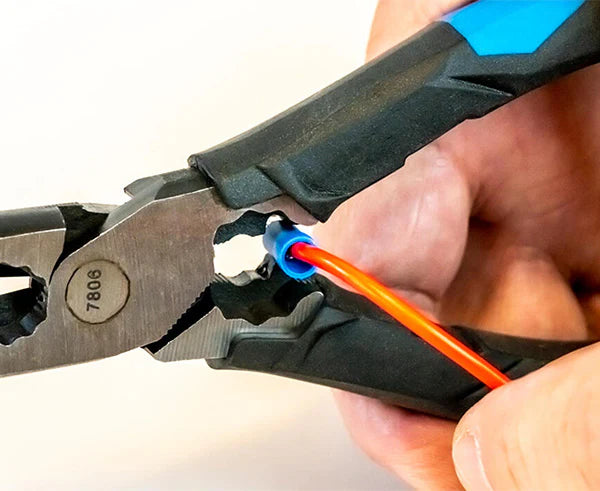

  • Built-in terminal crimper. Crimps a variety of electrical connectors without a separate crimp tool.
  • Grooved gripping holes. Extra leverage for turning nuts, bolts, and objects of various sizes.
  • Chrome vanadium steel. Built for a long life of cutting and stripping.
  • Heavy-duty ergonomic handles. Extra grip and leverage for a full day on the tool.

Where It Fits

It suits electricians and maintenance technicians who want one plier for strip, cut, crimp, and twist on 10 to 16 AWG, HVAC and controls technicians landing 18 AWG stranded thermostat wire and 14 AWG solid in the same panel, automotive, marine, and equipment work where stranded 12 to 18 AWG leads get a crimped terminal on each end, service electricians who twist a pigtail, cut it, and crimp a terminal at one box and need the knurled tip to fish a wire out of the next, anyone who'd rather carry a plier-style stripper than a dedicated crimper and a dedicated cutter, and a belt or a truck where a chrome vanadium tool outlasts a few cheaper ones. For wire sizes below this plier's range, the WS-5 adjustable stripper goes to 30 AWG, and for NM cable with the jacket on, the WSC-1412 strips the sheath as well as the conductors.

Good to Know

Solid and stranded wire of the same gauge strip in different holes on this tool, since the stranded range is offset two sizes: a 14 AWG solid goes in the 14 hole, a 14 AWG stranded in the hole marked for it, and a stranded wire in the solid hole loses a strand or two at every strip. When in doubt, strip a scrap and look at it. Pull the slug off straight rather than levering the tool sideways, which scrapes the conductor. The crimper is for the terminals it fits, and a crimp is only as good as the match between the barrel, the wire, and the nest; a crimp that pulls off by hand is a bad crimp, so pull-test the first one of each terminal type. The cutting knives are for copper wire in the tool's range; cutting steel, screws, or cable with the jacket on is what chips a cutter. The gripping holes turn small fasteners in a pinch, not in place of a wrench on anything with real torque. The knurled tip marks a conductor it grips hard, so grip on the insulation or on the part that gets cut off. Work on dead circuits only; the handles are for grip and leverage and aren't rated as insulation.

Specifications

Spec Detail
Model WSC-1016
Manufacturer Jonard Tools
Type Wire stripping pliers, heavy duty
Cut Type Cut, strip, and crimp
Wire Gauge 10 to 16 AWG (2.6 to 1.3 mm)
Solid Conductor 10 to 16 AWG
Stranded Conductor 12 to 18 AWG
Plier Tip Knurled, for grasping, twisting, and pulling
Cutter Cutting knives for copper wire
Crimper Built in, for electrical connectors
Gripping Holes Grooved, for nuts and bolts
Material Chrome vanadium steel
Handles Heavy-duty ergonomic
Overall Length 7.75 in (19.69 cm)
Dimensions 7.5 × 2.17 × 0.74 in (19.05 × 5.5 × 1.88 cm)
Weight 0.48 lb (218 g)
Shipping Ships direct from the manufacturer, allow up to 10 business days

Documentation

Document Link
Data Sheet WSC-1016 data sheet (PDF)
