Fixed Compression Tool for CG Long Style F Connectors (CTF-200CG)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

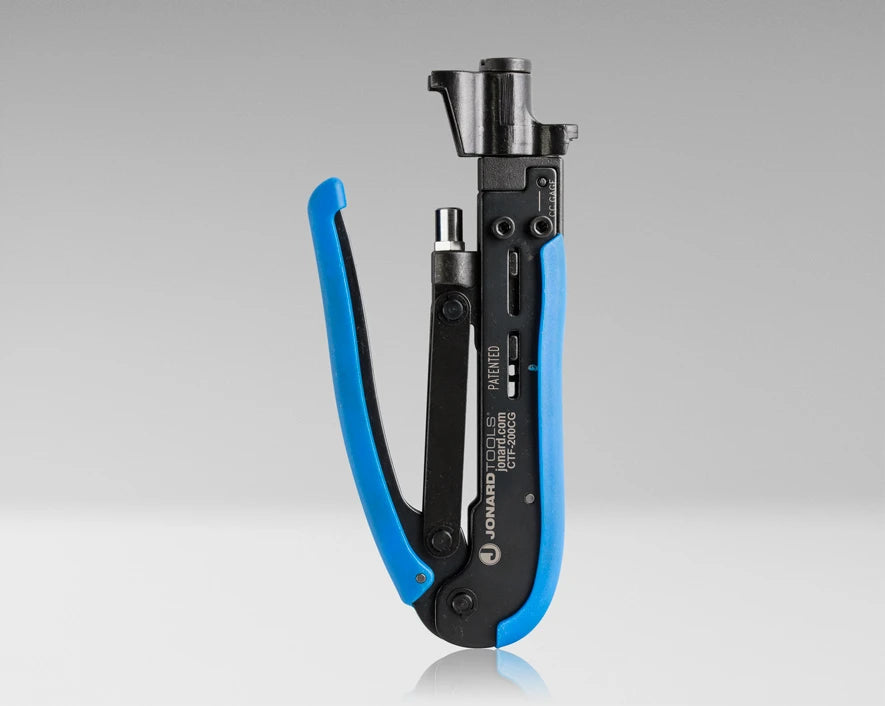

Operators that spec Corning Gilbert connectors spec them by series, and a compression tool that's made for the Gilbert long F connector does the termination the way the connector was designed to be done. The Jonard Tools CTF-200CG is that tool: a patented fixed-design compression tool for long style Corning Gilbert F connectors, set up for the GF-UE, GF-UR, GAF-URS, GF-SFC, and GF-EFC series, with a rotatable head that switches between RG6 and RG11 connectors in a moment and no adjustment to make between them. It also handles other brands of long F connectors, including PPC and Thomas & Betts. The tool is high carbon steel with a black oxide finish and plastic grips, just under seven inches and under a pound, built for the CATV installer whose route is Gilbert from the tap to the wall plate.

Features

• Made for Corning Gilbert long F connectors. GF-UE, GF-UR, GAF-URS, GF-SFC, and GF-EFC series.
• Also PPC and Thomas & Betts. Works with other brands of long style F connectors.

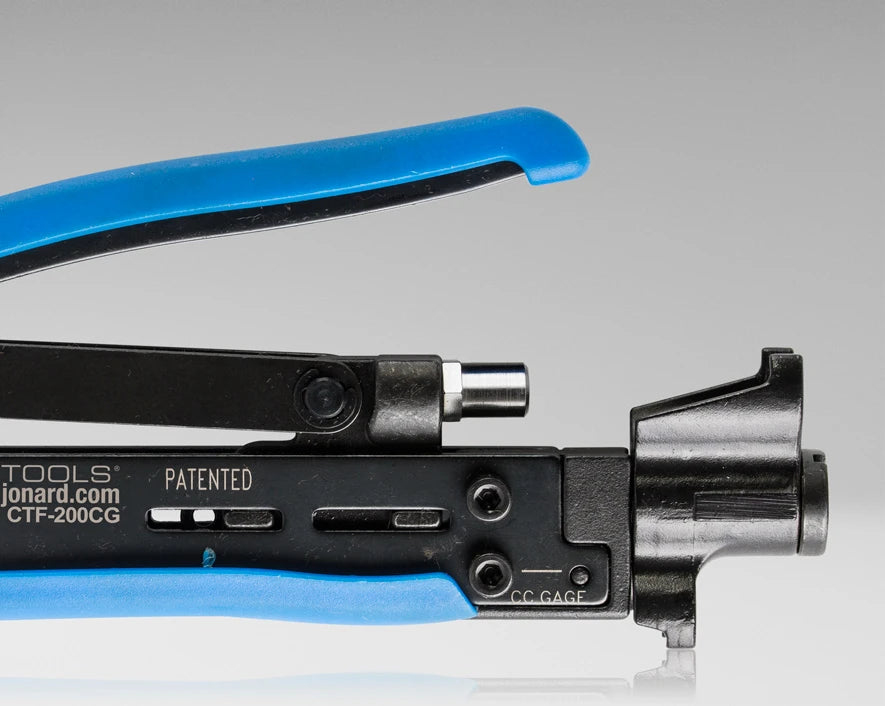

• Rotatable head. Switches between connectors for RG6 and RG11 quickly and easily.
• Patented fixed design. No adjustments needed; the same compression every time.
• High carbon steel, black oxide. Durable body and finish for daily use.
• Plastic grips. Comfortable and ergonomic through a day of connectors.

Where It Fits

It suits CATV and broadband installers working for an operator that specifies Corning Gilbert connectors, contractors whose Gilbert and PPC jobs come from different operators in the same week, MDU and commercial crews terminating RG11 trunks and RG6 drops in Gilbert long connectors, satellite installers using long connectors for the weather seal on outdoor fittings, anyone who's compressed a Gilbert connector in a generic tool and found the sleeve short of the body, and a truck that wants a tool matched to the connectors in the bin. For a tool that isn't tied to a connector brand, the CTF-230 dual compression tool covers short and long connectors from PPC, Belden, Digicon, Cablecon, and Corning Gilbert by part number; the CTF-360XL has a patented 360° head for long and RG7/RG11 connectors. For stripping before the connector, the UST-125, and for torquing after it, the TWAF-71630.

Good to Know

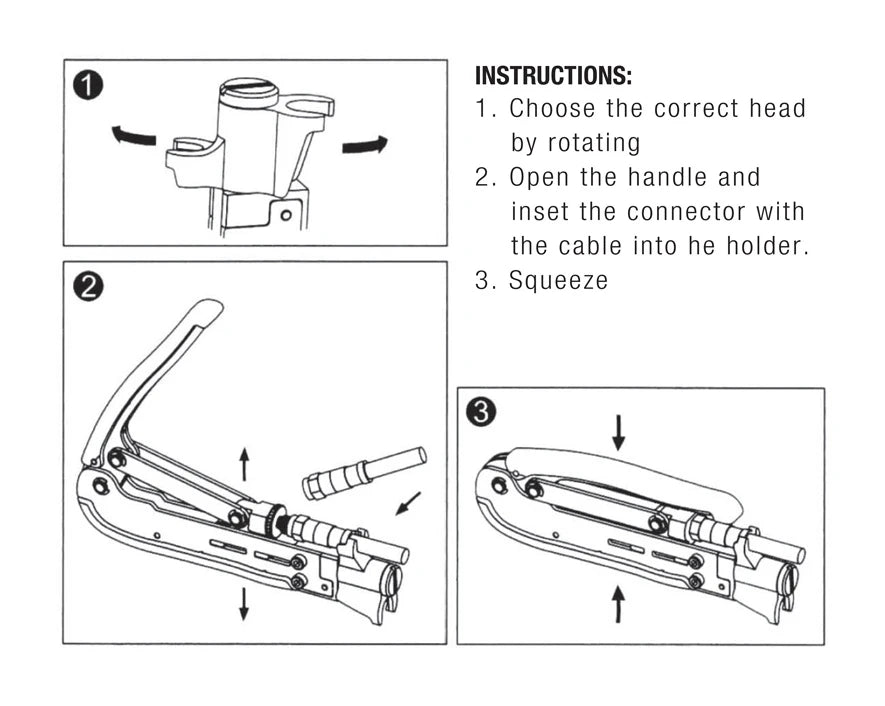

Set the rotatable head for the cable before the first connector, RG6 or RG11, and confirm the connector is one of the listed Gilbert series or a long style F connector from PPC or Thomas & Betts; this is a fixed tool for long connectors, and a short connector in it won't be supported or compressed to its length. The connector's instructions set the strip dimensions, and the compression tool only finishes what the strip started: prep the cable to Corning Gilbert's lengths for the series in hand, fold the braid back over the jacket, push the connector on until the dielectric is flush with the inside of the connector face, then set it in the head and squeeze until the handles stop. Check the finished connector for a fully driven sleeve with no gap, a straight center conductor standing proud of the face by the maker's dimension, and no turning or pulling on the cable; one that compressed with no resistance usually means the cable wasn't pushed in far enough, and on stiff RG11 that's easy to do. The tool is for F connectors; BNC and RCA compression connectors take different tools, and it isn't a cutter or a stripper. Keep the head clear of jacket bits so the connector seats square, and a wipe of oil on the pivot and the head now and then keeps the black oxide tool from stiffening. The instructions PDF below covers the head positions.
