Sealed Fiber Slack Storage Box - Exterior Mount, Field Configurable
Regular price
$16.99
Couldn't load pickup availability

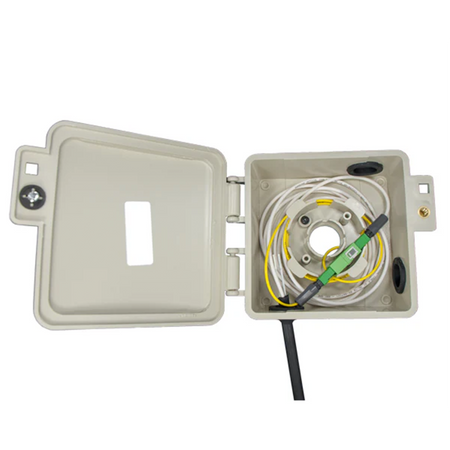

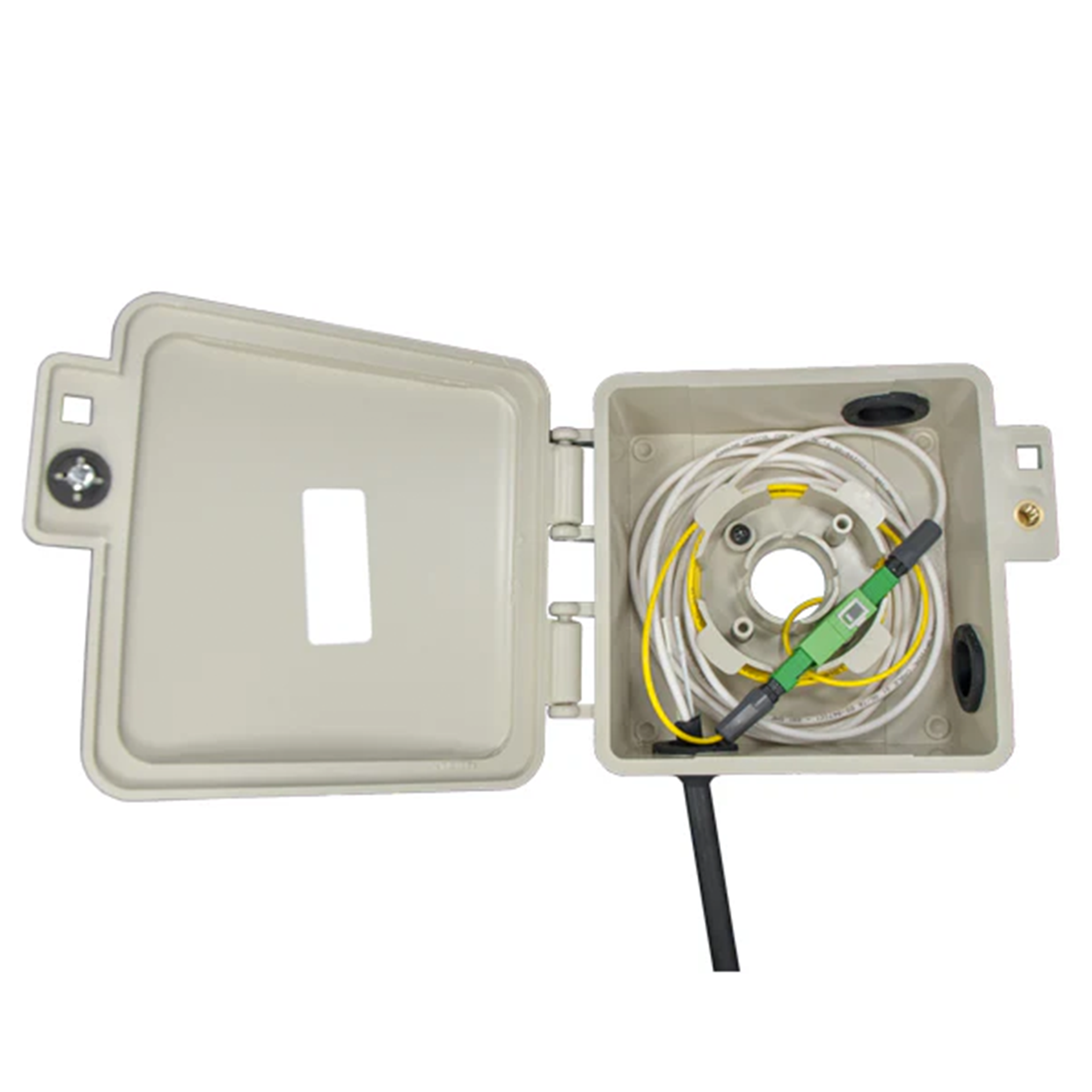

Fiber Optic Slack Storage Box - Exterior Mount
Compact exterior-rated slack storage box engineered for outdoor fiber management of 3mm single-fiber cables in outside plant (OSP) applications. This sealed enclosure features dual removable stackable spools providing flexible fiber storage configurations for drop cable installations. With no pre-drilled holes, this field-configurable box allows custom cable entry placement while maintaining weather protection. Ideal for aerial, pole-mounted, and exterior wall installations requiring secure, organized fiber slack storage.
Key Features
- Dual Removable Spools - Two stackable fiber storage spools for flexible configuration
- Sealed Enclosure - No pre-drilled holes for field-custom cable entry placement
- 3mm Fiber Cable Optimized - Designed specifically for single-fiber drop cables
- Flexible Spool Mounting - Position spools at lower or elevated level as needed
- Hex Bolt Security - Secure closure with standard 216C wrench
- Hasp Lock Provision - Optional padlock capability for enhanced security
- Built-In Hinge - Captive or non-captive configuration flexibility
- Weather-Resistant Material - Impact-modified flame-retardant Polybutylene Terephthalate (PBT)
- Compact Footprint - Space-efficient 4.8" x 4.8" x 2.2" design
- OSP Rated - Suitable for outside plant telecommunications applications
Ideal Applications
Perfect for exterior fiber slack management in OSP installations:
- FTTH Drop Cable Storage - Residential fiber-to-the-home installations
- Aerial Fiber Installations - Pole-mounted slack storage
- Building Exterior Mounting - Wall-mounted drop cable management
- MDU Installations - Multi-dwelling unit fiber distribution
- Utility Pole Applications - Telecommunications pole-mounted storage
- Service Drop Points - Customer premises fiber demarcation
- Campus Networks - Outdoor fiber connection points
- Temporary Installations - Construction or emergency restoration slack storage
Physical Specifications
- Outer Dimensions: 4.8" (H) x 4.8" (W) x 2.2" (D)
- Metric Dimensions: 122mm (H) x 122mm (W) x 56mm (D)
- Weight: 10 lbs (4.5 kg)
- Material: Impact-Modified Flame-Retardant Polybutylene Terephthalate (PBT)
- Color: Ivory
- Mounting: Wall mount or pole mount
Capacity Specifications
- Cable Type: 3mm single-fiber optic cable
- Storage Spools: 2 removable stackable spools
- Bend Radius: 1.211" (30.7mm) minimum
- Maximum Fill: 11 feet (3.52 meters) per spool
- EIA/TIA 40% Fill: 4.4 feet (1.34 meters) per spool
- Spool Configuration: Stackable or elevated mounting options
Security & Access Features
- Closure Type: Hex bolt with retainer (standard 216C wrench)
- Lock Provision: Hasp for padlock (padlock not included)
- Hinge Type: Built-in captive or non-captive hinge
- Tamper Resistance: Secure hex bolt closure
Environmental Rating
- Application: Outside Plant (OSP) rated
- Weather Resistance: Sealed enclosure when cables installed
- UV Resistance: PBT material resists sun degradation
- Impact Resistance: Impact-modified material for durability
- Flame Retardant: Fire-resistant material construction
