Fiber Optic Slack Storage Box - Exterior Mount, 3 x 1" Cable Entry Holes
Regular price
$29.99
Couldn't load pickup availability

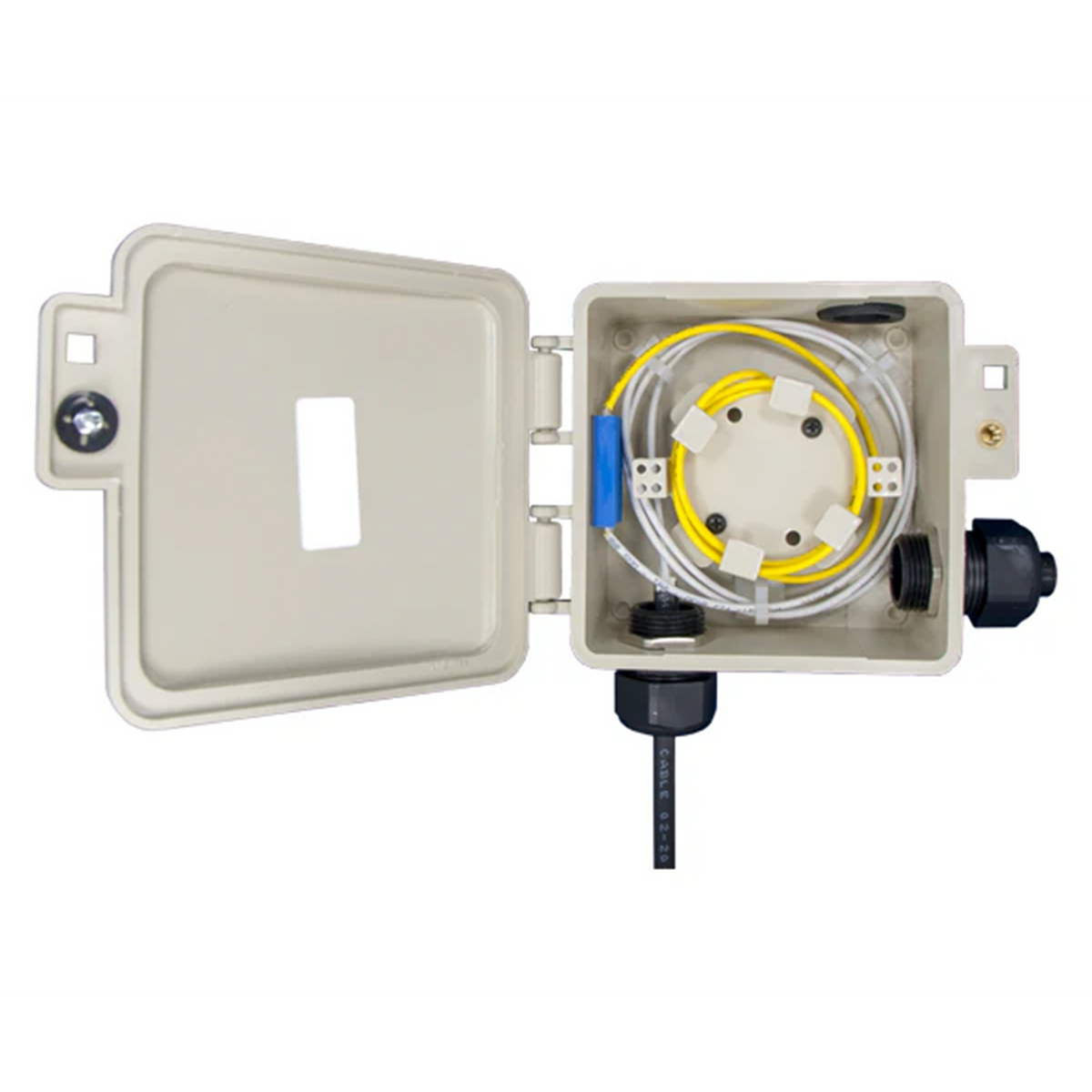

Fiber Optic Slack Storage Box - Exterior Mount
Ready-to-install exterior-rated slack storage box engineered for outdoor fiber management of 3mm single-fiber cables in outside plant (OSP) applications. This pre-configured enclosure features three factory-drilled 1" cable entry points with removable cap plugs, eliminating field drilling while providing flexible cable routing options. Dual removable stackable spools provide versatile fiber storage configurations for drop cable installations. Ideal for aerial, pole-mounted, and exterior wall installations requiring immediate deployment without field modifications.
Key Features
- 3 Pre-Drilled 1" Entry Points - Factory-installed cable holes with removable cap plugs
- Ready to Install - No field drilling required, deploy immediately
- Dual Removable Spools - Two stackable fiber storage spools for flexible configuration
- 3mm Fiber Cable Optimized - Designed specifically for single-fiber drop cables
- Flexible Spool Mounting - Position spools at lower or elevated levels as needed
- Removable Cap Plugs - Seal unused entry points for weather protection
- Hex Bolt Security - Secure closure with standard 216C wrench
- Hasp Lock Provision - Optional padlock capability for enhanced security
- Built-In Hinge - Captive or non-captive configuration flexibility
- Weather-Resistant Material - Impact-modified flame-retardant Polybutylene Terephthalate (PBT)
- Compact Footprint - Space-efficient 4.8" x 4.8" x 2.2" design
- OSP Rated - Suitable for outside plant telecommunications applications
Ideal Applications
Perfect for fast-deployment exterior fiber slack management in OSP installations:
- FTTH Drop Cable Storage - Residential fiber-to-the-home installations
- Aerial Fiber Installations - Pole-mounted slack storage
- Building Exterior Mounting - Wall-mounted drop cable management
- MDU Installations - Multi-dwelling unit fiber distribution
- Utility Pole Applications - Telecommunications pole-mounted storage
- Service Drop Points - Customer premises fiber demarcation
- Campus Networks - Outdoor fiber connection points
- Quick Deployment - Emergency restoration or temporary installations
Physical Specifications
- Outer Dimensions: 4.8" (H) x 4.8" (W) x 2.2" (D)
- Metric Dimensions: 122mm (H) x 122mm (W) x 56mm (D)
- Weight: 10 lbs (4.5 kg)
- Material: Impact-Modified Flame-Retardant Polybutylene Terephthalate (PBT)
- Color: Ivory
- Mounting: Wall mount or pole mount
Capacity Specifications
- Cable Type: 3mm single-fiber optic cable
- Storage Spools: 2 removable stackable spools
- Bend Radius: 1.263" (32mm) minimum
- Maximum Fill: 13 feet (3.9 meters) per spool
- EIA/TIA 40% Fill: 5.2 feet (1.58 meters) per spool (recommended)
- Spool Configuration: Stackable or elevated mounting options
Cable Entry Specifications
- Number of Entry Points: 3 pre-drilled holes
- Hole Diameter: 1" (25.4mm) each
- Entry Sealing: Removable cap plugs included
- Configuration: Factory-installed, ready to use
- Unused Port Protection: Cap plugs seal unused entries
Security & Access Features
- Closure Type: Hex bolt with retainer (standard 216C wrench)
- Lock Provision: Hasp for padlock (padlock not included)
- Hinge Type: Built-in captive or non-captive hinge
- Tamper Resistance: Secure hex bolt closure
- Cap Plugs: Removable plugs for unused entries
