Fiber Drop Cable Stripper - 2.1 mm x 3.1 mm (FDS-312)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

Flat FTTH drop cable has a fiber down the middle and a strength member on each side, and opening it with a knife means either nicking the fiber or leaving the strength members to cut separately. The Jonard Tools FDS-312 does the whole job in one tool for the 2.1 × 3.1 mm drop cable that most FTTH installs use: it strips the outer jacket and cuts the strength members, FRP or steel, to expose the fiber inside without damaging it. A scaled fiber support on the tool sets the strip length, so every drop at a terminal or an ONT gets the same prep, and the non-slip cushion-grip handle keeps a day of drops from wearing out your hand.

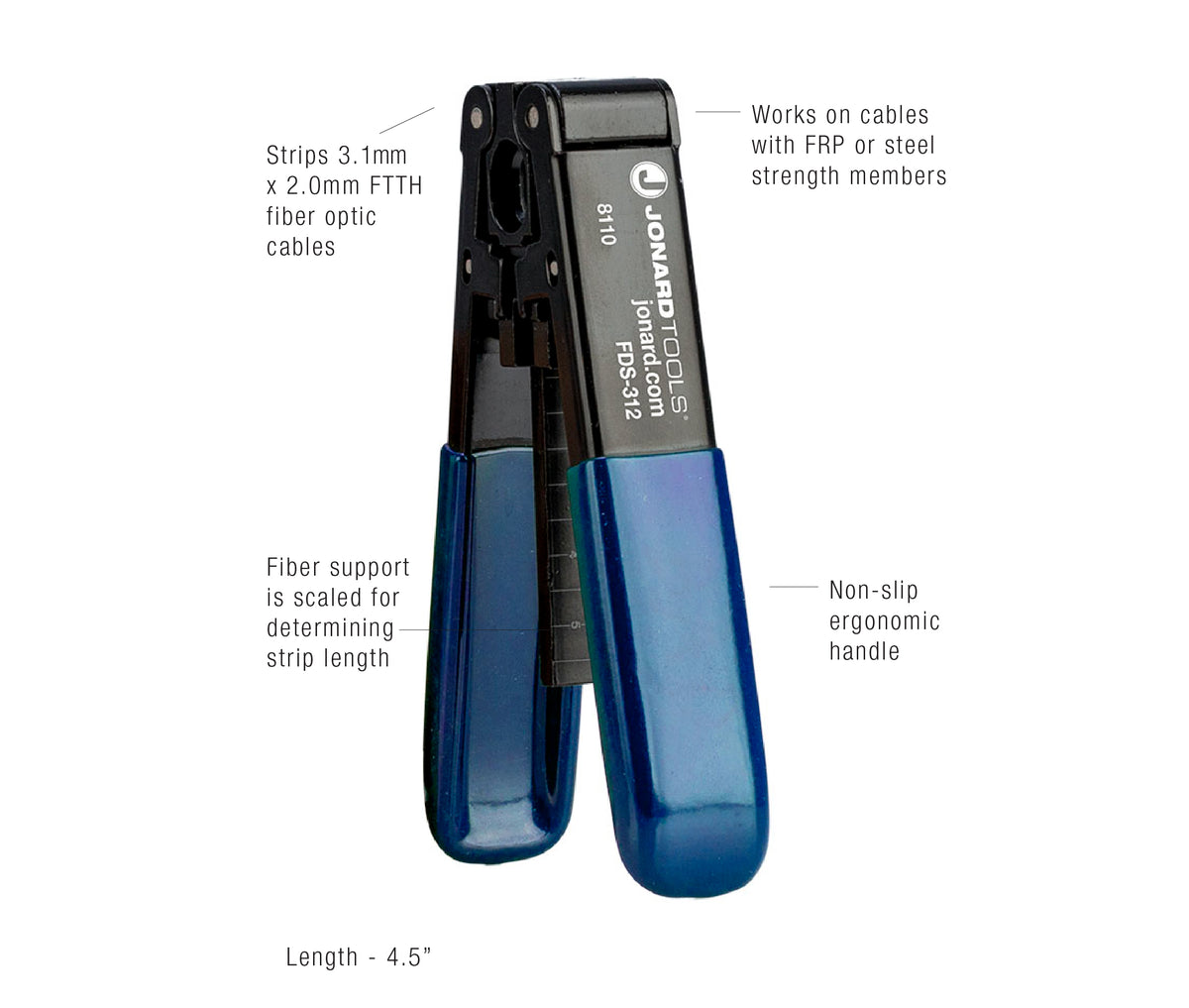

Features

• Strips 2.1 × 3.1 mm FTTH drop cable. Sized for the flat drop cable used from the terminal to the premises, and from the wall to the ONT.
• Jacket and strength members in one tool. Removes the outer jacket and cuts the strength members to expose the fiber.
• FRP or steel strength members. Cuts both the fiberglass rod and the steel wire types of drop cable.
• Protects the fiber. Removes the jacket without damaging or nicking the fiber inside.
• Scaled fiber support. Measures the strip length on the tool, for a consistent exposed length every time.
• Non-slip ergonomic handle. Cushion grip that helps prevent hand fatigue through repeated strips.

Where It Fits

It suits FTTH installers prepping the drop at the terminal, the wall box, and the ONT on every install, PON construction crews terminating drops with field-installable connectors or mechanical splices, maintenance technicians replacing a damaged drop who need the strip right the first time, anyone who has been opening flat drop with a knife and a pair of cutters and wants the fiber to survive the process, and a belt kit or a van where the drop stripper rides beside the fiber stripper and the cleaver that finish the job.

Good to Know

The tool is for 2.1 × 3.1 mm flat drop; check the cable's dimensions before the first strip, since round drop and the larger flat sizes need a different tool, and a cable that doesn't seat flat in the jaws won't strip cleanly. Set the strip length on the scaled support to what the connector or the splice calls for before you cut, and use the same setting on every drop in a job. Strip the jacket and cut the strength members, then the fiber inside still has its 900 µm tight buffer or its 250 µm coating, which comes off with a fiber stripper such as the JIC-375 or the JIC-175 before cleaving. Steel strength members are sharp once cut and spring back; cut them flush and keep your fingers clear, and FRP leaves fiberglass splinters, so gloves are worth it. Don't bend the exposed fiber tightly where it leaves the jacket; the strength members are what protect it in service, and the strip point is where it's most exposed. Clean the bare fiber with an alcohol wipe after stripping and before cleaving, and put the cleaved end and any stripped glass in a sharps container. Keep the blades clean of jacket residue, and if the tool starts tearing the jacket rather than cutting it, the blades have reached the end of their life.

Specifications

Documentation
