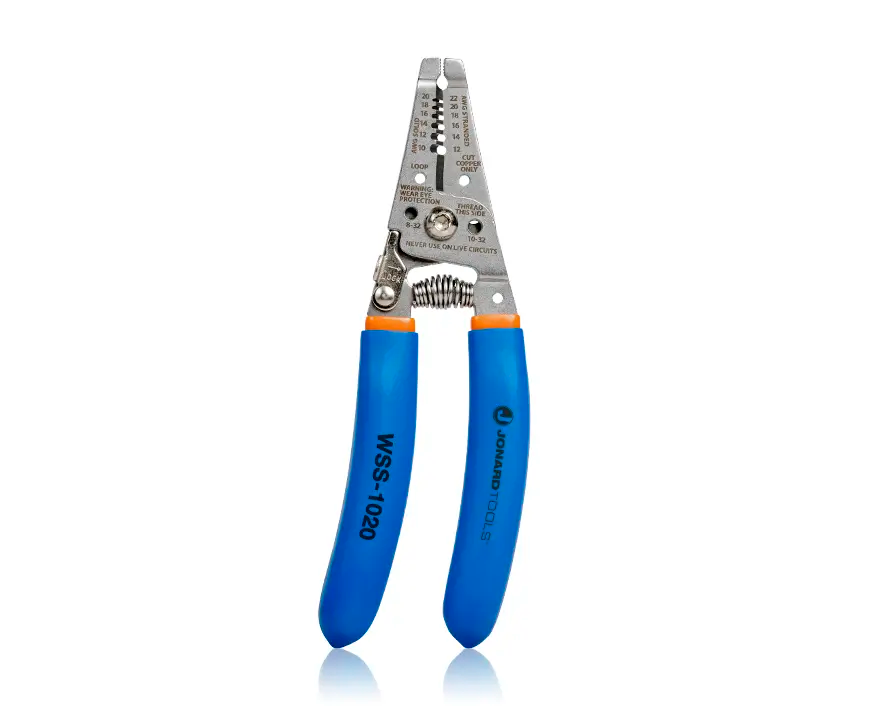

Stainless Steel Curved Wire Stripper, 10-20 AWG (WSS-1020)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

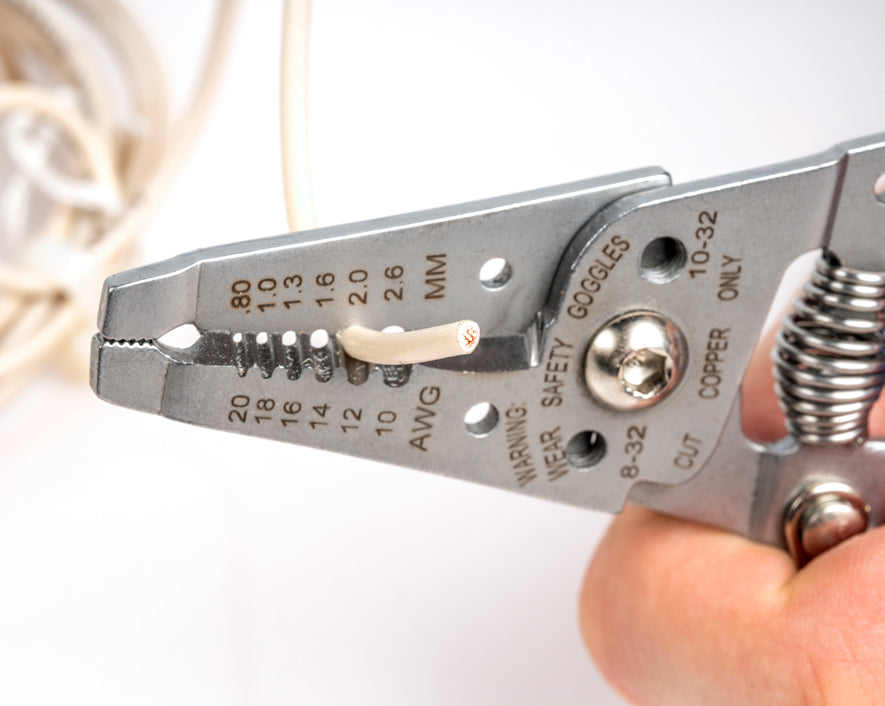

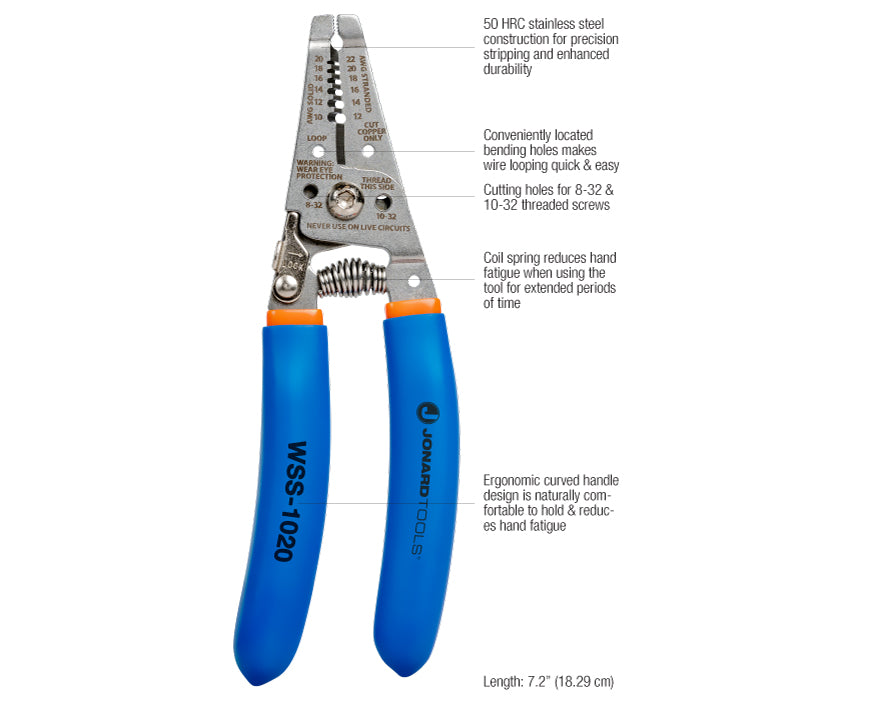

A wire stripper lives in a pouch that gets rained on, and most strippers answer that with a coating that wears off the first year. The Jonard Tools WSS-1020 answers it with the metal: the whole tool is 50 HRC stainless steel, hard enough to hold a precision stripping edge and stainless enough to shrug off the weather. It cuts and strips the wire sizes used most, solid conductors from 10 to 20 AWG (2.60 to 0.81 mm) and stranded from 12 to 22 AWG (2.05 to 0.64 mm), and the same holes strip 2 to 3 mm fiber optic jackets. Bending holes loop a stripped conductor for a screw terminal, and cutting holes shear 8-32 and 10-32 screws to length with a clean thread. The handles are curved to fit the hand and a coil spring opens them after every cut, which is what keeps a day of stripping from ending in a sore hand. It's 7.2 in and a third of a pound.

Features

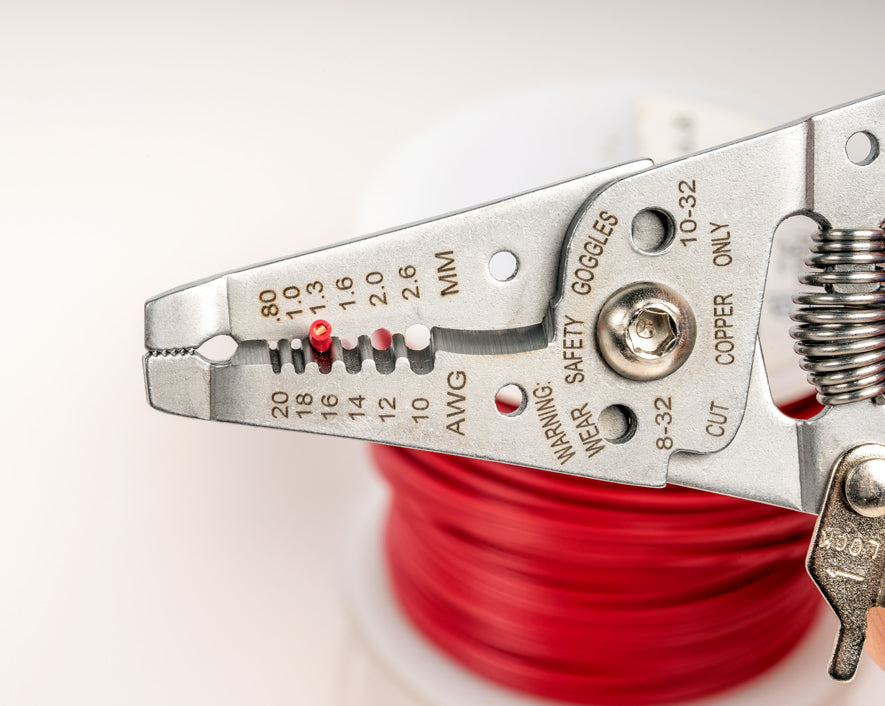

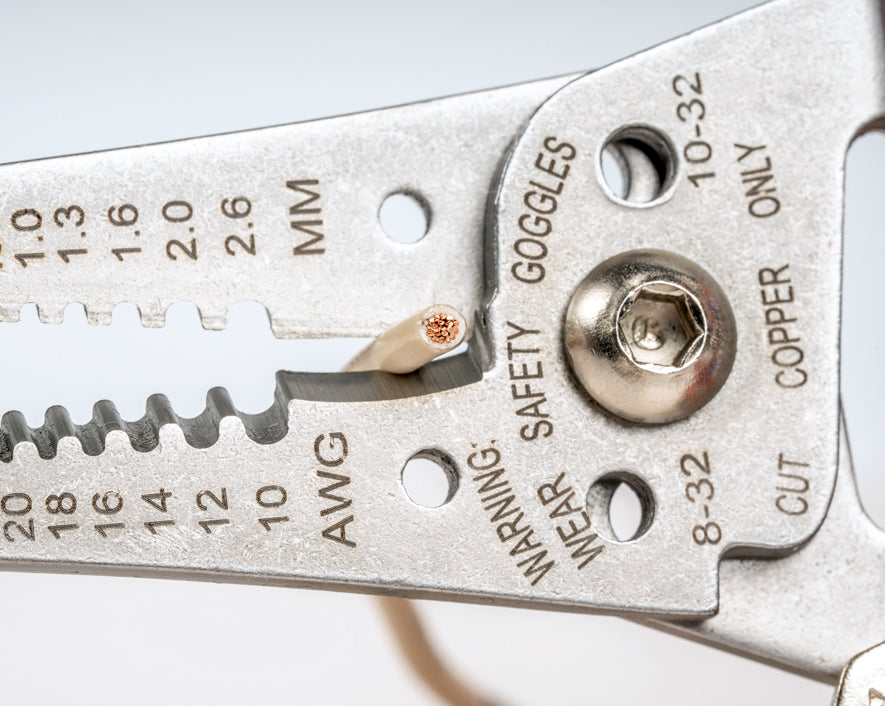

• 10 to 20 AWG solid, 12 to 22 AWG stranded. Cuts and strips the most commonly used conductors, 2.60 to 0.81 mm solid and 2.05 to 0.64 mm stranded.
• 2 to 3 mm fiber jackets. The same stripping holes handle small fiber optic cable jackets.
• 50 HRC stainless steel. Hardened for precision stripping, stainless for durability.

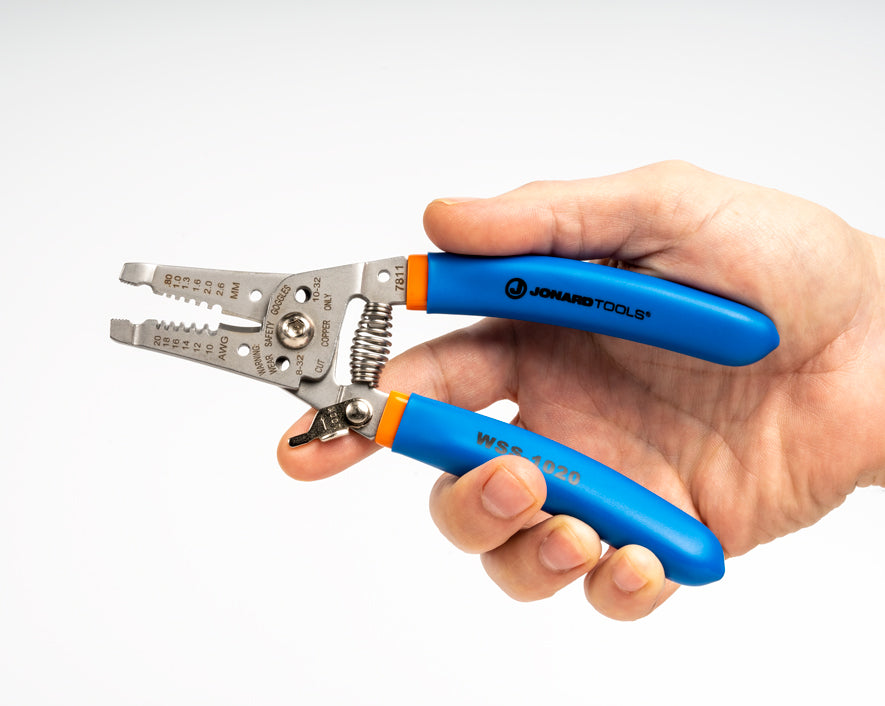

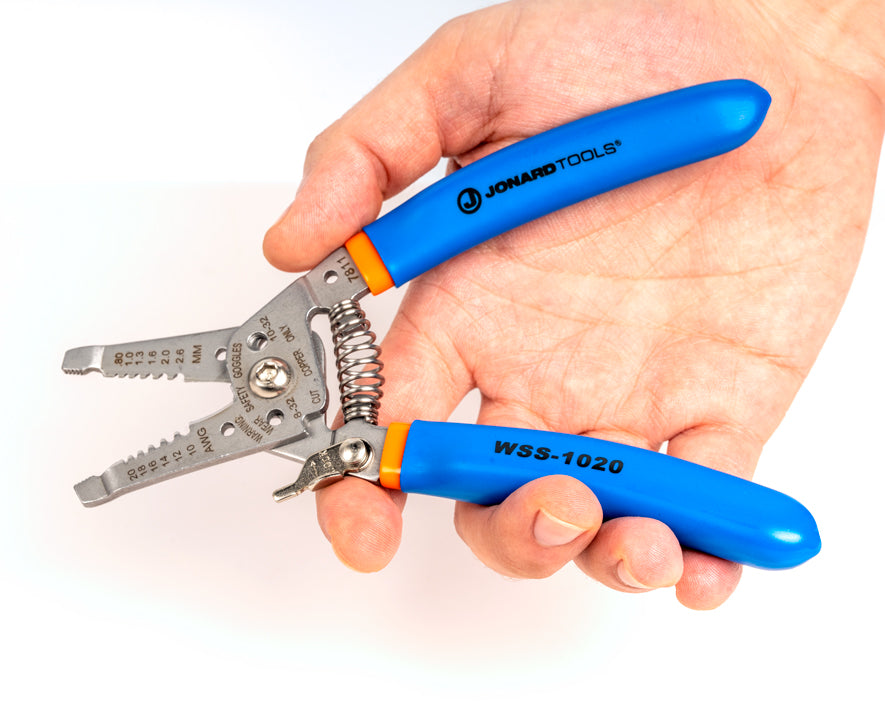

• Curved ergonomic handles. Naturally comfortable to hold, with less hand fatigue over a long day.
• Coil spring. Opens the tool after each cut for extended use.
• Bending holes. Loop a stripped conductor for a screw terminal quickly.
• Screw cutting holes. Shear 8-32 and 10-32 threaded screws to length.

Where It Fits

It suits electricians stripping 12 and 14 AWG at the box and 18 to 22 AWG at the control panel with one tool, low-voltage and security installers who meet 18 AWG stranded and 22 AWG solid on the same keypad, fiber technicians who want a stripper that also takes the jacket off a 2 or 3 mm cordage, outdoor and marine work where a plated stripper rusts and a stainless one doesn't, anyone who shears device screws to length and wants the threads to survive, and a pouch that needs a stripper, a cutter, a looper, and a screw shear in a single 7 in tool. For a wider range in a plier-style tool, the WSC-1016 covers 10 to 16 AWG with a crimper; for fine wire down to 30 AWG, the WS-5 and the ST-series pocket strippers; for NM cable with the jacket on, the WSC-1412.

Good to Know

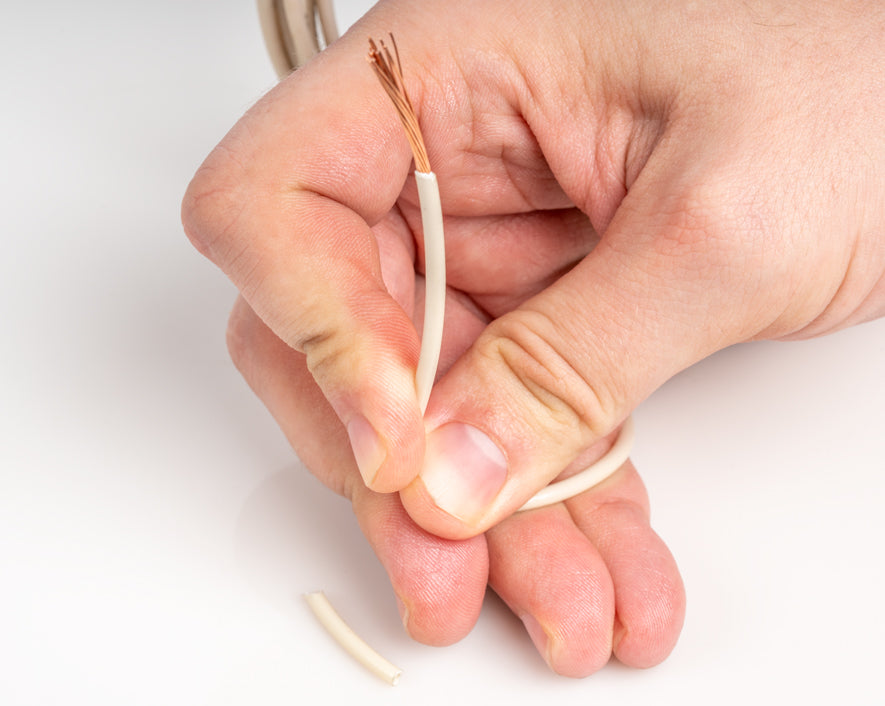

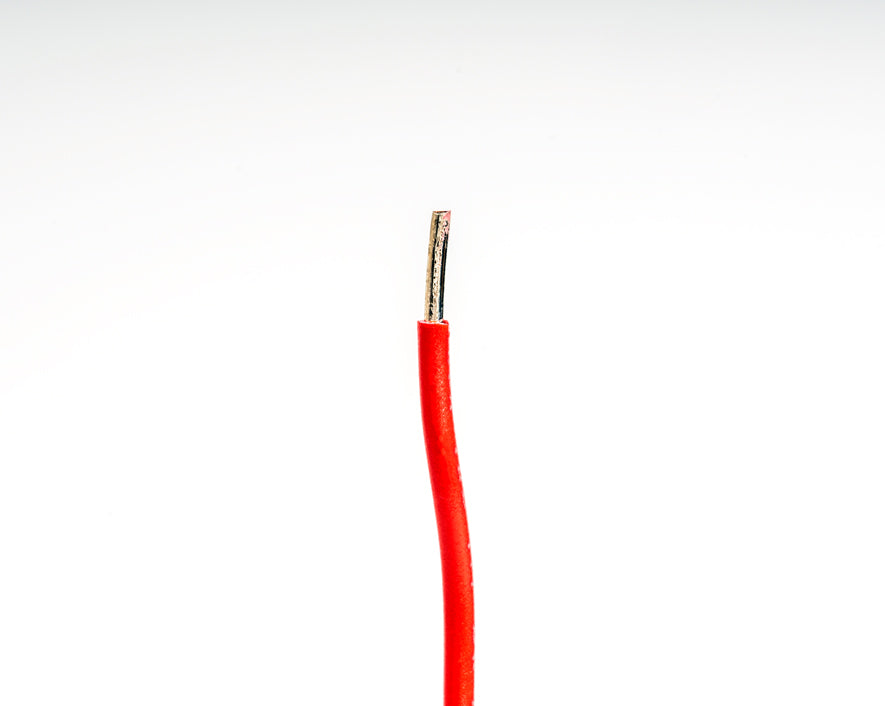

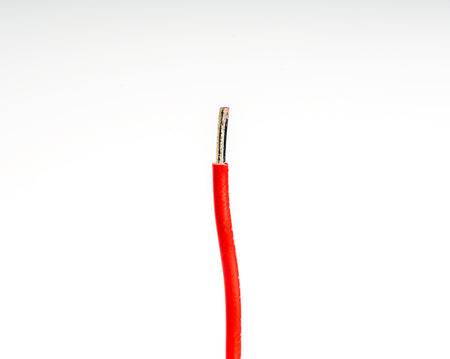

Solid and stranded wire of the same gauge strip in different holes, since the stranded range is offset two sizes: a 14 AWG solid goes in the 14 solid hole, a 14 AWG stranded in the hole marked for it, and a stranded wire in a solid hole loses a strand or two at every strip. When in doubt, strip a scrap and look at it. Pull the slug off straight rather than levering sideways, which scrapes the conductor. On fiber cordage, the stripping hole takes the 2 to 3 mm jacket and nothing under it; the aramid, the buffer, and the coating are jobs for the Kevlar cutters and a fiber stripper such as the JIC-375. Loop solid conductor in the bending hole and set the hook on the terminal so it closes clockwise, the direction the screw tightens. To shear a screw, thread it into the matching hole from the correct side, cut, and back it out, which cleans the thread as it comes; a screw cut with the wire cutter instead leaves a burr that won't start in the device. The cutter is for copper conductors in the tool's range, not for steel, cable with the jacket on, or screws outside the 8-32 and 10-32 holes. Stainless resists rust but not neglect; wipe it dry after a wet day and oil the pivot now and then. Work on dead circuits only; the handles are for comfort and aren't rated as insulation.
