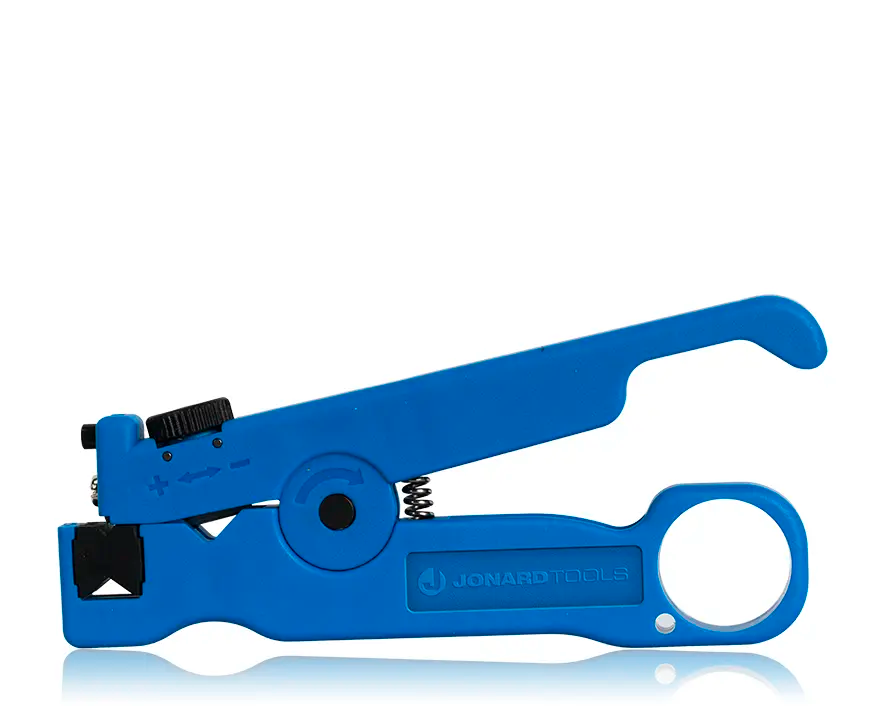

Cable Slit & Ring Tool (CSR-1575)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

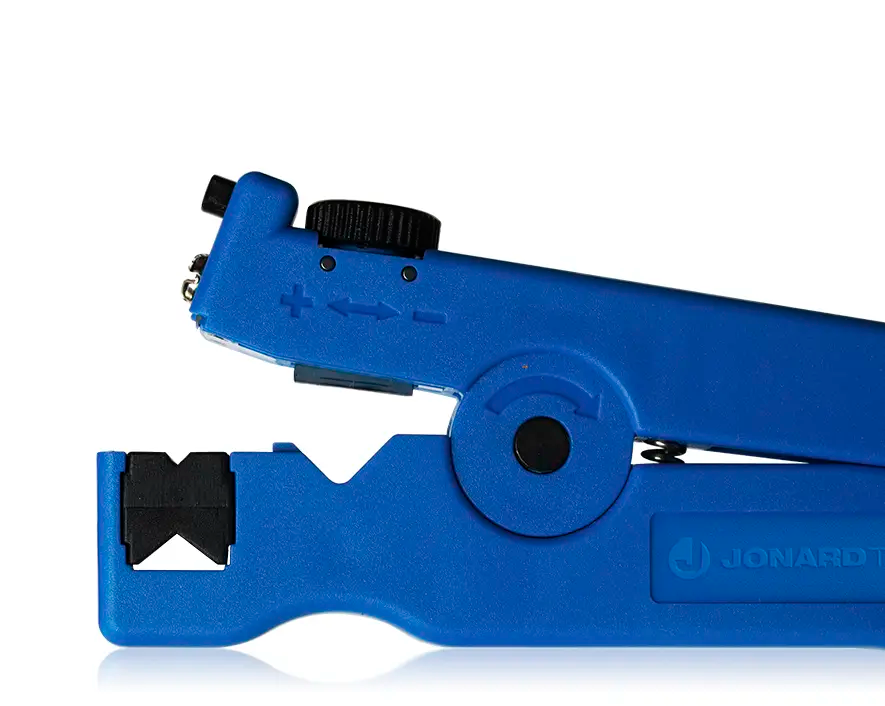

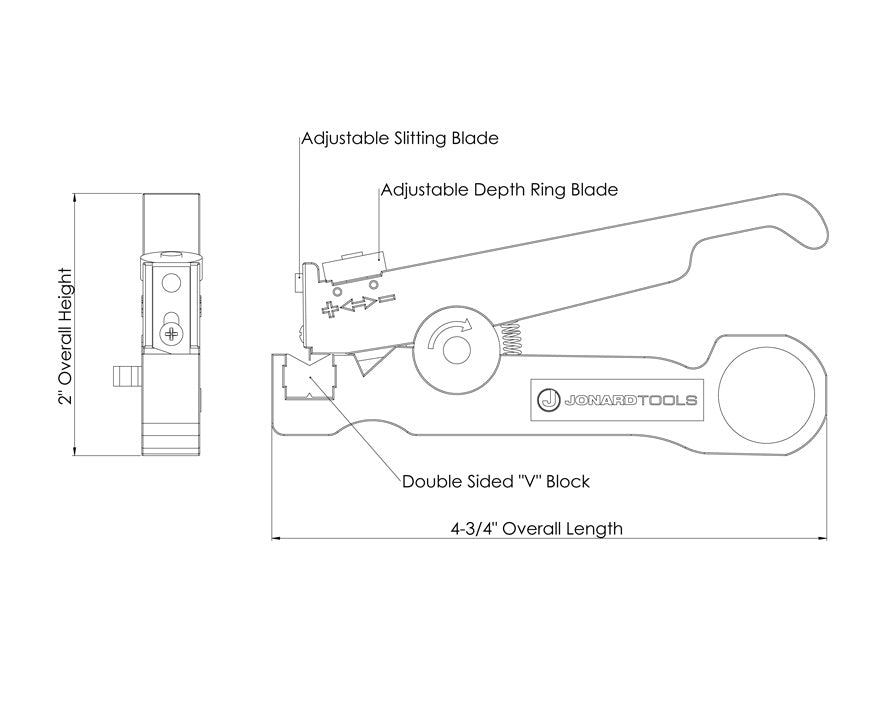

Most of the cable a fiber technician opens in a day sits between 1 mm and 8 mm, and the Jonard Tools CSR-1575 is the one pocket tool that covers that whole span. It slits lengthwise and rings around fiber optic cable jackets and buffer tubes from 1.2 mm to 7.5 mm in diameter: the reversible V block holds small cable from 1.2 mm to 3 mm on one side, and the adjustable slot takes larger cable from 3 mm to 7.5 mm on the other, which also covers network cable up to CAT 8. The blade depth adjusts to match the jacket, so it cuts the sheath and stops short of the fibers or the pairs underneath, and the spring-loaded body opens itself after each cut for fast, one-handed work. Set the depth once on a scrap, then ring, slit, and peel.

Features

• Slits and rings from 1.2 mm to 7.5 mm. Both cuts a mid-span or end entry needs, on fiber jackets and buffer tubes, from drop cable up to small distribution cable.

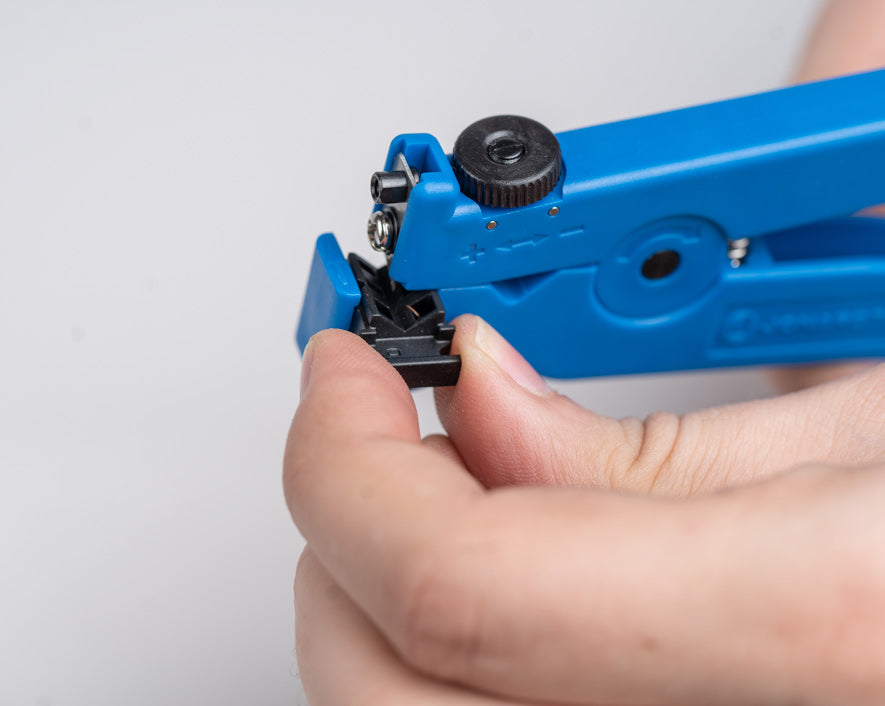

• Reversible V block, 1.2 mm to 3 mm. One side of the tool seats the smallest cables and buffer tubes square against the blade.
• Adjustable slot, 3 mm to 7.5 mm. The other side takes larger jacketed cable, and network cable up to CAT 8.

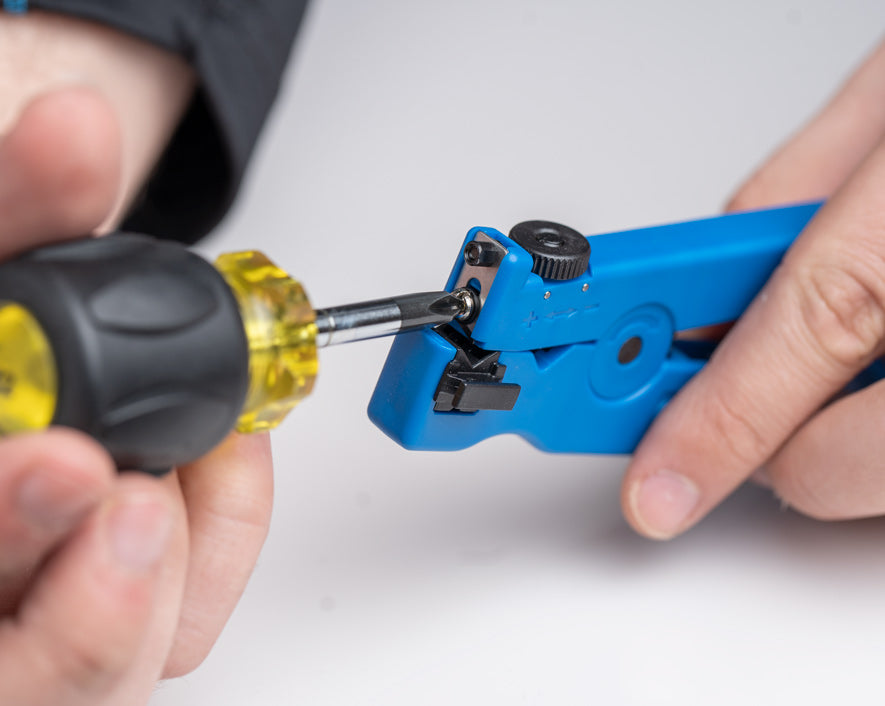

• Adjustable blade depth. Set the cut to the jacket thickness so the blade never reaches the fiber, the buffer, or the copper pairs.

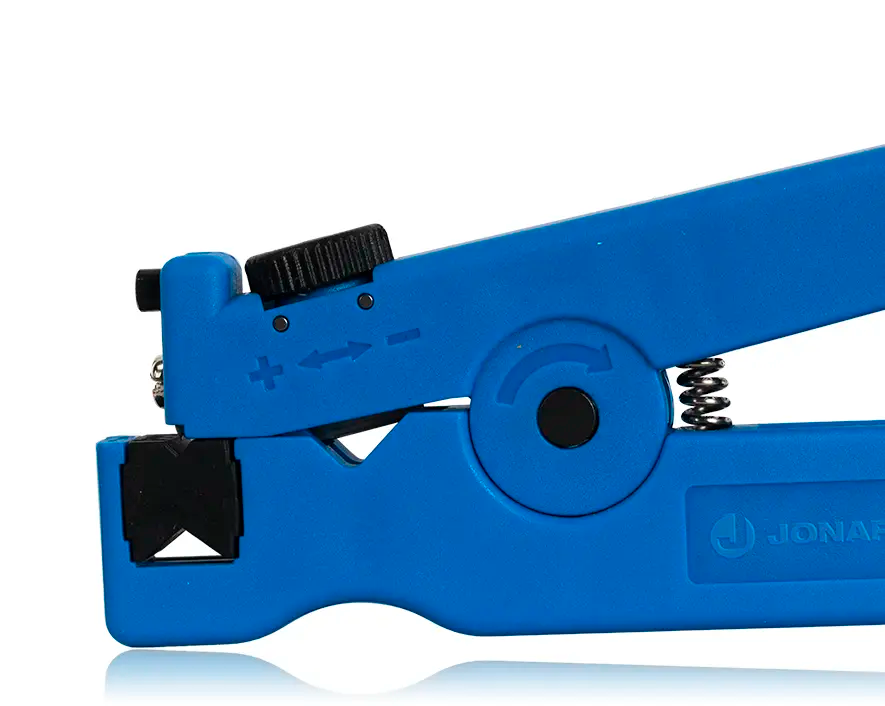

• Spring-loaded. Opens after each cut for smooth, repeatable one-handed operation.
• Copper too. Rated for CAT3 through CAT8 cable and 22 to 26 AWG conductors (23 AWG solid, 26 AWG stranded), so it also strips the jacket on data cable.

Where It Fits

It suits FTTH and outside plant technicians opening drop cable, buffer tubes, and small distribution cable at closures and terminals, splicing crews who want one tool for the ring and slit cuts on everything under 8 mm, data center and campus installers who meet both fiber and CAT6A in the same cabinet, anyone whose mid-span tools start at larger diameters and who needs the small end covered, and a pouch or a belt kit where a full set of slit and ring tools won't fit. It's the same tool packed in Jonard's fiber prep kits.

Good to Know

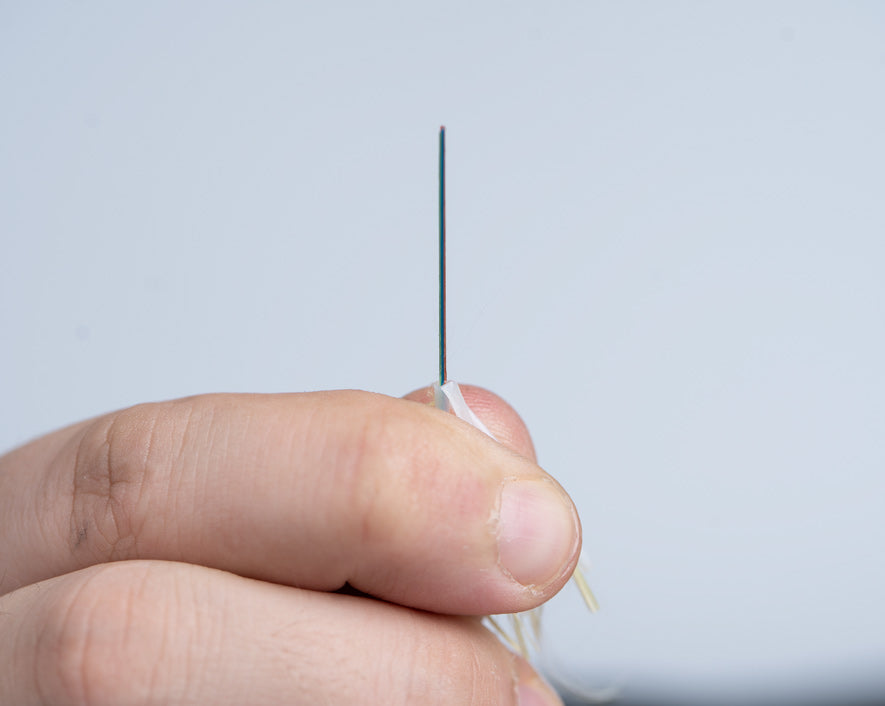

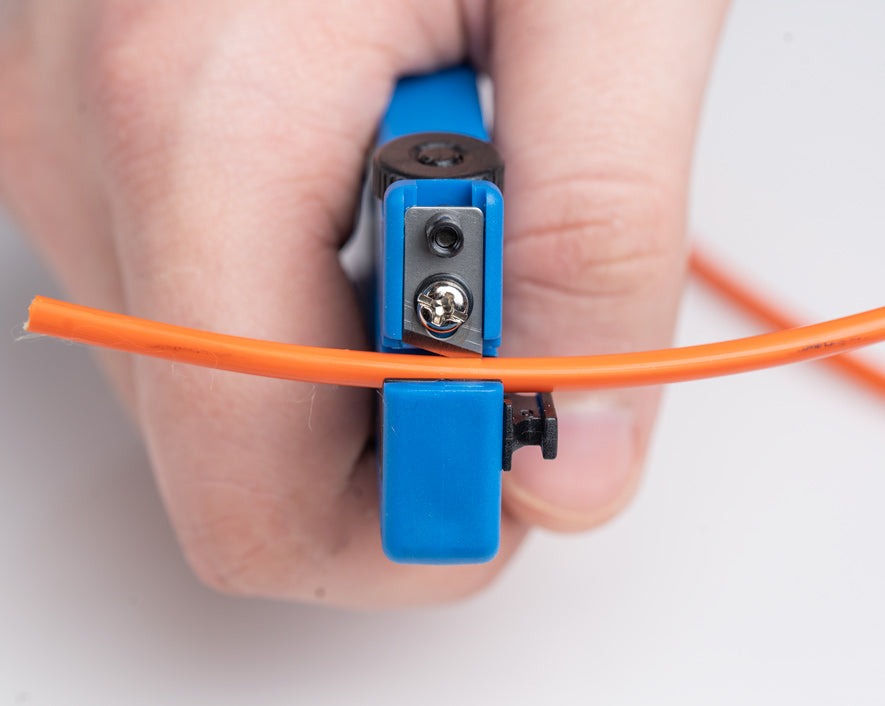

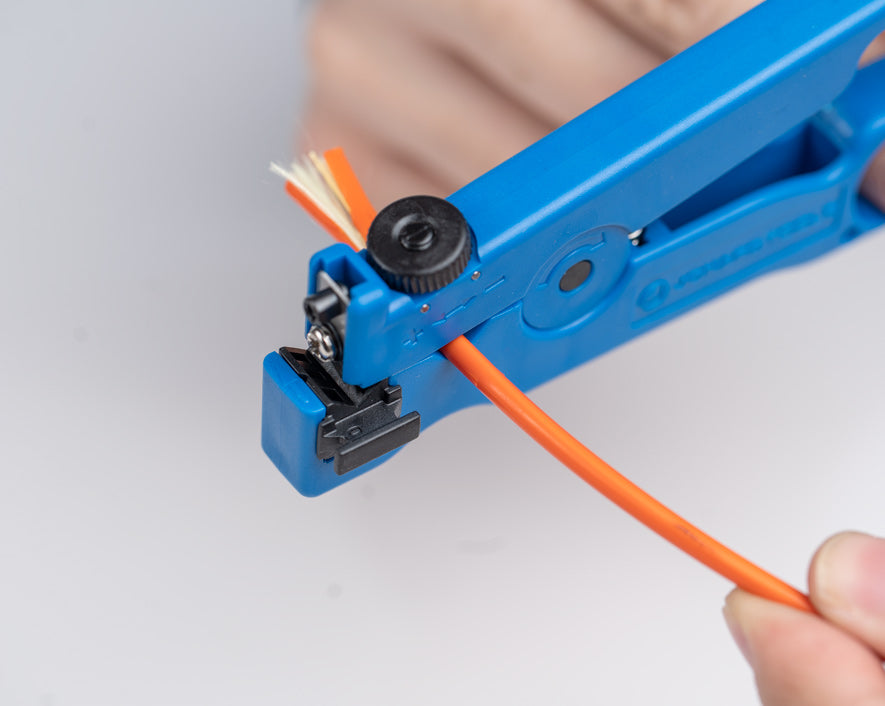

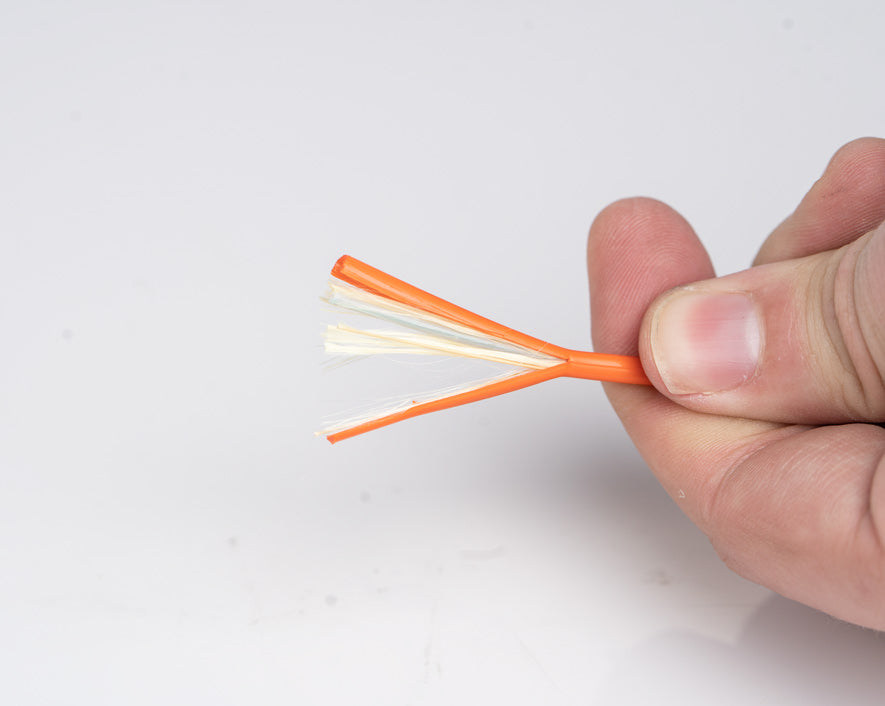

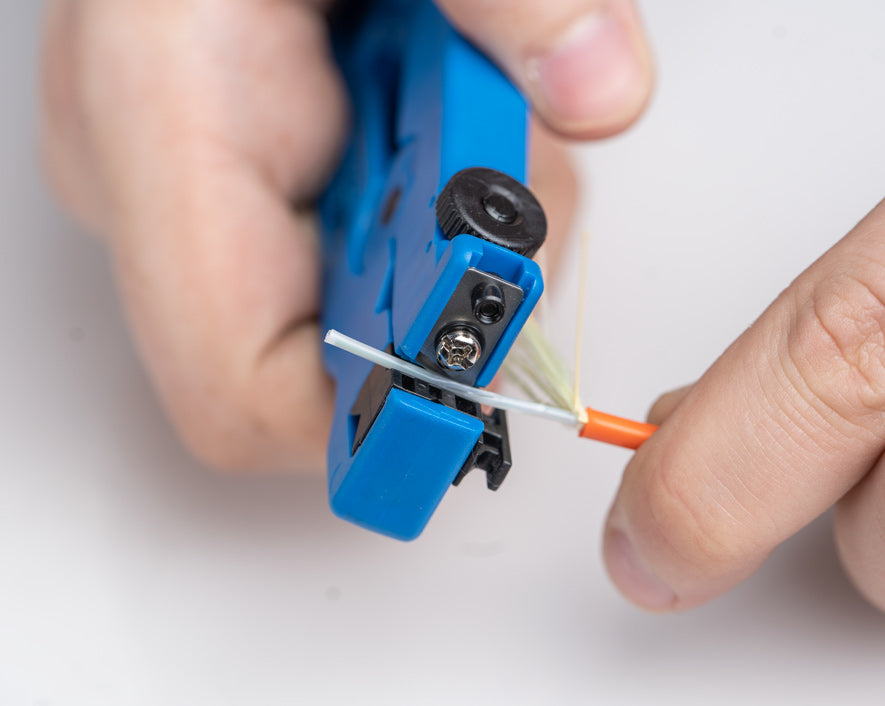

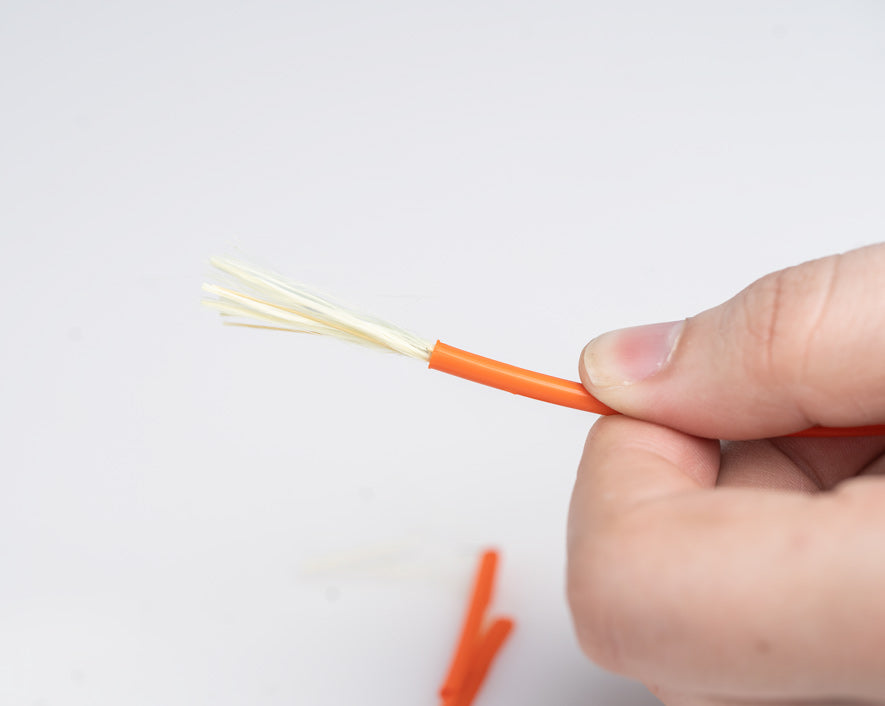

Pick the side by the cable's outside diameter: the V block for 1.2 mm to 3 mm, the slot for 3 mm to 7.5 mm, and when a cable sits right at 3 mm, use whichever holds it without play. Set the blade depth on a scrap of the same cable before the first live cut; back it off until it scores the jacket without going through, then add depth a little at a time, since the aim is to cut the sheath and nothing underneath. For a ring cut, close the tool on the cable and rotate it a full turn; for a slit, close it and draw it along the cable. On a mid-span entry, make the two ring cuts first, then the slit between them, and peel the jacket in sections. The cut leaves the jacket scored rather than severed on thin-walled tubes; flex the tube at the ring to snap it, which keeps the blade off the fibers. On copper cable, the depth setting is what keeps the blade off the pair insulation, so check a stripped end for nicks before you terminate. The blade is sharp and spring-loaded; close the tool when it isn't in your hand. Larger cable belongs to the mid-span slit and ring tools, which start at 1.2 mm and run up to 18.2 mm across the range.
