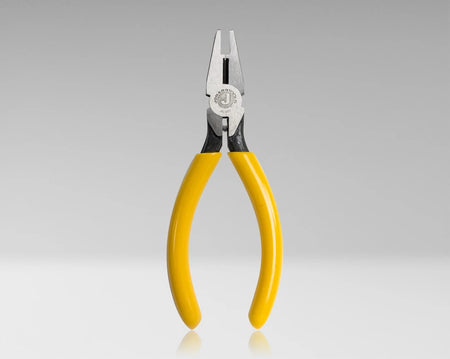

Connector-Crimper Pliers for UR/UY/UG & Tel-Splice Connectors (JIC-891)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

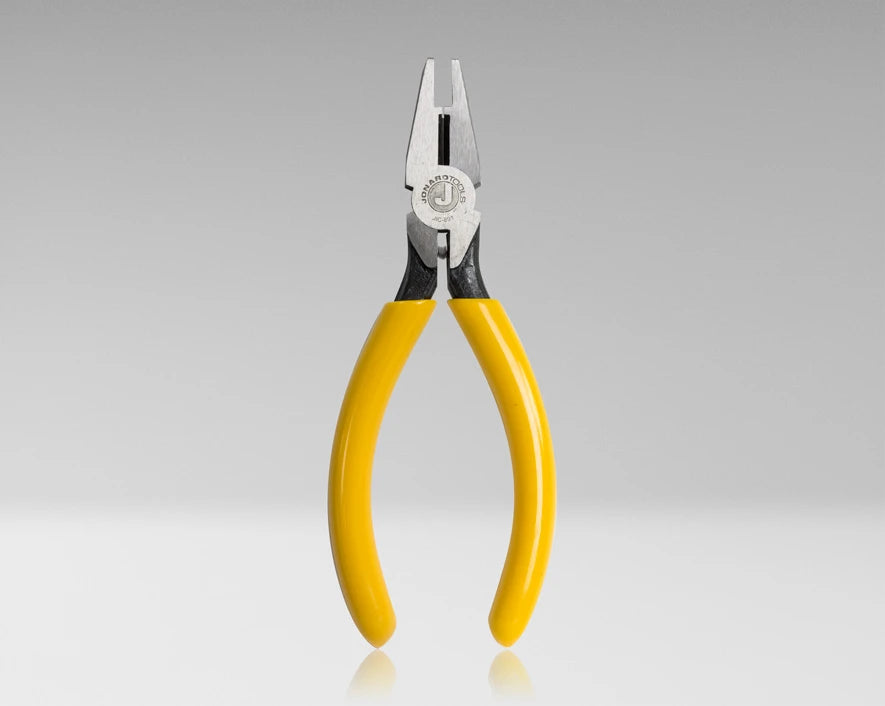

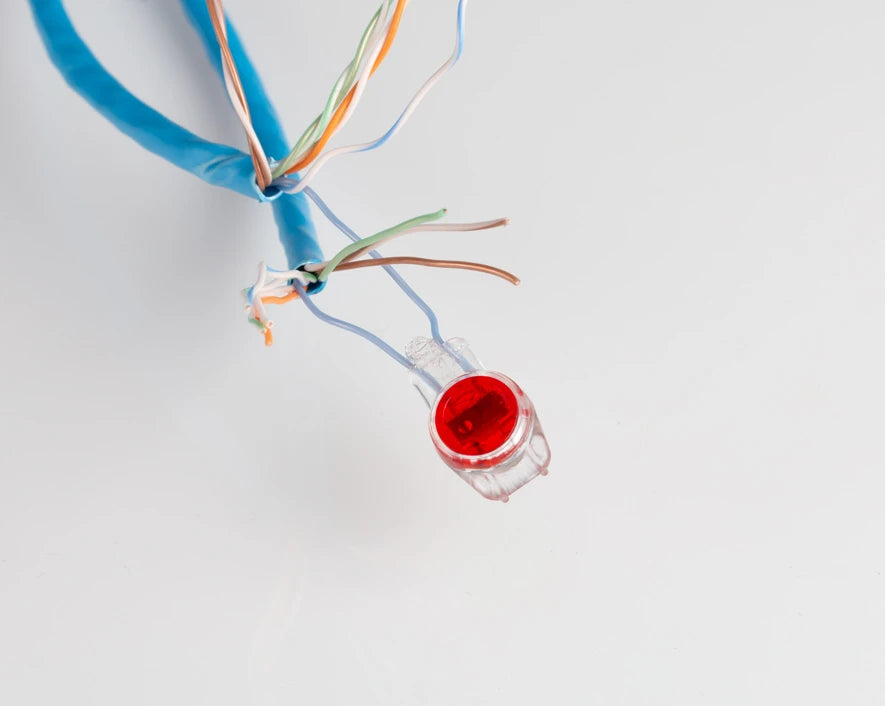

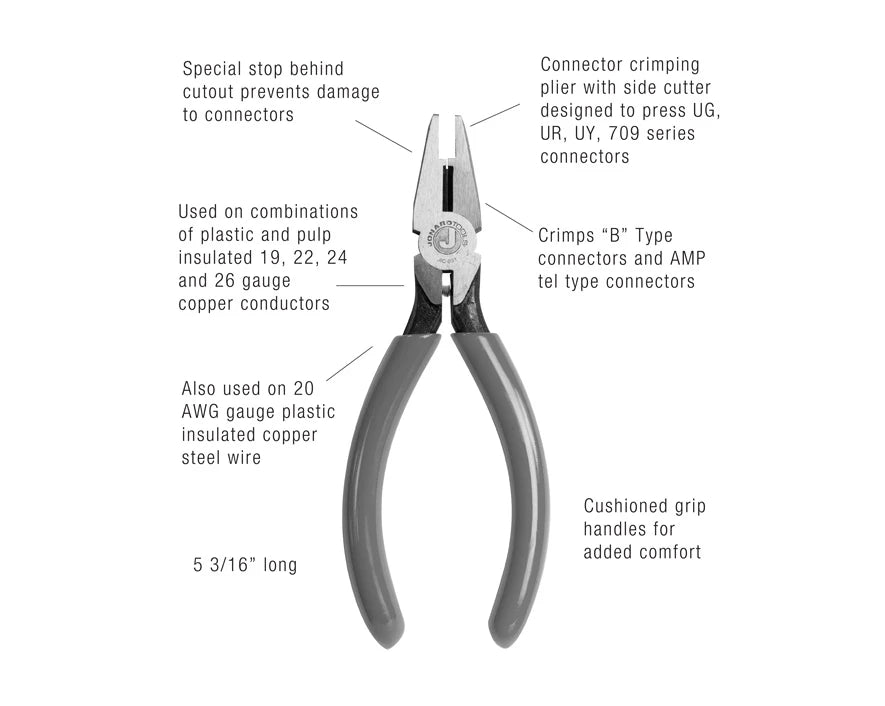

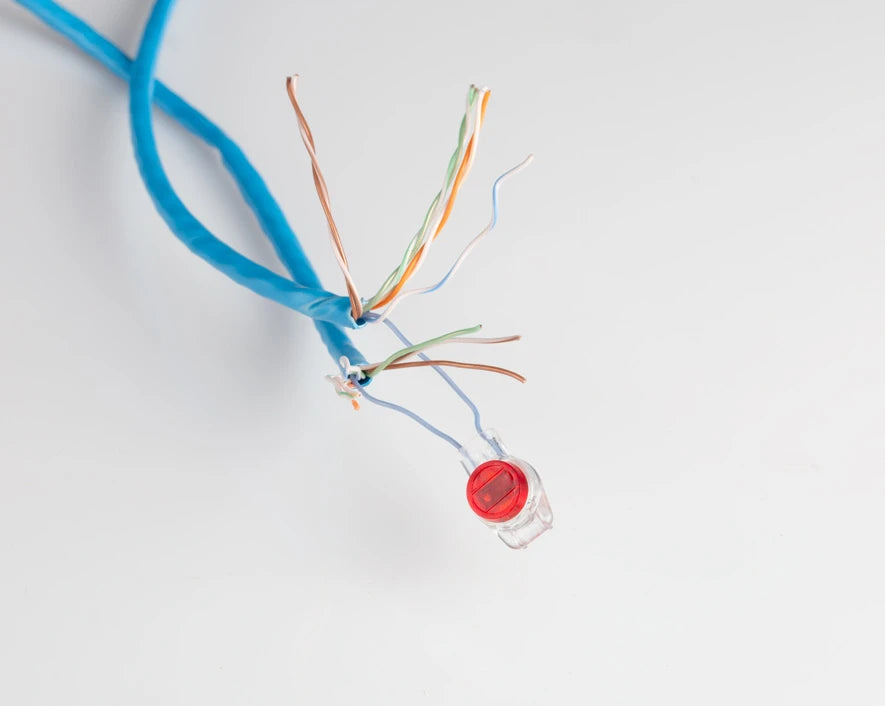

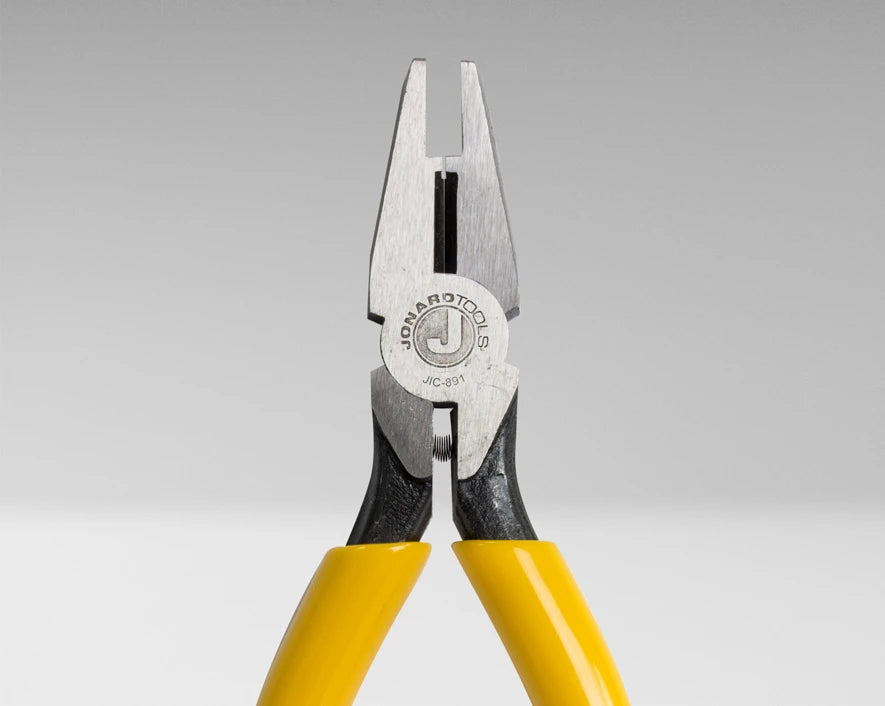

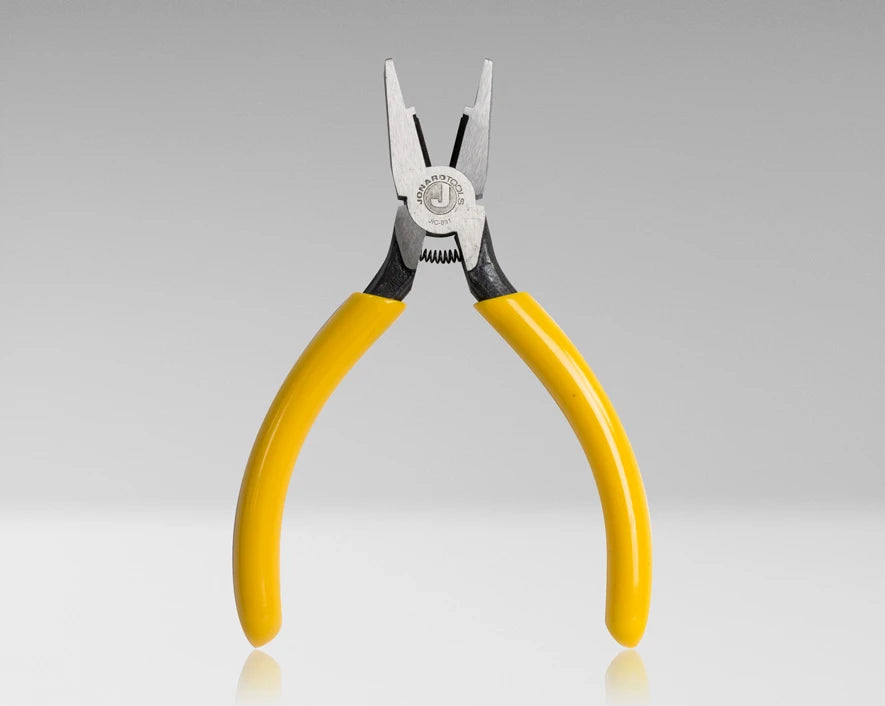

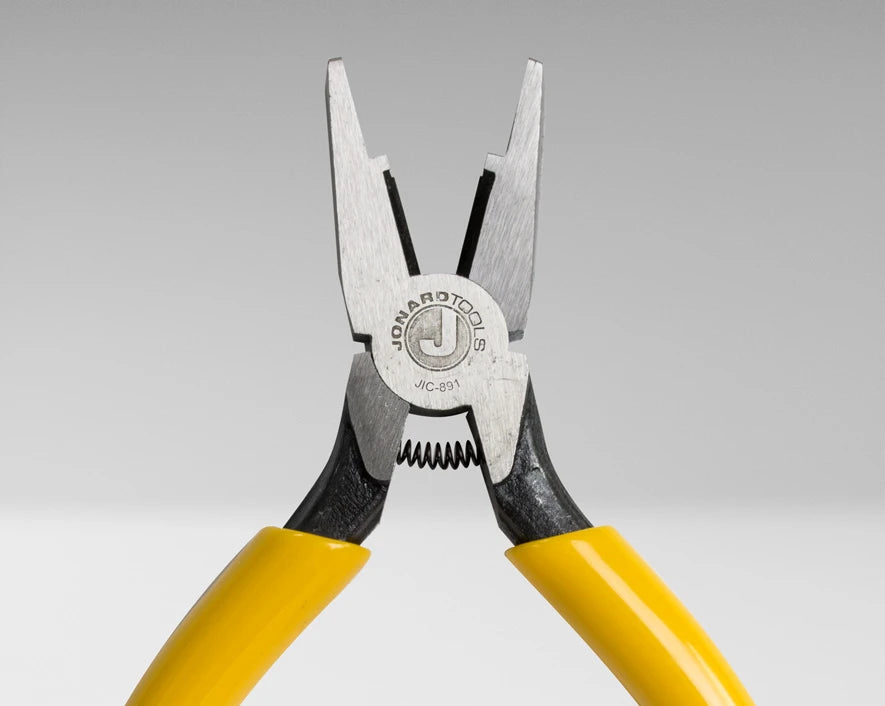

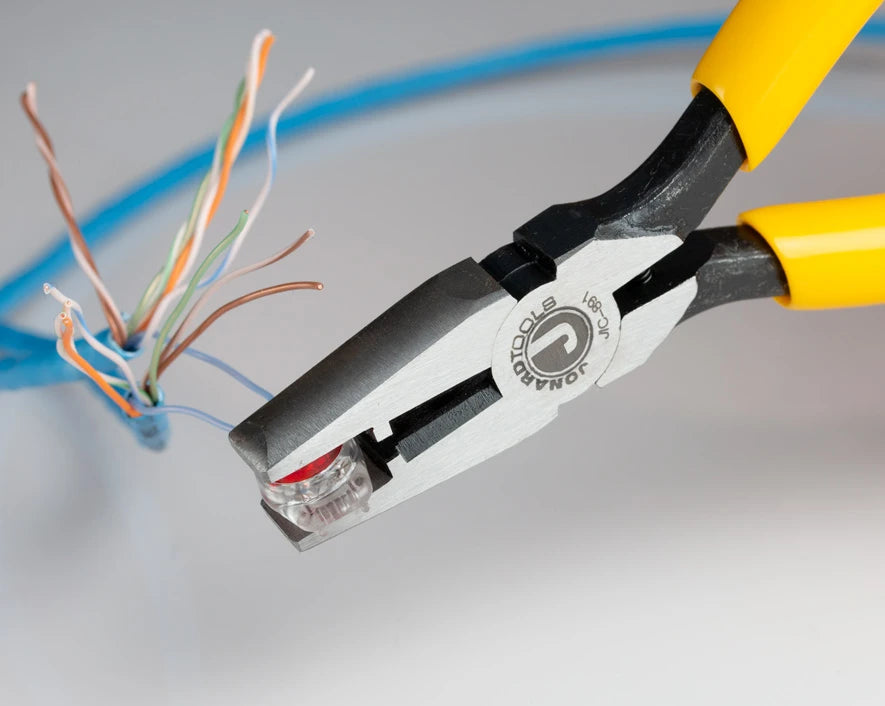

A UR or UY splice connector is only as good as the crimp that closes it, and a crimp from a general-purpose plier is a guess. The Jonard Tools JIC-891 is the connector-crimper plier made for the job: a 5-1/2 in plier whose jaw presses UR, UY, and UG connectors, 709 series connectors, B type connectors, and AMP Tel-Splice connectors to the right depth, on combinations of plastic and pulp insulated 19, 22, 24, and 26 AWG copper conductors and 20 gauge plastic insulated copper-steel wire. The pliers are heat-treated carbon steel with induction-hardened cutting edges on the 1/2 in cutter, and the ergonomic handle has a double-dipped plastic grip for comfort and the torque a full crimp takes. At under a third of a pound it's the splice tool that lives in the pouch. Lifetime warranty.

Features

• Crimps the common splice connectors. UR, UY, and UG connectors, 709 series connectors, B type connectors, and AMP Tel-Splice connectors.
• 19 to 26 AWG copper, 20 gauge copper-steel. Works on combinations of plastic and pulp insulated 19, 22, 24, and 26 AWG copper conductors and 20 gauge plastic insulated copper-steel wire.
• Heat-treated carbon steel. Induction-hardened cutting edges for maximum strength and durability.
• Ergonomic double-dipped grip. Greater comfort and torque.
• Lifetime warranty.

Where It Fits

It suits telephone installers and techs splicing copper pairs at the pedestal, the terminal, and the NID, outside plant crews repairing drops and cross-connects with UR and UY connectors on pulp and plastic insulated cable, inside wiring techs extending a line to a new jack with B connectors, alarm and intercom installers splicing station wire, anyone who has closed a UY connector with lineman's pliers and had the pair fall out later, and a pouch that already has the punch-down tool and the butt set. For a plier that also strips 22 AWG, cuts, crushes, and reaches with a long nose, the JIC-22148 is the five-in-one version of the same crimper; the KN-200INS sheathing knife opens the cable the pairs come out of.

Good to Know

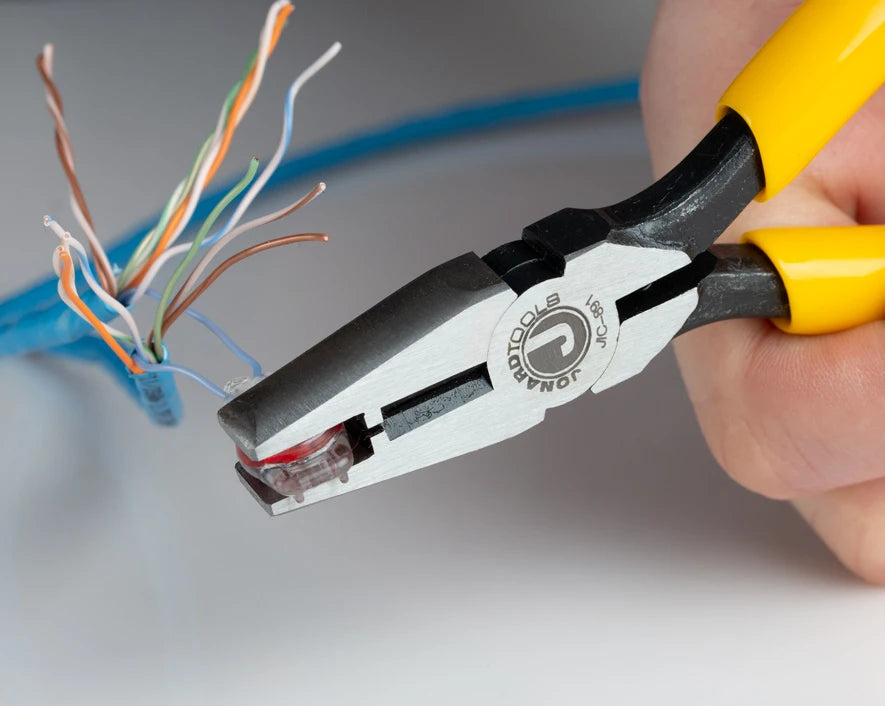

Match the connector to the crimp nest before you squeeze; UR, UY, UG, 709, B, and Tel-Splice connectors each seat in the jaw, and a connector crimped in the wrong spot is either loose or crushed. Slide the conductors fully into the connector, unstripped where the connector is the insulation-displacement type, then crimp once with firm, full pressure until the cap bottoms out; a second light crimp doesn't fix a first one that stopped short. Pulp insulated conductors are older and more fragile than plastic, so handle the pair gently and make the crimp in one motion. The 20 gauge copper-steel rating is for the plastic insulated drop wire type; a heavier conductor than 19 AWG needs a different connector and tool. Use the side cutter for the slack and not for the connector, and confirm the pair is dead and disconnected from any line voltage or ringing current before you work it; the dipped grips are for comfort and torque, not insulation, and this is not a rated insulated tool. Wipe the tool dry after a wet pedestal and oil the joint now and then, since carbon steel rusts if it's left damp.
