Compact Cable Slit & Ring Tool (0 - 0.125") (CSR-125)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

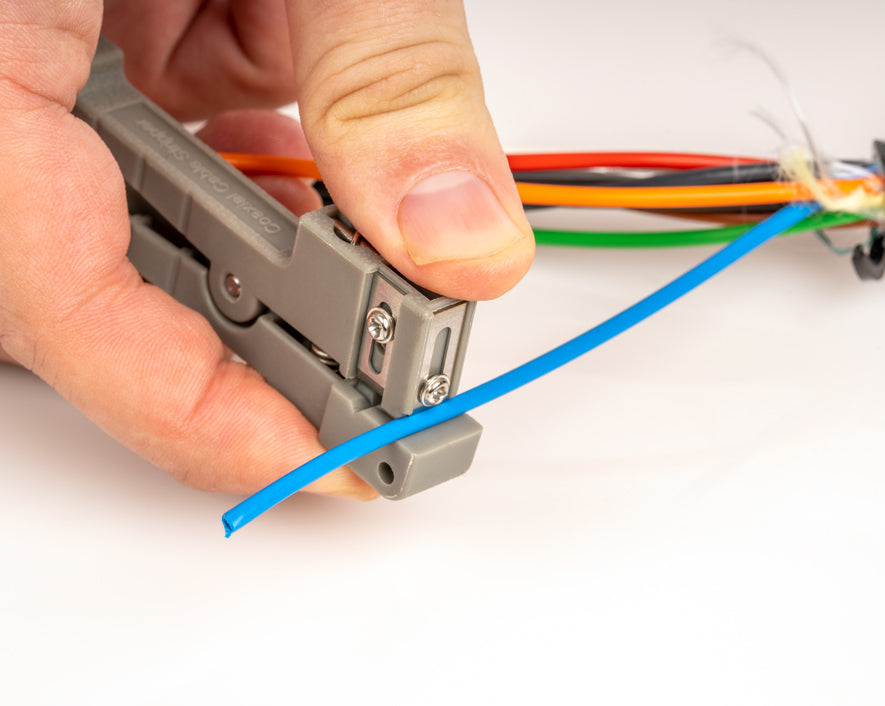

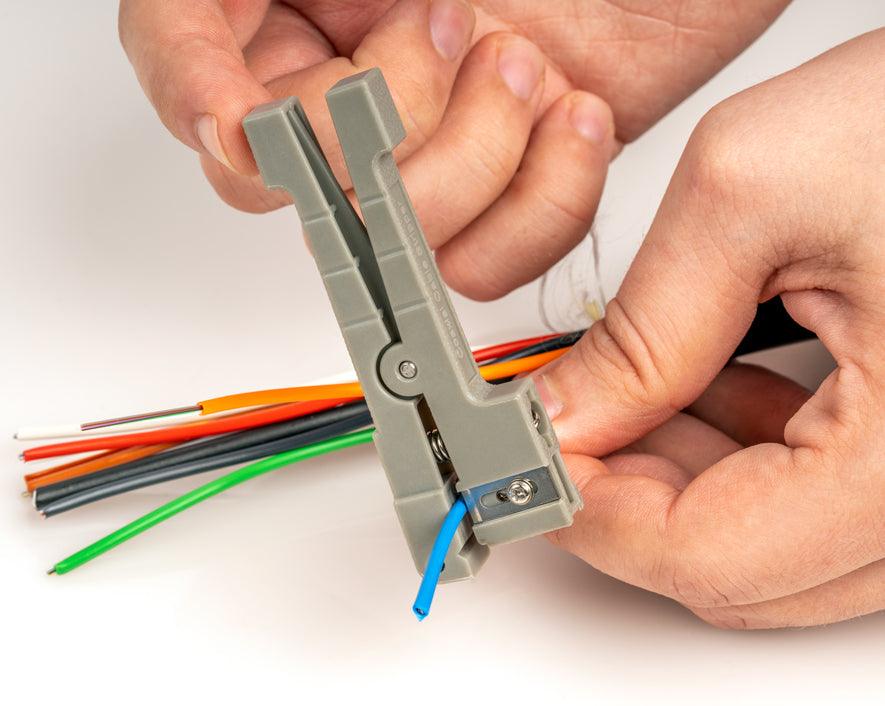

The smallest cable is the easiest to ruin with a knife, and the Jonard Tools CSR-125 is the slit and ring tool sized for it: fiber optic cable, buffer tubes, and jackets up to 0.125 in (3.3 mm) in diameter. Spring-loaded handles open the jaws, the cable drops in, and a release and a turn makes the ring cut or a pull along the cable makes the slit, with the blade depth adjustable up to 0.125 in (3.3 mm) to match the jacket. It isn't only a fiber tool: the same range covers RG-174 and RG-187 coax and electrical cable of similar size, and it ships with two cutting blades plus a rounded blade for slitting a jacket without scoring the conductors or fibers inside. It's small enough to live in a shirt pocket and be there every time a drop, a tube, or a thin coax needs opening.

Features

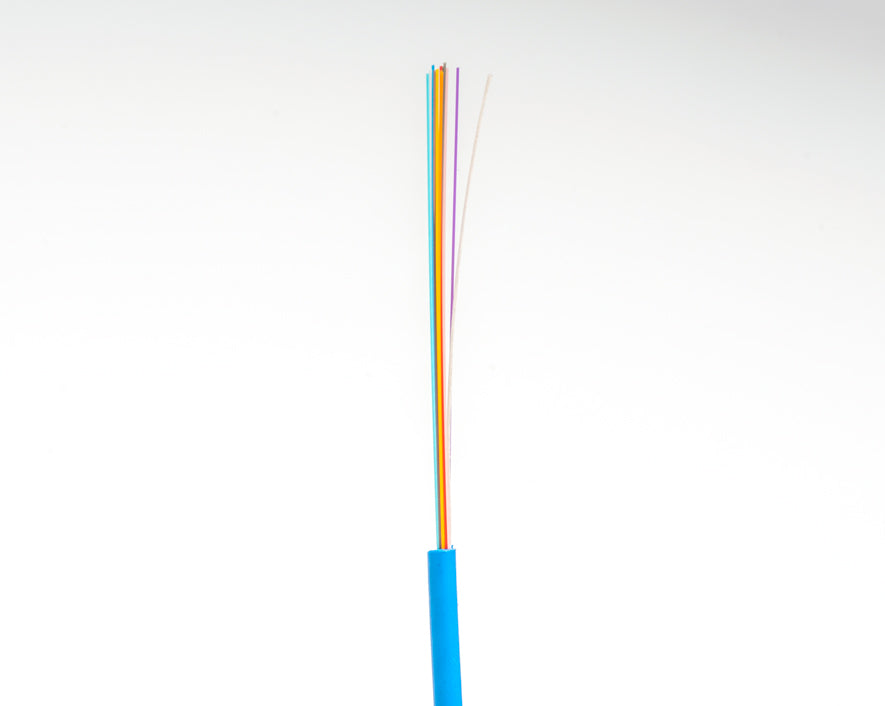

• Slits and rings cable up to 0.125 in (3.3 mm). Fiber optic cable, buffer tubes, and jackets at the small end of the range, where a knife does the most damage.
• Adjustable blade depth, up to 0.125 in (3.3 mm). Set the cut to the jacket thickness so the blade stops short of what's underneath.

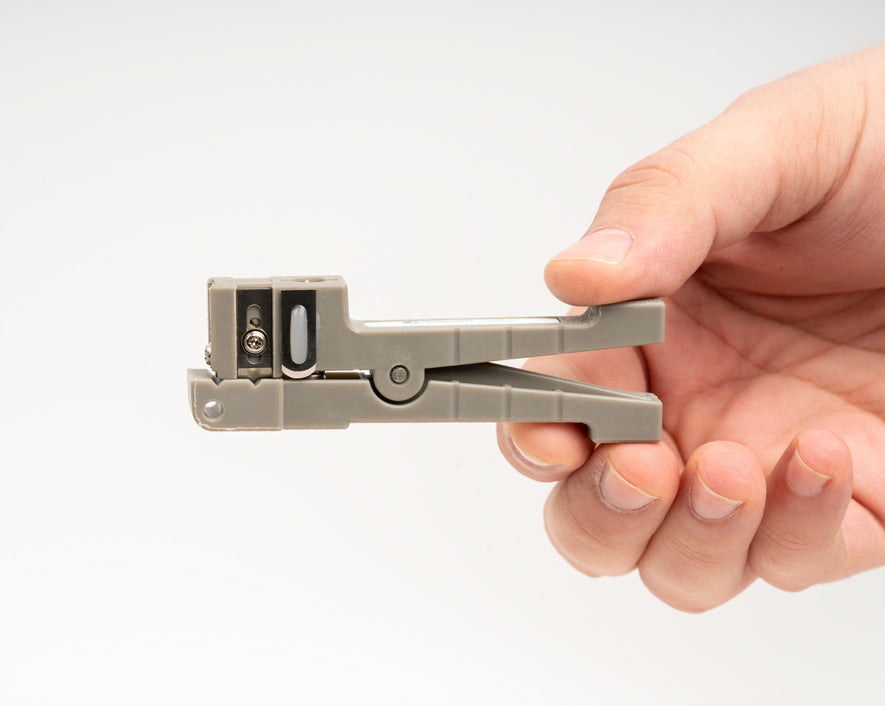

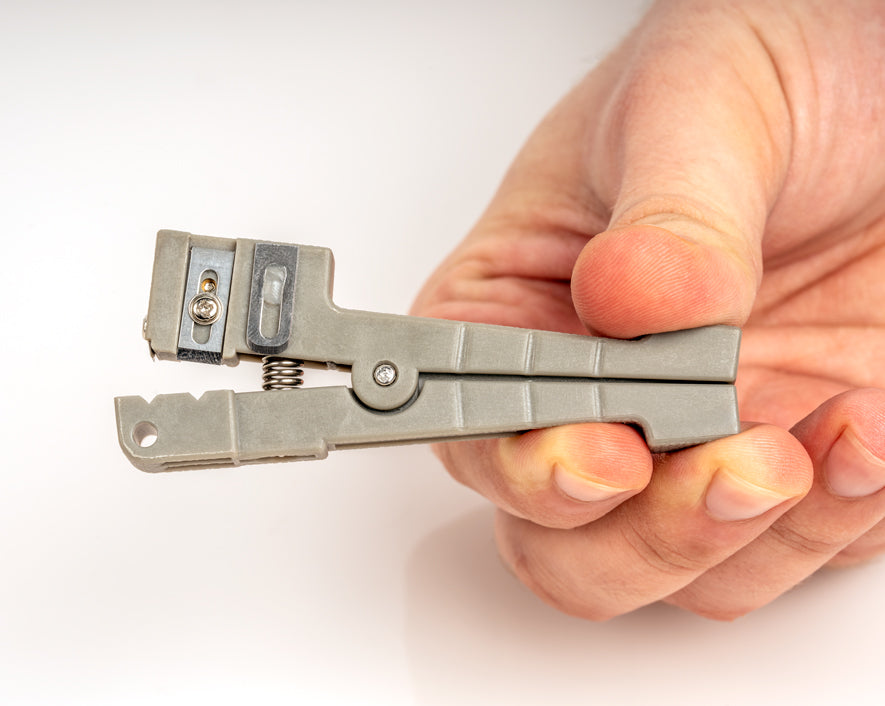

• Spring-loaded handles. Open with a squeeze, close on the cable when released, for easy one-handed operation and repeatable cuts.
• Coax and electrical cable too. Slits and rings RG-174 and RG-187, and fiber, coaxial, and electrical cable of similar size.
• Three blades included. Two cutting blades for ringing and slitting, and one rounded blade for slitting a jacket without damaging the inner conductors.

Where It Fits

It suits FTTH and fiber technicians opening drop cable, loose buffer tubes, and small jacketed fiber at terminals, closures, and splice trays, RF and test-bench work on RG-174 and RG-187 and other miniature coax, security and low-voltage installers stripping small jacketed cable for terminations, anyone who already has a slit and ring tool that starts at 3 mm or more and needs the bottom of the range covered, and a pocket or a pouch where the full-size tools won't go.

Good to Know

Set the blade depth on a scrap of the same cable before the first live cut: start shallow, add depth until the blade just scores through the jacket, and stop there, since on a 3 mm cable there's very little between the jacket and the fiber or the braid. For a ring cut, close the tool on the cable and rotate it a full turn; for a slit, close it and draw it along the cable. On a buffer tube, ring it and flex the tube at the score until it snaps rather than cutting all the way through, which keeps the blade off the fibers. Use the rounded blade for slitting when the cut is close to the conductors or the fibers, and the cutting blades for ringing and for thicker jackets. On coax, the depth has to clear the jacket but not the braid, and a nicked braid shows up as a bad return loss later, so check the first strip. The blade is sharp and spring-loaded; close the tool when it isn't in your hand, and keep the spare blades somewhere they won't find a fingertip. Cable above 3.3 mm belongs to the CSR-1575, which runs from 1.2 mm to 7.5 mm, or the MS-series mid-span tools.
