COAX Tool Kit for Long F Connectors (TK-82)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

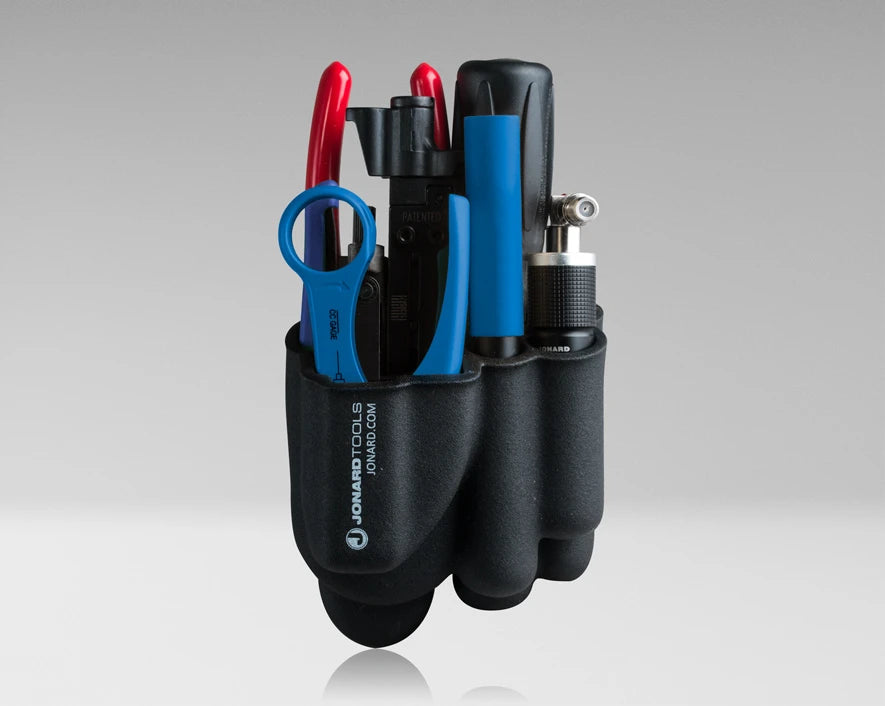

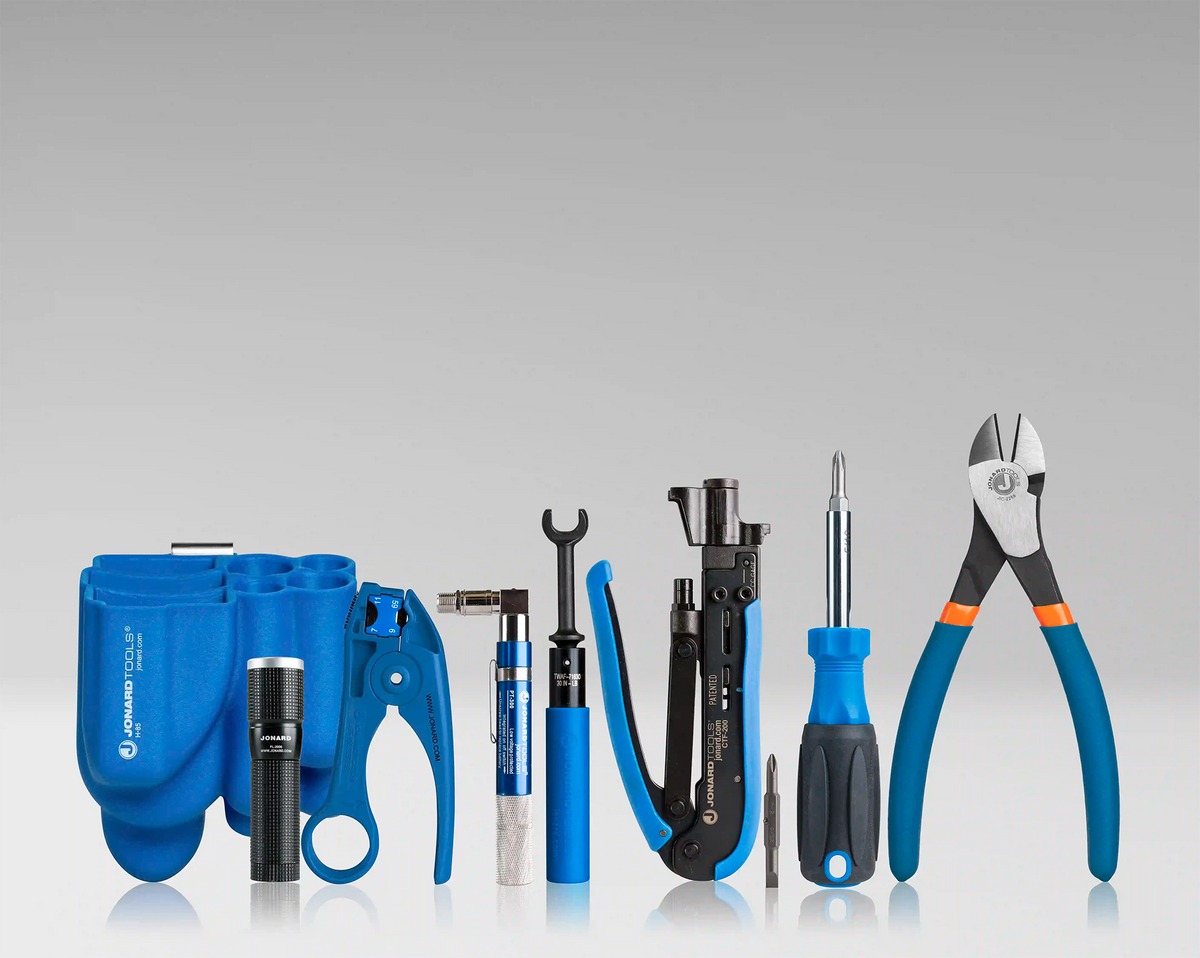

Long style F connectors are the outdoor ones: the extra length is weather seal, and operators that spec them for the drop and the ground block spec them everywhere. The Jonard Tools TK-82 COAX Tool Kit is the complete CATV service kit for a technician who works those connectors and no others, built around the CTF-200 fixed compression tool for long style F connectors, which produces the same termination every time with nothing to adjust. Around it is everything needed to cut, strip, compress, torque, and test a coax connection: the UST-125 stripper for RG59, RG6, RG7, and RG11, the TWAF-71630 full-head 7/16 in torque wrench preset to 30 in-lb, the PT-300 pocket continuity tester and toner with voltage detection, 8 in high leverage diagonal cutters, a 6-in-1 multi-bit screwdriver, and an LED zoom flashlight, each in its pocket in the molded H-85 pouch, at a little over four pounds. It's one of four matching coax kits that differ only in the compression tool: fixed long here, fixed short in the TK-83, 360° short-and-long in the TK-78, dual short-and-long with an RG11 head in the TK-87.

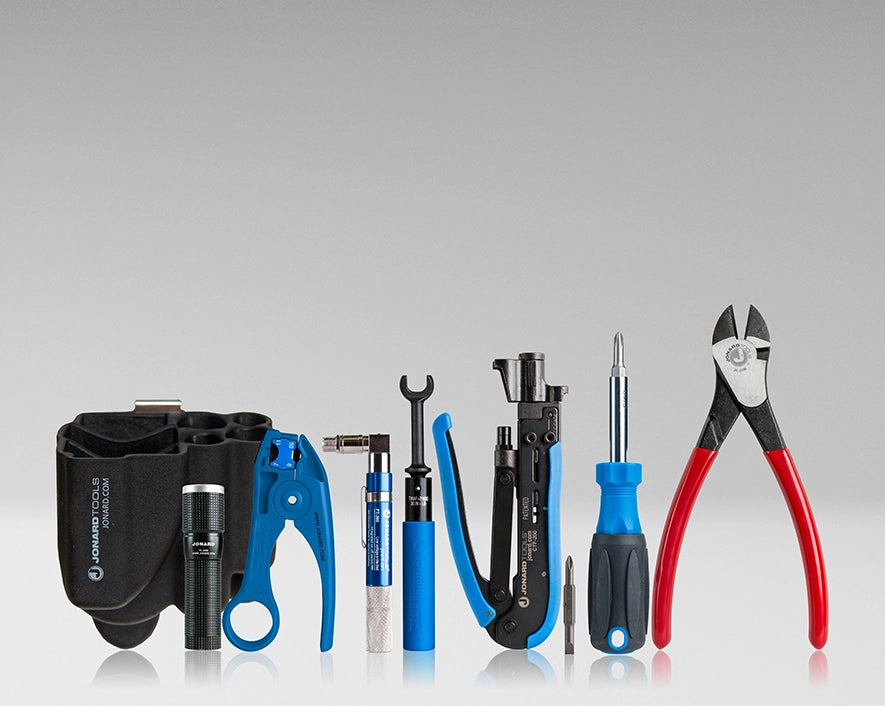

What's in the Kit

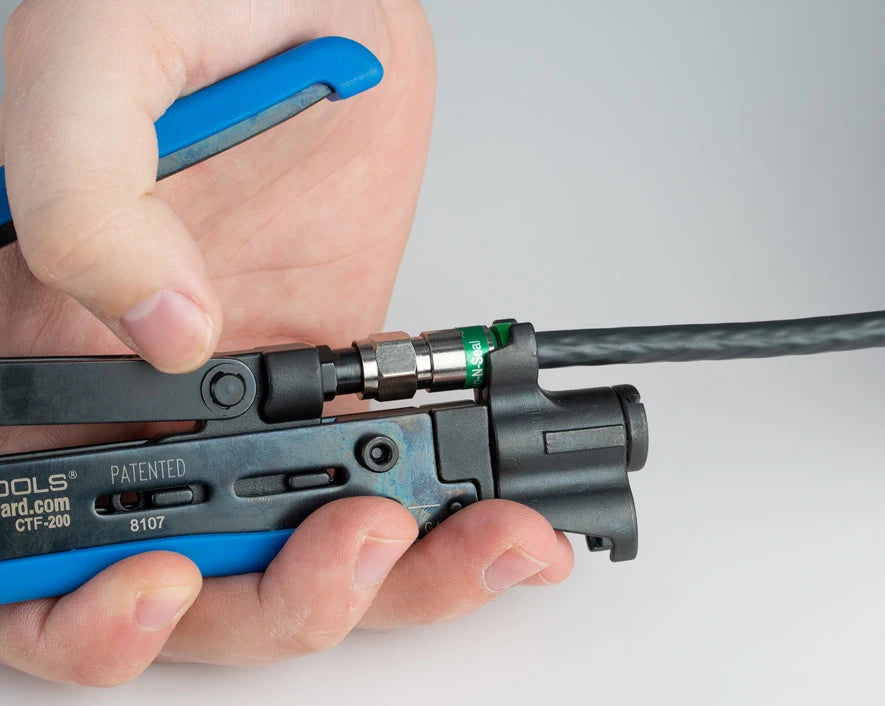

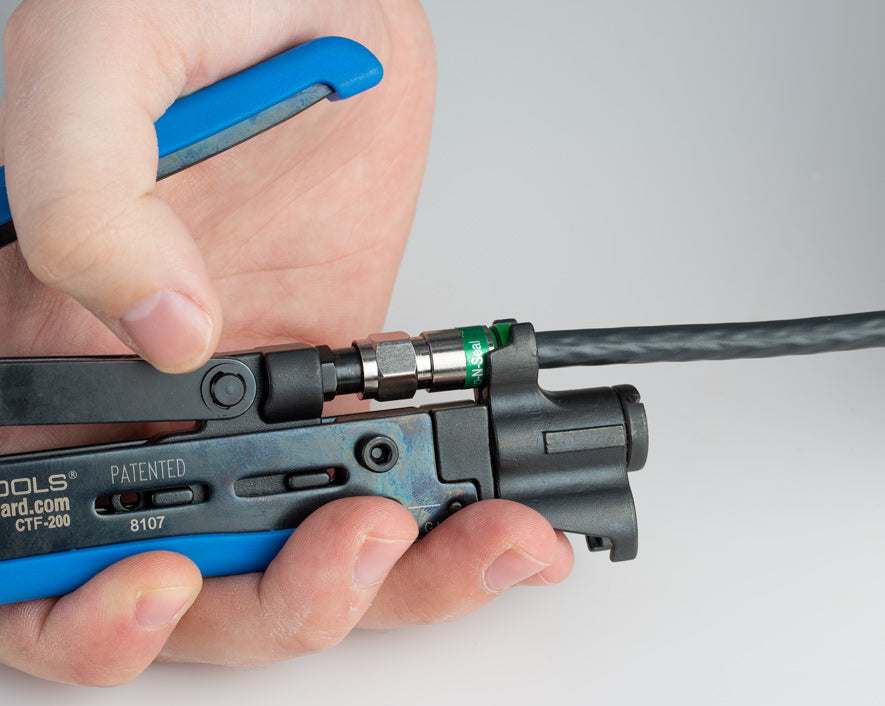

• CTF-200 Compression Tool, Fixed. Long style F connectors only, with a fixed design and nothing to adjust.
• UST-125 COAX Stripping Tool. Strips RG59, RG6, RG7, and RG11 for the connector.

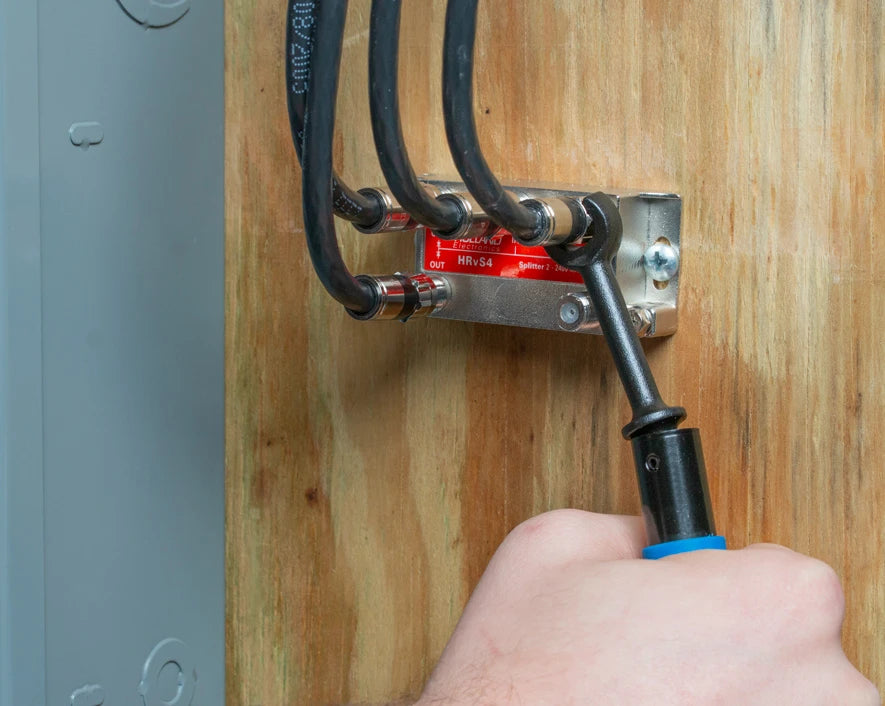

• TWAF-71630 F Connector Torque Wrench. Full head, 7/16 in, preset to 30 in-lb, so every connector is tight enough to seal and not tight enough to strip the port.

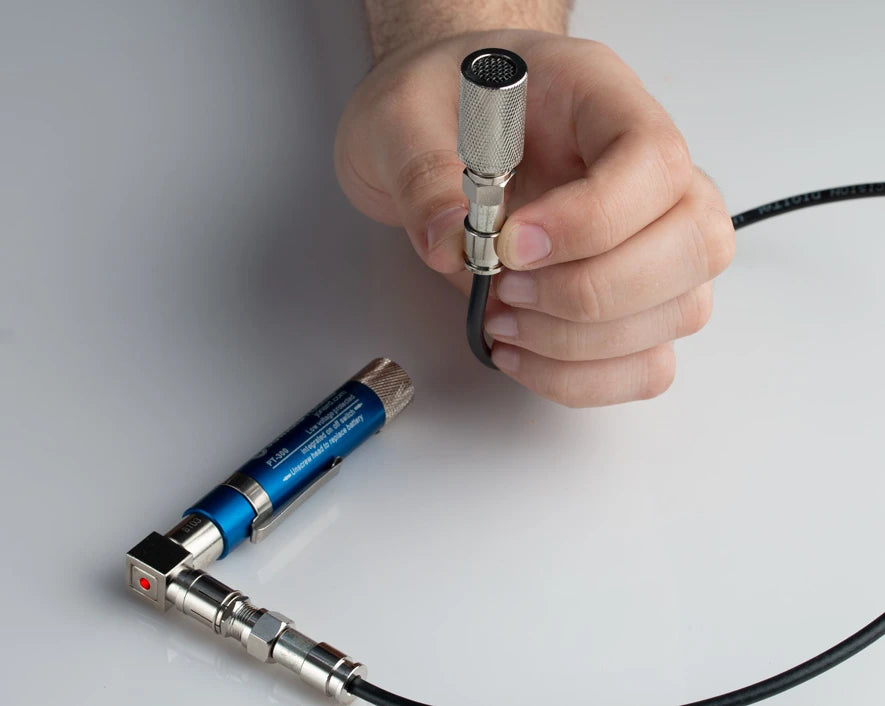

• PT-300 Pocket Continuity Tester and Toner. Continuity check, tone for tracing a cable, and voltage detection.

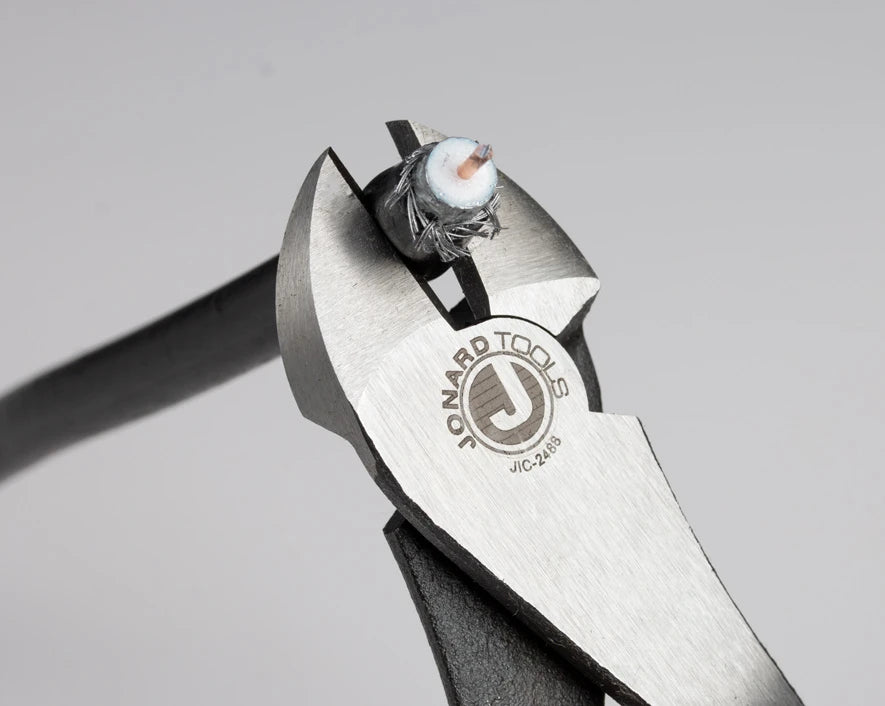

• JIC-2288 High Leverage Diagonal Cutting Pliers, 8 in. Cuts coax, zip ties, and wire to length.

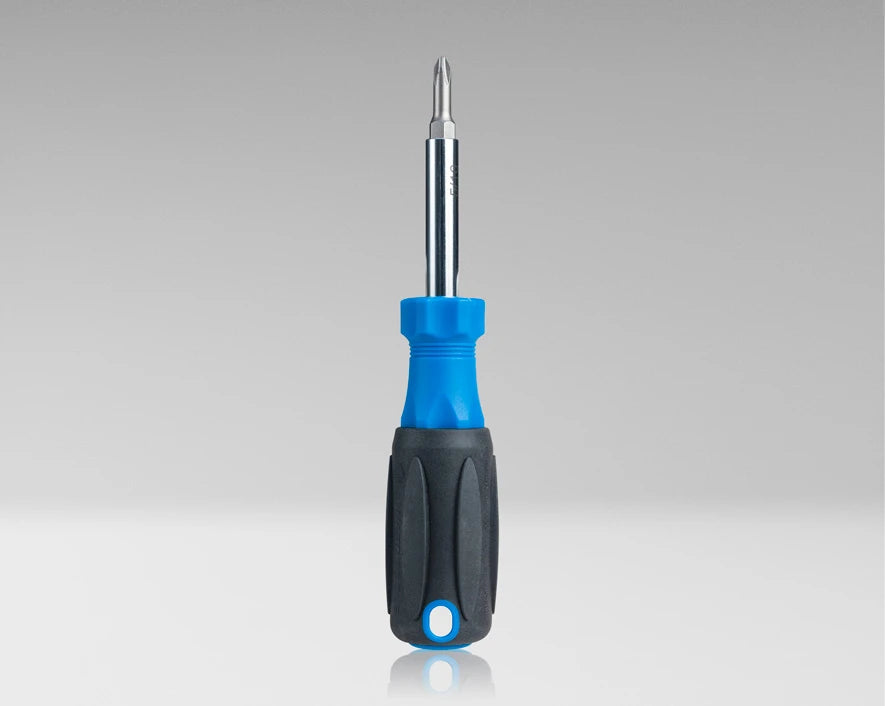

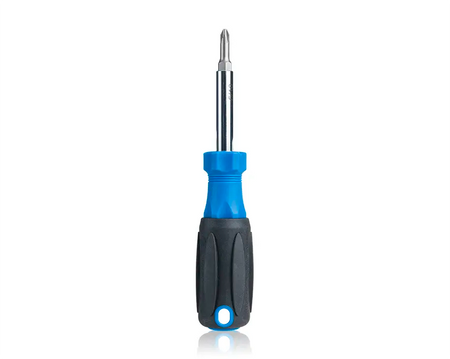

• SD-61 6-in-1 Multi-Bit Screwdriver. Phillips and slotted tips for wall plates, ground blocks, and splitter screws.

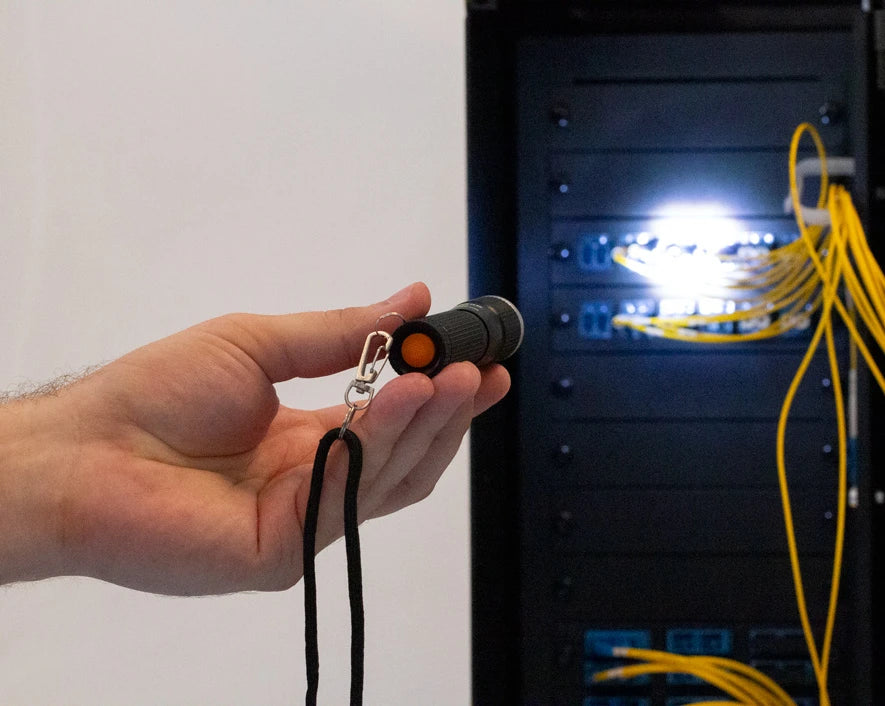

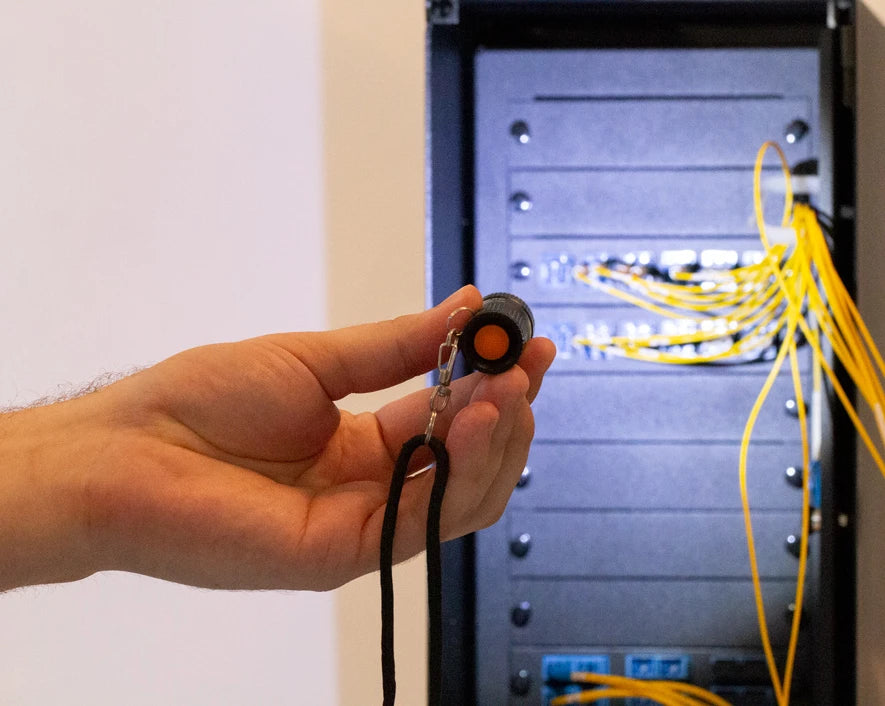

• FL-2000 LED Flashlight with Zoom Lens. For the crawlspace, the attic, and behind the equipment.

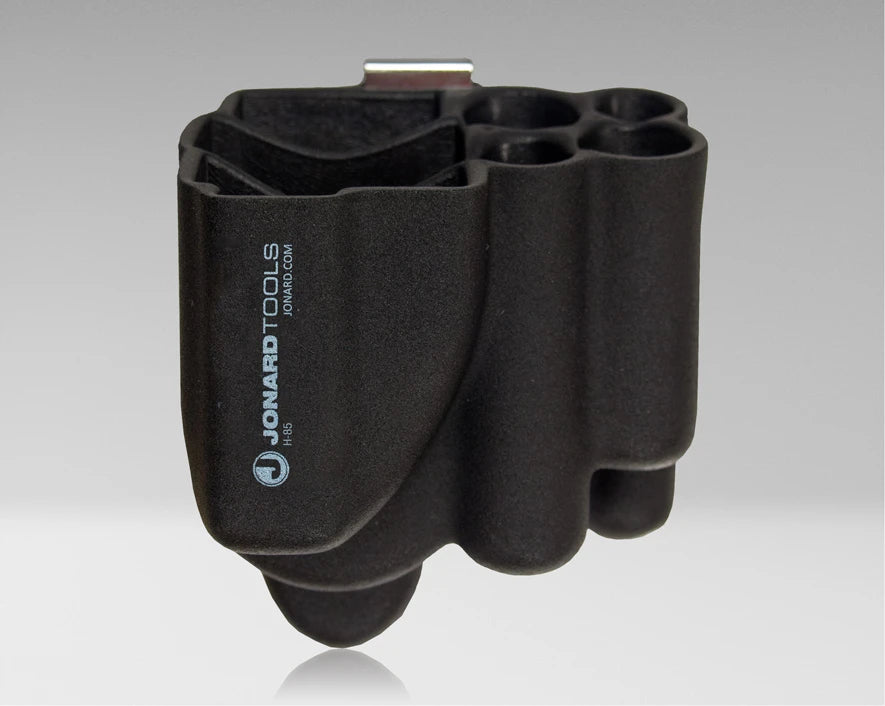

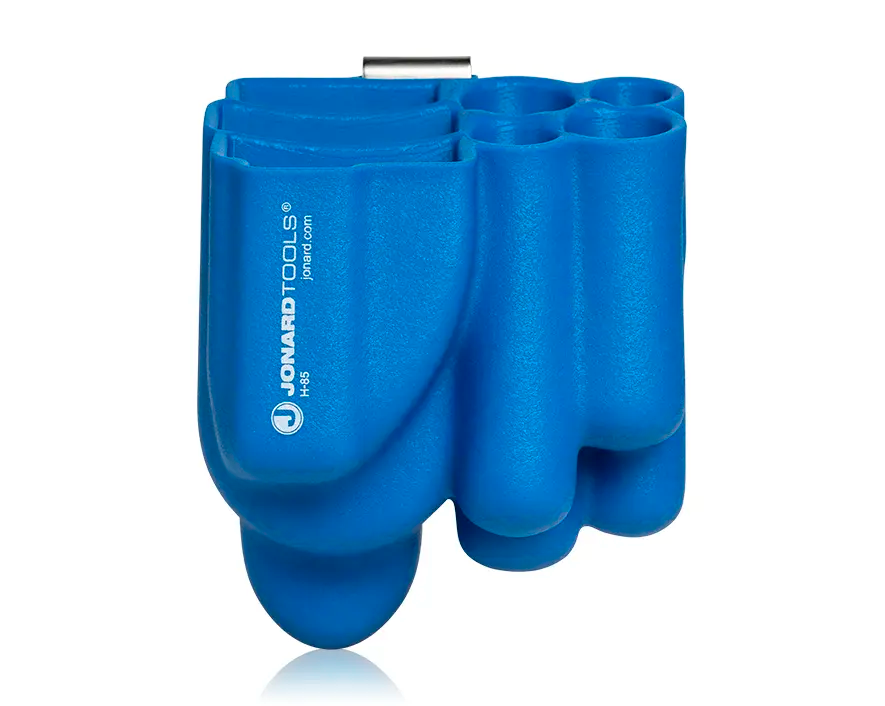

• H-85 Molded 7-Pocket Tool Pouch. A pocket for each tool, so a missing one shows before you leave the site.

Where It Fits

It suits CATV and broadband technicians whose operator specifies long F connectors throughout, so a fixed long tool is the right tool, outside plant and drop crews whose connectors are all at the tap, the ground block, and the house box where the weather seal matters, satellite installers who use long connectors on every outdoor fitting, contractors and new hires who need a matched coax set from one maker and don't want a setting to get wrong, and companies standardizing a fleet on long connectors. If short connectors are part of the route, the TK-78 has the CTF-180 for short and long on RG59 and RG6; if RG11 is too, the TK-87 has the CTF-230 with its RG6/RG11 head; if the route is short connectors only, the TK-83.

Good to Know

The CTF-200 is for long style F connectors and nothing else, which is the point of a fixed tool and also its limit: a short connector put in it will over-travel or won't be supported, and either way the compression is wrong. Check the connector style before the kit goes on the truck for a job, and go to the TK-78 or TK-87 if short or RG11 connectors are on the work order. The order of work is the order of the pouch: check the line for voltage with the PT-300 before cutting anything, since a drop can carry power to an amplifier, then cut, strip to the connector maker's dimensions with the UST-125, compress with the CTF-200, and finish with the torque wrench rather than pliers, because a 7/16 in F connector tightened past 30 in-lb strips the port and one left finger-tight lets water in, which defeats the reason for a long connector. A finished connector should have a fully driven sleeve with no gap, a straight center conductor standing proud of the face by the maker's dimension, and no play on the cable; one that compressed with no resistance usually means the cable wasn't pushed in far enough. The PT-300 checks continuity and finds a cable with its tone; it isn't a signal level meter, and a line that passes continuity can still be out of spec. The diagonal cutters are for cable and wire, not screws or steel strand. Keep the strip dimensions card for the connectors you use in the pouch.
