COAX Tool Kit with 360° Compression Tool and 7/16" Torque Wrench (TK-78)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

Most CATV service work is RG59 and RG6, short and long F connectors, and the same five steps at every address: cut, strip, compress, torque, test. The Jonard Tools TK-78 COAX Tool Kit is a complete service kit for that work, built around the CTF-180 360° Compression Tool, which supports an F connector all the way around and compresses short and long connectors on RG59 and RG6 to their fixed lengths with nothing to adjust. The UST-125 stripper preps RG59, RG6, RG7, and RG11; the TWAF-71630 full-head 7/16 in torque wrench tightens every connector to 30 in-lb and no further; the PT-300 pocket tester checks continuity, tones a cable for tracing, and detects voltage before you touch a line; and 8 in high leverage diagonal cutters, a 6-in-1 multi-bit screwdriver, and an LED zoom flashlight cover the cutting, driving, and seeing. Everything lives in the molded H-85 seven-pocket pouch, at three and a half pounds. For the same kit with the CTF-230 dual compression tool and its RG11 head, see the TK-87.

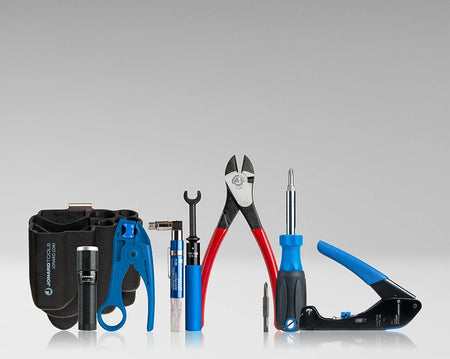

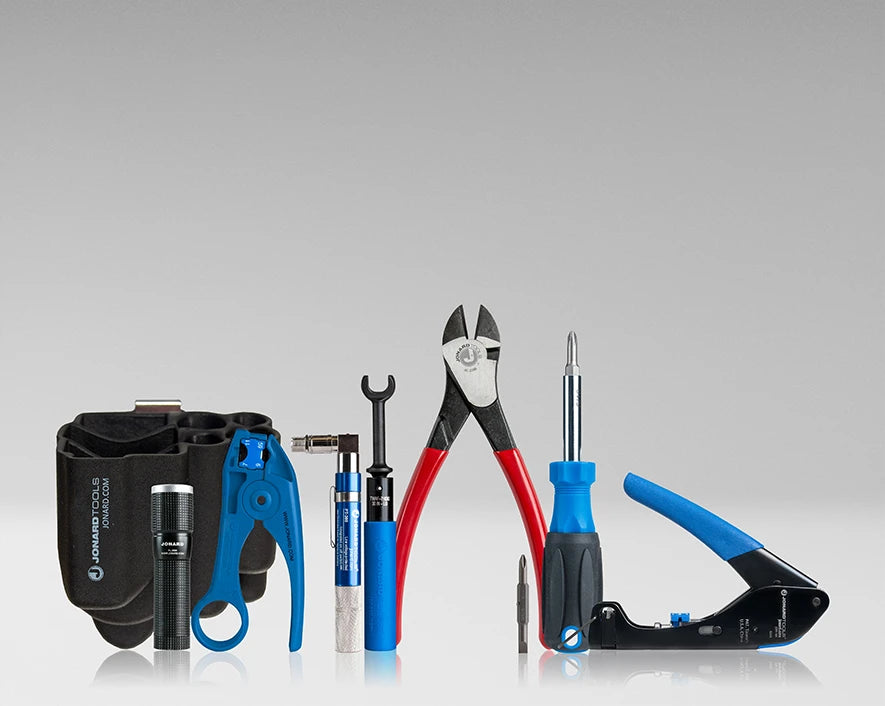

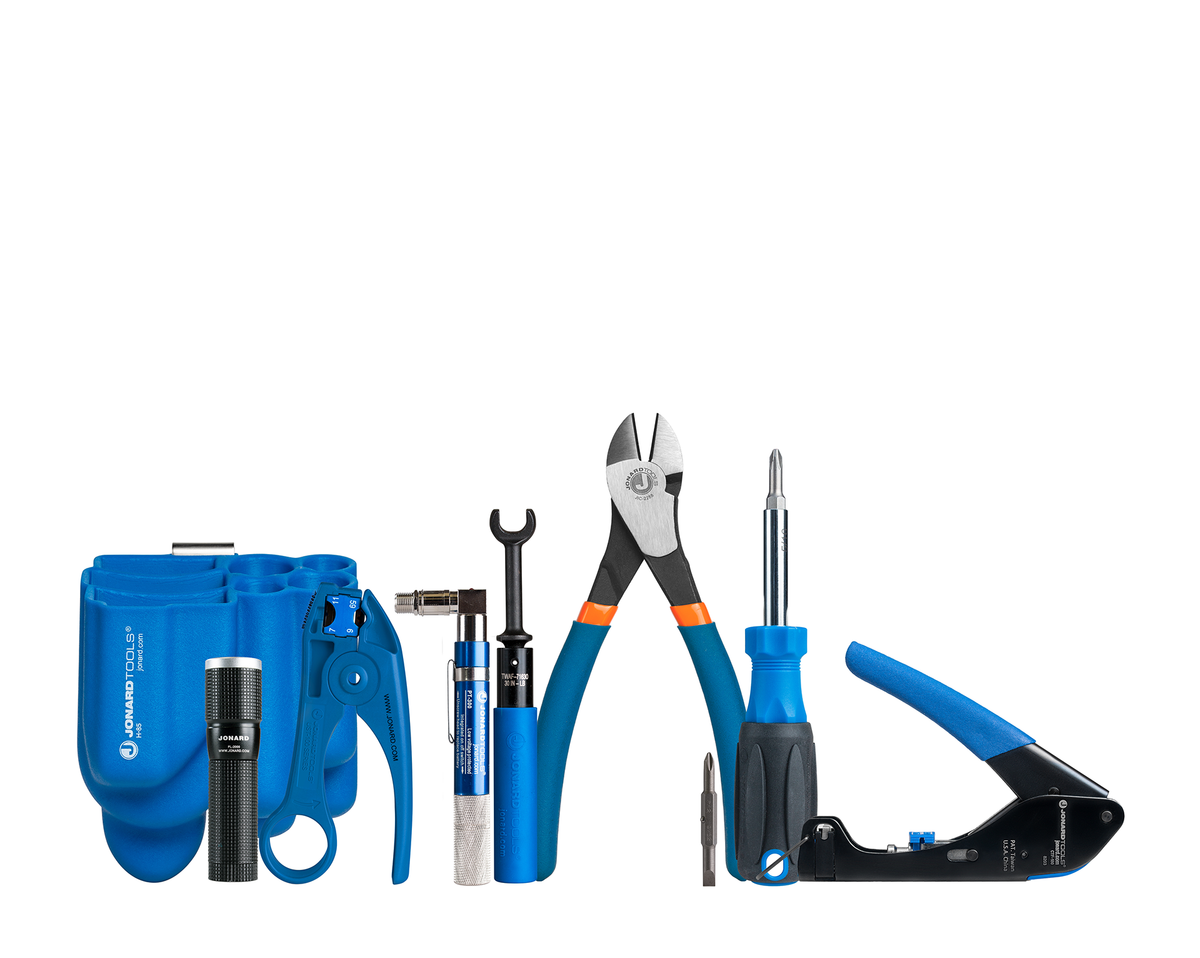

What's in the Kit

• CTF-180 360° Compression Tool. Short and long F connectors on RG59 and RG6, compressed to 17.9 mm and 20.8 mm with 360° support and no adjustment; designed around PCT connectors and compatible with most other brands.
• UST-125 COAX Stripping Tool. Strips RG59, RG6, RG7, and RG11 for the connector.
• TWAF-71630 F Connector Torque Wrench. Full head, 7/16 in, preset to 30 in-lb, so every connector is tight enough to seal and not tight enough to strip the port.
• PT-300 Pocket Continuity Tester and Toner. Continuity check, tone for tracing a cable, and voltage detection.
• JIC-2288 High Leverage Diagonal Cutting Pliers, 8 in. Cuts coax, zip ties, and wire to length.
• SD-61 6-in-1 Multi-Bit Screwdriver. Phillips and slotted tips for wall plates, ground blocks, and splitter screws.
• FL-2000 LED Flashlight with Zoom Lens. For the crawlspace, the attic, and behind the equipment.
• H-85 Molded 7-Pocket Tool Pouch. A pocket for each tool, so a missing one shows before you leave the site.

Where It Fits

It suits CATV and broadband service technicians doing repairs, connector swaps, and new drops in RG59 and RG6, contractors starting out who need a matched coax set from one maker instead of a drawer of odds and ends, satellite and antenna installers who use short connectors indoors and long ones at the weather-exposed end, security camera installers terminating RG59 and RG6 to cameras and recorders, companies outfitting new hires with a kit that covers the whole F-connector workflow, and anyone who has a compression tool but keeps borrowing the torque wrench. If RG11 trunk is part of the route, the TK-87 swaps in the CTF-230 with its RG6/RG11 head; for hardline, the HSC-50 coring tool and the JIC-750 cutter are the next tools up.

Good to Know

The order of work is the order of the pouch: check the line for voltage with the PT-300 before cutting anything, since a drop can carry power to an amplifier, then cut, strip to the connector maker's dimensions with the UST-125, compress with the CTF-180, and finish with the torque wrench rather than pliers, because a 7/16 in F connector tightened past 30 in-lb strips the port and one left finger-tight lets water in. The CTF-180 handles short and long F connectors on RG59 and RG6 at their fixed lengths; it isn't for RG11 connectors, which is what the TK-87's CTF-230 adds, so a kit buyer with RG11 on the route should look there. A finished connector should have a fully driven sleeve with no gap, a straight center conductor standing proud of the face by the maker's dimension, and no play on the cable; one that compressed with no resistance usually means the cable wasn't pushed in far enough. The PT-300 checks continuity and finds a cable with its tone; it isn't a signal level meter, and a line that passes continuity can still be out of spec. The diagonal cutters are for cable and wire, not screws or steel strand. Keep the strip dimensions card for the connectors you use in the pouch; the tools are fixed, so the prep is what varies between connector brands.
