COAX Center Conductor Cleaner (CC-120)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

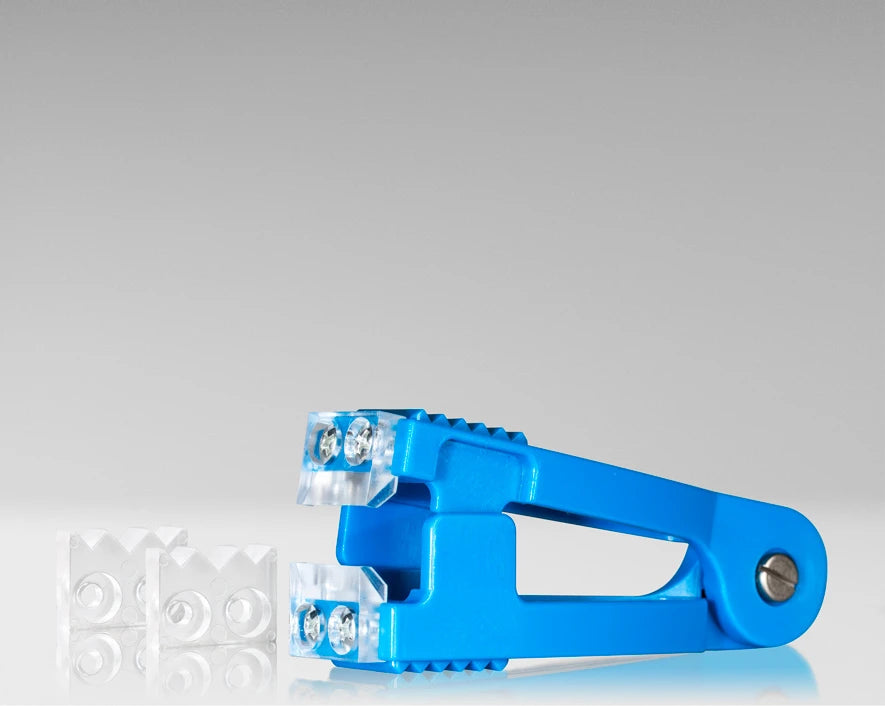

After hardline is cored, there's a film of dielectric left on the center conductor, and it has to come off before the connector goes on or the pin won't make a clean contact. A knife takes it off and leaves a scratch that becomes a hot spot; the Jonard Tools CC-120 takes it off with plastic blades that can't. It's a center conductor cleaner for distribution and trunk coax, with a body molded from high-strength glass-filled Lexan and blades made of polycarbonate, so the blade is always softer than the copper and the conductor comes out clean with no nick or scratch. It works on any hardline cable, comes with a set of flat blades installed and a second pair of saw-tooth blades in the box, and takes CC-4 replacement blades when the set wears. It's under five inches and weighs two ounces, so it rides in the same pocket as the coring tool.

Features

• Cleans without nicking. Removes excess dielectric from the center conductor of distribution and trunk cable without scratching the conductor's surface.
• Polycarbonate blades. Rugged plastic blades for long life that are softer than the copper they clean.
• Glass-filled Lexan body. High-strength and durable.
• Any hardline cable. Cleans the center conductor on any hardline coax.
• Two blade sets included. Flat blades installed, plus a pair of saw-tooth blades.
• Replaceable blades. CC-4 replacement blades, sold separately.

Where It Fits

It suits CATV and broadband line technicians fitting 500- and 750-series connectors at taps, splices, and amplifiers, where a cleaned center conductor is the difference between a connector that seats and one that arcs, aerial and underground construction crews terminating hardline at every active and passive on a build, maintenance techs replacing connectors on an existing plant, anyone who has been scraping the dielectric off with a knife or a fingernail, and the pocket next to the HSC-50 coring tool, which leaves the conductor this cleaner finishes. For the cut before the core, the JIC-750 banana cutter leaves the round end the coring tool needs.

Good to Know

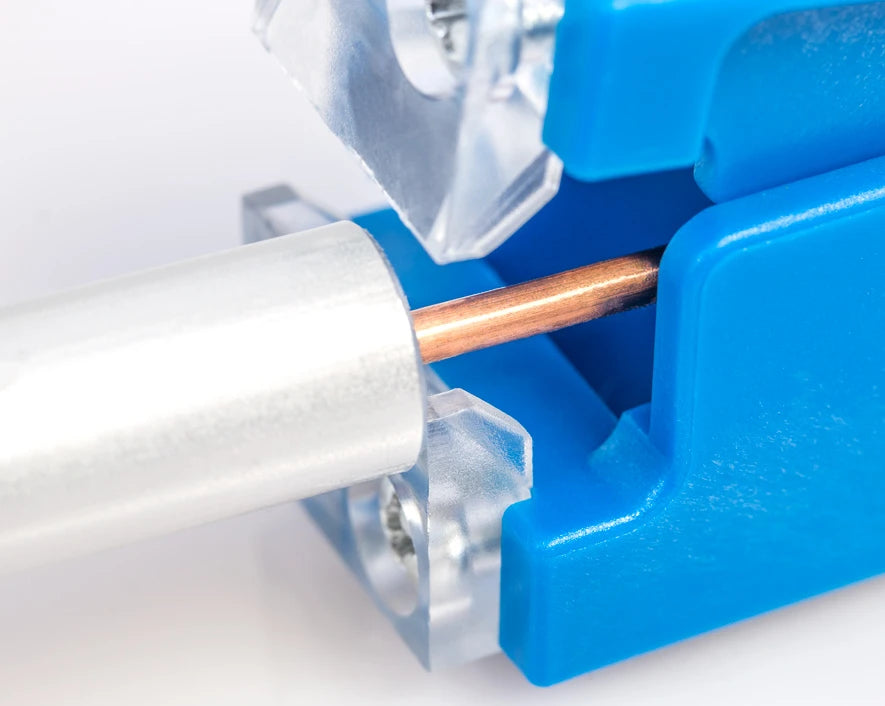

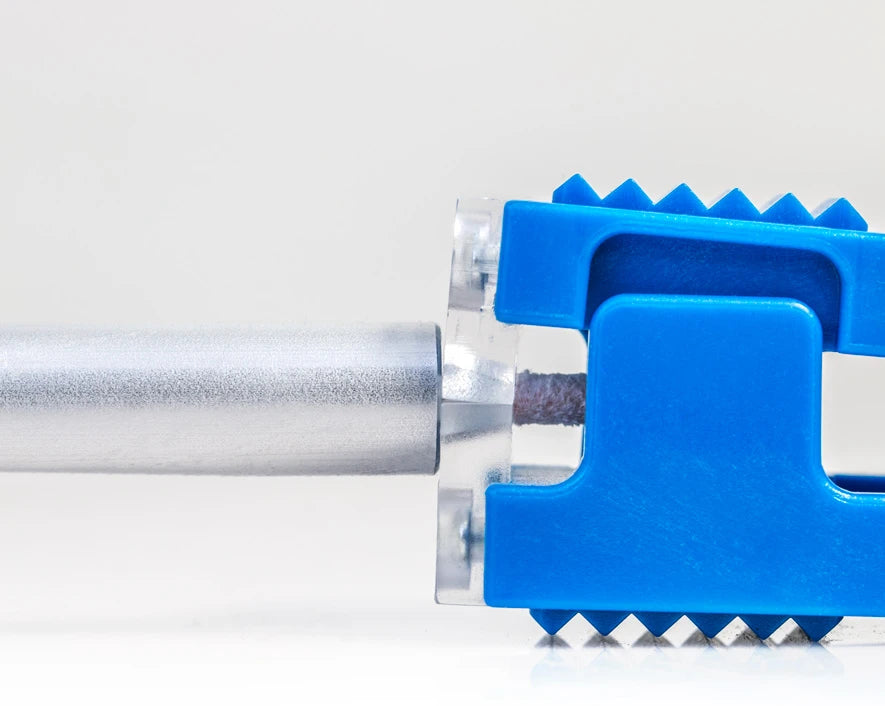

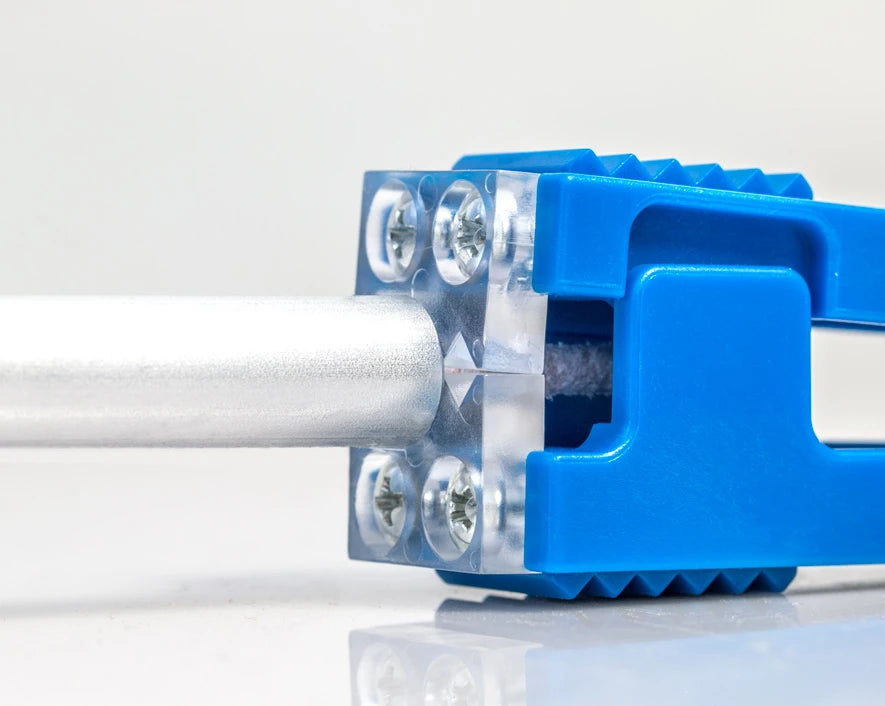

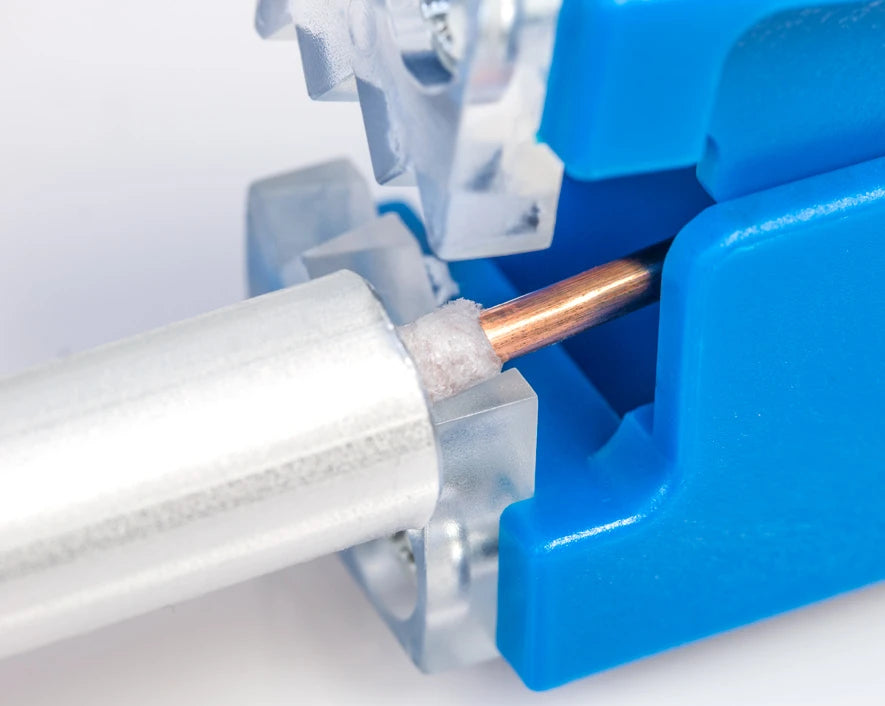

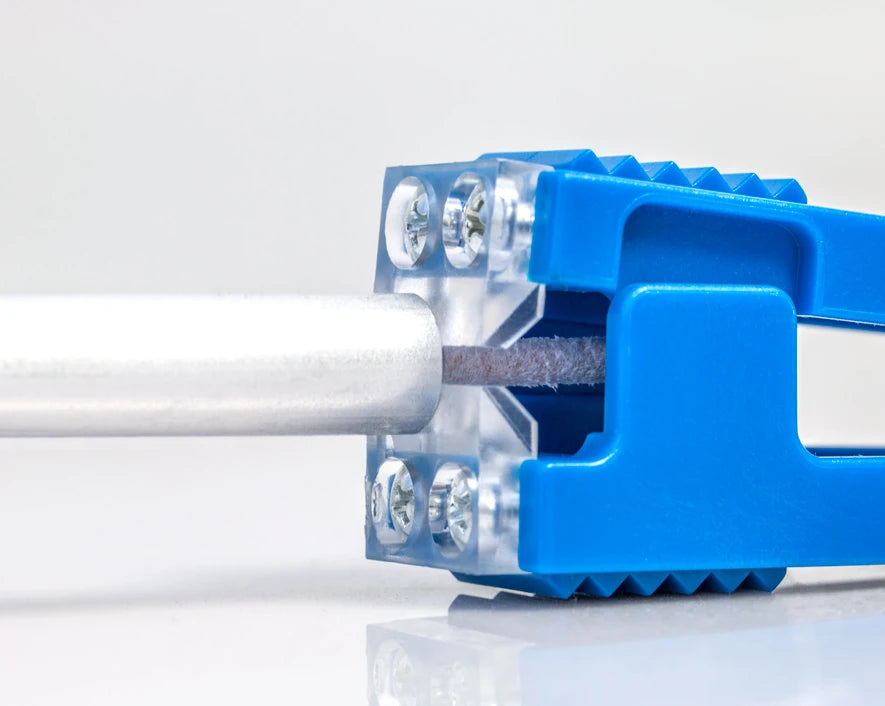

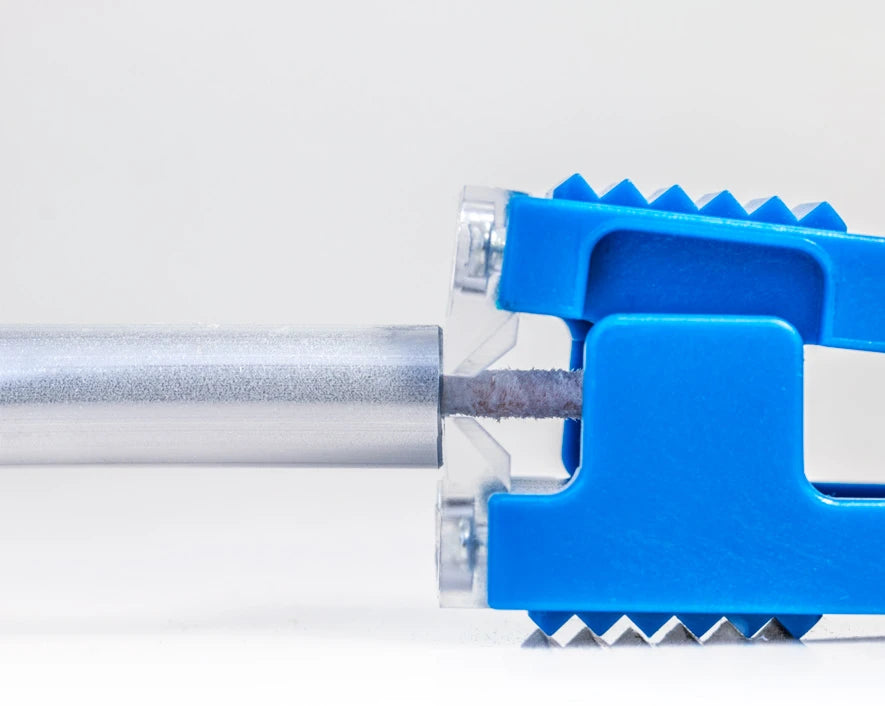

Core first, clean second: the coring tool removes the bulk of the dielectric and the cleaner takes off the film and the ring of residue it leaves at the shoulder. Close the cleaner on the conductor and rotate it a few turns with light pressure, then draw it off the end; the plastic blades do the work by scraping, not cutting, so pressing hard just wears them faster. Use the flat blades for ordinary cleaning and switch to the saw-tooth pair when the dielectric is baked on or the cable is older and the residue is stubborn. Inspect the conductor after cleaning: it should be bright and uniform with no dielectric left at the shoulder and no scoring, which the plastic blades can't make but a previous knife might have. Change to the spare set, or to CC-4 replacements, when the blades stop clearing the residue in a few turns. The cleaner is for the center conductor; it doesn't core, strip, or bevel, which is the coring tool's job. Hardline on a CATV plant carries AC power to amplifiers; the cleaner's plastic body isn't a reason to skip confirming the line is dead before the connector comes off.
