CAT7A S/FTP Shielded Cable 1000ft - LSZH, 23AWG Solid Copper 10G

Experience unparalleled 10 Gigabit performance and future-proof 10G capability with our premium CAT7A Dual-Shield Ethernet Cable, designed for noise-free connectivity in high-demand indoor and outdoor environments. Featuring advanced S/FTP double shielding (foil per pair + overall braid), heavy-duty 23 AWG solid bare copper conductors, and a rugged UV-rated low-smoke zero-halogen (LSZH) jacket, this augmented CAT7A cable delivers up to 1,200MHz bandwidth with support for both 10GBASE-T (up to 100m) and 10GBASE-T (up to 50m), eliminating EMI/RFI interference and alien crosstalk for mission-critical applications—perfect for next-generation data centers, broadcast studios, Wi-Fi 6/6E access points, PoE++ devices, and high-performance backbone links requiring top-tier shielding, fire safety, and cutting-edge performance.

Engineered for the most advanced installations requiring bleeding-edge performance, this ultra-premium cable combines six exceptional features: CAT7A Class FA performance (1,200 MHz), S/FTP dual shielding for maximum EMI immunity, heavy-duty 23 AWG conductors for superior performance, LSZH jacket for environmental safety, 10G capability for future-proofing, and indoor/outdoor versatility. The S/FTP shielding provides individual foil on each pair PLUS an overall tinned-copper braid for class-FA noise immunity—the absolute highest level of interference protection available. Exceeding ANSI/TIA-568.2-D and ISO/IEC 11801 Class FA specifications with IEC 60332-1 compliance, it's the ultimate cutting-edge solution for installations requiring maximum EMI protection, fire safety, environmental compliance, and future-proof performance beyond 10G.

Key Features

• Advanced S/FTP double shielding for maximum EMI/RFI protection
• Individual aluminum-mylar foil shield on each of 4 pairs
• Overall tinned-copper braid shield encases the entire cable
• Class-FA noise immunity—highest specification available
• Fully groundable drain wire for exceptional protection
• Perfect for extreme noise environments and future-proof installations
• Heavy-duty 23 AWG solid bare copper conductors (thicker than standard 24AWG)
• Lower resistance for cooler PoE++ operation and minimal attenuation
• Extended PoE++ reach over long distances
• Efficient high-speed data transmission
• Ultra-high 1,200MHz bandwidth (CAT7A Class FA specification)
• Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Class FA standards
• Supports 10GBASE-T up to 50 meters (cutting-edge performance)
• Supports 10GBASE-T up to 100 meters (full distance)
• PoE++ (IEEE 802.3bt) is compatible with extended reach, thanks to 23AWG
• Backward compatible with CAT7, CAT6A, CAT6, CAT5e
• LSZH (Low Smoke Zero Halogen) black jacket for environmental safety
• IEC 60332-1 compliant for low-smoke and flame-retardant properties
• Minimizes toxic fumes and halogen emissions in case of fire
• UV-rated for durable indoor/outdoor exposure
• Suitable for equipment rooms, risers, conduits, and outdoor routing
• Eco-friendly, meets strict environmental and green building standards
• Integrated drain wire is fully groundable for superior noise immunity
• Prevents static buildup and maintains signal stability
• Sequential foot markers for tidy, accurate measurements
• Sturdy 1000ft wooden spool for tangle-free installation
• Versatile indoor/outdoor rated for maximum flexibility

Ideal Applications

• Next-generation data centers requiring 10G capability
• High-performance computing (HPC) facilities
• Short-distance 10G backbone links (up to 50m)
• Broadcast studios and television production facilities with 10G requirements
• Medical imaging centers requiring ultra-high bandwidth
• Research facilities and laboratories with extreme performance needs
• Wi-Fi 6/6E and Wi-Fi 7 access points
• High-density PoE++ device installations
• Audio/video production facilities with 10G requirements
• Recording studios requiring ultimate noise immunity
• Equipment rooms requiring maximum shielding
• Outdoor conduit runs requiring LSZH and maximum performance
• Green building projects requiring LSZH compliance
• Any installation requiring maximum EMI shielding and future-proof 10G capability

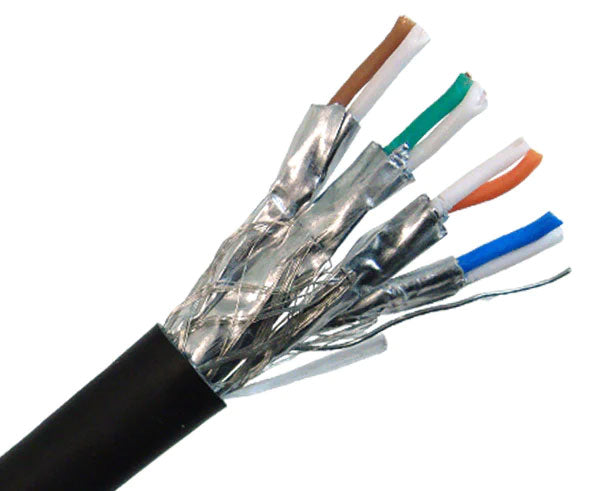

Cable Type & Construction

• Standard: CAT7A (Class FA)
• Type: Indoor/Outdoor Rated, Dual-Shielded, LSZH
• Shielding Type: S/FTP (Shielded/Foiled Twisted Pairs)
• Individual Shield: Aluminum-mylar foil on each pair
• Overall Shield: Tinned-copper braid encasing all pairs
• Pairs: 4 twisted pairs, each individually shielded
• Total Conductors: 8
• Installation: Indoor, outdoor conduit, equipment rooms, risers

Conductors

• Gauge: 23 AWG (heavy-duty, thicker than standard 24AWG)
• Material: Solid bare copper
• Configuration: Solid (permanent installation)
• Performance: Lower resistance, cooler PoE++, minimal attenuation, efficient transmission
• Advantage: Superior performance for both 10G and 10G applications

Shielding

• Shield Type: S/FTP - Dual shielding (maximum protection)
• Individual Pair Shield: Aluminum-mylar foil on each of 4 pairs
• Overall Shield: Tinned-copper braid (30-60% coverage typical)
• Drain Wire: Yes (integrated, fully groundable)
• Ground Function: Exceptional noise immunity, prevents static buildup
• EMI/RFI Protection: Class FA - Absolute highest level available
• Signal Quality: Exceptional in extreme interference environments
• Crosstalk: Eliminates alien crosstalk between pairs

Insulation

• Material: High-density polyethylene (HDPE)
• Performance: Enhanced CAT7A Class FA specifications

Performance

• Maximum Frequency: 1,200MHz (CAT7A Class FA standard)
• Data Rate (10G): 10GBASE-T up to 100 meters (full distance)
• Applications: 10GbE (short distance), 10GbE, Gigabit Ethernet, Fast Ethernet
• PoE Compatible: Yes - PoE++ (IEEE 802.3bt) with extended reach due to 23AWG
• Attenuation: Minimized with heavy-duty 23AWG conductors
• Signal Integrity: Maximum - dual shielding eliminates interference
• Future-Proof: Supports beyond 10G with 10GBASE-T capability

Jacket

• Material: LSZH (Low Smoke Zero Halogen), UV-rated
• Fire Rating: IEC 60332-1 compliant
• Color: Black
• Smoke Characteristics: Low-smoke emission
• Halogen Content: Zero halogen - reduces toxic fumes
• Environmental: Eco-friendly, meets green building standards
• UV Resistance: UV-rated for outdoor exposure
• Temperature Rating: -20°C to +60°C operating (typical)
• Outer Diameter: 7.6mm ± 0.5mm
• Marking: Sequential foot markers
• Durability: Weather-resistant for indoor/outdoor installations

Installation Rating

• Indoor Rated: Yes
• Outdoor Rated: Yes (conduit, UV-rated)
• Suitable Areas: Equipment rooms, risers, conduit runs, indoor, outdoor
• Environment: High-EMI environments, indoor/outdoor, fire-sensitive areas
• Fire Safety: Low-smoke, halogen-free for confined spaces
• Special Use: Maximum EMI protection with 10G capability and environmental compliance

Environmental & Safety Compliance

• LSZH Compliance: IEC 60332-1
• Smoke Emission: Low-smoke in case of fire
• Toxic Fumes: Halogen-free materials reduce toxic emissions
• Green Building: Supports LEED and environmental certifications
• UV Protection: UV-rated jacket for outdoor exposure
• Temperature Range: -20°C to +60°C operating

Design Advantages

• Six Premium Features: CAT7A + S/FTP dual shielding + 23AWG + LSZH + 10G + indoor/outdoor (cutting-edge)
• CAT7A Class FA: 1,200MHz bandwidth, absolute highest Ethernet spec
• 10G Capable: 10GBASE-T up to 50m for next-generation networks
• S/FTP Dual Shielding: Maximum EMI protection available
• 23AWG Advantage: Lower resistance than 24AWG for superior performance
• LSZH Safety: Low-smoke, halogen-free for environmental compliance
• Indoor/Outdoor: Versatile installation options
• Cutting-Edge: Top-tier for most advanced installations
• Future-Proof: Ready for 10G adoption

Use Case Considerations

• Primary Use: Advanced installations requiring 10G capability, maximum shielding, and fire safety
• Advantage: Ultra-rare combination of CAT7A + S/FTP + 23AWG + LSZH + 10G
• Best For: Next-gen data centers, HPC facilities, broadcast studios, research labs
• Cutting-Edge: CAT7A with S/FTP and LSZH is the absolute pinnacle of Ethernet technology
• Premium Investment: For installations demanding bleeding-edge performance and future-proofing
• Note: CAT7A requires specialized GG45 or TERA connectors for full 10G performance (can use RJ45 for 10G backward compatibility)
• 10G Distance: 10GBASE-T limited to 50m; for longer 10G runs, consider fiber

Packaging

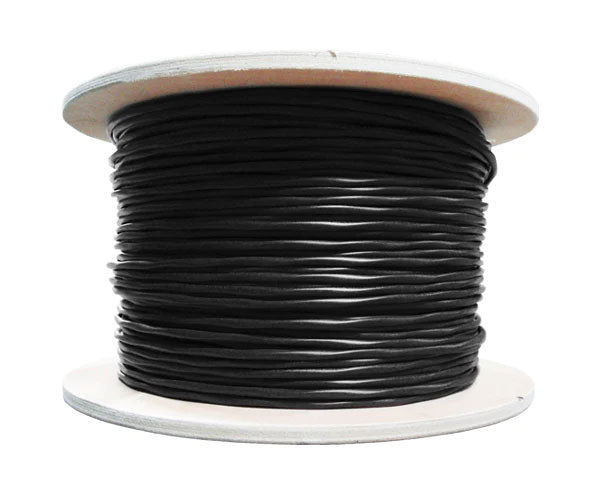

• Spool Size: 1000ft wooden spool
• Design: Sturdy for tidy, tangle-free handling

Compliance & Certifications

• Standards: ISO/IEC 11801 Class FA (CAT7A), ANSI/TIA-568.2-D
• Fire Rating: IEC 60332-1 (LSZH)
• Environmental: LSZH compliant, halogen-free
• Performance: Class FA certified for 1,200MHz
