CAT7 S/FTP Shielded Cable 1000ft - LSZH, 23AWG Solid Copper 10G

Tackle demanding 10 Gigabit networks in noisy environments with our premium CAT7 Dual-Shield Ethernet Cable, built for superior EMI protection and reliable high-speed performance indoors or outdoors. Featuring S/FTP double shielding (foil per pair + overall braid), heavy-duty 23 AWG solid bare copper conductors, and a UV-rated low-smoke zero-halogen (LSZH) jacket, this versatile indoor/outdoor CAT7 cable supports up to 1,000MHz frequency and 10GBASE-T data rates for mission-critical applications like data centers, broadcast studios, and PoE++ devices, ensuring minimal attenuation, crosstalk elimination, and fire safety compliance—ideal for equipment rooms, risers, or conduit runs.

Engineered for the most demanding high-EMI environments, this ultra-premium cable combines five exceptional features rarely found together: CAT7 performance (1,000 MHz), S/FTP dual shielding for maximum EMI immunity, heavy-duty 23 AWG conductors for superior performance, LSZH jacket for environmental safety, and indoor/outdoor versatility. The S/FTP shielding provides individual foil on each pair PLUS an overall tinned-copper braid for class-F noise immunity—the highest level of interference protection available. Exceeding ANSI/TIA-568.2-D and ISO/IEC 11801 Class F specifications with IEC 60332-1 compliance, it's the ultimate solution for broadcast facilities, data centers, medical imaging, and any installation requiring maximum EMI protection, fire safety, and 10 Gigabit performance.

Key Features

• Advanced S/FTP double shielding for maximum EMI/RFI protection
• Individual aluminum-mylar foil shield on each of 4 pairs
• Overall tinned-copper braid shield encases the entire cable
• Class-F noise immunity locks out EMI/RFI and alien crosstalk
• The highest level of shielding available for an Ethernet cable
• Perfect for high-interference settings like broadcast studios and industrial facilities
• Heavy-duty 23 AWG solid bare copper conductors (thicker than standard 24AWG)
• Low resistance for cooler PoE++ operation and reduced attenuation
• Extended PoE++ reach over long distances
• Efficient 10G data transmission up to 100 meters
• 1,000MHz bandwidth (CAT7 Class F specification)
• Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Class F standards
• Supports 10GBASE-T (10 Gigabit Ethernet) up to 100 meters
• PoE++ (IEEE 802.3bt) compatible with extended reach, thanks to 23AWG
• Future-proof high-bandwidth connectivity beyond 10G
• LSZH (Low Smoke Zero Halogen) black jacket for environmental safety
• IEC 60332-1 compliant for low-smoke and flame-retardant properties
• Minimizes toxic fumes and halogen emissions in case of fire
• UV-rated for durable outdoor exposure
• Suitable for conduits, direct installations, and outdoor runs
• Eco-friendly, meets strict environmental and green building standards
• Integrated drain wire bonds shield to ground post-termination
• Prevents static buildup and maintains signal stability
• Sequential footage markers for precise measurements
• Sturdy 1000ft wooden spool for orderly, tangle-free handling
• Versatile indoor/outdoor rated for maximum flexibility

Ideal Applications

• 10Gb backbones in data centers with extreme EMI concerns
• Broadcast studios and television production facilities
• High-tech laboratories requiring maximum shielding
• Medical imaging centers (MRI suites, sensitive diagnostic equipment)
• Outdoor conduit runs connecting buildings or remote cabinets
• Industrial facilities with heavy machinery and electrical interference
• High-density PoE++ devices like Wi-Fi 6E access points
• PTZ cameras and professional surveillance systems
• Audio/video production facilities
• Recording studios require ultimate noise immunity
• High-security facilities demanding maximum protection
• Green building projects requiring LSZH compliance
• Any installation requiring maximum EMI shielding and fire safety
• Equipment rooms, risers, and conduit runs in a challenging environment

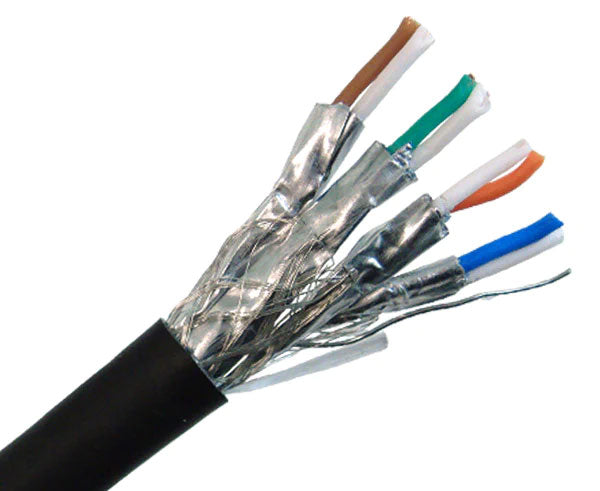

Cable Type & Construction

• Standard: CAT7 (Class F)
• Type: Indoor/Outdoor Rated, Dual-Shielded, LSZH
• Shielding Type: S/FTP (Shielded/Foiled Twisted Pairs)
• Individual Shield: Aluminum-mylar foil on each pair
• Overall Shield: Tinned-copper braid encasing all pairs
• Pairs: 4 twisted pairs, each individually shielded
• Total Conductors: 8
• Installation: Indoor, outdoor conduit, risers, equipment rooms

Conductors

• Gauge: 23 AWG (heavy-duty, thicker than standard 24AWG)
• Material: Solid bare copper
• Configuration: Solid (permanent installation)
• Performance: Low resistance, cooler PoE++, reduced attenuation, efficient 10G
• Advantage: Superior performance over long runs compared to 24AWG

Shielding

• Shield Type: S/FTP - Dual shielding (maximum protection)
• Individual Pair Shield: Aluminum-mylar foil on each of 4 pairs
• Overall Shield: Tinned-copper braid (30-60% coverage typical)
• Drain Wire: Yes (integrated, bonds shield to ground)
• Ground Function: Prevents static buildup, maintains signal stability
• EMI/RFI Protection: Class F - Highest level, ultimate noise immunity
• Signal Quality: Exceptional in extreme interference environments
• Crosstalk: Eliminates alien crosstalk between pairs

Insulation

• Material: High-density polyethylene (HDPE)
• Performance: Enhanced CAT7 Class F specifications

Performance

• Maximum Frequency: 1,000MHz (CAT7 Class F standard)
• Data Rate: 10GBASE-T (10 Gigabit Ethernet) up to 100 meters
• Applications: 10GbE, Gigabit Ethernet (1000BASE-T), Fast Ethernet
• PoE Compatible: Yes - PoE++ (IEEE 802.3bt) with extended reach due to 23AWG
• Attenuation: Minimized with heavy-duty 23AWG conductors
• Signal Integrity: Maximum - dual shielding eliminates interference
• Future-Proof: Supports beyond 10G applications with 1,000MHz bandwidth

Jacket

• Material: LSZH (Low Smoke Zero Halogen), UV-rated
• Fire Rating: IEC 60332-1 compliant
• Color: Black
• Smoke Characteristics: Low-smoke emission
• Halogen Content: Zero halogen - reduces toxic fumes
• Environmental: Eco-friendly, meets green building standards
• UV Resistance: UV-rated for outdoor exposure
• Temperature Rating: -20°C to +60°C operating (typical)
• Outer Diameter: 7.5mm ± 0.5mm
• Marking: Sequential footage markers
• Durability: Weather-resistant for outdoor conduit installations

Installation Rating

• Indoor Rated: Yes
• Outdoor Rated: Yes (conduit, UV-rated)
• Suitable Areas: Equipment rooms, risers, conduit runs, indoor, outdoor
• Environment: High-EMI environments, indoor/outdoor, fire-sensitive areas
• Fire Safety: Low-smoke, halogen-free for confined spaces
• Special Use: Maximum EMI protection with environmental compliance

Environmental & Safety Compliance

• LSZH Compliance: IEC 60332-1
• Smoke Emission: Low-smoke in case of fire
• Toxic Fumes: Halogen-free materials reduce toxic emissions
• Green Building: Supports LEED and environmental certifications
• UV Protection: UV-rated jacket for outdoor exposure
• Temperature Range: -20°C to +60°C operating

Design Advantages

• Five Premium Features: CAT7 + S/FTP dual shielding + 23AWG + LSZH + indoor/outdoor (extremely rare)
• CAT7 Class F: 1,000MHz bandwidth, superior to CAT6A
• S/FTP Dual Shielding: Maximum EMI protection available
• 23AWG Advantage: Lower resistance than 24AWG for superior performance
• LSZH Safety: Low-smoke, halogen-free for environmental compliance
• Indoor/Outdoor: Versatile installation options
• Ultimate Protection: Top-tier for most demanding environments
• Eco-Friendly: Meets the strictest environmental standards

Use Case Considerations

• Primary Use: Extreme EMI environments requiring maximum shielding and fire safety
• Advantage: Ultra-rare combination of CAT7 + S/FTP + 23AWG + LSZH
• Best For: Broadcast studios, data centers, medical facilities, industrial plants
• Exceptional: CAT7 with S/FTP and LSZH is the pinnacle of ethernet cable technology
• Premium Investment: For installations demanding the absolute best across all criteria
• Note: CAT7 requires specialized GG45 or TERA connectors for full performance (can use RJ45 for backward compatibility)

Packaging

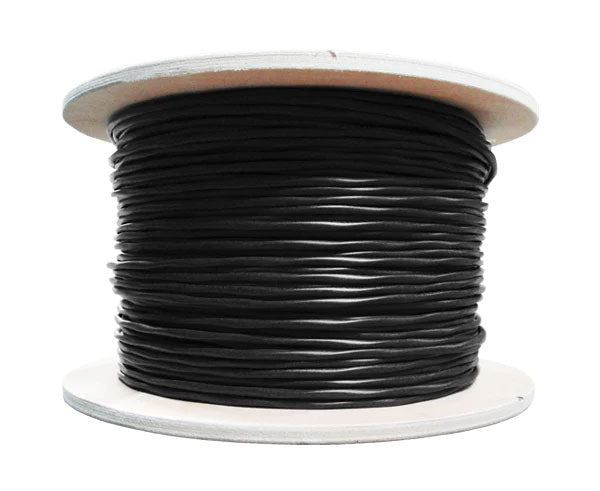

• Spool Size: 1000ft wooden spool
• Design: Sturdy for orderly, tangle-free handling

Compliance & Certifications

• Standards: ANSI/TIA-568.2-D, ISO/IEC 11801 Class F (CAT7)
• Fire Rating: IEC 60332-1 (LSZH)
• Environmental: LSZH compliant, halogen-free
• Performance: Class F certified for 1,000MHz

Usually ships in 1 business day.
