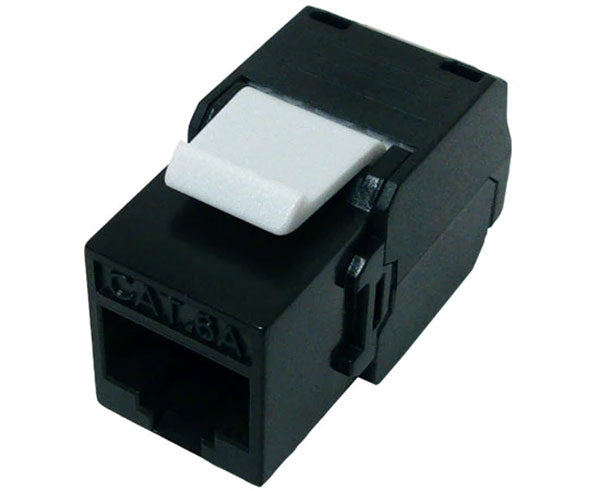

Black cat6a high-density unshielded rj45 keystone jack with 180-degree contacts.

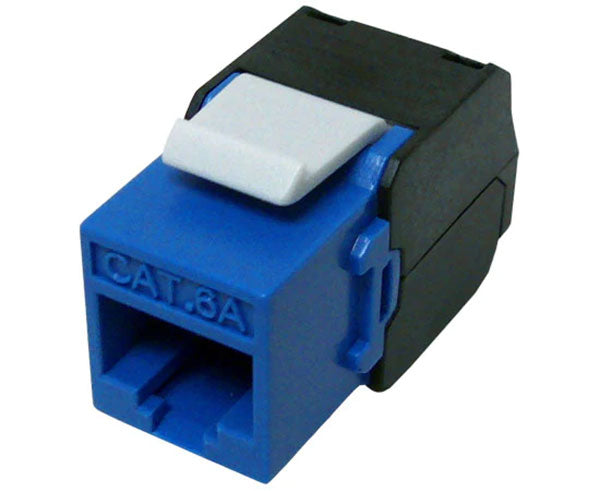

Blue cat6a high-density unshielded rj45 keystone jack with 180-degree contacts.

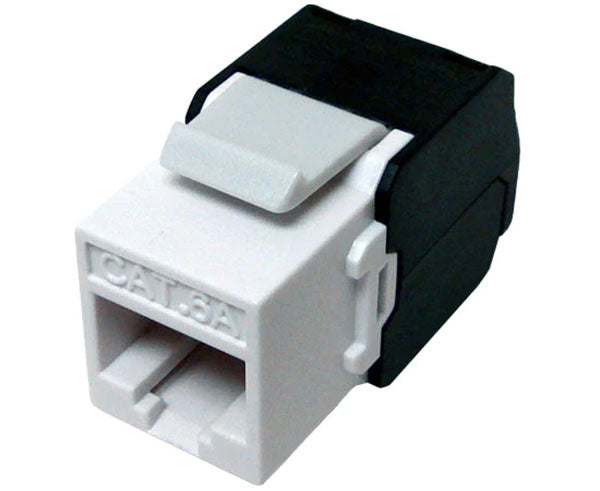

White cat6a high-density unshielded rj45 keystone jack with 180-degree contacts.

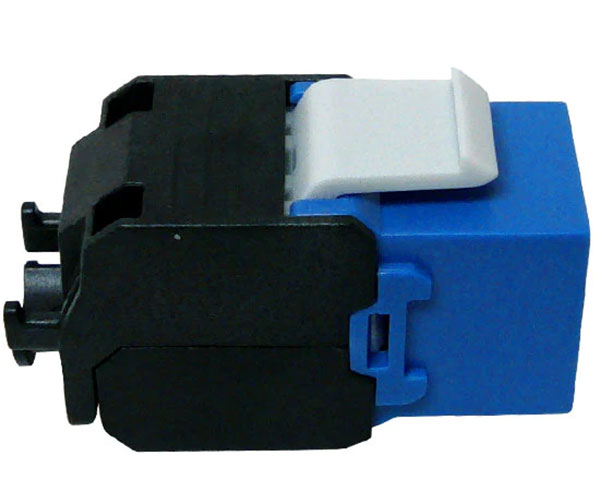

Blue cat6a high-density unshielded rj45 keystone jack with 180-degree contacts and locking tab.

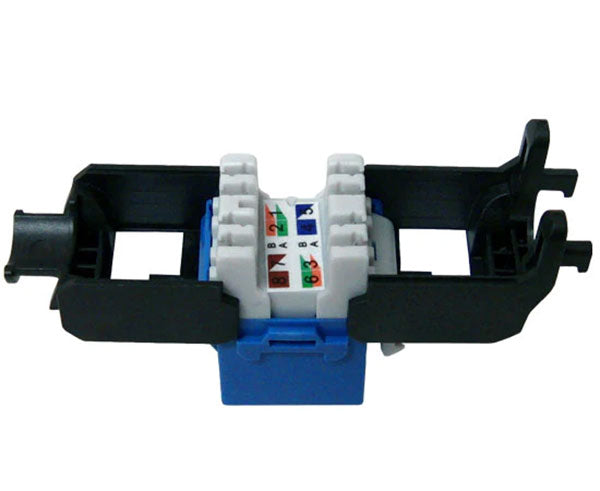

Blue cat6a high-density unshielded rj45 keystone jack with 180-degree contacts and open body.
Black cat6a high-density unshielded rj45 keystone jack with 180-degree contacts.
Blue cat6a high-density unshielded rj45 keystone jack with 180-degree contacts.
White cat6a high-density unshielded rj45 keystone jack with 180-degree contacts.
Blue cat6a high-density unshielded rj45 keystone jack with 180-degree contacts and locking tab.
Blue cat6a high-density unshielded rj45 keystone jack with 180-degree contacts and open body.
Patch Cords Online

CAT6A RJ45 Keystone Jack – Unshielded 180° Punch Down, 10G Rated

SKU: MIG6A-180BLK
$4.20
Color

CAT6A RJ45 Keystone Jack – Unshielded 180° Punch Down

Our CAT6A HD Component-Rated line represents our premier data jack solution for high-performance 10 Gigabit networks. These keystone jacks are engineered with advanced PCB technology, phosphor bronze IDC contacts, gold-plated prongs, and durable ABS + PC housing. The design simplifies termination with easy-to-read wire labels, universal T568A/T568B wiring, dual 110/Krone punch-down compatibility, and optional tool-less termination using the IDC cap. Compatible with both solid and stranded 23-26 AWG wire, these jacks help you save time and money while ensuring reliable connections. Supports PoE++ (802.3bt) 4PPoE up to 100W for maximum versatility.

Key Features

  • CAT6A performance supporting 10G Ethernet up to 100 meters
  • Component-rated for superior performance and reliability
  • High-density slim profile for space-efficient installations
  • PoE++ (802.3bt) 4PPoE support up to 100W
  • Gold-plated nickel contacts provide corrosion resistance and optimal signal conductivity
  • Phosphor bronze IDC contacts for excellent conductivity and wear resistance
  • ABS + PC housing (UL 94-V0) provides protection and durability
  • 8-pin × 8-conductor configuration for streamlined connection
  • 180° rear-facing design for flexible termination
  • Innovative jack design keeps pairs together to streamline installation
  • Easy-to-read wiring label with integrated T568A/T568B diagram
  • Universal 110 and Krone punch-down compatibility
  • Tool-less termination option when using IDC cap
  • Compatible with solid and stranded 23-26 AWG wire
  • Durable construction: 750+ mating cycles minimum
  • Meets and exceeds ANSI/EIA/TIA 568.D-2 standards
  • UL Compliant

Technical Specifications

  • Performance: CAT6A, 10G up to 100 meters
  • Configuration: 8-pin × 8-conductor
  • Wire Compatibility: Solid and stranded 23-26 AWG
  • RJ45 Jack Housing: ABS + PC, UL 94-V0
  • Contact Bracket: PC, UL 94-V2, transparent
  • RJ45 Contact Material: Phosphor bronze with nickel plating
  • Contact Finish: 50 micro-inch gold plating
  • Cap A&B: Nylon + fiber
  • IDC Housing: PC + glass fiber, gray, UL 94V-2
  • Terminal: Phosphor bronze with tin plating
  • IDC Cap: PC + glass fiber, UL94-HB, white
  • PCB: FR4, UL 94V-0
  • Insertion Force: 20N maximum
  • Retention Strength: 7.7 kg between jack and plug
  • Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
  • Mating Cycles: 750 cycles minimum
  • Power Support: PoE++ (802.3bt) up to 100W
  • Standards Compliance: Meets and exceeds ANSI/EIA/TIA 568.D-2, UL Compliant
  • Termination: 180° rear-facing, 110 & Krone compatible, optional tool-less with IDC cap
