CAT6A RJ45 Keystone Jack – Shielded 10G Component-Rated

CAT6A RJ45 Keystone Jack – Shielded, Component-Rated

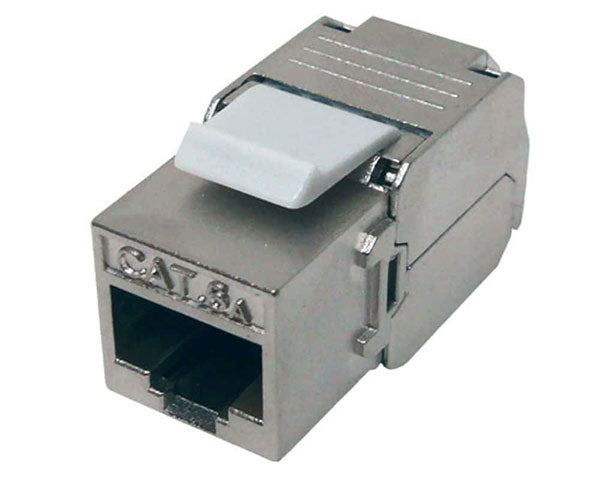

Our CAT6A Shielded HD Component-Rated line represents our premier data jack solution for high-performance 10 Gigabit networks. These shielded CAT6A keystone jacks feature advanced PCB technology, phosphor bronze IDC contacts, gold-plated prongs, and zinc die-cast housing with nickel plating for superior EMI and alien crosstalk protection. The design simplifies termination with easy-to-read wire labels, universal T568A/T568B wiring, dual 110/Krone punch-down compatibility, and optional tool-less termination using the IDC cap. Supports PoE++ (802.3bt) 4PPoE up to 100W for maximum versatility.

Key Features

• CAT6A performance supporting 10G speeds up to 100 meters
• Component-rated for superior performance and reliability

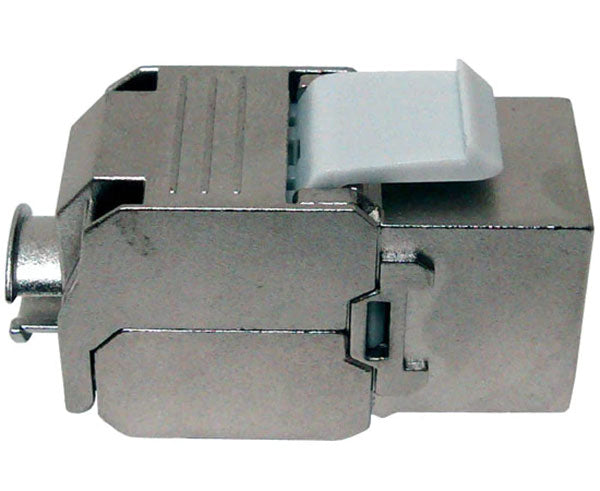

• Shielded zinc die-cast housing with nickel plating protects against EMI and alien crosstalk
• High-density slim profile for space-efficient installations
• PoE++ (802.3bt) 4PPoE support up to 100W
• Gold-plated nickel contacts provide corrosion resistance and optimal signal conductivity

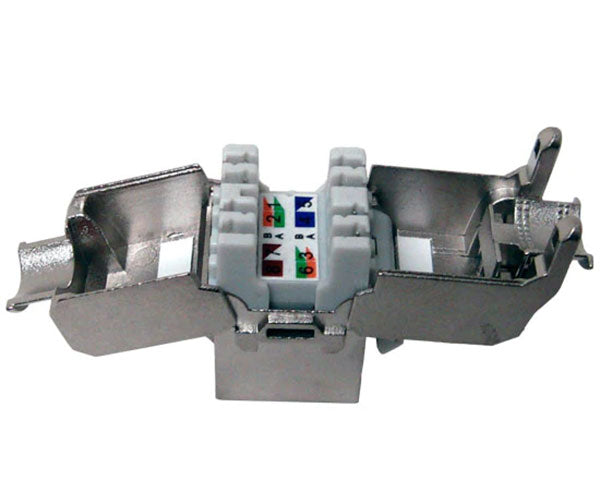

• Phosphor bronze IDC contacts for excellent conductivity and wear resistance
• 8-pin × 8-conductor configuration for streamlined connection
• Innovative jack design keeps pairs together to streamline installation

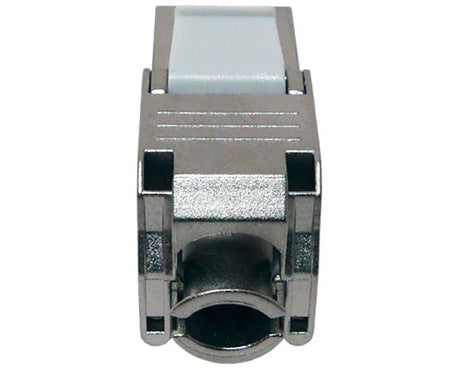

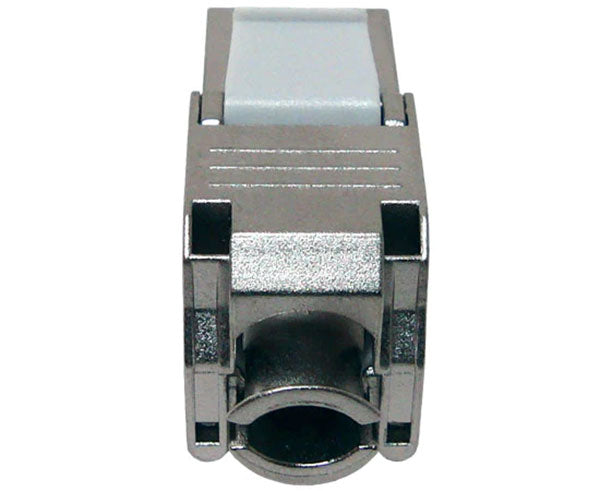

• 180° rear-facing design reduces termination time
• Easy-to-read wiring label with integrated T568A/T568B diagram
• Universal 110 and Krone punch-down compatibility

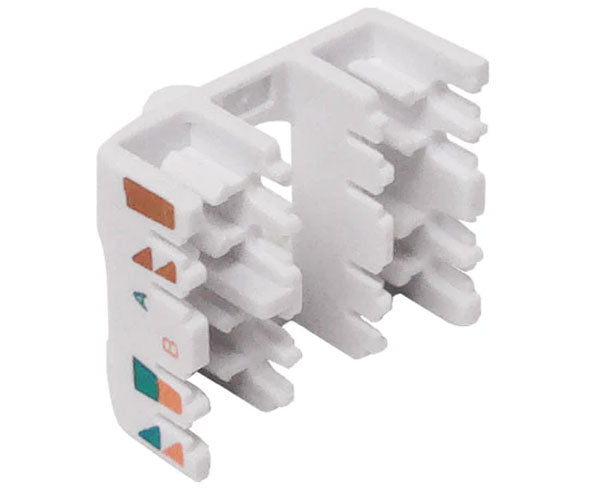

• Tool-less termination option when using IDC cap
• Compatible with solid and stranded 23-26 AWG wire
• Durable construction: 750+ mating cycles minimum
• Meets and exceeds ANSI/TIA 568.D-2 standards
• UL Listed

Technical Specifications

• Performance: CAT6A, 10G up to 100 meters
• Configuration: 8-pin × 8-conductor
• Wire Compatibility: Solid and stranded 23-26 AWG
• Housing Material: Zinc die-cast with nickel plating
• Contact Bracket: PC, UL 94-V2, transparent
• RJ45 Contact Material: Phosphor bronze with nickel plating
• Contact Finish: 50 micro-inch gold plating
• Cap A&B: Zinc die-cast with nickel plating
• IDC Housing: PC + glass fiber, gray, UL 94V-2
• Terminal: Phosphor bronze with tin plating
• IDC Cap: PC + glass fiber, UL94-HB, white
• PCB: FR4, UL 94V-0
• Insertion Force: 30N maximum
• Retention Strength: 7.7 kg between jack and plug
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Mating Cycles: 750 cycles minimum
• Power Support: PoE++ (802.3bt) up to 100W
• Standards Compliance: Meets and exceeds ANSI/TIA 568.D-2, UL Listed
• Termination: 180° rear-facing, 110 & Krone compatible, optional tool-less with IDC cap
