Cat6 Shielded Keystone Jack, 110 Punch Down (KEY6-SHD)

A shielded Cat6 cable terminated to an unshielded jack is shielded all the way to the last inch, which is to say it isn't. This shielded Cat6 keystone jack finishes the run properly: a 110-type IDC jack in a metal housing that carries the cable's shield through the jack to the plug on the other side, so the EMI protection the cable was specified for holds across the whole channel. It terminates with a standard punch-down tool on 90 degree 110 IDC contacts, with the T568A and T568B color codes printed on the jack so the pairs land right without a reference card, and it snaps into any standard keystone opening in a wall plate, surface box, or patch panel. Inside, the IDC contacts are phosphor bronze, the plug contacts are brass with 50 microinches of gold over nickel, and the housing and PCB are both UL 94 V-0 flame rated. It's rated for PoE++ at up to 100 W under 802.3bt, and a shielded wire dust cap is included. It's the shielded member of the economy jack line, and the COU6-SHD is the matching shielded coupler.

Features

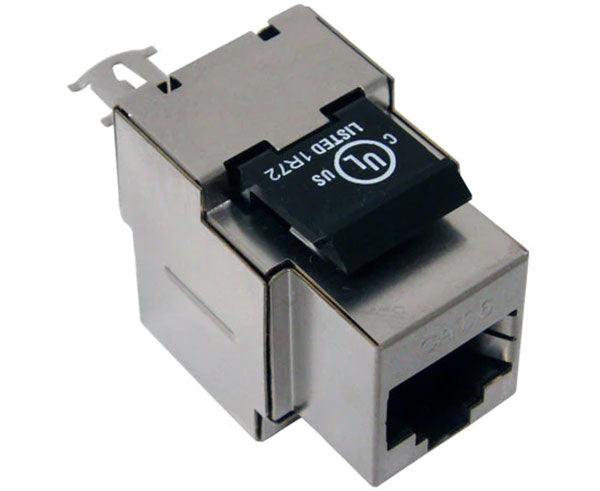

• Shielded metal housing. Carries the cable shield through the jack to reduce EMI and crosstalk on F/UTP runs.
• Cat6 performance. Eight-pin, eight-conductor, for Gigabit and 2.5G links.

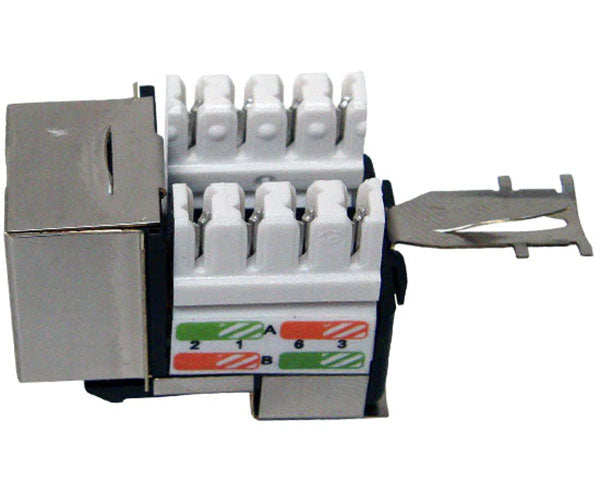

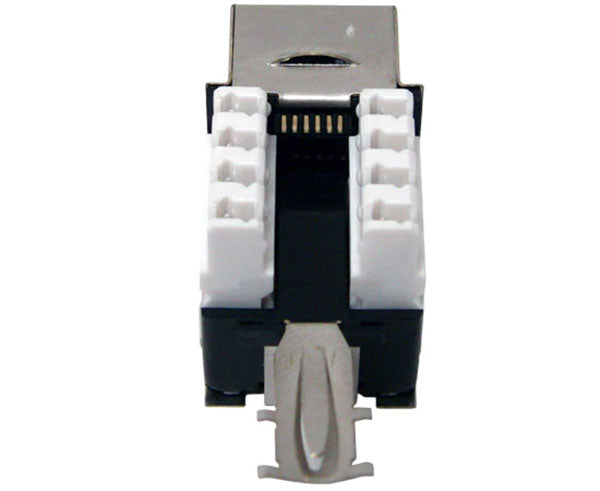

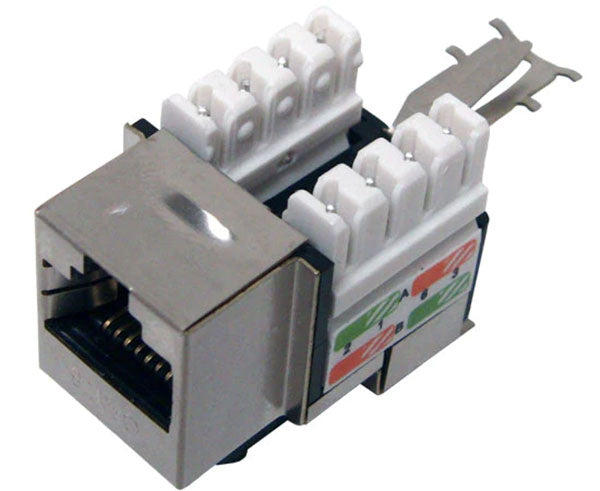

• 90 degree 110-type IDC termination. Punches down with a standard 110 tool; integrated T568A and T568B wiring guide and labels on every jack.
• PoE++ ready. 802.3bt 4PPoE up to 100 W.
• Gold-plated plug contacts. Brass with a minimum 50 microinches of gold over nickel for corrosion resistance and a clean connection.
• Phosphor bronze IDC contacts. Conductivity and wear resistance through repeated terminations.
• UL 94 V-0 housing and PCB. Fire-retardant plastic housing, flame-retardant PCB, nylon termination terminals.
• Shielded wire dust cap included. Protects the termination.

Where It Fits

It suits structured cabling installers terminating shielded Cat6 drops at the wall plate and the patch panel on a job that specs F/UTP, industrial and plant networks where drives, motors, and welders put noise on anything unshielded, hospital and clinical builds that spec shielded cabling throughout, AV and broadcast rooms running data past lighting dimmers and power feeds, PoE++ camera and access point installs that want 100 W through a shielded jack, anyone who has terminated a shielded run to a plastic jack and lost the shield at the plate, and a job that already has the shielded Cat6 bulk cable from the bulk copper collection and the WP2-series wall plates and keystone patch panels it snaps into. For the shielded coupler that joins two shielded cords, the COU6-SHD; for unshielded runs, the Cat6 jacks in the keystone collection.

Good to Know

A shield only works when it's bonded: the jack's metal housing carries the cable's foil or braid through to the plug, and the channel has to be grounded at one end, usually through a bonded shielded patch panel, so make sure the panel end is grounded and the drain wire or foil is captured by the jack's housing when you terminate; a shielded jack floating in a plastic wall plate with no path to ground still carries the shield but doesn't drain it. Strip the jacket far enough to fold the shield back onto the jacket where the housing clamps it, keep the pair untwist short, and punch each conductor down on the 110 contact with a 110 blade in one firm stroke, cut side out, matching the color to the A or B label on the jack; use one standard, the same as the rest of the building. The 100 W PoE++ rating is the jack's; the channel still needs cable and a panel rated for it, and 4PPoE at 100 W in a bundle wants cable sized for the heat. The dust cap goes on after termination to protect the IDC field and the shield fold. Shielding reduces interference, it doesn't eliminate it, so a run that's noisy with shielded jacks has a grounding problem or an unshielded component somewhere in it. Count the jack as a connection in the channel budget, and keep it indoors; it's not a weatherproof part.
