CAT5E RJ45 Keystone Jack – Shielded STP Punch Down
Couldn't load pickup availability

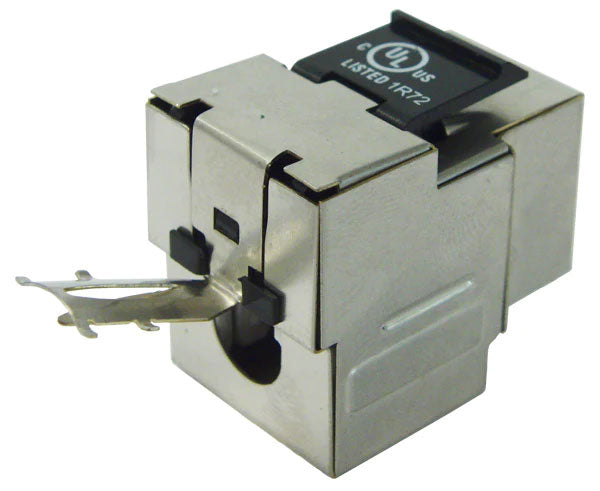

CAT5E RJ45 Keystone Jack – Shielded Punch Down
Our CAT5E shielded U-Style keystone jack is designed with user convenience in mind, featuring a T568 A/B wiring guide on each jack for easy installation. Fully shielded in a metal case, this jack protects your signal against electromagnetic interference that can disrupt network performance. Built with phosphor bronze IDC contacts, gold-plated prongs, and fire-retardant plastic housing for durability and reliability. The 90° 110-type IDC termination and easy-to-read wiring labels simplify installation, helping you save time and money. Supports PoE++ (802.3bt) 4PPoE up to 100W for maximum versatility.
We take great pride in our quality control procedures and commitment to excellence. Our shielded U-Style CAT5E keystone jacks meet all requirements for EIA/TIA standards and are rigorously inspected and tested to comply with stringent transmission and safety standards.
Key Features
- CAT5E performance supporting speeds up to 350 MHz
- Fully shielded metal case eliminates EMI and crosstalk
- PoE++ (802.3bt) 4PPoE support up to 100W
- Gold-plated nickel contacts provide corrosion resistance and optimal signal conductivity
- Phosphor bronze IDC contacts for excellent conductivity and wear resistance
- Fire-retardant plastic housing (UL 94 V-0) for safety
- 8-pin × 8-conductor configuration for streamlined connection

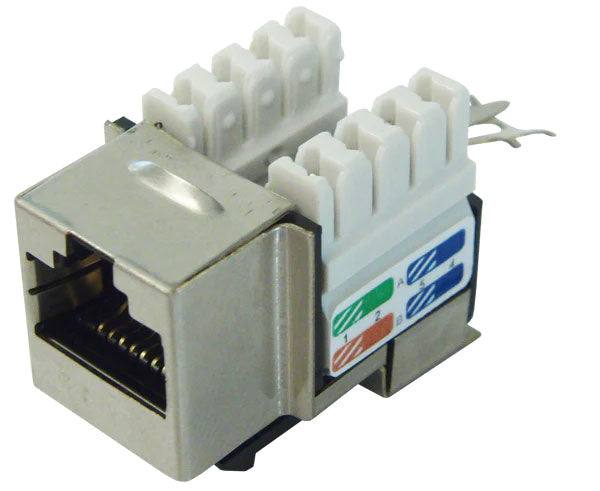

- 90° 110-type IDC termination for easier punch-down

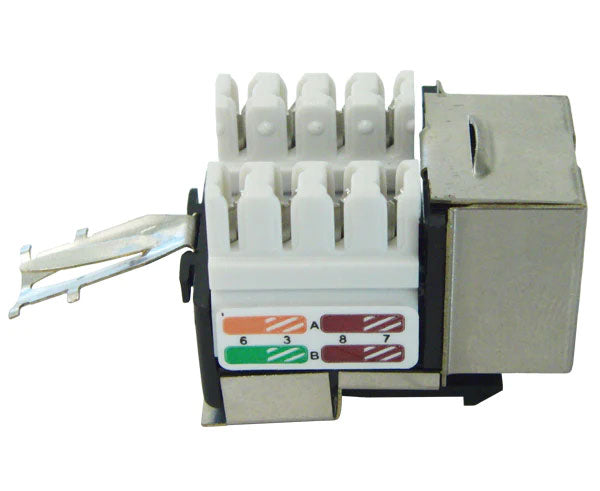

- Integrated T568A/B wiring guide on each jack for easy installation
- Easy-to-read wiring labels facilitate quick setup
- Nylon termination terminals for durability
- Flame-retardant PCB board (UL 94 V-0)

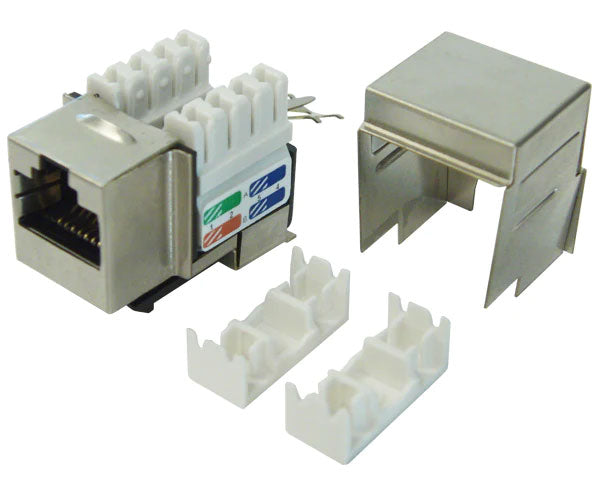

- Shielded wire cap included for protection
- Meets and exceeds EIA/TIA standards
- UL Compliant and RoHS Compliant
Technical Specifications
- Performance: CAT5E, up to 350 MHz
- Configuration: 8-pin × 8-conductor
- Shielding: Fully shielded metal case for EMI/crosstalk protection
- Housing Material: Fire-retardant plastic (UL 94 V-0)
- Termination Terminals: Nylon
- PCB Board: Flame-retardant (UL 94 V-0)
- IDC 110 Contacts: Phosphorus brass plated with nickel
- Nose Contacts: Brass with minimum 50 micro-inch gold plating
- Termination Type: 90° 110-type IDC
- Power Support: PoE++ (802.3bt) up to 100W
- Included Accessories: Shielded wire cap
- Standards Compliance: Meets and exceeds EIA/TIA standards
- Certifications: UL Compliant, RoHS Compliant
