CAT5E RJ45 Shielded Keystone Coupler – Snap-In with Latch
Couldn't load pickup availability

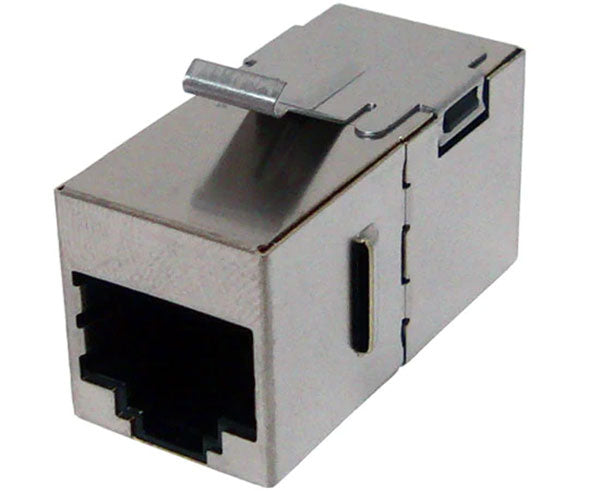

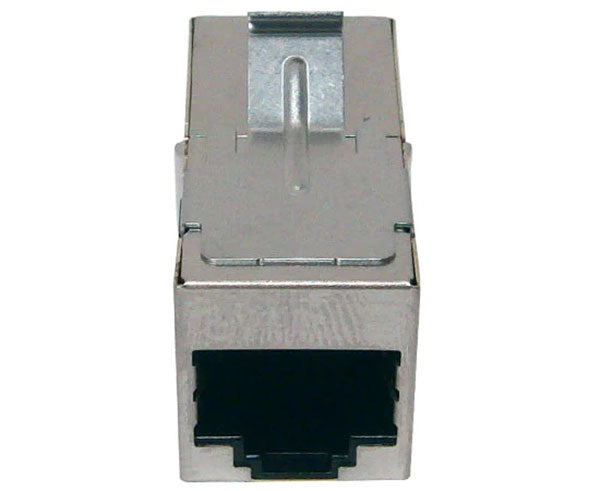

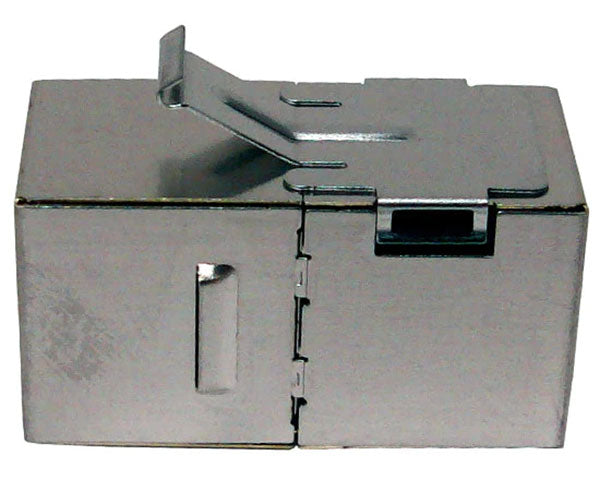

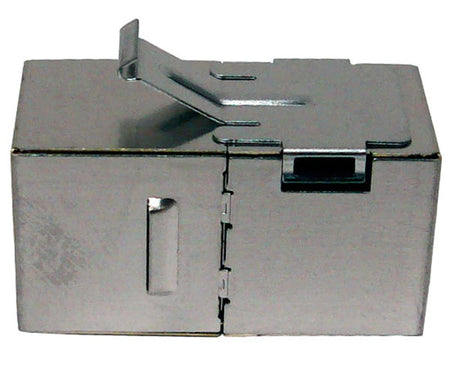

CAT5E RJ45 Shielded Keystone Coupler
Our snap-in shielded CAT5E keystone coupler is the ideal solution for extending telephone or computer patch cords throughout your home or office. Designed to snap into high-density wall plates and patch panels, this coupler links two shielded networking patch cables together with a secure female-to-female connection. Fully enclosed in a metal case, the coupler protects your signal against electromagnetic interference. Features gold-plated brass contacts and 8-conductor straight-through RJ45 CAT5E configuration with Press-Fit PCB technology for reliable, lead-free connections.
We take great pride in our quality control procedures and commitment to excellence. Our snap-in shielded CAT5E keystone couplers are UL Listed and meet all requirements for EIA/TIA standards. They are rigorously inspected and tested to comply with stringent transmission and safety standards.
Key Features
- CAT5E performance supporting speeds up to 350 MHz
- Shielded design with full metal case for EMI and crosstalk protection
- Female-to-female RJ45 connection for easy cable extension
- Snap-in keystone design with secure latch
- 8-conductor straight-through configuration
- Press-Fit PCB technology ensures high-quality, reliable connections
- Gold-plated over nickel contacts for superior signal clarity and corrosion resistance
- Phosphor bronze contacts for excellent conductivity and wear resistance
- Lead-free construction (no solder used)
- Small form factor ideal for high-density installations
- Compatible with CAT5E F/UTP Ethernet cables and patch cords
- Works with high-density patch panels and WP2-series wall plates
- Black ABS plastic housing (UL 94V-0) with full metal shielding
- Designed for professional computer networking applications
- Quick installation—no termination required
- Meets and exceeds industry standards
- UL Listed
Technical Specifications
- Performance: CAT5E, up to 350 MHz
- Connector Type: RJ45 female to RJ45 female
- Configuration: 8-conductor straight-through
- Shielding: Full metal shielding for EMI/crosstalk protection
- Dimensions: 14.6mm W × 16.3mm H × 30mm D
- Housing: Black ABS plastic (UL 94V-0) with full metal shielding
- Contact Material: Phosphor bronze with 3-50 micro-inch gold plating over nickel
- PCB: FR4, UL 94V-0
- PCB Technology: Press-Fit (lead-free, no solder)
- Mounting: Snap-in keystone with latch
- Cable Compatibility: CAT5E F/UTP (foil shielded) Ethernet cables and patch cords
- Wall Plate Compatibility: High-density WP2-series wall plates and patch panels
- Standards Compliance: Meets and exceeds EIA/TIA standards
- Certifications: UL Listed
