CAT7 Riser Rated Bulk Ethernet Cable, Solid Copper, SFTP, 23 AWG - 1,000 ft

SKU: C7SHDIN-1000BLU
Regular price $374.00
Color

CAT7 Dual-Shield Riser-Rated Ethernet Cable — S/FTP, 23 AWG Solid Copper, 1000 ft Wooden Spool

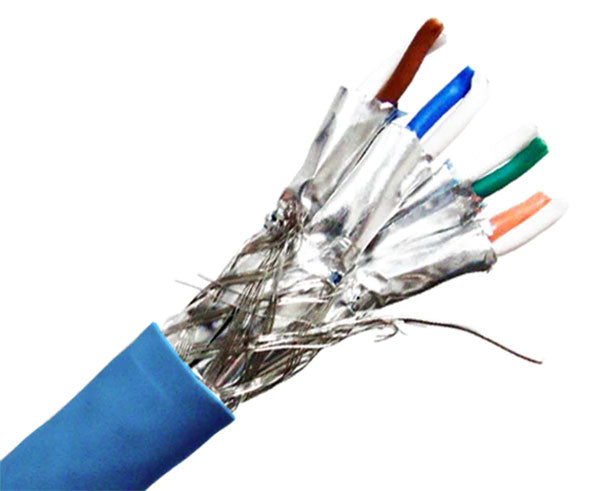

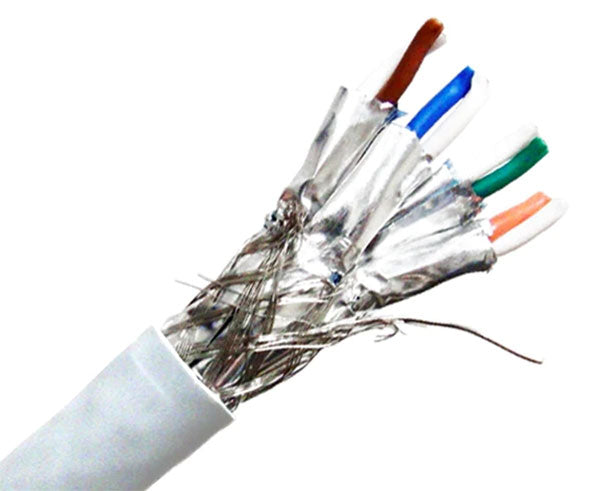

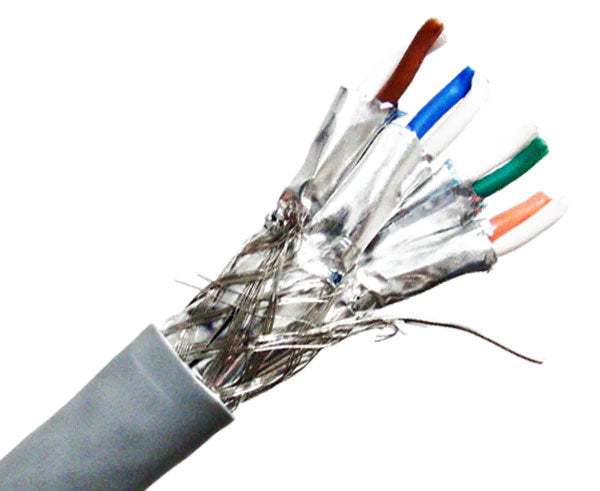

Push 10-gigabit signals through the most demanding indoor runs. Each of the four twisted pairs in this Category 7 cable is individually wrapped in aluminum-mylar foil. Then, all pairs are protected again by an overall tinned-copper braid and bonded to a dedicated drain wire, locking out EMI/RFI and eliminating crosstalk in high-noise environments.

Key Highlights

  • S/FTP Double Shield – Foil on every pair + overall tinned-copper braid for superior noise rejection.
  • True 10 Gb/s Performance – Built to ISO/IEC 11801 Class F and exceeds ANSI/TIA-568.2-D; ready for 10 GBASE-T, PoE++, Gigabit/Fast Ethernet, and TP-PMD/CDDI.
  • 23 AWG Solid Bare-Copper Conductors – Low resistance delivers cooler PoE runs and minimal attenuation.
  • CMR Riser PVC Jacket – Flame-retardant and UL-rated for vertical shafts and in-wall installations (non-plenum).
  • Installer-Friendly – Sequential footage markers on a sturdy 1,000 ft wooden reel keep long pulls organized and accurate.

Ideal for: data centers, broadcast studios, medical facilities, industrial control rooms, or any indoor application where absolute signal integrity at 10 Gb/s is non-negotiable.

Specifications
Cable Type
CAT7 Riser Rated
Shielding
Double Shielded (S/FTP)
Indoor Rated
YES
Outdoor Rated
NO
Jacket Material
PVC - CMR
Conductor Material
Solid Bare Copper
Data Rate
10GBASE-T
Maximum Operating Frequency
1,000 MHz
Gauge
23 AWG
Outer Diameter
7.5 ± 0.5mm
Drain Wire
YES
