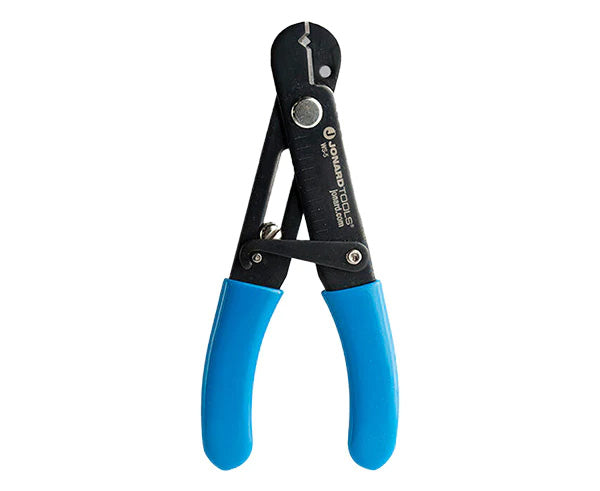

Adjustable Wire Stripper & Cutter 10-30 AWG - High Carbon Steel, Spring-Loaded (WS-5)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

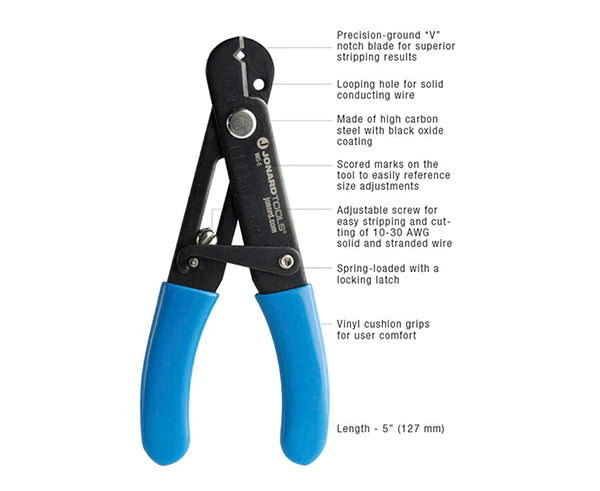

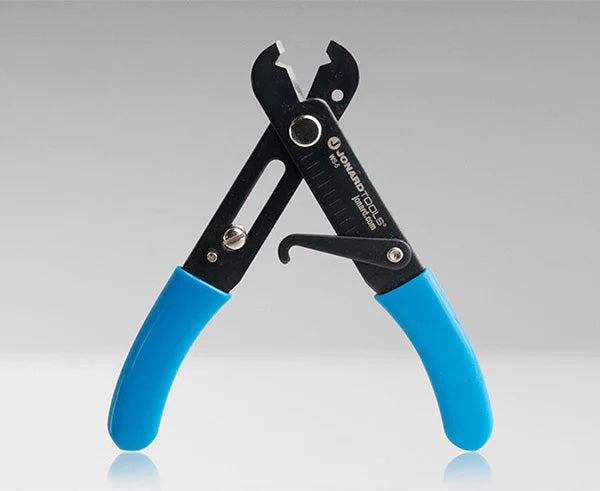

A wire stripper with fixed gauge holes is right for the sizes it has and wrong for everything between, and the Jonard Tools WS-5 takes a different approach: a precision-ground V-notch blade and an adjustable blade stop that set to any wire size from 10 to 30 AWG (2.6 to 0.25 mm), solid or stranded. Turn the adjustment screw to the gauge, using the scored marks on the tool as a reference, and the stop keeps the blades from closing past the insulation, so the strip comes off clean without a nick in the conductor; the same jaws cut the wire. It's spring-loaded, with a locking latch that holds it closed in the pouch, a looping hole for bending a solid conductor into a terminal hook, high carbon steel with a black oxide coating, and vinyl cushion grips, at five inches and a sixth of a pound.

Features

• Any size from 10 to 30 AWG. An adjustable screw sets the V-notch blade for solid or stranded wire from 2.6 to 0.25 mm, not just a few fixed gauges.
• Precision-ground V-notch blade and adjustable stop. The stop sets how far the blades close, so they cut the insulation and stop short of the conductor.
• Scored size marks. Reference marks on the tool for setting and returning to a gauge.
• Spring-loaded with a locking latch. Opens on release for fast work, locks closed for the pouch.
• Wire looping hole. Bends a solid conductor into a hook for a screw terminal.
• High carbon steel, black oxide, vinyl grips. Built for long life, with cushion grips for comfort.

Where It Fits

It suits electricians and low-voltage installers who meet 22 AWG security cable, 18 AWG thermostat wire, and 12 AWG branch circuit in the same day and want one stripper set to whichever is in hand, alarm and access control technicians terminating stranded and solid conductors at panels and keypads, bench and lab work on hookup wire down to 30 AWG, anyone who has nicked a conductor in a fixed-hole stripper because the wire was a size between holes, and a pouch or a drawer that needs a stripper and a cutter in one five-inch tool at a price that makes it easy to keep a spare.

Good to Know

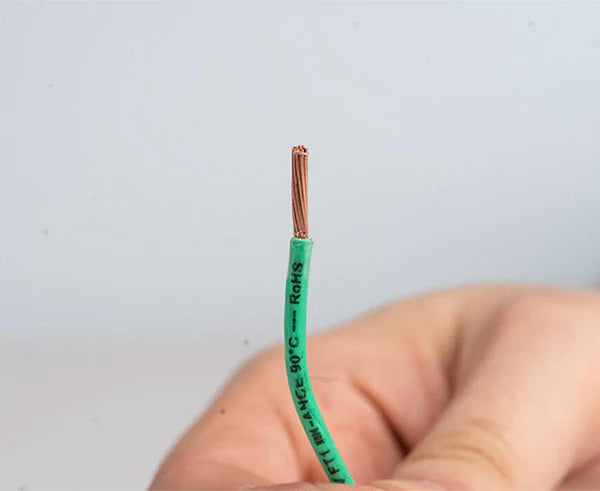

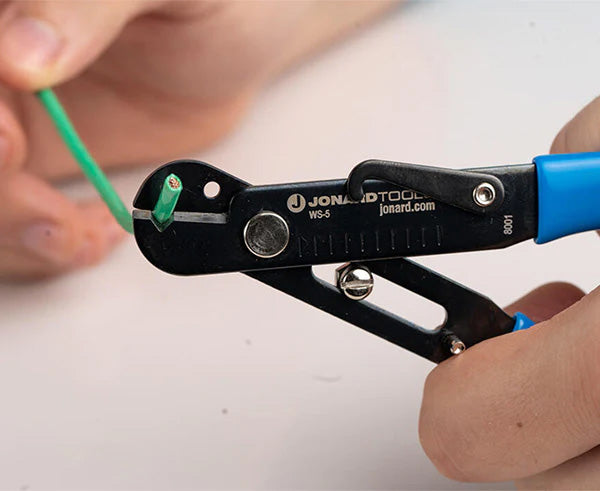

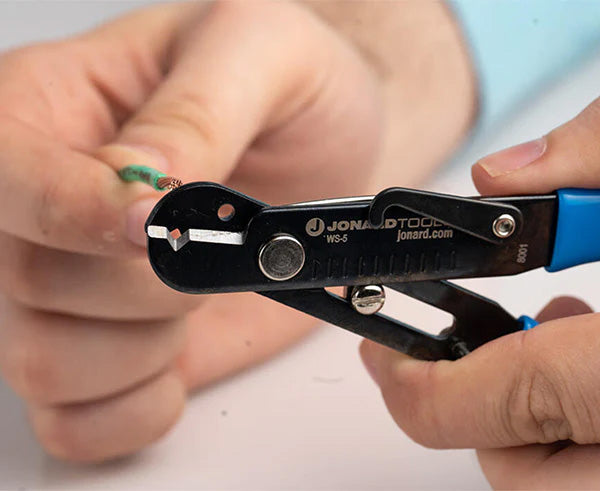

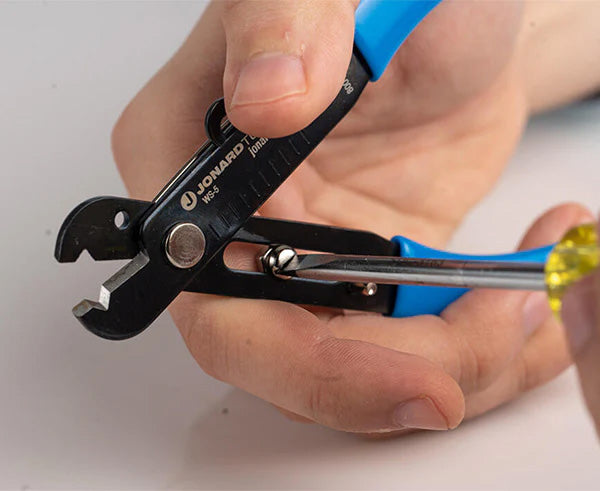

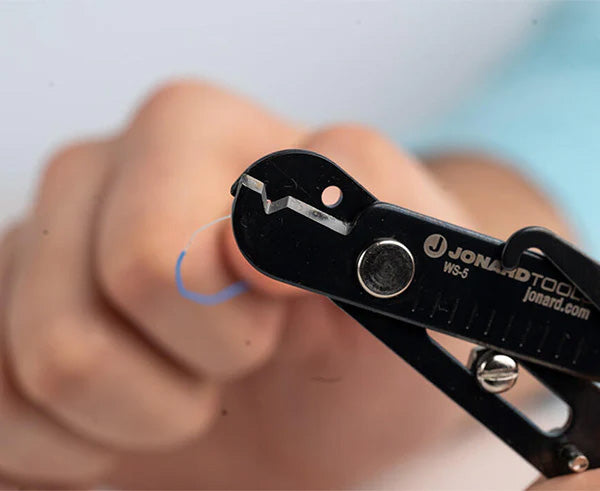

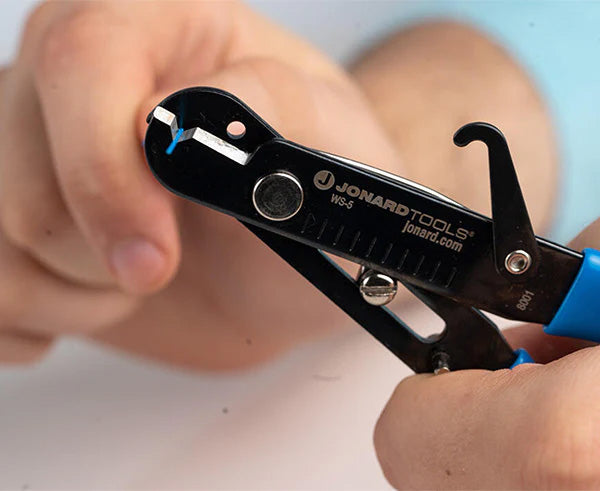

Set the screw for the wire before the first strip, then test on a scrap: if the insulation tears instead of slicing, open the stop a little; if the conductor shows a ring mark or a strand is cut, close it a little. On stranded wire set it slightly looser than on solid of the same gauge, since the strands sit loose in the insulation and a strand nicked at the strip is a strand that breaks at the terminal. The scored marks get you close; the scrap test gets you there. To strip, close the jaws on the wire at the strip length, rotate a quarter turn if the insulation is tough, and pull the slug off straight. Use the looping hole on solid conductor only; stranded wire looped by hand lays better under a screw. Cut with the same jaws, but keep the cut to 10 AWG and under; this is a stripper that cuts, not a cable cutter. The latch is what keeps the spring-loaded handles from opening in a pouch, so lock it before it goes in, and a drop of oil on the pivot now and then keeps the black oxide tool from stiffening. Check for voltage before you strip anything that may carry it; the vinyl grips are for comfort, not insulation.
