Adjustable Wire Stripper 20-30 AWG - Fiber Optic Buffer Coating Stripper, Hardened Steel (ST-500)
Ships direct from the manufacturer — please allow up to 10 business days, though it often ships sooner, then goes out via the shipping service you select at checkout. This item does not ship from our warehouse, so delivery times may vary.
Couldn't load pickup availability
Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

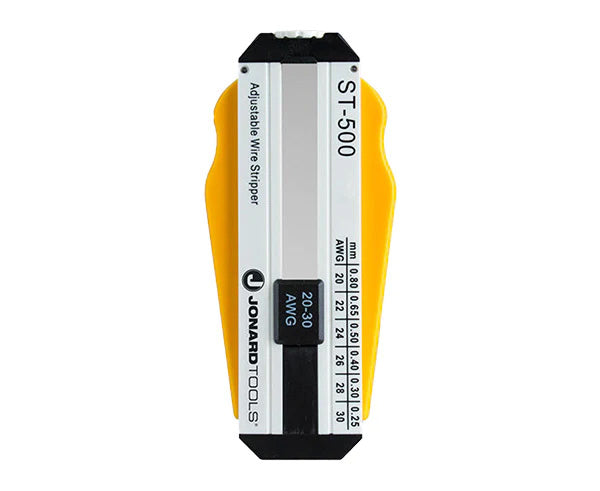

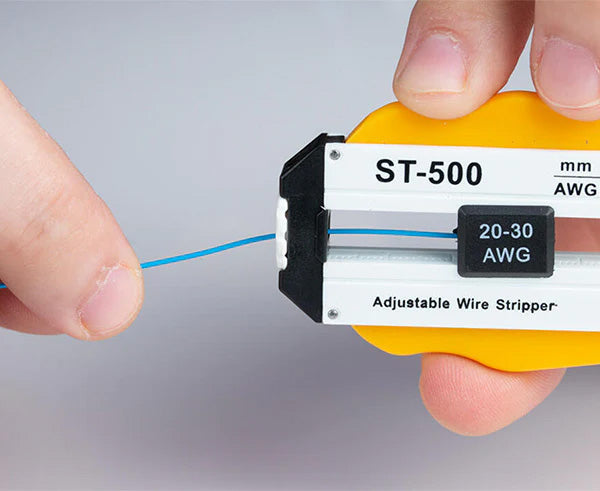

The 900 µm buffer on a tight-buffered fiber is about the same diameter as the insulation on a fine hookup wire, and the Jonard Tools ST-500 is the stripper built around that overlap. It's a pocket-size adjustable wire stripper for 20 to 30 AWG (0.80 to 0.25 mm) solid and stranded wire that also strips the 900 µm buffer coating from fiber optic cable, with a built-in adjustment dial that changes the strip gauge in a turn and an adjustable stop that sets the strip length anywhere from 0.039 to 2.0 in (1.0 to 50.8 mm), so a run of leads or a tray of fiber pigtails all strip to the same length without measuring. The hardened steel blade cuts cleanly at the gauge the dial is set to, the tool is 3.85 in long and weighs an ounce, and it can be heated to 100 °C in water for sterilization. For 18 AWG wire, the ST-550 is the same tool one range up.
Features
- 20 to 30 AWG, solid or stranded. Covers hookup, control, and sensor wire from 0.80 mm down to 0.25 mm conductors.

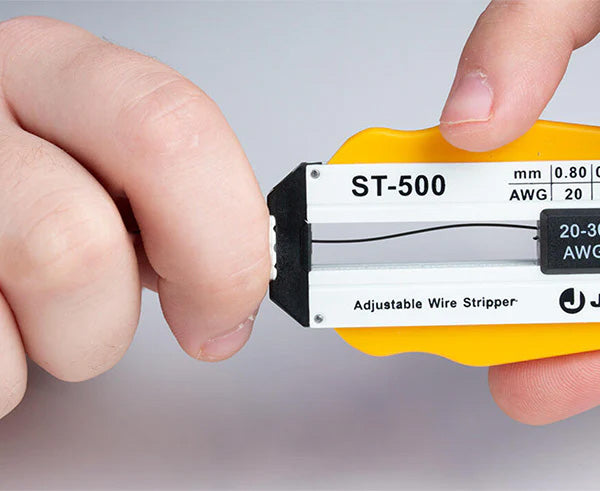

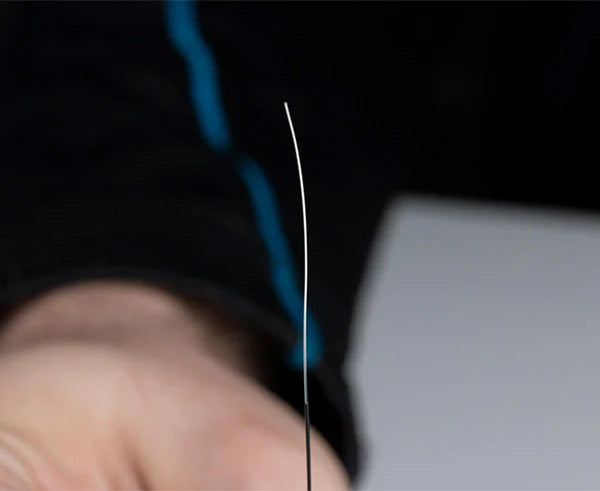

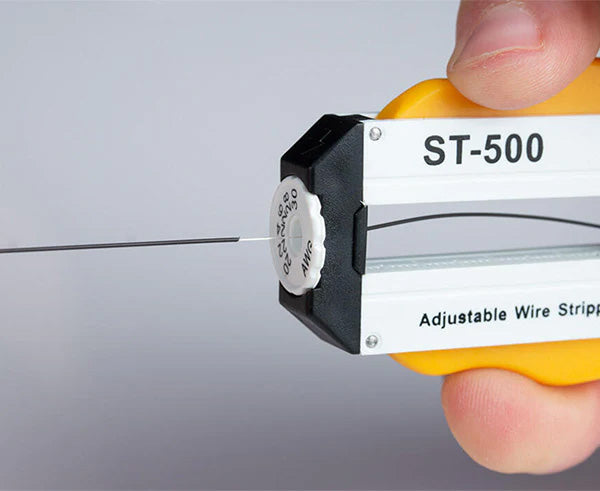

- Strips 900 µm fiber buffer. Set the dial for the buffer coating on tight-buffered fiber and strip it the same way as wire.

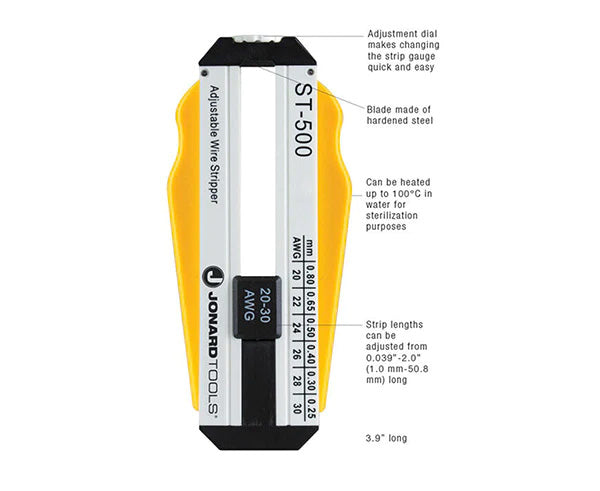

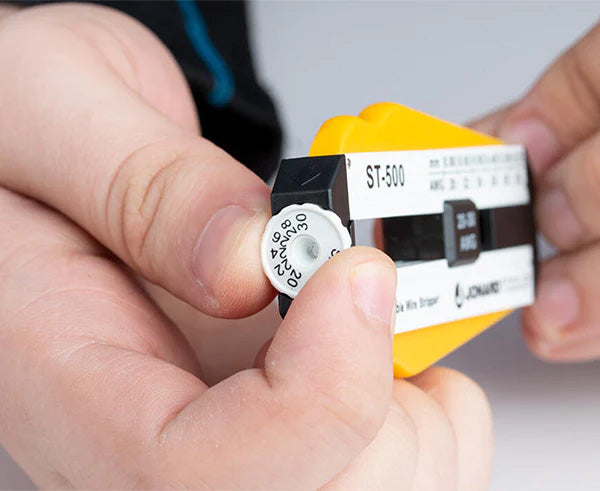

- Adjustment dial. Changes the strip gauge quickly, with no screw to loosen and reset.
- Adjustable strip-length stop. Set a length from 0.039 to 2.0 in (1.0 to 50.8 mm) and every strip repeats it.
- Hardened steel blade. Cuts the insulation with precision and holds its edge.
- Pocket size. 3.85 in long and about an ounce.
- Sterilizable. Can be heated to 100 °C (212 °F) in water for sterilization.
Where It Fits
It suits fiber technicians who want one small tool for stripping 900 µm buffer to a set length on pigtails and breakout cable, especially where a batch of fibers all need the same strip for a splice tray or a splice-on connector, bench and prototype work on 22 to 30 AWG hookup wire and wire-wrap leads, control and instrumentation technicians landing 20 to 24 AWG wire on terminal strips and PLC I/O, alarm and access control installers stripping 22 AWG security cable conductors at keypads and panels, lab and medical device work that needs a tool that can be sterilized in boiling water, and anyone whose heavier stripper bottoms out at 22 or 24 AWG. For 18 AWG and up, the ST-550 covers 18 to 28 AWG, and the plier-style WS-5 goes from 10 to 30 AWG with a wire cutter and looping hole.
Good to Know

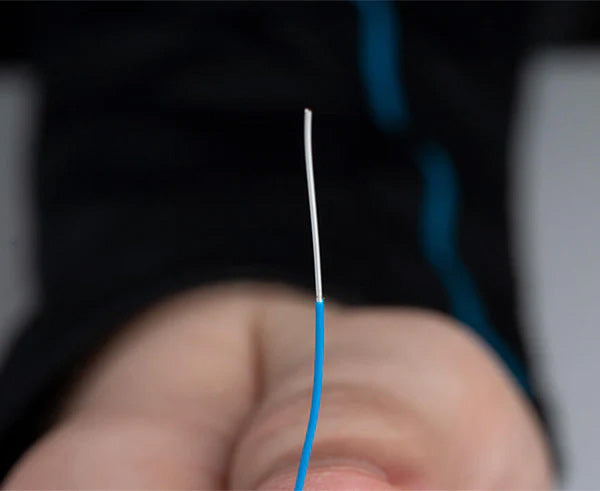

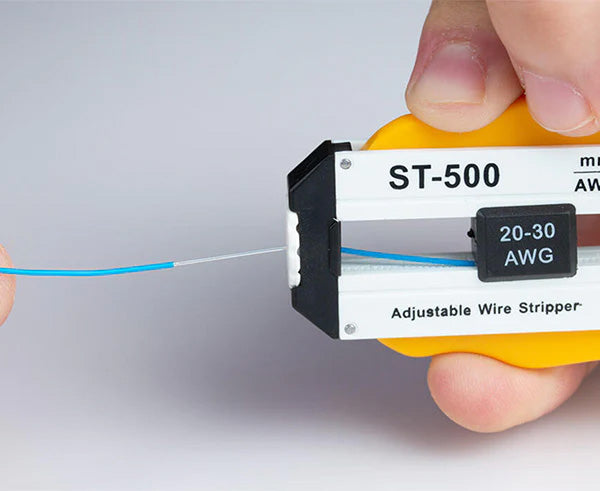

Set the dial to the wire gauge before the first strip and test on a scrap. If the insulation tears or stretches rather than slicing, the gauge is set a size too small; if a conductor shows a ring mark or a strand is cut, it's a size too large, and on stranded wire of the same gauge err toward the looser setting, since a nicked strand at the strip is the one that breaks at the terminal later. On fiber, the same rule is stricter: the dial has to cut the 900 µm buffer and stop short of the 250 µm coating and the glass under it, so set it on a scrap of the same fiber and inspect the result before stripping anything that matters, strip in short pulls with the tool square to the fiber, and go to a dedicated fiber stripper like the JIC-275 or JIC-375 for the 250 µm coating, which this tool isn't sized for. Set the stop to the strip length the terminal, the splice, or the connector calls for, then butt the wire or fiber against it every time so the length repeats. Pull the slug off straight; twisting the tool is what scratches a fine conductor or a fiber. This is a stripper, not a cutter, so trim wire to length with flush cutters first. The upper end of the range is 20 AWG; the ST-550 takes 18 AWG and the WS-5 goes to 10. To sterilize, heat in water to 100 °C and let the tool dry fully before it goes back in a pocket, so the hardened blade doesn't sit wet. Check for voltage before you strip anything that may carry it; the tool isn't insulated. Stripped buffer and any broken fiber go in a scraps can, not the floor.
Specifications
| Spec | Detail |
|---|---|
| Model | ST-500 |
| Manufacturer | Jonard Tools |
| Type | Adjustable wire stripper, pocket size |
| Cut Type | Strip |
| Wire Gauge | 20 to 30 AWG (0.80 to 0.25 mm) |
| Cable Type | Solid and stranded conductors; 900 µm fiber buffer coating |
| Gauge Adjustment | Built-in dial |
| Strip Length | 0.039 to 2.0 in (1.0 to 50.8 mm), adjustable stop |
| Maximum Strip Length | 2.0 in (50.8 mm) |
| Blade Material | Hardened steel |
| Sterilization | Can be heated to 100 °C (212 °F) in water |
| Dimensions | 3.85 × 1.75 × 0.51 in (9.78 × 4.45 × 1.28 cm) |
| Weight | 0.05 lb (21 g) |
| Shipping | Ships direct from the manufacturer, allow up to 10 business days |
Documentation
| Document | Link |
|---|---|
| Data Sheet | ST-500 data sheet (PDF) |
