ESD Safe Adjustable Wire Stripper 20-30 AWG - Hardened Steel Blade, Compact Design (ST-500ESD)

SKU: ST-500ESD UPC: 811490011731
Regular price $60.95
Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Ships direct from the manufacturer — please allow up to 10 business days, though it often ships sooner, then goes out via the shipping service you select at checkout. This item does not ship from our warehouse, so delivery times may vary.

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

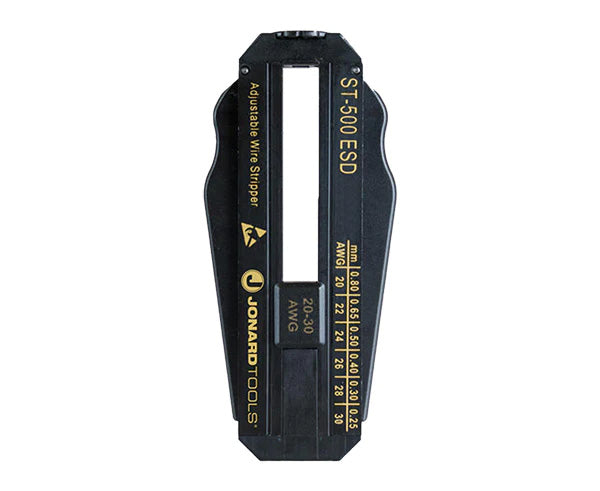

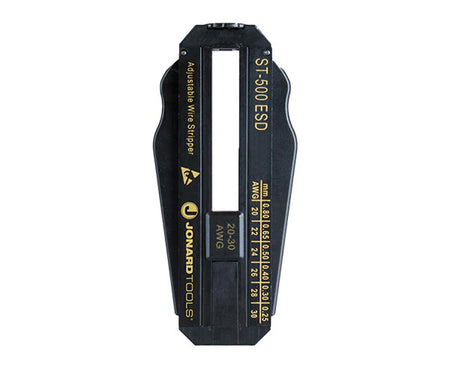

A static charge that builds on a plastic hand tool has nowhere to go until it finds a component lead, which is why an ordinary stripper has no place at an ESD-protected bench. The Jonard Tools ST-500ESD is the ST-500 pocket stripper in a static-dissipative housing: ESD-safe polycarbonate that bleeds charge off instead of holding it, for stripping 20 to 30 AWG (0.80 to 0.25 mm) solid and stranded wire around static-sensitive electronics. The rest is the same tool. A built-in adjustment dial changes the strip gauge in a turn, an adjustable stop sets the strip length anywhere from 0.039 to 2.0 in (1.0 to 50.8 mm) so a run of leads all strip to the same length without measuring, the hardened steel blade cuts cleanly at the gauge the dial is set to, the tool is 3.85 in long and weighs an ounce, and it can be heated to 100 °C in water for sterilization.

Features

  • ESD-safe polycarbonate housing. Static-dissipative, so the tool doesn't carry a charge to the work.
  • 20 to 30 AWG, solid or stranded. Covers hookup, control, and sensor wire from 0.80 mm down to 0.25 mm conductors.

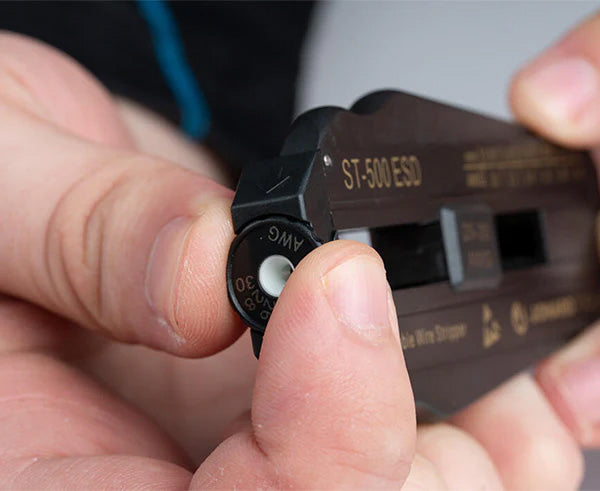

  • Adjustment dial. Changes the strip gauge quickly, with no screw to loosen and reset.
  • Adjustable strip-length stop. Set a length from 0.039 to 2.0 in (1.0 to 50.8 mm) and every strip repeats it.
  • Hardened steel blade. Cuts the insulation with precision and holds its edge.
  • Pocket size. 3.85 in long and about an ounce.
  • Sterilizable. Can be heated to 100 °C (212 °F) in water for sterilization.

Where It Fits

It suits electronics assembly and rework stations inside an ESD-protected area, where every tool that touches the work has to be dissipative, PCB prototyping and repair on 22 to 30 AWG hookup and jumper wire, cable harness builds for sensitive instruments and medical devices, where the stop sets the strip length for every lead in the harness, lab work that needs a stripper that can go in boiling water and won't zap a sensor on the way out, test and repair benches handling boards with FETs, memory, and other static-sensitive parts, and anyone who uses the standard ST-500 and has been asked to take it off an ESD bench. Outside the ESD area, the ST-500 is the same stripper in a standard housing, the ST-550 covers 18 to 28 AWG, and the plier-style WS-5 goes from 10 to 30 AWG with a wire cutter and looping hole.

Good to Know

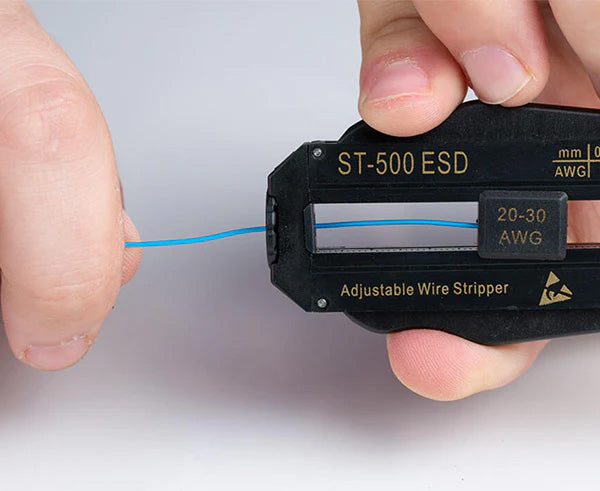

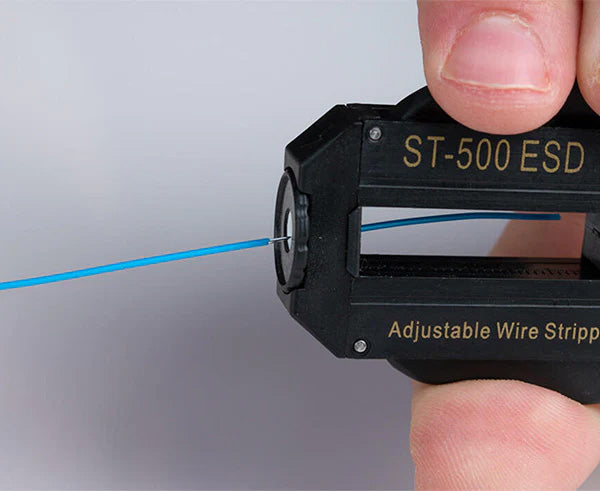

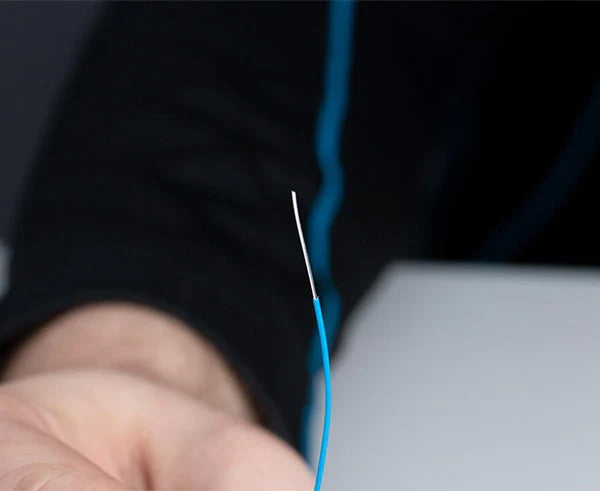

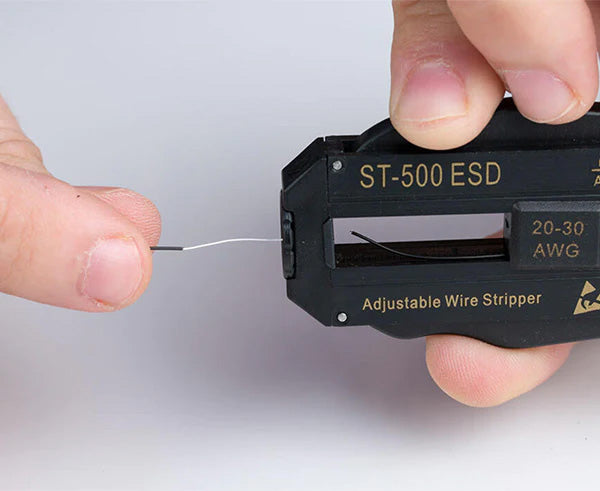

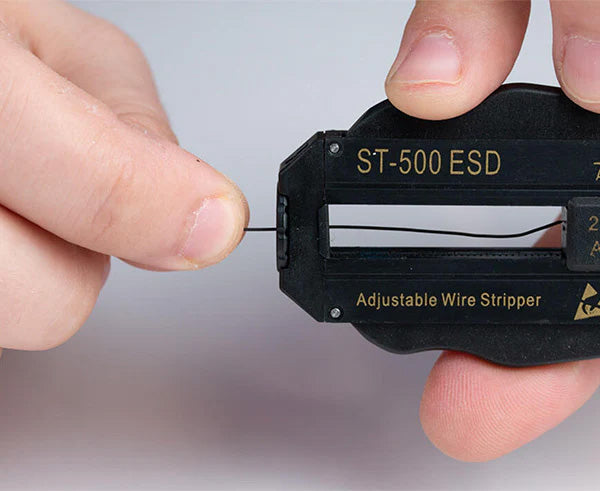

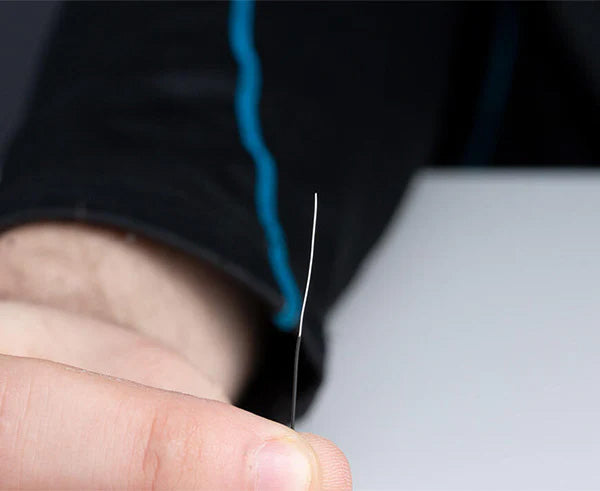

A dissipative tool is one part of an ESD program, not a substitute for the rest; the housing drains charge only when it has a path to ground, which means the operator is wearing a wrist strap or heel grounders and working on a grounded mat. The blade is steel and conductive on its own, so the tool's ESD safety is about the housing you hold. Set the dial to the wire gauge before the first strip and test on a scrap: if the insulation tears or stretches rather than slicing, the gauge is set a size too small; if a conductor shows a ring mark or a strand is cut, it's a size too large, and on stranded wire of the same gauge err toward the looser setting, since a nicked strand at the strip is the one that breaks at the terminal later. Set the stop to the strip length the terminal, the pad, or the connector calls for, then butt the wire against it every time so the length repeats. Pull the slug off straight; twisting the tool is what scratches a fine conductor. This is a stripper, not a cutter, so trim wire to length with flush cutters first. The upper end of the range is 20 AWG; the ST-550 takes 18 AWG and the WS-5 goes to 10. To sterilize, heat in water to 100 °C and let the tool dry fully before it goes back in a pocket or a bench drawer, so the hardened blade doesn't sit wet. Check for voltage before you strip anything that may carry it; the tool isn't insulated.

Specifications

Spec Detail
Model ST-500ESD
Manufacturer Jonard Tools
Type Adjustable wire stripper, pocket size, ESD safe
Cut Type Strip
Wire Gauge 20 to 30 AWG (0.80 to 0.25 mm)
Cable Type Solid and stranded conductors
Housing Material ESD-safe polycarbonate, static dissipative
Gauge Adjustment Built-in dial
Strip Length 0.039 to 2.0 in (1.0 to 50.8 mm), adjustable stop
Maximum Strip Length 2.0 in (50.8 mm)
Blade Material Hardened steel
Sterilization Can be heated to 100 °C (212 °F) in water
Dimensions 3.85 × 1.75 × 0.51 in (9.78 × 4.45 × 1.28 cm)
Weight 0.05 lb (21 g)
Shipping Ships direct from the manufacturer, allow up to 10 business days

Documentation

Document Link
Data Sheet ST-500ESD data sheet (PDF)
