9" Locking Terminator Tool (TTCG-6270-9)

Ships direct from the manufacturer. Please allow up to 10 business days, though it often ships sooner.

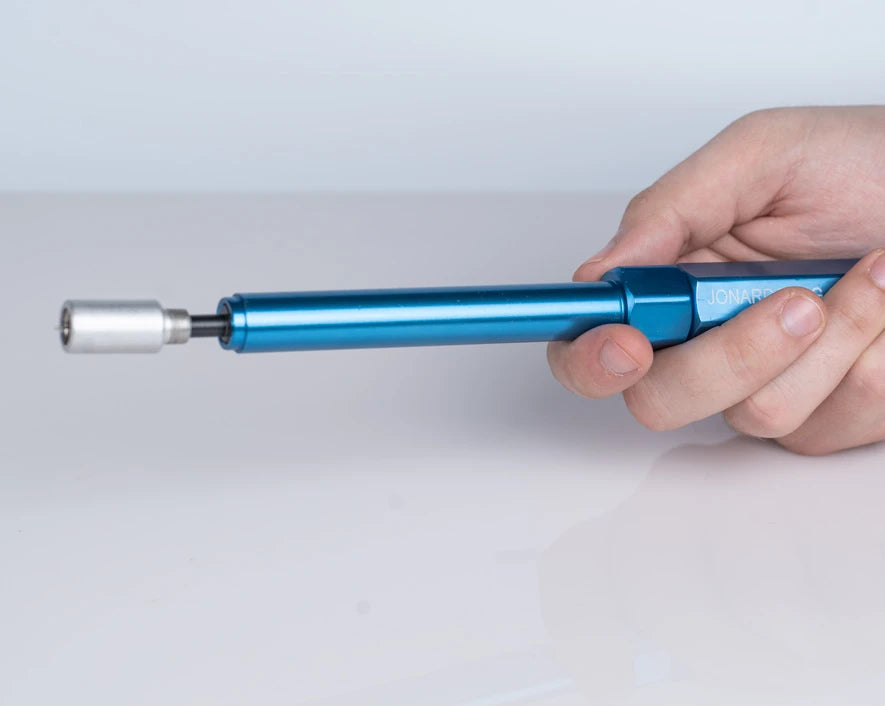

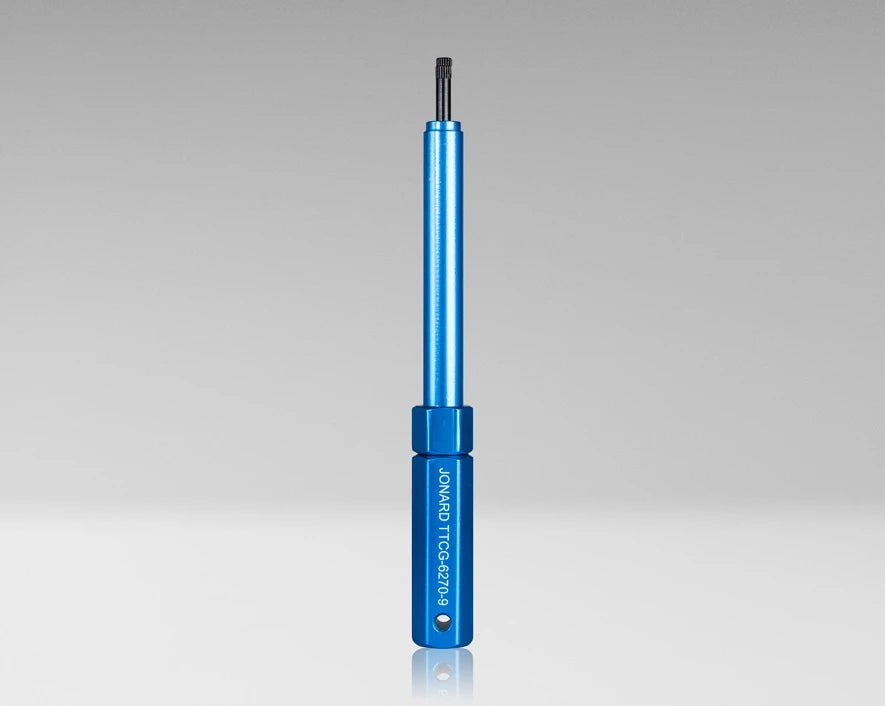

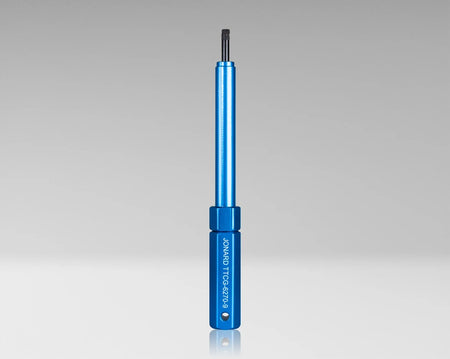

Some tap ports are a reach: behind a strand clamp, at the back of a pedestal, up in a lock box with the lid half open. The Jonard Tools TTCG-6270-9 is the 9 in locking terminator tool for Corning Gilbert cam-style terminators, with the length to get a cam tip onto a port that a shorter tool can't touch. The tip engages the Gilbert NS-5762-3, NS-5762-9, NS-5762-11, NS-5762-13, and NS-5762-15 terminators and other similar types, so a port can be terminated or opened for a connect in one turn. The tool is anodized aluminum for long life and a bit over a third of a pound, and the tip is 1/4 in (6.35 mm) across. For the same tool in a 5 in length that fits a pouch and a crowded tap face, see the TTCG-6270-5.

Features

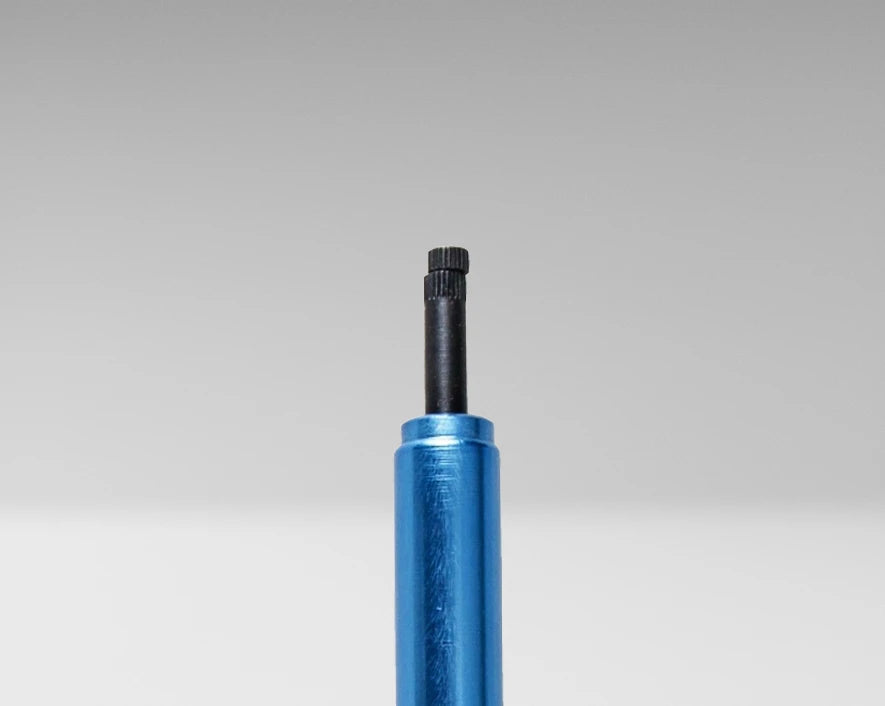

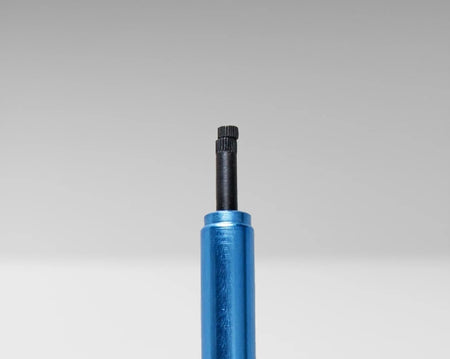

• Cam-style locking terminator tip. Made for Corning Gilbert style terminators.
• Gilbert NS-5762 series. Works on NS-5762-3, NS-5762-9, NS-5762-11, NS-5762-13, and NS-5762-15 terminators, and similar types.
• Long 9 in reach. Gets to terminators in hard-to-reach spaces.
• Anodized aluminum. High-quality construction for durability and a long life.

Where It Fits

It suits CATV and broadband technicians doing connects and disconnects at taps secured with Gilbert locking terminators where the port is set back or obstructed, aerial techs working a tap from a bucket where the extra reach saves a reposition, pedestal and vault work where the tap is at the bottom of the enclosure, audit and theft-of-service crews terminating unauthorized ports, contractors whose operator specs Gilbert NS-5762 terminators and issues the tool to match, and a truck that carries the 5 in TTCG-6270-5 for the close ports and this one for the rest. For other terminator and tap-port tools, see the Jonard terminator tools in the same category.

Good to Know

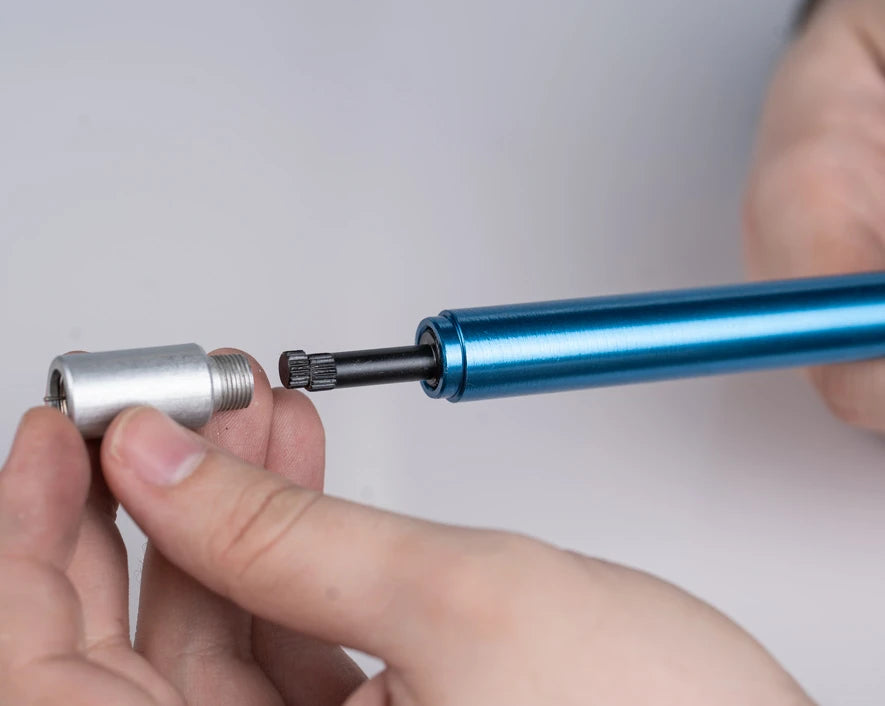

Locking terminators are access control for the operator's plant, and the tool is for technicians authorized to open and secure those ports; carry it on the strength of the work order. Match the terminator before you reach for the tool: the NS-5762 series is the cam style this tool fits, and a terminator from another maker or a different Gilbert series may look similar and not engage, in which case forcing the cam rounds the lock and leaves a port that can't be opened by anyone. Seat the tip fully on the terminator, turn to lock or unlock, and lift straight off; with nine inches of tool the leverage is greater and so is the temptation to force a stuck one, and the tool turns the terminator but isn't a wrench for the port itself. Keep the tool in line with the port as you turn, since an angled tip on a long tool cams off the terminator and marks it. Put the terminator back on every port you open and don't leave terminated, since an open tap port is both a leak and an invitation. Anodized aluminum is light and won't rust, but it's softer than a steel terminator, so the tip wears before the terminator does; a tool that starts to slip on a known-good terminator is due for replacement. Tap ports on a powered plant can be live; check before working at the tap.
